Utilities to generate OpenAPI-compatible schema from API made with Django Rest Framework

Project description

===========
DRF OpenAPI
===========


.. image:: https://img.shields.io/pypi/v/drf_openapi.svg
:target: https://pypi.python.org/pypi/drf_openapi

.. image:: https://img.shields.io/travis/limdauto/drf_openapi.svg
:target: https://travis-ci.org/limdauto/drf_openapi

.. image:: https://readthedocs.org/projects/drf-openapi/badge/?version=latest
:target: https://drf-openapi.readthedocs.io/en/latest/?badge=latest
:alt: Documentation Status

.. image:: https://pyup.io/repos/github/limdauto/drf_openapi/shield.svg
:target: https://pyup.io/repos/github/limdauto/drf_openapi/
:alt: Updates

.. image:: https://badges.gitter.im/drf_openapi/Lobby.svg
:target: https://gitter.im/drf_openapi/Lobby?utm_source=badge&utm_medium=badge&utm_campaign=pr-badge&utm_content=badge
:alt: Join the chat at https://gitter.im/drf_openapi/Lobby


Generates OpenAPI-compatible schema from API made with Django Rest Framework. Use `ReDoc <https://github.com/Rebilly/ReDoc>`_ as default interface instead of Swagger.
First-class support for API versioning changelog & method-specific schema definition.

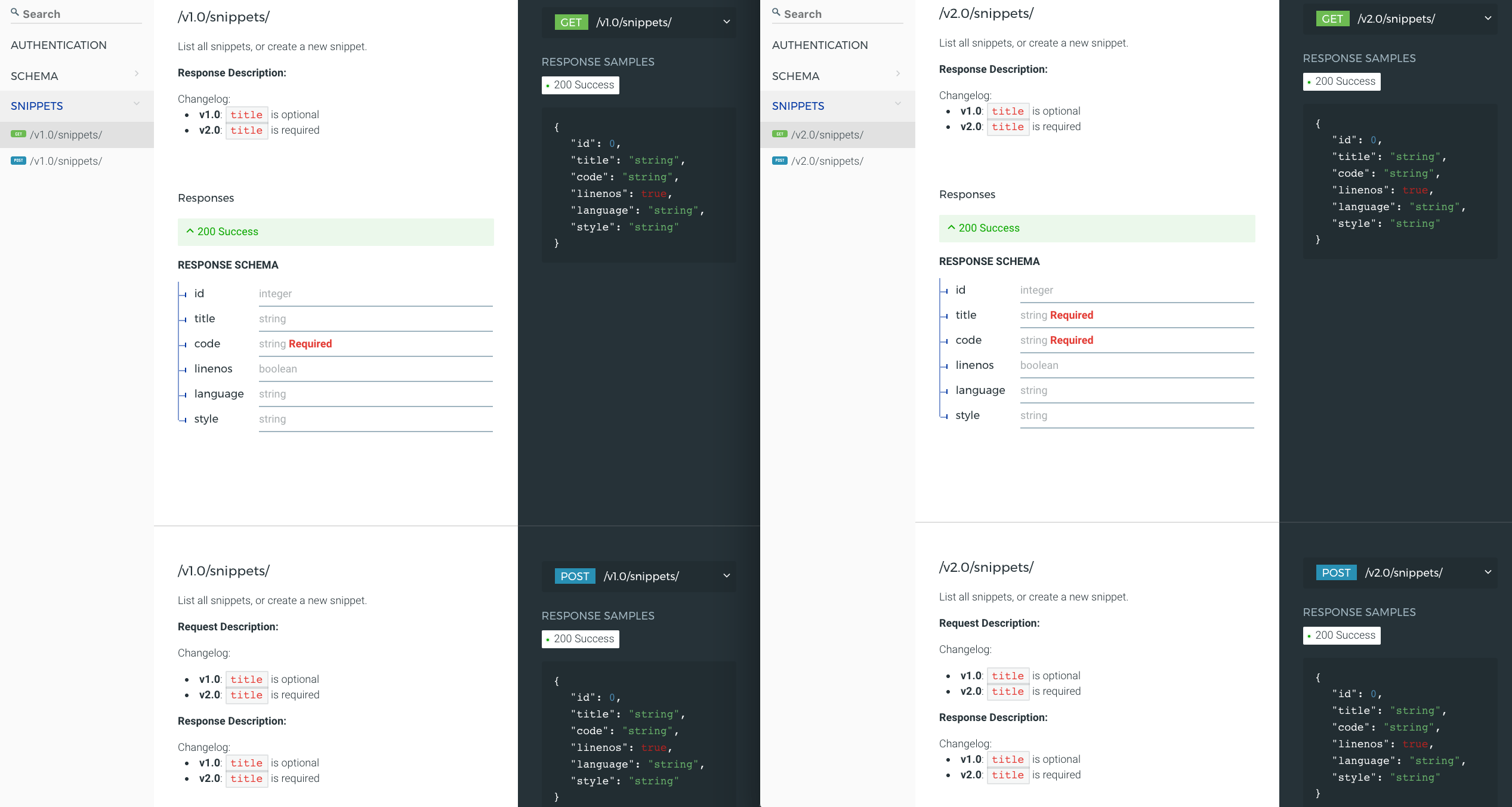

.. figure:: https://raw.githubusercontent.com/limdauto/drf_openapi/master/images/screenshot.png
:scale: 80%

.. contents::

1. Background
---------------

Django Rest Framework has an `API schema generation/declaration mechanism <http://www.django-rest-framework.org/api-guide/schemas/>`_ provided by
`coreapi <http://www.coreapi.org/>`_ standard. There are a couple of problems with the current ecosystem:

- CoreAPI is not compatible out of the box with `OpenAPI <https://www.openapis.org/>`_ which is a much more popular API standard with superior tooling support, i.e. Swagger et. al.
- The OpenAPI codec (compatibility layer) that CoreAPI team provides drops / doesn't support a number of useful OpenAPI features.
- There is no support for versioning or method-specific schema.

2. Requirements:
-------------------

This project was born to bridge the gap between DRF and OpenAPI. The high-level requirements are as followed:

- Can be dropped into any existing DRF project without any code change necessary.
- Provide clear disctinction between request schema and response schema.
- Provide a versioning mechanism for each schema. Support defining schema by version range syntax, e.g. :code:`>1.0, <=2.0`
- Support multiple response codes, not just :code:`200`
- All this information should be bound to view methods, not view classes.

It's important to stress the non-intrusiveness requirement, not least because I want to minimize what I will have to change when
DRF itself decides to support OpenAPI officially, if at all.

3. Design
-------------

- Schema are automatically generated from `serializers <http://www.django-rest-framework.org/api-guide/serializers/>`_
* From here onwards, :code:`schema` and :code:`serializer` are used interchangably
- Versioned schema is supported by extending :code:`VersionedSerializers`.
- Metadata, i.e. versioning, response and request schema, are bound to a view method through the :code:`view_config` decorator.
- Extra schema information such as response status codes and their descriptions are bound to the serializer :code:`Meta` class
- Automatic response validation is optionally provided :code:`view_config(response_serializer=FooSerializer, validate_response=True)`

4. Constraints
----------------

Currently DRF OpenAPI only supports DRF project that has `versioning <http://www.django-rest-framework.org/api-guide/versioning/#urlpathversioning>`_ enabled.
I have only tested `URLPathVersioning <http://www.django-rest-framework.org/api-guide/versioning/#urlpathversioning>`_ but I intend to suppor the full range of
versioning scheme supported by DRF.

5. Examples
------------

Please read the `docs <https://drf-openapi.readthedocs.io>`_ for a quickstart.

Also I have recreated the example in `DRF tutorial <http://www.django-rest-framework.org/tutorial/quickstart/>`_ with OpenAPI schema enabled
in `<examples/>`_.

6. License
------------
MIT


=======
History
=======

0.1.0 (2017-07-01)
------------------

* First release on PyPI.

0.7.0 (2017-07-28)
------------------

* Implement :code:`VersionedSerializer`
* Implement :code:`view_config`
* Make the library an installable Django app

0.8.0 (2017-07-28)
------------------

* Some minor fixes to make sure it works on generic project
* Add examples

0.8.1 (2017-07-28)
------------------

* Fix bug when parsing empty docstring of the serializer

0.9.0 (2017-07-28)
------------------

* Rename base :code:`VersionedSerializer` into :code:`VersionedSerializers`

0.9.1 (2017-07-28)
------------------

* Fix import issue after renaming

0.9.3 (2017-08-05)
------------------

* Add support for different response status codes (`Issue 27 <https://github.com/limdauto/drf_openapi/issues/27>`_)

0.9.5 (2017-08-12)
------------------

* Add Python 2.7 compatibility (thanks `tuffnatty <https://github.com/limdauto/drf_openapi/pull/35>`_)
* Add support for ModelViewSet (thanks `tuffnatty <https://github.com/limdauto/drf_openapi/pull/36>`_)

0.9.6 (2017-08-12)
------------------

* Fix type display for child of ListSerializer/ListField (`Issue 28 <https://github.com/limdauto/drf_openapi/issues/28>`_)

0.9.7 (2017-09-12)
------------------

* Improve permission for schema view (`Issue 31 <https://github.com/limdauto/drf_openapi/issues/31>`_)

0.9.8 (2017-10-01)
------------------

* Turn schema view into a class-based view for easier customization

0.9.9 (2017-10-01)
------------------

* Another fix for ListSerializer/ListField (`Issue 28 <https://github.com/limdauto/drf_openapi/issues/28>`_)

1.0.1 (2017-12-14)
------------------

* Fix DRF 3.7 compatibility issue
* Added (`werwty <https://github.com/werwty>`_) as a maintainer

1.1.0 (2017-12-14)
------------------

* Fix viewset that doesn't have pagination_class (`Issue 84 <https://github.com/limdauto/drf_openapi/issues/84>`_) and (`Issue 92 <https://github.com/limdauto/drf_openapi/issues/92>`_)

1.2.0 (2017-12-20)
------------------

* Make serializer_class optional (`Issue 57 <https://github.com/limdauto/drf_openapi/issues/57>`_)
