druhg 1.8.1

Universal clustering based on dialectical materialism

DRUHG

DRUHG - Dialectical Reflection Universal Hierarchical Grouping (друг).

Performs clustering based on densities, catches global outliers and allows visual cluster hierarchy navigation.

Does not require parameters. (The parameter is metric of space, e.x. euclidean)

The user can filter the size of the clusters with size_range, for genuine result/outliers set to [1,1].

Parameter fix_outliers allows to label outliers to their closest clusters via mstree edges.

Basic Concept

The algorithm works by applying the universal society rule: treat others how you want to be treated.

The A point checks surrondings of the point B and converts it in it’s own point of view.

Each pair A,B produces dialectical distance max( r/R d(r); d(R) ),

where r and R are amounts of points inside of balls from A to B and from B to A.

The closest distance wins and crystalizes into edge. Process repeats.

This orders outliers last and equal densities first. The best EDA Exploratory Data Analysis.

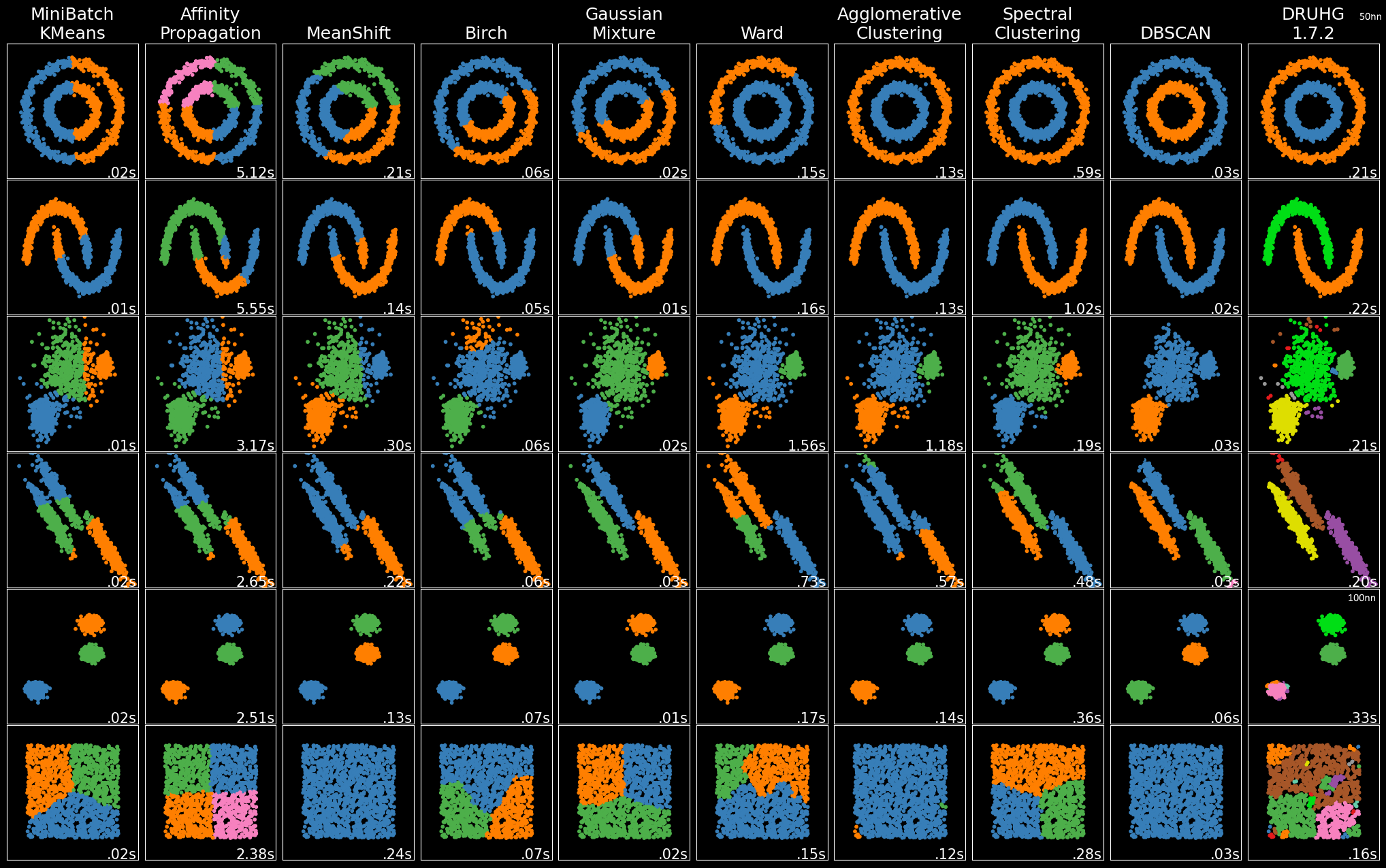

It’s great replacement for (H)DBSCAN and global outliers detection.

The expensiveness O(n*n) of all points pairs evaluation is not needed, only low k-neighbors matters.

Therefore you can control productivity vs precision with max_ranking parameter, after some k the result converges.

The cluster.

The formula behind clusters’ coloring best explain through graphs and the nature of maths objects.

The points are, the edges connects, and the dictionary of key-value pairs point-to-edge “colors”.

And when two graphs connects, then two sets of points can be linked to the connecting edge.

1. Both graphs clusterize to same edge, for a future connections it will be one cluster.

2. One graph clusterizes, its’ points link to the connecting edge. E.g. regular cluster.

3. No clusterisation. Everything aggregates. The connecting edge is not pointed by any point, and it doesn’t have a color.

Each graph reflects in it’s rival and solves mathematical inequality:

D N₂ L₁ sum₁ (nᵢ-1’)/nᵢdᵢ > l₁(L₁+L₂), where D - dialectical distance of connecting edge;

N₂ - rival’s points; L₁, L₂ - unique linked edges;

dᵢ - dialectical distance of the pointed edge (sum is iterated over unique pointed edges L₁, not their dd values);

nᵢ-1’ - amount of edges of one color (usually edges = points - 1, except outliers they have 1edge and 1 point);

thus (nᵢ-1)/nᵢdᵢ when nᵢ>1 and 1/dᵢ when nᵢ=1;

l₁ - amount of “colored” edges, every edge of a linked subgraph is counted, edges from no clusterisation example are not.

Newly formed cluster resists reclusterisation with it’s internal high dᵢ, high l₁ and low L₁.

Outliers bring 1 as N₂, contribute 1 to L₂ and they are easily countered with l₁.

External eventually huge D or N₂ or dillution of L₁ will clusterize anything.

This approach is drastically different from an usual overcome xyz coefficient.

How to use DRUHG

import sklearn.datasets as datasets
import druhg

iris = datasets.load_iris()
XX = iris['data']

clusterer = druhg.DRUHG(max_ranking=50)
labels = clusterer.fit(XX).labels_

It will build the tree and label the points. Now you can manipulate clusters by relabeling.

labels = dr.relabel(exclude=[7749, 100], size_range==[0.2, 2242], fix_outliers=1)
ari = adjusted_rand_score(iris['target'], labels)
print ('iris ari', ari)

Relabeling is cheap.

• exclude breaks clusters by label number,

• size_range restricts cluster size by percent or by absolute number,

• fix_outliers colors outliers by connectivity.

clusterer.plot(labels)

It will draw mstree with druhg-edges.

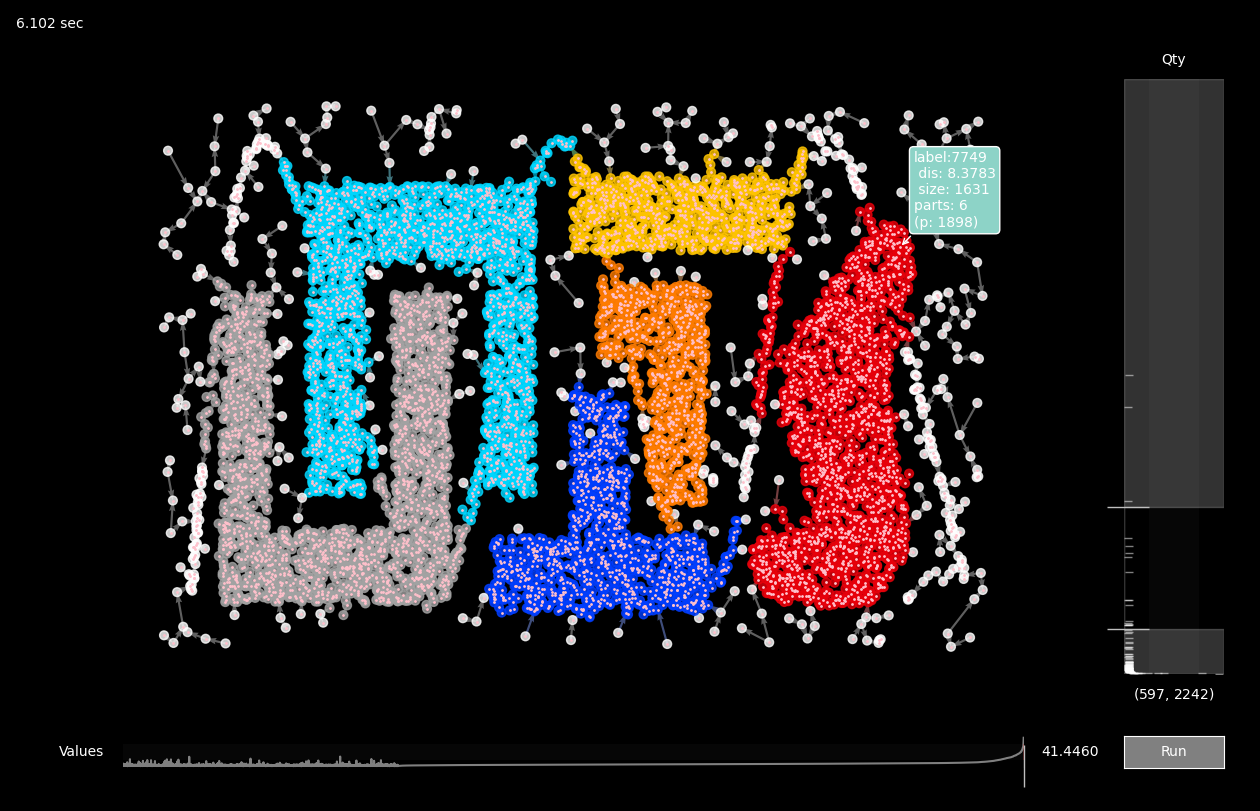

clusterer.plot()

It will provide interactive sliders for an exploration.

Performance

It can be slow on a highly structural data.

There is a parameters max_ranking that can be used to decrease for a better performance.

Installing

PyPI install, presuming you have an up to date pip:

pip install druhg

Running the Tests

The package tests can be run after installation using the command:

pytest -k "test_name"

The tests may fail :-D

Python Version

The druhg library supports Python 3.

Contributing

We welcome contributions in any form! Assistance with documentation, particularly expanding tutorials, is always welcome. To contribute please fork the project make your changes and submit a pull request. We will do our best to work through any issues with you and get your code merged into the main branch.

Licensing

The druhg package is 3-clause BSD licensed.
