DTGeoSOM — path finding on a spherical SOM with the distance transform

mt.dtgeosom finds paths between two neurons of a trained GeoSOM (a Self-Organising Map on a geodesic dome) with the method of

M. Bui and M. Takatsuka, Path finding on a spherical SOM using the distance transform and floodplain analysis, Proceedings of the 6th International Workshop on Self-Organizing Maps (WSOM 2007), Bielefeld, Germany, 2007.

A SOM is a roadmap of a high-dimensional space. Given a start state and a goal state, the neurons on a path between their best matching units are the intermediate states to pass through. The path is found as in robot motion planning: a distance wave is spread from the goal over the lattice (the distance transform), with the U-height of every neuron as the cost of entering it, and the path is read off by walking downhill from the start. A plain shortest path may still cross a "mountain range" of the U-matrix (a cluster border with no data). Floodplain analysis then keeps the path on the neurons below a U-height threshold and raises the threshold only as far as needed to join start and goal: the flattest, shortest path.

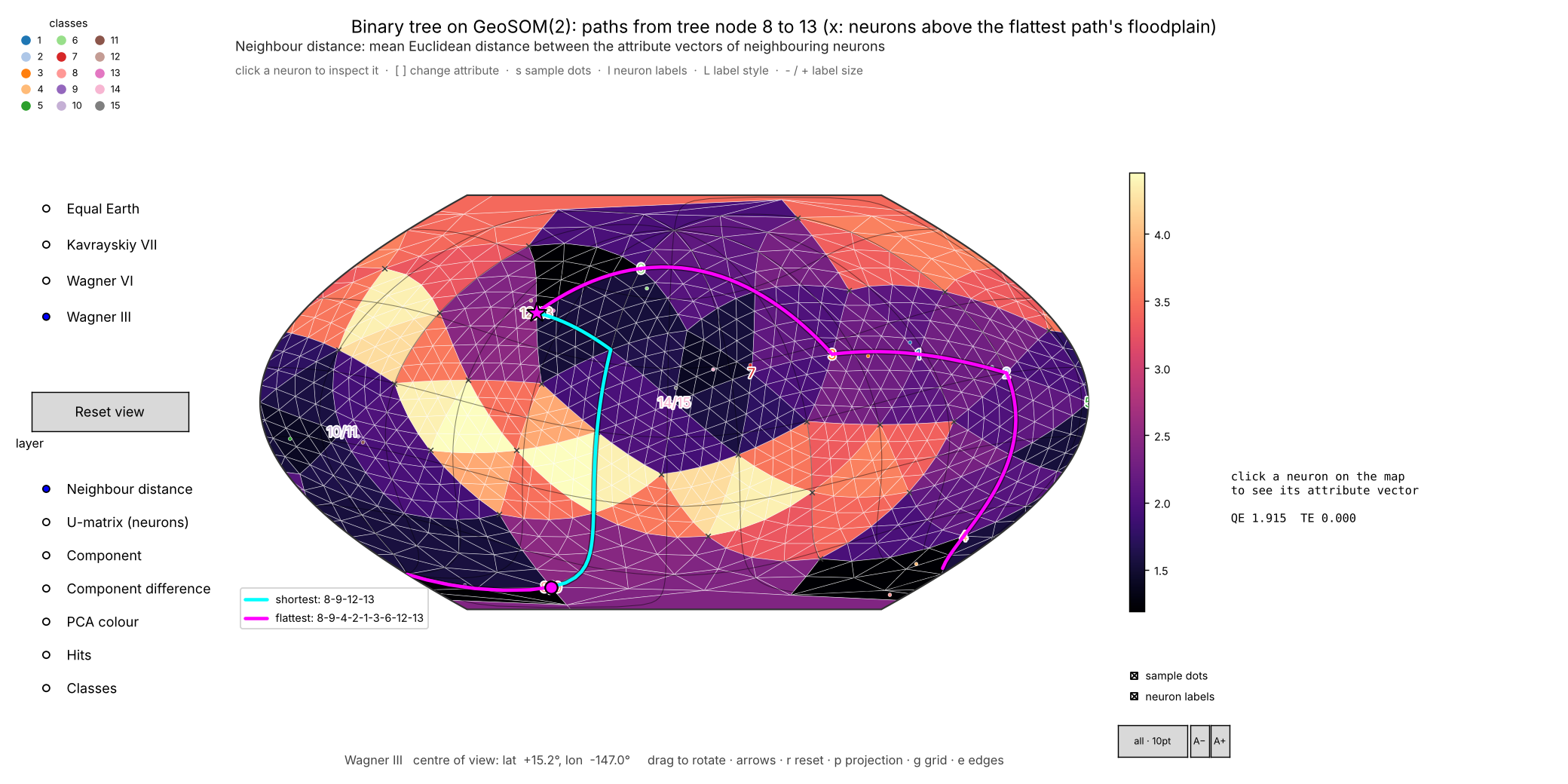

The paper's binary-tree experiment (examples/01_binary_tree.py): the shortest path 8 → 13 jumps across the bright mountain range (8-9-12-13, not a path in the tree); the flattest path goes round it and passes 8-4-2-1-3-6-13, the tree path — as in figures 8 and 9 of the paper. ✕ = neurons above the floodplain.

Contents — Features · Installation · Quick start · Kinds of path · Interactive path picker · Drawing paths in scripts · API overview · The algorithms · Examples · Development · Releasing · Licence and citation

Features

• The paper's method on GeoSOM: the distance transform (Algorithm 2), reading a path off the distance map (Algorithm 1) and floodplain analysis for the flattest, shortest path (Algorithm 3) — plus PathFinder.paper(som), which runs the algorithms exactly as printed, to reproduce the published results.
• Four kinds of path between the same two neurons: shortest (U-height cost), flattest (floodplain), hops (fewest steps on the geodesic grid) and edge (shortest walk through data space).
• Start and goal as neurons or as samples (a sample is mapped to its best matching unit).
• The path as data: its neurons, cost, number of hops, the weight vectors along it (the intermediate states), the classes it passes, the highest U-height it climbs, and the whole distance map.
• An interactive path picker on GeoSOM's rotatable map: a Select start & goal button, a check box per kind of path, the floodplain, distance maps, and inspecting the attributes of any neuron along a path.
• Path drawing in scripts (plot_paths, PathViewer): great-circle segments on any of GeoSOM's map projections, legend entries that show or hide a path, and PNG export.
• Works with any mt.geosom map: GeoSOM (sphere), PlaneSOM (plane or torus) and LineSOM.
• The paper's synthetic data (datasets.binary_tree) and three runnable examples.

Installation

For development, ./setup_env.sh builds a ready-to-use environment in .venv (see Development).

Quick start

from mt.geosom import datasets
from mt.geosom.GeoSOM import GeoSOM
from mt.dtgeosom import PathFinder

ds = datasets.load('wine')
x = datasets.standardise(ds.data)
som = GeoSOM(8).train(x, epochs=30)

finder = PathFinder(som)
p = finder.shortest_path(x[136], x[9])      # samples (mapped to their BMUs) or neuron indices
q = finder.flattest_path(x[136], x[9])      # stays on the floodplain of the U-matrix

q.nodes                 # neuron indices, start ... goal
q.hops, q.cost          # number of steps, cost on the distance map
q.states(som)           # weight vectors along the path: the intermediate states
q.threshold             # U-height of the floodplain that holds the path
q.distance              # the distance map (cost from every neuron to the goal; inf = unreachable)
q.visited_labels(som.node_labels(x, ds.labels))   # classes passed on the way

paths = finder.all_paths(x[136], x[9])      # {'shortest', 'flattest', 'hops', 'edge'}: see "Kinds of path"

from mt.dtgeosom.gui import PathPicker, plot_paths     # needs matplotlib
plot_paths(som, list(paths.values()), x, ds.labels, names=list(paths),
           floodplain=q.threshold, projection='Wagner III').show()
PathPicker(finder, x, ds.labels).show()                # pick the start and goal with the mouse

Kinds of path

finder.all_paths(a, b) returns all four as a dict. Comparing them shows what the U-matrix and the floodplain add: where all four agree the map is flat; where flattest departs from the others it is going round a ridge with no data.

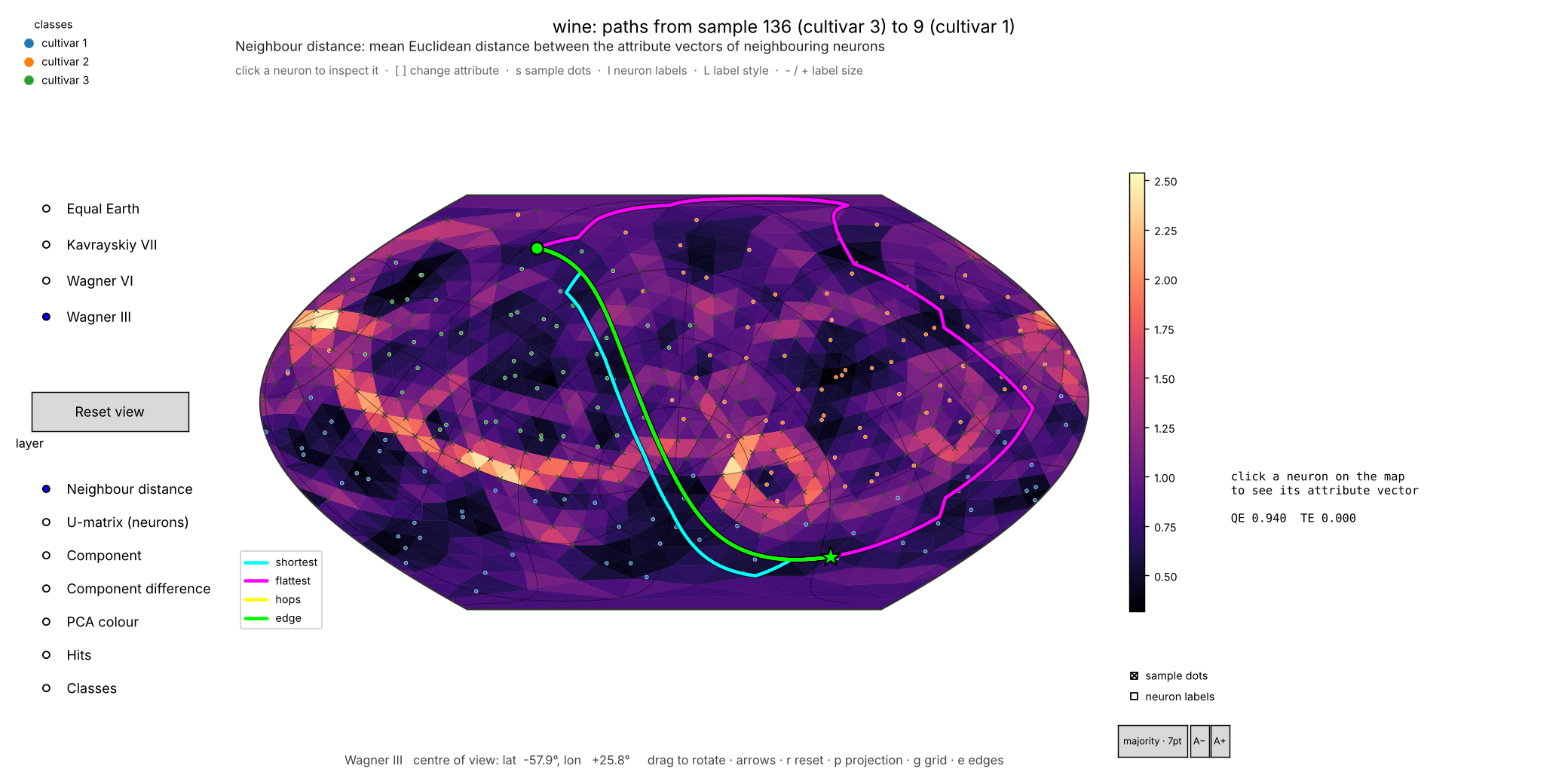

examples/02_paths_between_samples.py on the UCI wine data: the shortest (U-height), fewest-hops and data-space (edge) paths cut straight across a border with no data; the flattest path goes round it, through the cultivar-2 region.

Interactive path picker

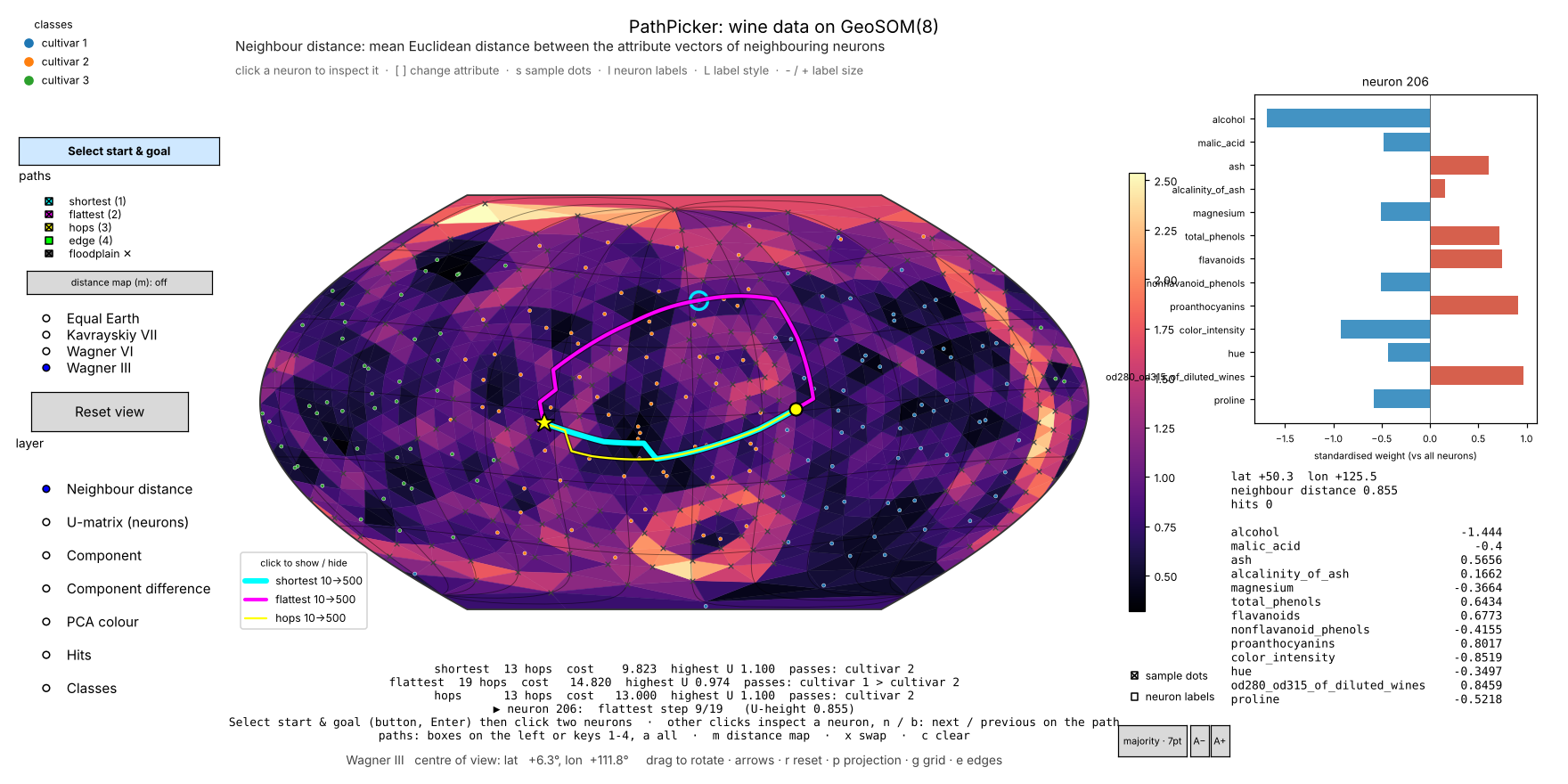

PathPicker (examples/03_interactive_paths.py) is GeoSOM's rotatable map viewer with path finding added.

python examples/03_interactive_paths.py                          # wine data
python examples/03_interactive_paths.py --paths all              # all four kinds from the start
python examples/03_interactive_paths.py --data tree              # the paper's binary tree on a GeoSOM(2)
python examples/03_interactive_paths.py --data penguins --paths shortest,flattest

The panel under the map lists each path's number of hops, its cost, the highest U-height it climbs and the classes of the samples it passes. Example options: --data (iris, penguins, wine, clusters, a CSV file, or tree), --paths (comma-separated kinds, or all), --step (the step cost of shortest and flattest: node, mean, edge, hops), --projection, --frequency, --epochs, --start / --goal (pre-select a path), and --save FILE (write an image instead of opening a window).

In your own code:

from mt.dtgeosom.gui import PathPicker

picker = PathPicker(PathFinder(som), x, labels, kinds=('shortest', 'flattest'), projection='Wagner III')
picker.set_endpoints(10, 500)        # or let the user click
picker.result                        # {kind: SOMPath} of the paths shown
picker.show()

Drawing paths in scripts

from mt.dtgeosom.gui import PathViewer, plot_paths

viewer = plot_paths(som, [p, q], x, labels, names=['shortest', 'flattest'], floodplain=q.threshold,
                    projection='Wagner III', path='paths.png')      # centred on the paths; saved when path= is given
viewer.set_path_visible('shortest', False)    # or click its legend entry; toggle_path(...), path_visible(...)
viewer.centre_on(q)                           # rotate the sphere so the path is in the middle
viewer.show()

PathViewer(som, data, labels, **SOMViewer_options) is GeoSOM's SOMViewer with paths: add_path(path, color, label), clear_paths(), show_floodplain(threshold), centre_on(...), set_path_visible(...). Every step between neighbouring neurons is drawn along the great circle joining them and broken where it crosses the edge of the map, so paths stay right while the sphere is rotated or the projection changed.

API overview

PathFinder(som, step='node', diagonal_factor=1.0, method='wavefront', rule='exact') — everything for one trained map (GeoSOM, PlaneSOM or LineSOM).

SOMPath — nodes, start, goal, kind, cost, hops, distance (the distance map), transform, threshold and thresholds (flattest paths: the final and every tried U-height threshold), states(som), max_height(u_height), visited_labels(node_labels).

Lower level — Lattice.from_som(som) (neighbours, U-heights, positions, diagonal flags of the 2D index array); distance_transform(lattice, goal, step=…, allowed=…, method=…); descend(lattice, transform, start, rule=…); lattice_flattest_path / lattice_shortest_path; minimax_threshold(lattice, a, b); path_cost(lattice, nodes, step); NoPathError. Data — datasets.binary_tree(depth), tree_path(a, b), path_agrees_with_tree(...).

The algorithms

Details, and where the implementation departs from the printed pseudocode and why: docs/algorithm.md.

Examples

On the binary tree (GeoSOM(2), 42 neurons, the paper's training settings, seed 0) 46 % of the shortest paths between two tree nodes follow the tree, and 82 % of the flattest paths. The NSW library benchmarking data of the paper's section 4.2 are not included.

Development

./setup_env.sh          # creates .venv here with everything installed, and opens a shell in it
pytest
ruff check .

setup_env.sh installs DTGeoSOM (editable), geosom, geodesicdomes, matplotlib, pytest, ruff and the build tools into .venv in this folder, plus PyTorch for the GPU if this machine has one, checks that a path can be found, and adds a hook to ~/.zshrc that activates the environment in new terminals inside the project. It installs GeoSOM and GeodesicDome in editable mode from ../GeoSOM and ../GeodesicDome when those checkouts exist (or --som PATH, --dome PATH), and from PyPI otherwise. ./setup_env.sh --help lists the options (--check, --recreate, --gpu none, --python PATH, --venv PATH, --no-shell-hook, …). Without the script: pip install -e ".[dev]".

GitHub Actions (.github/workflows/tests.yml) run the lint, the tests (Linux, macOS and Windows; Python 3.10–3.14) and the three examples on every push and pull request.

Releasing

Publishing a GitHub release with a tag vX.Y.Z uploads that version to PyPI automatically (.github/workflows/publish.yml): the workflow checks the tag against __version__ and CITATION.cff, builds and tests the package, uploads it with PyPI trusted publishing, and attaches the files to the release. Pushing to main never publishes. The one-time set-up and the steps are in RELEASING.md.

Licence and citation

AGPL-3.0-or-later with an attribution term; see LICENSE and NOTICE. Please cite the WSOM 2007 paper above and the software (CITATION.cff).
