dvc-dag 0.2.0

Generate a clear diagram of your DVC pipeline.

dvc-dag

Generate a readable PNG diagram of your DVC pipeline.

Overview

The bundled dvc dag command is useful, but larger pipelines quickly become hard to read.

dvc-dag renders the pipeline as a PNG and applies a few readability improvements:

• trims transitive edges
• collapses parameterized stages when requested
• simplifies displayed paths
• uses colors and shapes to distinguish nodes

Requirements

dvc-dag supports Python 3.10 and newer.

dvc-dag must be run inside a Git repository initialized with DVC.

It also requires Graphviz on your PATH, specifically the dot and tred executables.

Install Graphviz with your system package manager:

• macOS: brew install graphviz
• Debian/Ubuntu: sudo apt-get install graphviz
• Windows: install Graphviz from https://graphviz.org/download/

Installation

Install the package from PyPI:

pip install dvc-dag

Or install it as an isolated CLI:

pipx install dvc-dag

Usage

Generate a PNG in the current DVC repository:

dvc-dag

Show all options:

dvc-dag --help

Show the installed version:

dvc-dag --version

Collapse parameterized stages:

dvc-dag --collapse-stage "train-candidate-models=family"

The --collapse-stage format is:

stage_name=parameter_name
path/to/dvc.yaml:stage_name=parameter_name

CLI Options

• --out PATH Write the generated PNG to PATH. Parent directories are created automatically. Default: dvc_dag.png.
• --delete-text TEXT Remove repeated path fragments from displayed node labels to keep the graph readable. Pass it multiple times to strip more than one fragment.
• --collapse-stage RULE Collapse a parametrized stage into a single node. Use stage_name=parameter_name or path/to/dvc.yaml:stage_name=parameter_name. The collapsed label is rendered as stage_name@{parameter_name}.
• --colors-random-seed INTEGER Control the color assignment for graph nodes. Use the same seed to keep colors stable across runs. Default: 42.
• --debug Show full tracebacks instead of the default concise runtime errors.
• --version Print the installed dvc-dag version and exit.
• --help Show the full command help generated by Typer.

Typical example:

dvc-dag \
  --out docs/dvc_dag.png \
  --delete-text "pipelines/" \
  --delete-text "stages/" \
  --collapse-stage "train-candidate-models=family"

Troubleshooting

• DVC was not found: install dvc and ensure it is on your PATH.
• Not inside a DVC repository: run dvc init in the project first.
• Graphviz dot/tred was not found: install Graphviz and ensure both tools are on your PATH.

Development

The repository includes a committed DVC fixture project under tests/fixtures/ for end-to-end testing.

The release workflow is documented in docs/releasing.md.

You can try the CLI manually against the committed fixture project:

cd tests/fixtures/dvc_project
uv run dvc-dag --out /tmp/dvc_project_dag.png

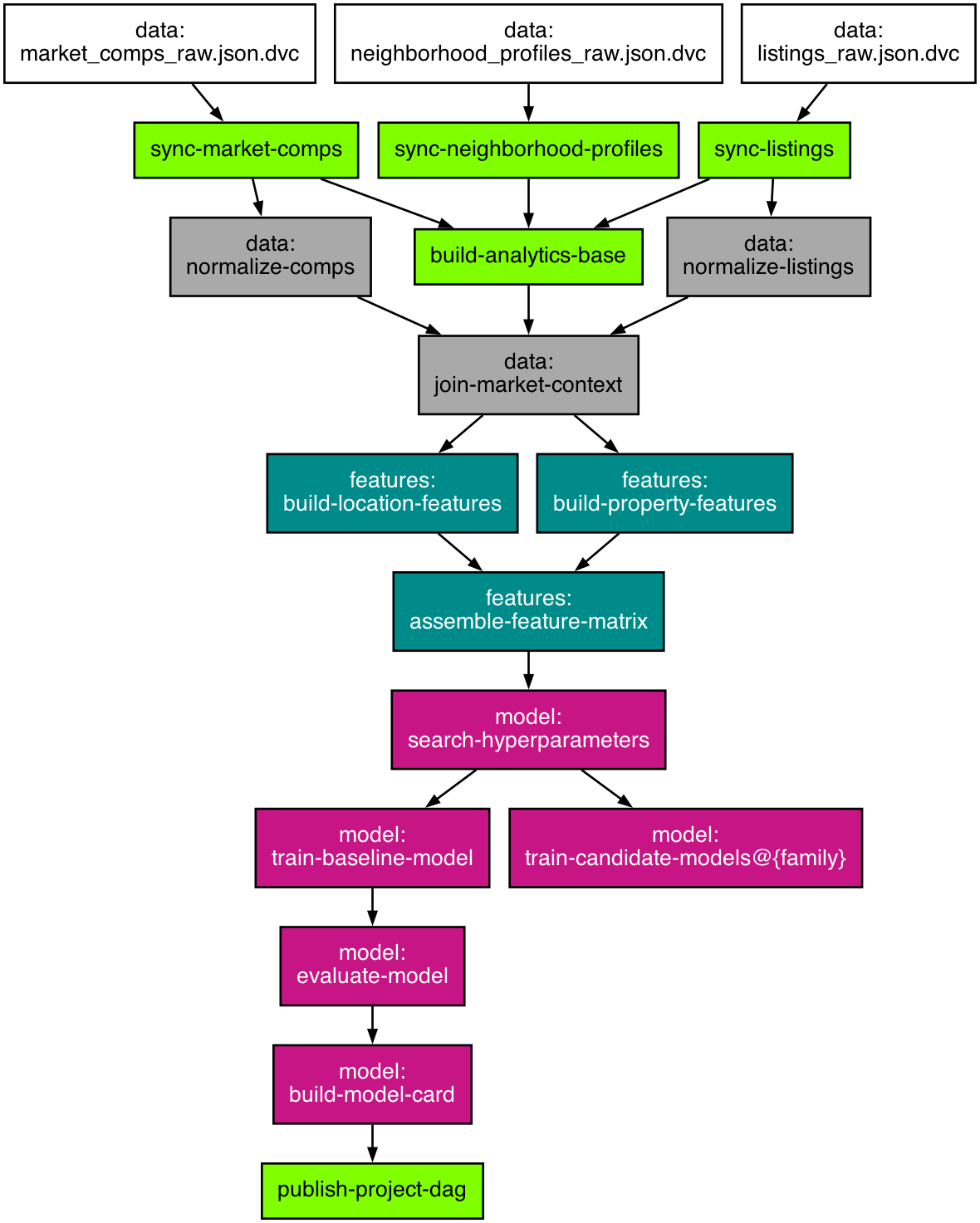

Or render the fixture DAG straight from the repository root:

make dag

make dag is the supported way to refresh the demo DAG. It regenerates the fixture image and then syncs docs/dvc_project_dag.png for the README.
