dynachaos 0.4.0

Dynamical-systems analysis for time signals with Rust-accelerated kernels

Reusable dynamical-systems analysis for simulated or measured time signals, with Rust-accelerated kernels where they are tested.

Available on PyPI: pip install dynachaos

"Chaos: When the present determines the future, but the approximate present does not approximately determine the future." — Edward Lorenz

Why dynachaos?

dynachaos is a reusable Python/Rust package for inspecting simulated or measured dynamical-systems time signals. It collects maps, coupled-map lattices, recurrence analysis, entropy diagnostics, Grassberger-Procaccia correlation dimension, multifractal spectra, and reproducible analysis pipelines in one codebase. Performance-sensitive kernels use Rust backends where they have parity tests, while pure-Python fallbacks support portability and reference checks.

Features

Maps — logistic, circle, coupled logistic, delayed logistic, coupled delayed, modulated circle, torus doubling (Map I / Map IV)

Coupled Map Lattices — CML with nearest-neighbor diffusive coupling, globally coupled maps (GCM), pattern dynamics, cluster statistics

Diagnostics — Lyapunov exponents (1D + QR spectrum + flow systems), 0-1 test for chaos, SALI/GALI alignment indices, permutation entropy + complexity-entropy planes, sample/approximate/fuzzy/multiscale entropy, recurrence quantification analysis (RQA), Grassberger-Procaccia correlation dimension, multifractal spectra ($D_q$, $f(\alpha)$), AMI + Cao + FNN embedding

Rust backends — correlation integral (Grassberger-Procaccia), fuzzy entropy sum, recurrence line extraction, ordinal distribution counting, AMI histograms, Cao dimension selection, multifractal moments

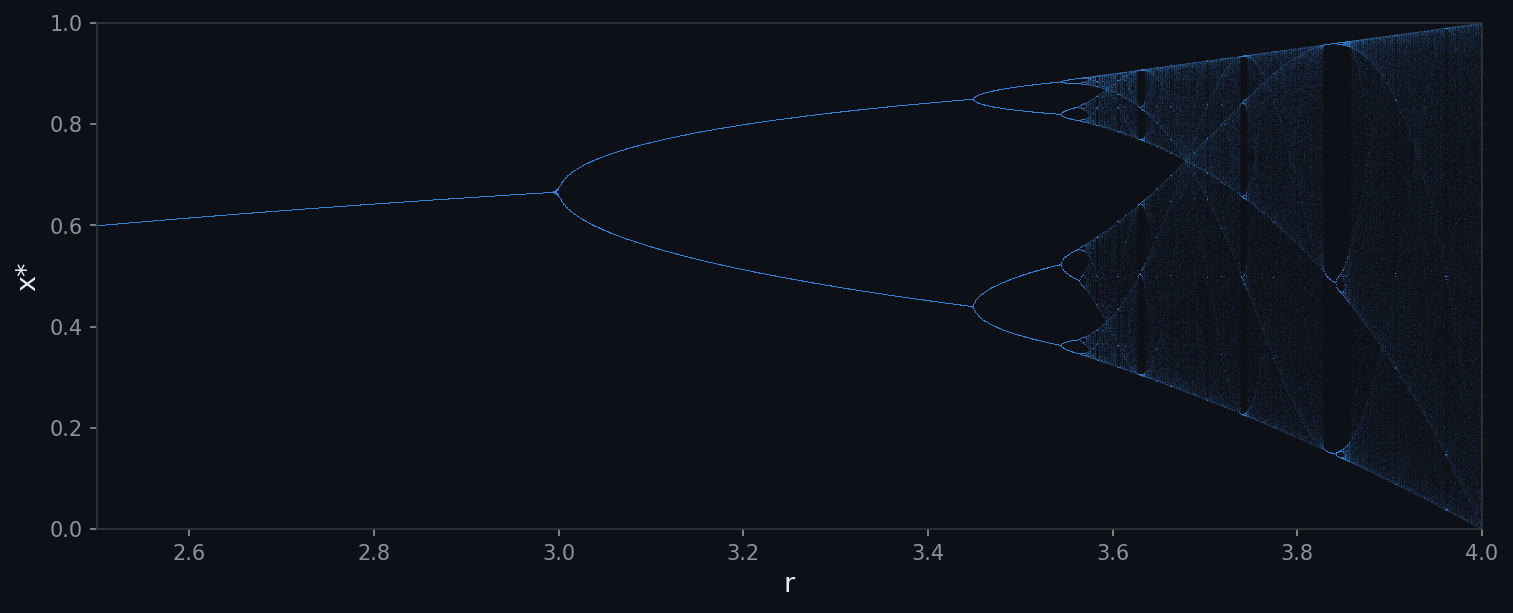

Visualization — bifurcation diagrams, cobweb plots, return maps, curated Swiss-inspired style themes

Development setup

The setup and backend-check commands in this section are for working on dynachaos itself. To use the package, see Quick Start above.

git clone https://github.com/openfluids/dynachaos.git
cd dynachaos
uv sync
uv run --extra viz pytest tests/ -q

To exercise the installed Rust extension locally:

uv run maturin develop --release
uv run --extra viz pytest tests/ -q

To verify the pure-Python fallback path:

DYNACHAOS_NO_RUST=1 uv run --extra viz pytest tests/ -q

Benchmarks

The reproducible scale-envelope benchmark for Rust Grassberger-Procaccia parity and dense recurrence/RQA memory limits lives in benchmarks/scale_envelope.py. The local benchmark command is uv run python benchmarks/scale_envelope.py benchmarks/scale_envelope.jsonc; inspect benchmarks/results/scale_envelope.{json,md} after it runs. The checked artifact reports a 42.95x CI-mode Rust Grassberger-Procaccia speedup at N=1000 for the largest common logistic case, and a dense-RQA predicted distance-matrix envelope of 8*N^2 bytes (impracticality threshold N≈23170 at 4 GiB). The measured Rust acceleration roadmap and local hotspot profiler are documented in docs/rust-acceleration-roadmap.md and benchmarks/rust_hotspot_profile.py.

Quick Start

From a fresh checkout, run the tested external-signal workflow recipe:

uv run dynachaos analyze examples/recipes/external_signal/external_signal_recipe.jsonc

The command writes examples/recipes/external_signal/outputs/external_signal_recipe/results.json, examples/recipes/external_signal/outputs/external_signal_recipe/metadata.json, and examples/recipes/external_signal/outputs/external_signal_recipe/summary.md. It is intentionally small so it can run as a smoke test; use the recipe gallery for the long-signal streaming example.

User documentation spine

• Real-analysis user guide: input expectations, diagnostic choice, long-signal scaling, workflow outputs, reliability metadata, and finite-data caveats.
• Example gallery: tested recipe commands for external signals and long-signal streaming RQA.
• RQA scaling design note: dense recurrence memory envelope and streaming RQA design.
• Rust acceleration roadmap: measured acceleration claims and future kernel priorities.
• Claims checklist: wording boundaries for public documentation and manuscripts.

Config-driven signal analysis workflow

Run scalar/reduced time-series analyses with a JSONC config; all tuning lives in the config, not CLI flags.

Config schema summary:

• input: either { "path": "signal.npy" } / { "path": "signal.npz", "npz_key": "x" } for a 1D finite scalar/reduced signal, or { "generated": { "name": "logistic", "n": 1000, "seed": 0 } } for self-contained runs.
• output.dir: stable output directory, resolved relative to the config file.
• diagnostics: list of { "name": ... } entries. Supported workflow names are permutation_entropy, correlation_dimension, rqa_streaming, and rqa_dense.
• scale_limits: optional dense-RQA guard; dense_rqa_max_bytes defaults to 4 GiB using the 8*N^2 distance-matrix envelope, and allow_dense_rqa_beyond_envelope: true is required to override it.

Output layout is stable and referenceable by path: results.json (machine-readable diagnostic values), metadata.json (N, shape, wall time in seconds, peak RSS in MB, and per-diagnostic ReliabilityRecord metadata), and summary.md (human-readable report with relative artifact names). Reliability metadata records backend, parameters, data shape, sampling/downsampling notes, warnings, unresolved verdicts, and scale evidence. It helps you decide how much scientific confidence to place in a number; it is not an automatic pass/fail certificate.

For long-signal local RQA, avoid dense recurrence matrices and set an explicit threshold in config:

{
  "input": {"path": "long_signal.npy"},
  "output": {"dir": "results/long_signal_rqa"},
  "diagnostics": [
    {"name": "rqa_streaming", "embedding": {"d": 3, "tau": 2}, "eps": 0.08, "l_min": 2, "v_min": 2}
  ]
}

The local/full-run command uv run dynachaos analyze long_signal_rqa.jsonc requires a local long_signal_rqa.jsonc file and the long_signal.npy input it names. The tested commands live in the quickstart and in examples/README.md.

Rust-Accelerated Backends

Performance-critical algorithms are implemented as Rust kernels. The Rust extension is required by default: import dynachaos fails loudly if it has not been built.

Build the extension in editable mode:

uv run maturin develop --release

Pure-Python fallback policy

The Rust kernels are the intended path for production-sized all-pairs and large-N diagnostics. Pure-Python paths are an explicit opt-in for parity testing and portability, not an automatic silent fallback. Set DYNACHAOS_NO_RUST=1 when you need to exercise them; the test suite checks parity on representative small workloads. Some fallback implementations remain exact and quadratic by design, so large pure-Python runs should be treated as diagnostic or development runs unless a future release explicitly makes large fallback performance a target.

Correlation integral (Grassberger-Procaccia)

The all-pairs kernel evaluates all N(N−1)/2 pairs with Theiler-window exclusion and multi-radius binning in a single pass. The implementation is designed for correctness and low memory use, offering several advantages over common baseline scripts (e.g., notsebastiano/GP_algorithm):

• Algorithmic Correctness — Supports the Theiler window ($|i-j| > w$) to exclude temporally correlated pairs (Theiler 1986) and uses proper normalization ($C(r) \le 1$).
• Scaling Region Detection — Employs a stable plateau search on local slopes instead of simple heuristics, making it robust to noise and saturation.
• Memory Efficiency — Uses O(1) auxiliary memory per pair (streaming) instead of an $O(N^2)$ distance matrix.

The Rust kernel uses:

• Raw slice indexing — C-contiguous slice access, avoiding ndarray's per-index Index overhead while staying in safe Rust
• Prefix-sum binning — one write per pair instead of up to 50; converted to cumulative counts with a single O(n_r) pass after the loop
• Squared-distance comparison — pre-squared thresholds eliminate sqrt() in Euclidean mode (saves 10–20 cycles per pair)
• Branch-separated loops — Chebyshev and Euclidean paths are fully separated, enabling independent auto-vectorization
• Rayon parallelism — outer loop distributed across all cores via Rayon; GIL released with py.detach() before the parallel region
• Native compiler optimization — release builds can use the local CPU target configured under .cargo/.

Benchmark numbers should be regenerated on the release target hardware before being used in public documentation.

Fuzzy entropy sum

Computes Σ exp(−(d/r)ⁿ) over all upper-triangle pairs on mean-centered templates, using the same Rayon parallel fold + reduce pattern.

Algorithm Reference

Algorithm	Module	Rust kernel	Reference
Lyapunov exponent (1D)	diagnostics.lyapunov	—	Benettin et al. 1980
Lyapunov spectrum (QR)	diagnostics.lyapunov	—	Benettin et al. 1980
Flow Lyapunov spectrum	diagnostics.lyapunov	—	Benettin et al. 1980
0-1 test for chaos	diagnostics.zero_one_test	—	Gottwald & Melbourne 2004
SALI / GALI	diagnostics.sali_gali	—	Skokos et al. 2007
Permutation entropy	diagnostics.permutation	ordinal dist.	Bandt & Pompe 2002
Complexity-entropy plane	diagnostics.permutation	ordinal dist.	Rosso et al. 2007
Sample entropy	diagnostics.entropy	correlation counts	Richman & Moorman 2000
Approximate entropy	diagnostics.entropy	—	Pincus 1991
Fuzzy entropy	diagnostics.entropy	fuzzy sum	Chen et al. 2007
Multiscale entropy	diagnostics.entropy	correlation counts	Costa et al. 2002
RQA (DET, LAM, ENTR, …)	diagnostics.recurrence	line extraction	Marwan et al. 2007
Correlation dimension	diagnostics.correlation	all-pairs kernel	Grassberger & Procaccia 1983
Multifractal spectrum ($D_q$, $f(\alpha)$)	diagnostics.multifractal	multifractal moments	Mukherjee et al. 2024
AMI (embedding)	diagnostics.embedding	histogram	Fraser & Swinney 1986
Cao's method	diagnostics.embedding	dimension selector only	Cao 1997
False nearest neighbors	diagnostics.embedding	—	Kennel et al. 1992

diagnostics.recurrence keeps recurrence_matrix() for callers that need the binary matrix. For large trajectories where only scalar RQA measures are needed, use rqa_from_trajectory() to avoid materializing the dense recurrence matrix. When starting from an existing recurrence matrix, compute public RQA metrics through rqa(), which validates that the matrix is non-empty, square, and symmetric. The direct line extractors, including the Rust-accelerated helpers, are lower-level square-matrix scanners and do not replace that public RQA validation boundary.

Reproduction gallery

The figures/ tree holds a section-indexed set of reproductions of Kunihiko Kaneko's published work on circle maps, torus doubling, fractalization, coupled map lattices, and globally coupled maps. Each section is regenerated from scratch by the same public entry points users call:

dynachaos list
dynachaos run sec02_circle_map
dynachaos run all

The committed .npz caches double as golden data for the reproducibility and determinism tests, so the gallery is both a worked example and a standing regression check. It is a demanding stress test of the package rather than its boundary: for general use on your own signals, see the quickstart and recipe gallery above.

Development

These are local contributor checks.

uv sync
uv run --extra viz pytest tests/ -q
uv run --extra viz ruff check src/ tests/
uv run --extra viz ruff format src/ tests/ --check

# With Rust extension:
uv run maturin develop --release
uv run --extra viz pytest tests/ -q

Contributing

Please see CONTRIBUTING.md for development setup and contribution guidelines. All participants are expected to follow the Code of Conduct.

Citation

If you use dynachaos in published work, please cite the software:

@software{dynachaos2026,
  author  = {Frantz, Ricardo},
  title   = {dynachaos: Dynamical-systems analysis for time signals with Rust-accelerated kernels},
  year    = {2026},
  version = {0.4.0},
  url     = {https://github.com/openfluids/dynachaos},
  license = {Apache-2.0}
}

License

This project is licensed under Apache-2.0.

Originally developed by Ricardo A S Frantz. See LICENSE and NOTICE for license terms and attribution notices. As of v0.3.0, this project is licensed under Apache-2.0; earlier (unpublished) versions were MIT.
