dysonsphere 2.0.0

An Altair configuration wrapper with perceptually uniform palettes and chart utilities for publication-ready figures.

dysonsphere

An Altair configuration wrapper with perceptually uniform palettes and chart utilities for publication-ready figures.

Installation

# uv: add as a dependency
uv add dysonsphere

# uv: pip install
uv pip install dysonsphere

# pip
pip install dysonsphere

Requires Python 3.11+. Dependencies: altair, numpy, polars[pyarrow], scipy.

All functions that accept a DataFrame support both polars and pandas dataframes. A pandas DataFrame is automatically converted to polars for internal processing via ds.ensure_polars().

---

Quick start

import altair as alt
import polars as pl
import dysonsphere as ds  # or: import dysonsphere

ds.theme()  # apply the default dysonsphere theme

chart = (
    alt.Chart(df)
    .mark_point()
    .encode(
        x=alt.X("x:Q"),
        y=alt.Y("y:Q"),
        color=alt.Color("y:Q", scale=alt.Scale(range=ds.palette("blues"))),
    )
)

ds.save(chart, "plots/myplot")
# writes: plots/myplot.svg, plots/myplot.json   (SVG + JSON, light — the defaults)

---

Contents

• Installation
• Quick start
• dysonsphere.theme()
  • Config file
    • notebook style
• Palettes
  • Accessing palettes
  • dysonsphere.palette()
  • Default palettes
  • Available palettes
  • Exporting palettes as swatches for Adobe Illustrator
• Saving charts
  • Metadata
• Chart utilities

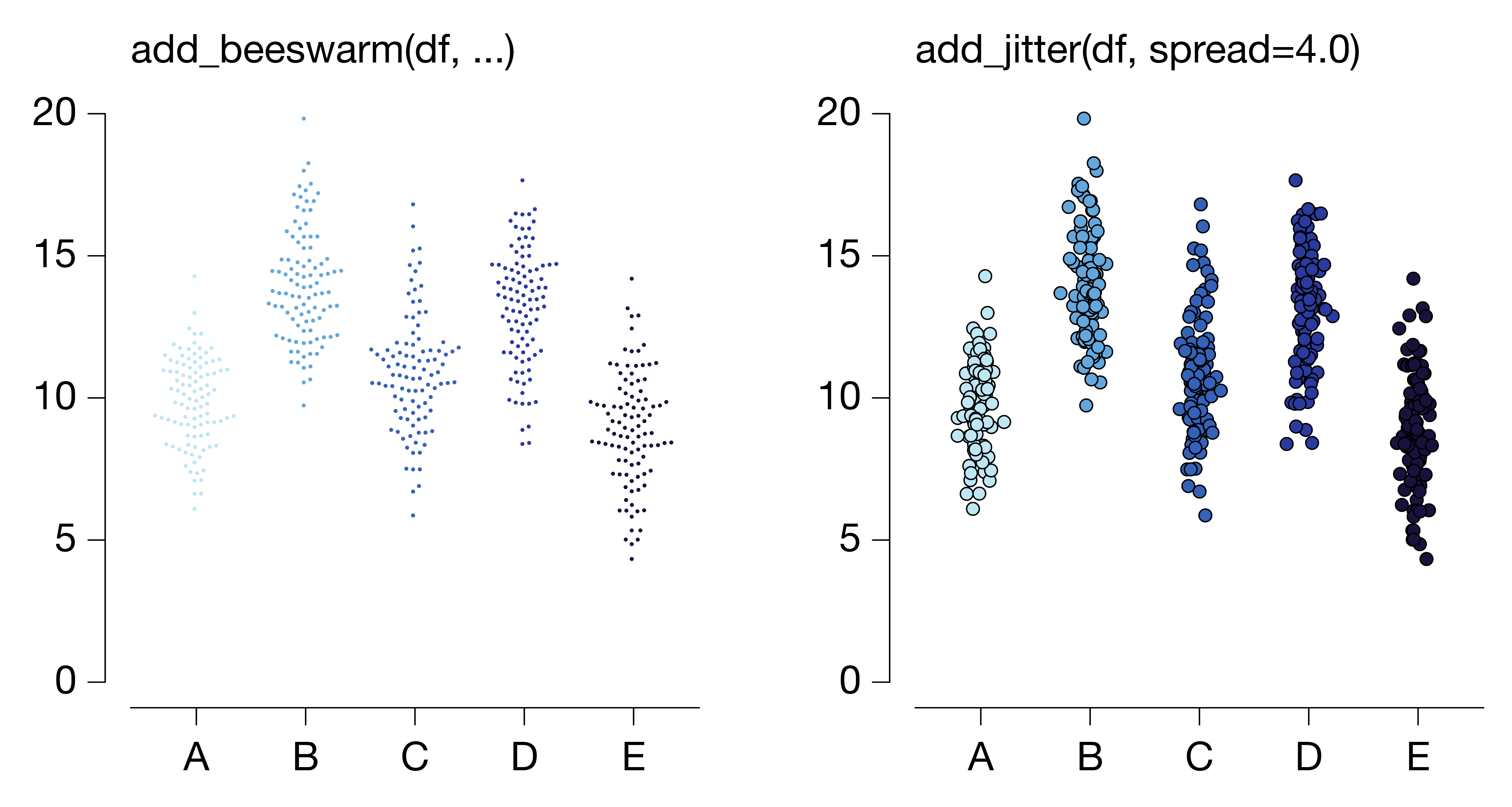

  • Data transforms
    • Beeswarm
    • Jitter

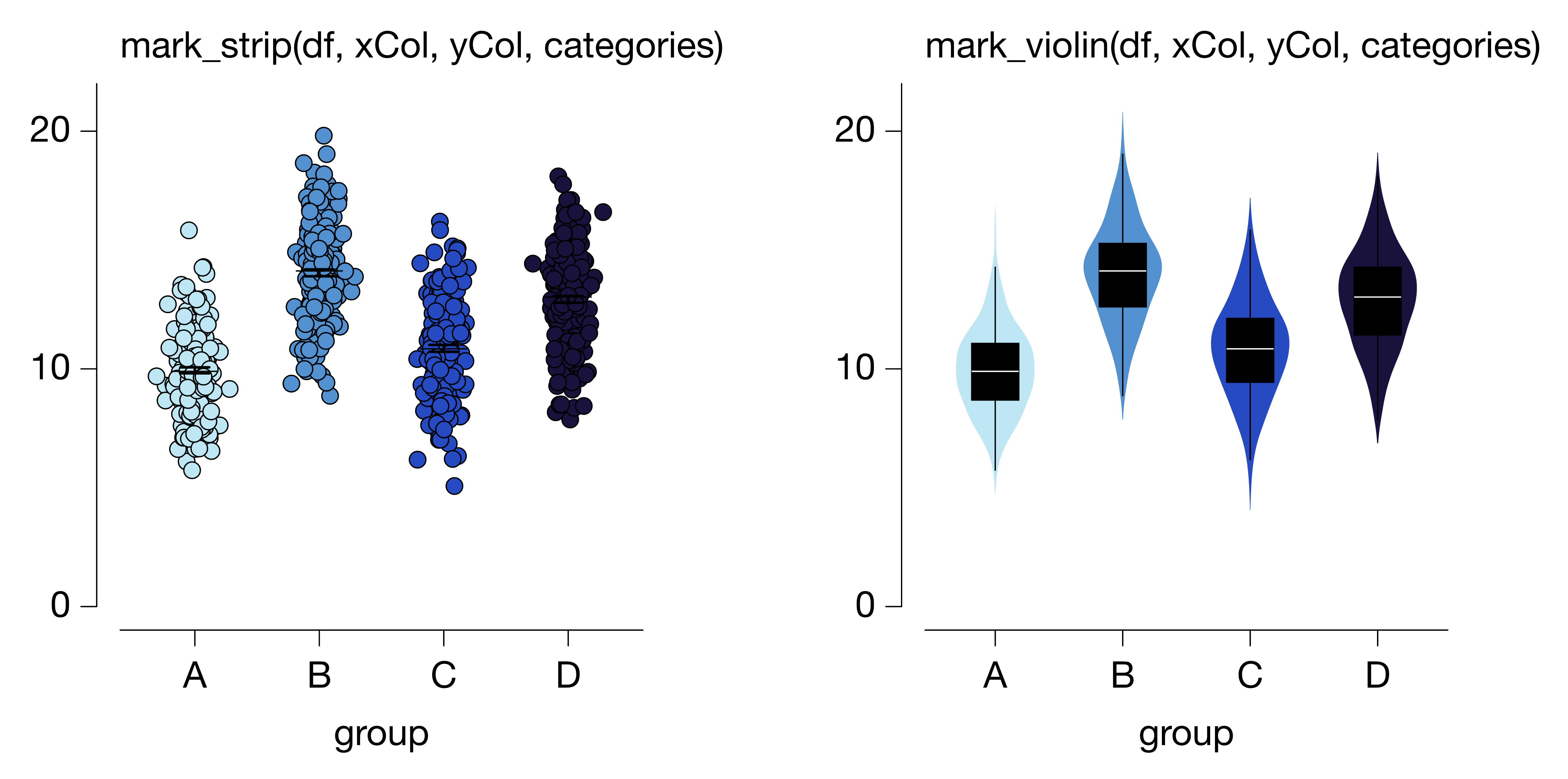

  • Custom marks
    • Strip plots (mark_strip)
    • Violin
  • Statistical annotations

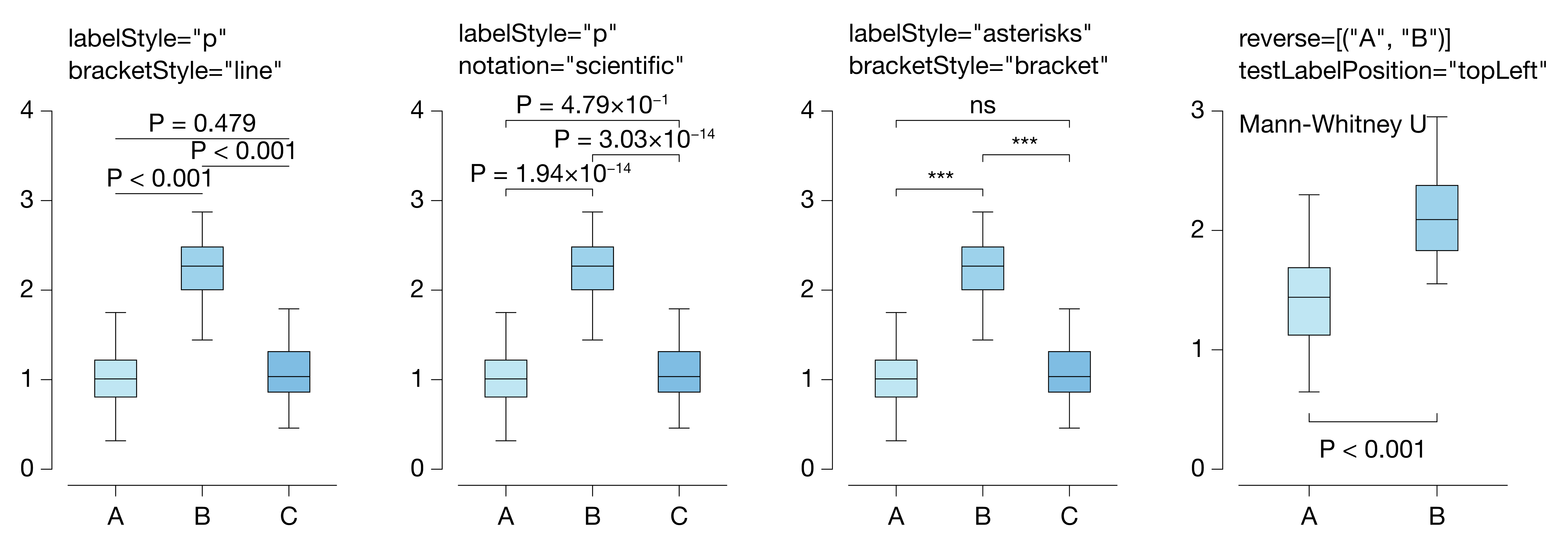

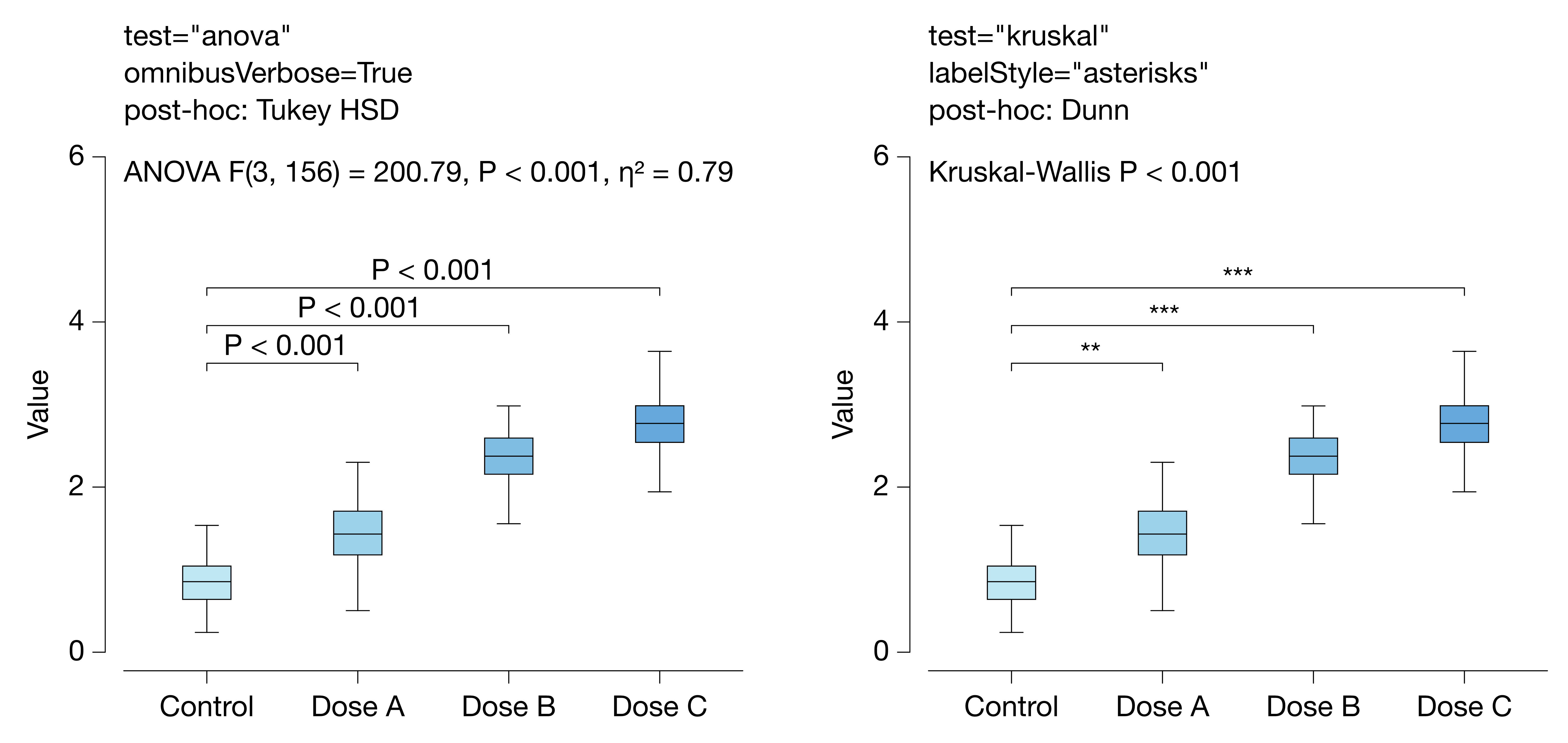

    • Adding p-value annotations
    • Correlation

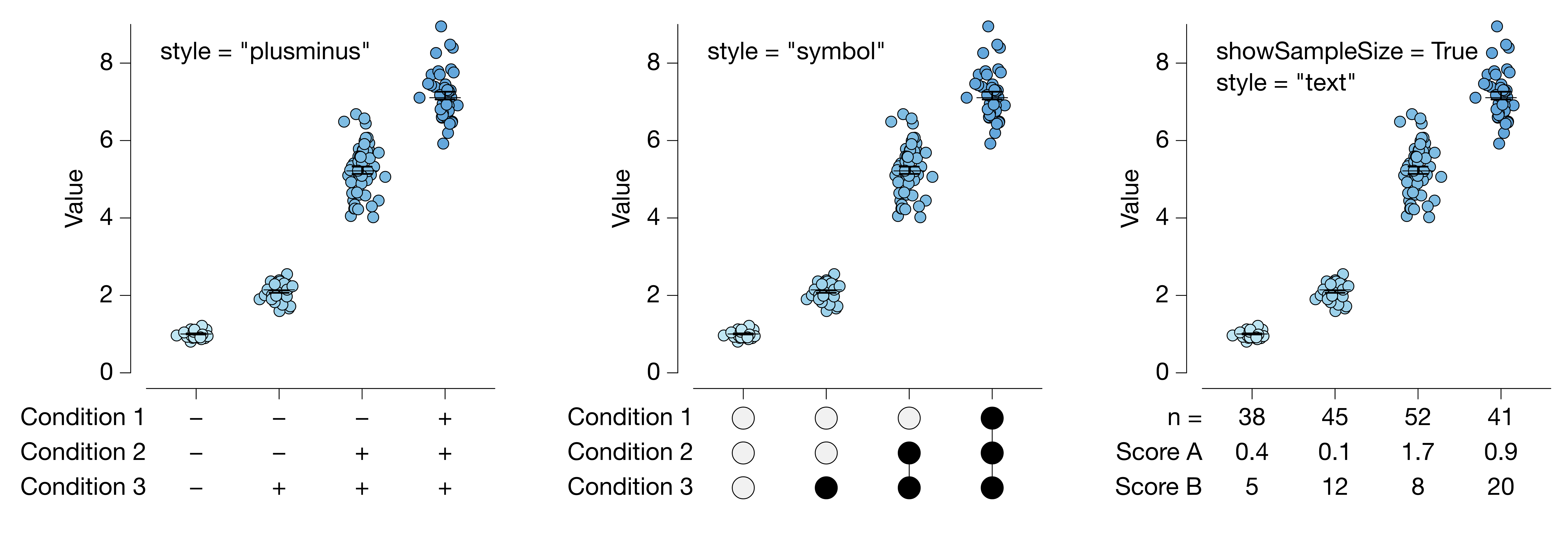

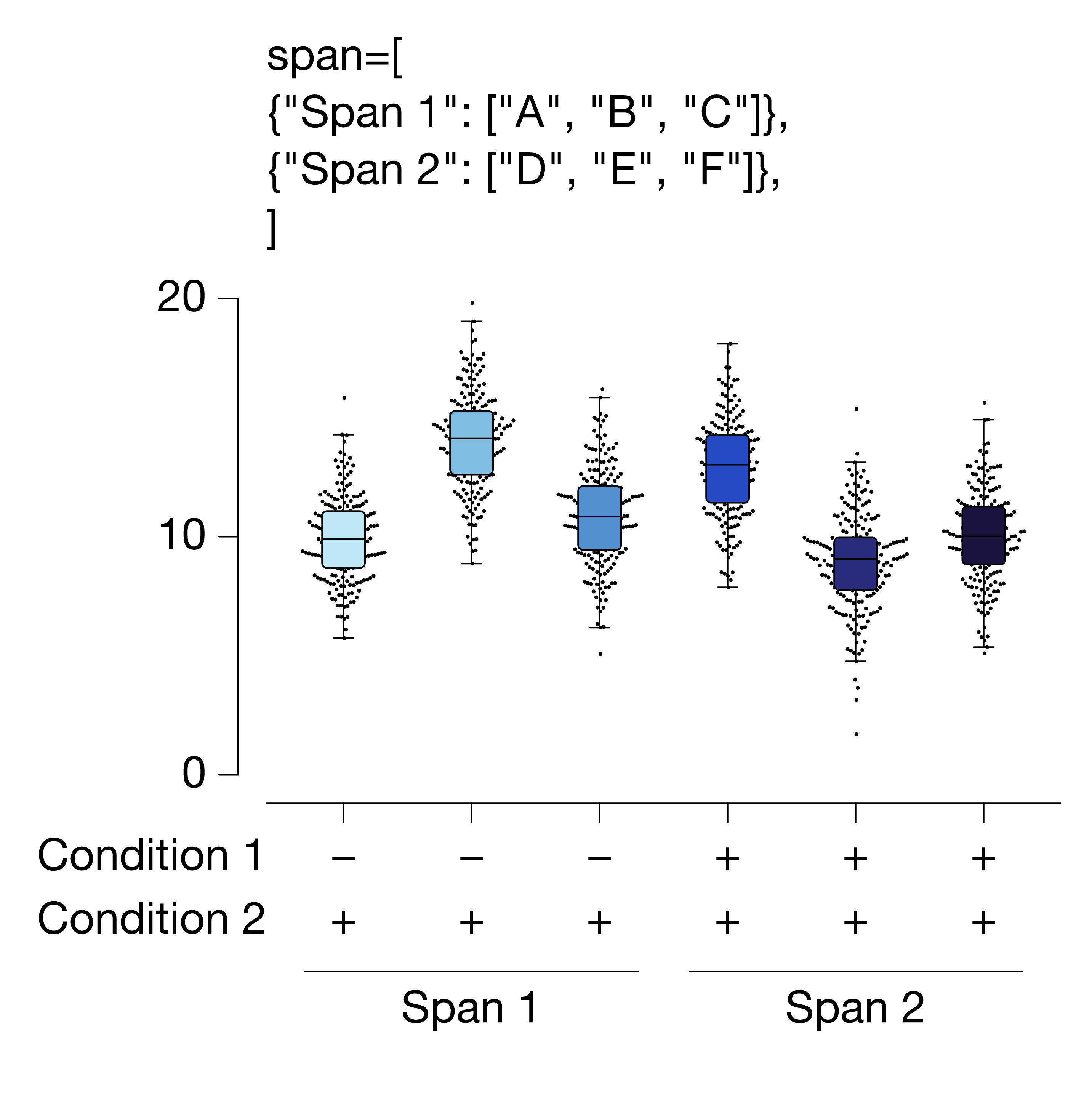

  • Multilabels
    • Sample sizes
    • Category labels
    • Spans
  • Chart annotations

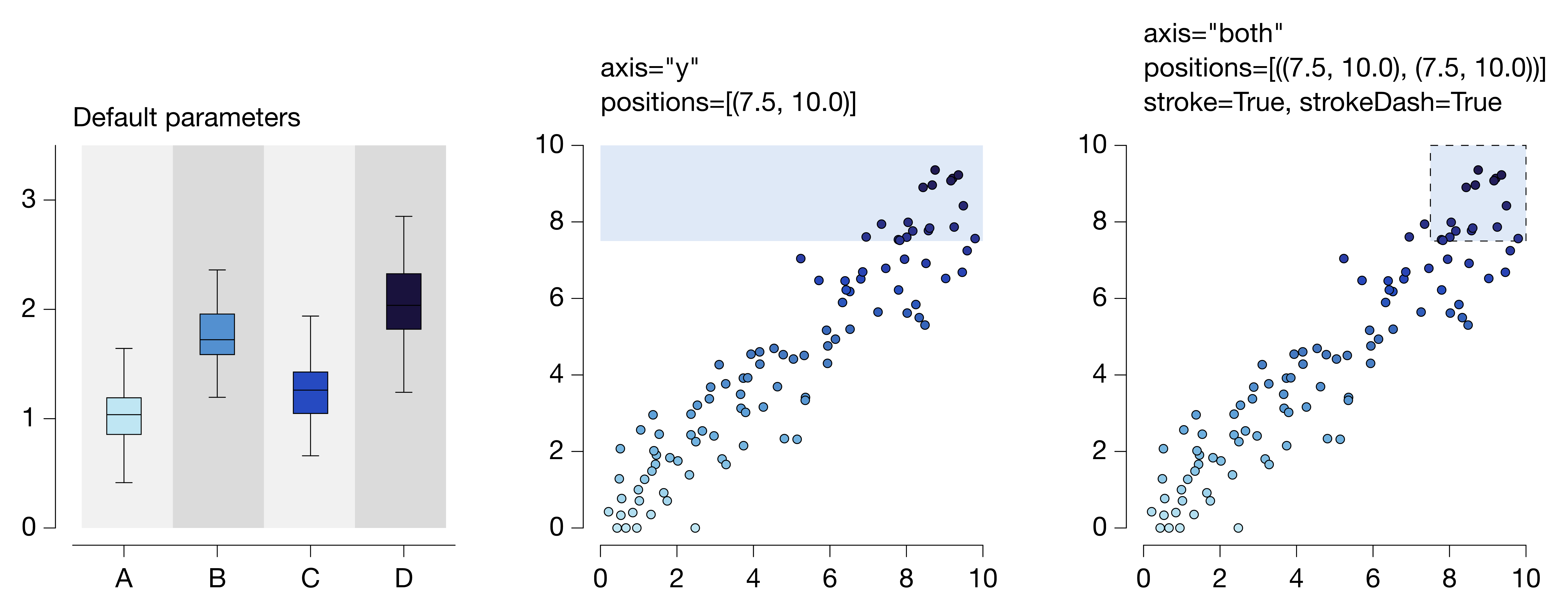

    • Background shading

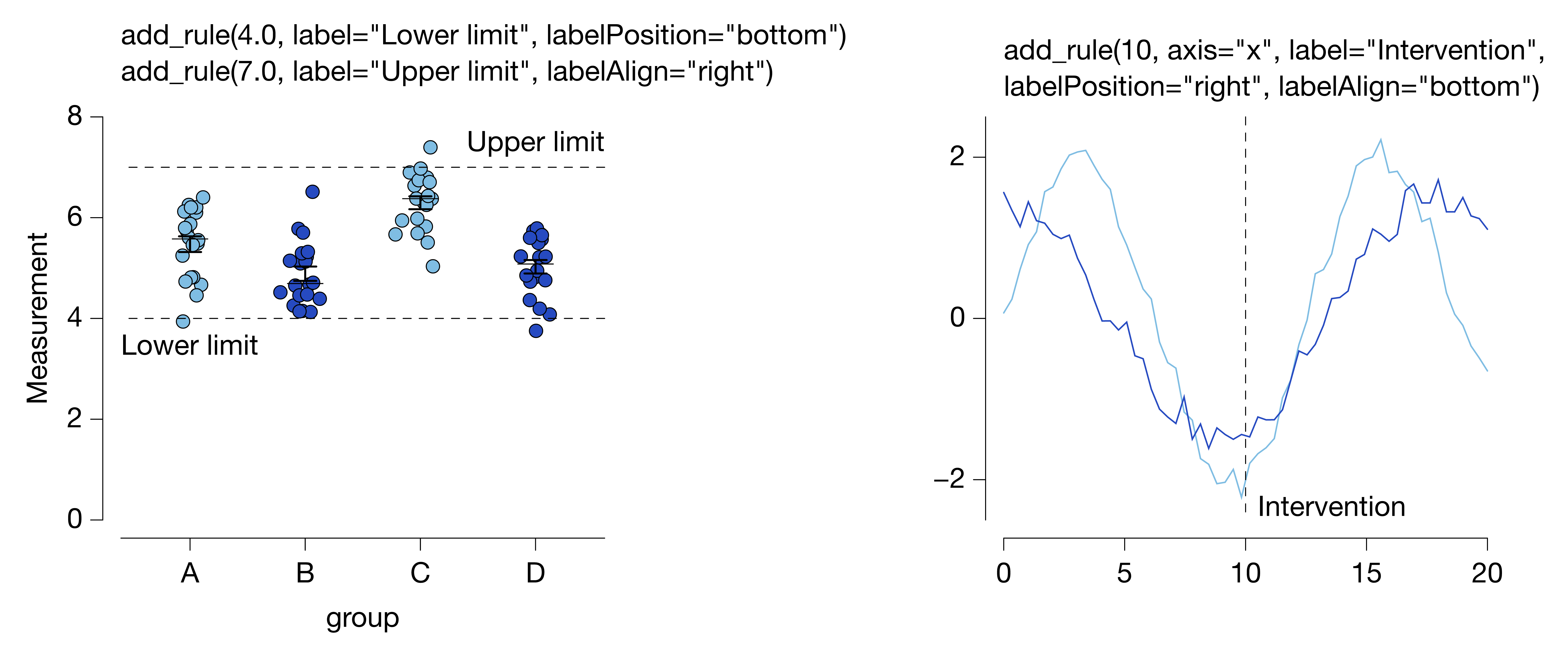

    • Reference lines

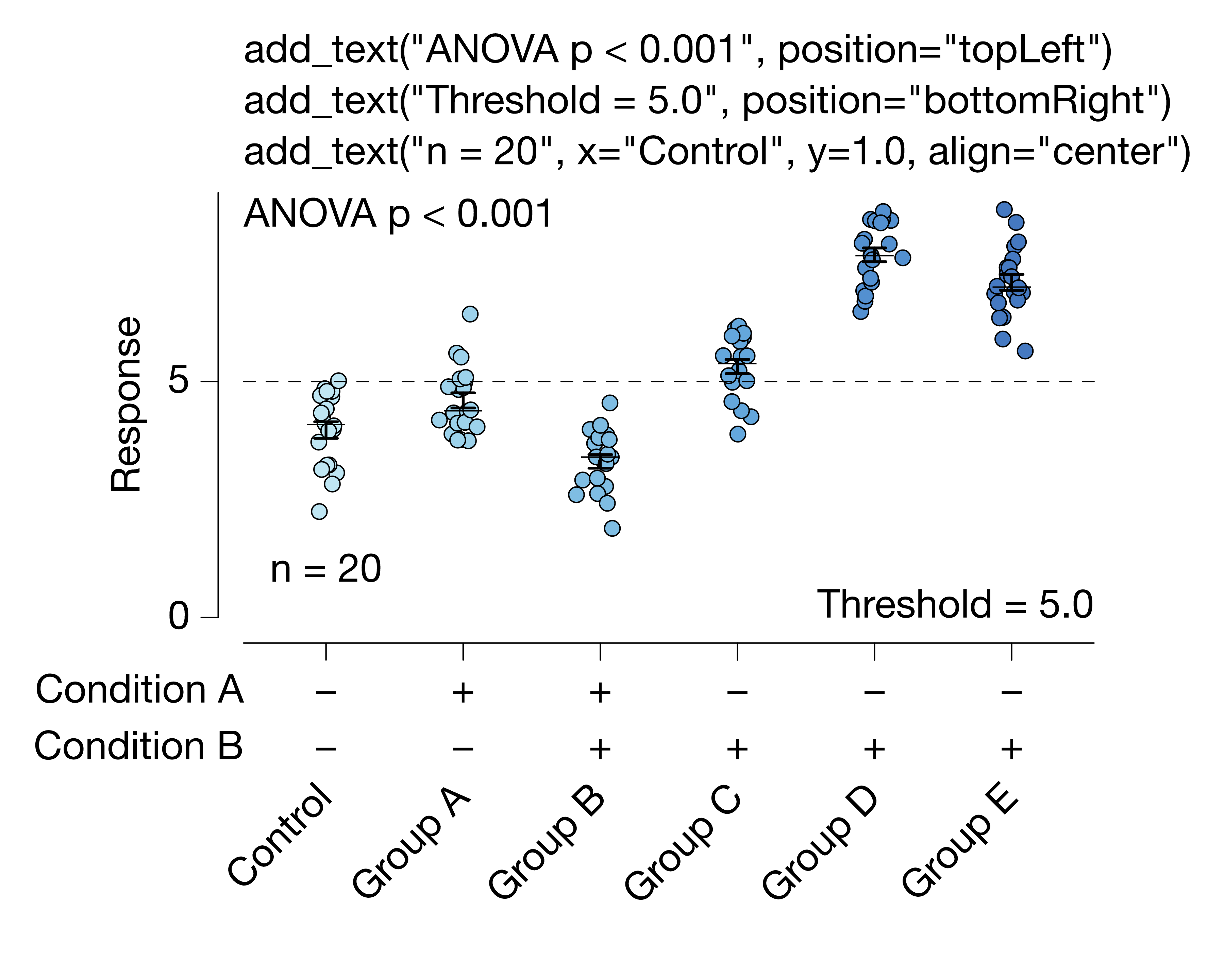

    • Text annotations

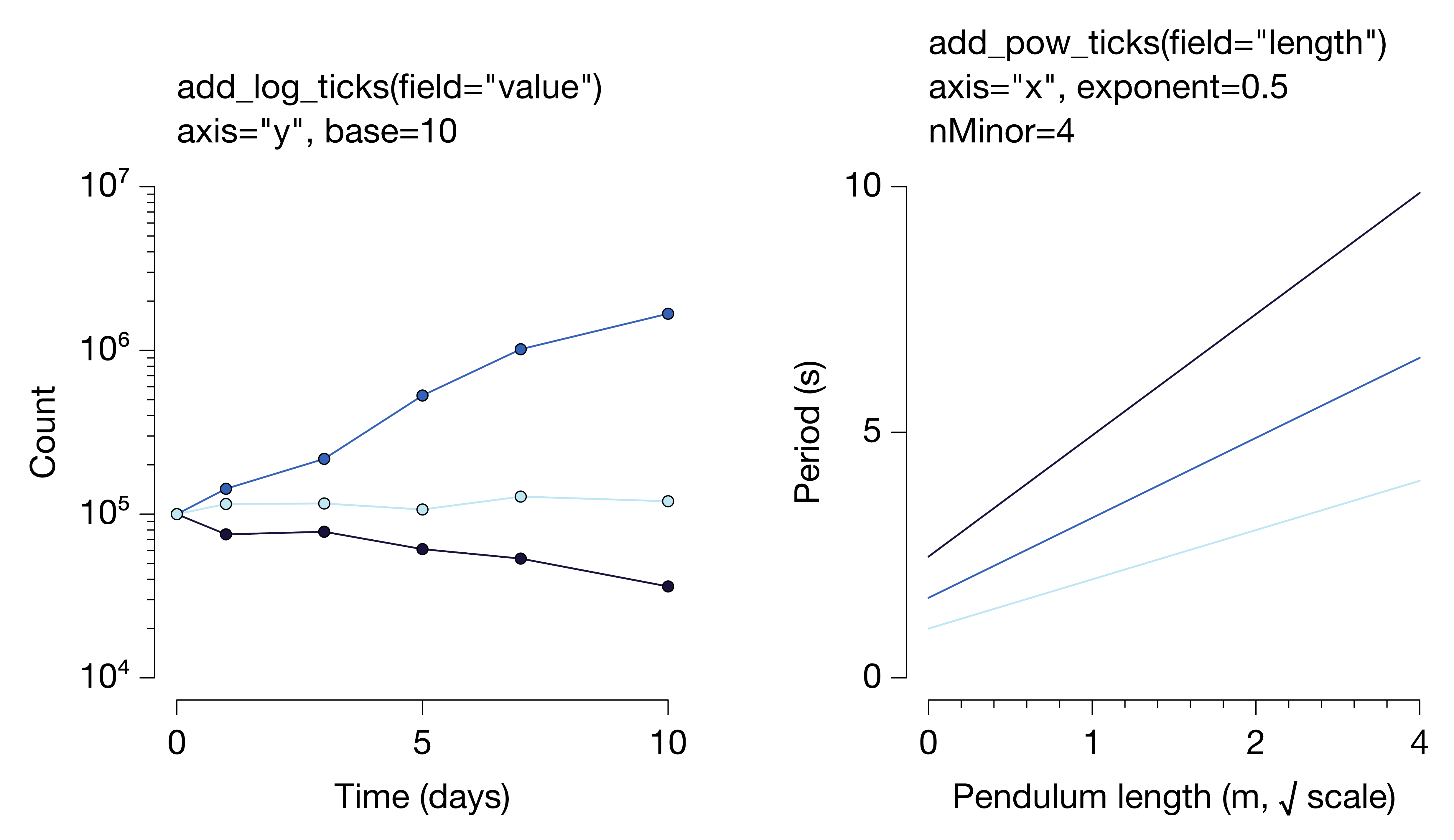

  • Non-linear axes
    • Axis label reformatting
    • Minor ticks
• Development
  • Building palettes
  • Building docs

---

dysonsphere.theme()

Call before building any Altair charts to configure global theme defaults.

ds.theme()  # apply defaults

ds.theme(   # custom configuration
    chartWidth=400,
    chartHeight=250,
    fontSize=8,
    grid=True,
    palette="blues",
)

Parameter	Default	Description
axisOffset	tickSize	Distance between axis line and data area
axisWidth	0.25	Stroke width of axes, ticks, and rules
bandPadding	0.1	Inner and outer padding for ordinal bands
chartFill	"white"	Background fill of the entire chart
chartHeight	100	Default chart height in pixels
chartWidth	100	Default chart width in pixels
closed	auto	Draw a border around the plot area. Auto-enabled when viewFill is set
cornerRadius	False	Corner rounding for rect, bar, boxplot box, and arc marks. False = none; True = min(chartWidth, chartHeight) / 100 (1 px at default 100×100); explicit float = pixels. Bars use cornerRadiusEnd (tip only); all others use cornerRadius (all corners)
darkmode	False	Invert text and axis colors for dark backgrounds
dashedGrid	False	Render axis grid lines dashed (uses dashedWidth pattern); off by default so grids are solid
dashedLine	False	Render line marks dashed
dashedRule	True	Render rule marks dashed
dashedWidth	[2, 2]	Dash/gap pattern [dash, gap] in pixels
font	"HelveticaNeue"	Font family for all labels and titles
fontSize	7	Font size in points (titles, axis labels — the primary tier)
secondaryFontSize	fontSize - 1	An auxiliary smaller font size, auto-derived from fontSize (never below smallestFontSize, unless you set fontSize below it) unless set explicitly. Available for your own annotations; not consumed by the built-in defaults
smallestFontSize	5	A fixed small font size (points) that also floors secondaryFontSize. Accepts an int or a bool: True minimizes the plot by setting fontSize to it; an int overrides the value; False / omitted leaves it simply retrievable. To go below it, pass a smaller fontSize directly
fontWeight	400	Font weight: 300 = light, 400 = normal, 700 = bold
sigFigs	3	Significant figures for on-plot statistical labels (add_comparisons p-values, add_correlation readout). Consistent precision across magnitudes; per-call sigFigs= overrides it. (The saved report/metadata uses its own fixed 3 sig figs.)
grid	False	Show axis grid lines
gridColor	colors["greys"][0]	Grid line color
legend	True	Show legends
legendOffset	tickSize	Distance between legend and chart edge
legendStroke	False	Draw a border around the legend box
markFill	"black"	Default fill color for marks
markFillOpacity	1.0	Default mark fill opacity
markSize	min(chartWidth, chartHeight) * 0.1	Mark size; for points, this is area in px2
markStroke	"black"	Default stroke color for marks
markStrokeOpacity	1	Default mark stroke opacity
palette	None	Master color scheme applied to all scale types (category, diverging, heatmap, ordinal, ramp). Accepts a key from colors, a custom palette name, a raw hex list, or a Vega scheme name. When set, it overrides the per-type keys below
categoryPalette	None	Override the scheme for categorical scales only. Same accepted values as palette. Ignored when palette is set
divergingPalette	None	Override the scheme for diverging scales only
heatmapPalette	None	Override the scheme for heatmap scales only
ordinalPalette	None	Override the scheme for ordinal scales only
rampPalette	None	Override the scheme for ramp (continuous) scales only
strokeCap	"round"	Stroke end cap: "butt", "round", or "square"
ticks	True	Show axis ticks
tickSize	3	Tick length in pixels
transparentBackground	False	Transparent chart background (overrides chartFill)
viewFill	None	Fill color of the plot area only. Setting this auto-enables closed
xAxis	True	Toggle for the x-axis — disabling hides the axis domain and axis ticks, but not axis labels
xDomain	True	Show the x-axis domain line (overridden to False when xAxis=False)
xLabelAngle	0	X-axis label rotation in degrees (e.g. -45); negative = tilt left, positive = tilt right
xLabels	True	Show tick labels on the x-axis
xTicks	True	Show ticks on the x-axis (overridden to False when xAxis=False)
yAxis	True	Toggle for the y-axis — disabling hides the axis domain and axis ticks, but not axis labels
yDomain	True	Show the y-axis domain line (overridden to False when yAxis=False)
yLabelAngle	0	Y-axis label rotation in degrees (e.g. -90); labelAlign is auto-derived from the angle
yLabels	True	Show tick labels on the y-axis
yTicks	True	Show ticks on the y-axis (overridden to False when yAxis=False)

Config file

Persistent per-project or per-user overrides can be stored in a TOML config file. Generate a template with all built-in presets at their defaults:

ds.create_config()                 # writes dysonsphere.toml in the current directory
ds.create_config("/my/dir")        # writes to a specific directory
ds.create_config(persist=True)     # writes to ~/.config/dysonsphere/ or %APPDATA%\dysonsphere\

dysonsphere looks for config files in this order (later files take precedence):

1. ~/.config/dysonsphere/dysonsphere.toml — user-wide; respects $XDG_CONFIG_HOME
2. ./dysonsphere.toml — project-level; found by walking up from the current working directory to the filesystem root (like git locating .git)

Each file contains named style sections. Load a style with ds.theme(style="name"). Calling ds.theme() again with a different style= (or none) replaces the theme entirely — styles do not accumulate.

# dysonsphere.toml
# Theme configuration for dysonsphere.
# Load a style with ds.theme(style="name").

# Only the keys present in a section are applied - everything else uses
# dysonsphere's built-in defaults. Unknown keys raise a ValueError immediately.

# [default] applies to every ds.theme() call regardless of style.
# Leave it empty or omit to use dysonsphere's built-in defaults unchanged,
# or add keys to override the defaults.

[default]

# Built-in styles - edit values or remove sections you don't need.

[notebook]
chartWidth = 900
chartHeight = 900
darkmode = true
fontSize = 18
transparentBackground = true

[presentation]
fontSize = 12
darkmode = true
transparentBackground = true

# Custom styles - add your own style sections below

[my_style]  # Rename to your desired style name

# Custom palettes — lists of hex strings, available via ds.palette("name")
# or ds.theme(palette="name"). dysonsphere palettes are typically 12 stops
# for sequential palettes, and 13 stops for diverging palettes.

[palettes]
# my_palette = ["#DFE9F7", "#C6D9F1", "#ADC8EC", "#94B8E6", "#7AA8E0", "#6097DA", "#4D87CA", "#4177B1", "#386898", "#2F597F", "#264A69", "#1D3A58"]

ds.theme(style="notebook")             # load notebook style
ds.theme(style="notebook", grid=True)  # style + per-call override
ds.theme()                             # back to dysonsphere built-in defaults

Only the keys present in a style section are applied — everything else uses the dysonsphere built-in defaults. Explicit kwargs always take precedence over the config file. Unknown section keys raise a ValueError immediately. Custom palettes in [palettes] are loaded globally on every ds.theme() call and are reset when ds.theme() is called without a config file present.

notebook style

The notebook style is useful for plotting in interactive notebooks, and defaults to using darkmode=True plots with a transparent background (white axes and text, larger Chart areas, and larger font sizes).

---

Palettes

All palettes are built in Oklab (Ottosson, A perceptual color space for image processing, 2020) for perceptual uniformity. They are stored in dysonsphere.colors, a plain dict[str, list[str]] mapping palette names to 12-stop hex lists (13 stops for diverging palettes).

Accessing palettes

from dysonsphere.palettes import colors

blues = colors["blues"]  # list of 12 hex strings, light → dark

Custom palettes defined in a [palettes] block in dysonsphere.toml are merged into colors on each ds.theme() call and can be accessed the same way:

ds.theme()  # loads custom palettes from dysonsphere.toml if present

my_pal = colors["my_palette"]       # access directly
ds.palette("my_palette", n=5)       # slice with palette()
ds.theme(palette="my_palette")      # set as the default color scheme

dysonsphere.palette()

Samples a slice or subset from any named palette.

ds.palette("blues")                     # all 12 stops
ds.palette("blues", n=5)                # 5 evenly-spaced stops
ds.palette("blues", start=3)            # stops 3–11
ds.palette("blues", end=6, step=2)      # indices 0, 2, 4, 6
ds.palette("blues", n=4, reverse=True)  # reversed

Parameter	Default	Description
name	required	Key in colors
n	None	Return n evenly-spaced stops (overrides step)
start	0	Index of the first stop to include
end	last	Index of the last stop to include (inclusive)
step	1	Step between indices (used when n is not set)
reverse	False	Reverse the returned list

Default palettes

When no explicit scale= is set on a color encoding, Vega-Lite falls back to the theme's range defaults:

Range type	Default palette	Override with	Used for
category	blues (even indices: 0, 2, 4, 6, 8, 10)	categoryPalette	Nominal/unordered groups
ordinal	blues	ordinalPalette	Ordered discrete values
ramp	blues	rampPalette	Sequential continuous (legend ramps)
heatmap	blues	heatmapPalette	Rect/heatmap marks
diverging	redsblues	divergingPalette	Diverging scales

Setting ds.theme(palette="mypalette") overrides all five types simultaneously. To override an individual type, set its Override with key from the table above — each accepts a palette name, a custom palette, a raw hex list, or a Vega scheme name:

ds.theme(divergingPalette="redsblues2", heatmapPalette="greens")   # only those two types change

Or in dysonsphere.toml:

[default]
divergingPalette = "redsblues2"

[my_style]
categoryPalette = "reds2"
heatmapPalette  = ["#ffffff", "#000000"]

Note: The gallery and examples in this README use palette="blues2" rather than the shipped default blues. blues2 is a more saturated variant of blues.

Available palettes

See the palette gallery for a visual overview of all palettes, or open docs/index.html locally.

Sequential — Single-hue (12 stops, light → dark): blues, greens, purples, lavenders, violets, greys, reds, rose, oranges, browns, yellows, cyans, magentas, neongreens

Sequential — Single-hue 2 (12 stops, deeper saturation built with Oklab arc-length resampling): blues2, greens2, purples2, lavenders2, violets2, greys2, reds2, pinks2, oranges2, browns2, yellows2, cyans2, magentas2, neongreens2

Sequential — Multi-hue (12 stops, two or more hues blended in Oklab): yellowgreen, ember, dusk, shoal, moss, GnBu, YlGnBu, candy, lagoon, bluestlagoon, bluerlagoon, bluelagoon

Diverging (13 stops, exact-white pivot at stop 6): RdBu, RdYlBu, PuGn, MgGn, PkTe, GdBu, BrTe, BrGn

Diverging — Sequential pairs (13 stops, one sequential hue per arm): greensblues, redsblues, redsgreens, redscyans, redslavenders, redsviolets, redsneongreens, pinksblues, pinkscyans, pinksgreens, pinksneongreens, orangesblues, orangescyans, orangespurples, orangeslavenders, orangesviolets, orangesneongreens, yellowsblues, yellowspurples, yellowslavenders, brownsblues, brownsgreens, brownscyans, brownsneongreens, magentasneongreens, magentasgreens, magentasblues, magentascyans, violetsoranges, violetsyellows, purplesgreens, purplesblues, purplesneongreens, lavendersgreens, lavendersblues, lavendersneongreens, cyanspurples, cyanslavenders, cyansviolets, greysblues, greysreds, greysgreens, greyscyans, greysyellows, greysoranges, greysmagentas, greysviolets, greysneongreens, greyspurples, greyslavender, greyspinks

Diverging — Sequential pairs 2 (13 stops, one deeper-saturation 2 sequential hue per arm): greensblues2, redsblues2, redsgreens2, redscyans2, redslavenders2, redsviolets2, redsneongreens2, pinksblues2, pinkscyans2, pinksgreens2, pinksneongreens2, orangesblues2, orangescyans2, orangespurples2, orangeslavenders2, orangesviolets2, orangesneongreens2, yellowsblues2, yellowspurples2, yellowslavenders2, brownsblues2, brownsgreens2, brownscyans2, brownsneongreens2, magentasneongreens2, magentasgreens2, magentasblues2, magentascyans2, violetsoranges2, violetsyellows2, purplesgreens2, purplesblues2, purplesneongreens2, lavendersgreens2, lavendersblues2, lavendersneongreens2, cyanspurples2, cyanslavenders2, cyansviolets2, greysblues2, greysreds2, greysgreens2, greyscyans2, greysyellows2, greysoranges2, greysmagentas2, greysviolets2, greysneongreens2, greyspurples2, greyslavenders2, greyspinks2

Discrete: nucleotides (5 colors: A, T, G, C, U), proteins (8 biochemical groups: hydrophobic, aromatic, positive, negative, polar, proline, glycine, cysteine)

Matplotlib ported (prefixed with mpl_): mpl_viridis, mpl_plasma, mpl_inferno, mpl_magma, mpl_cividis, mpl_turbo, mpl_Blues, mpl_Greens, mpl_Greys, mpl_Oranges, mpl_Purples, mpl_Reds, mpl_YlGnBu, mpl_YlOrBr, mpl_YlOrRd, and more.

cmocean ported (prefixed with cmocean_): cmocean_algae, cmocean_amp, cmocean_balance, cmocean_curl, cmocean_deep, cmocean_delta, cmocean_dense, cmocean_diff, cmocean_gray, cmocean_haline, cmocean_ice, cmocean_matter, cmocean_oxy, cmocean_phase, cmocean_rain, cmocean_solar, cmocean_speed, cmocean_tarn, cmocean_tempo, cmocean_thermal, cmocean_topo, cmocean_turbid

Exporting palettes as swatches for Adobe Illustrator

ds.export_swatches()                              # all palettes, to the current directory
ds.export_swatches("/my/dir")                     # all palettes, to a specific directory
ds.export_swatches(palettes=["reds", "blues"])    # only a subset of palettes
ds.export_swatches(palettes=["reds"], name="myproject")  # custom library/file name

This writes two files (name defaults to dysonsphere):

• import_{name}_palettes_to_illustrator.jsx — loads the selected palettes into the active document's Swatches panel as named groups.
• {name}.ase — an ASE (Adobe Swatch Exchange) library containing the selected palettes. Automatically copied to your Illustrator User Defined Swatches folder if it can be found; otherwise copy it there manually.

By default every palette is exported; pass palettes=[...] (any keys of ds.colors) to export only a subset, and name= to rename the files and the Illustrator library.

One-time setup (persistent library): If the ASE was installed automatically, restart Illustrator and open the library via Open Swatch Library > User Defined > dysonsphere. It will now be available in all documents without re-running any script.

Per-document import (active document only):

1. Open or create a document in Adobe Illustrator.
2. Go to File > Scripts > Other Script...
3. Select import_dysonsphere_palettes_to_illustrator.jsx.

All palettes are added to the Swatches panel as named groups (e.g. blues, reds).

---

Saving charts

ds.save(chart, "plots/myplot")
# writes: plots/myplot.svg, plots/myplot.json   (SVG + JSON, light — the defaults)

Always use ds.save() instead of chart.save(). ds.save() is a wrapper around Altair's built-in save that runs several post-processing steps essential for correct rendering in dysonsphere-themed charts:

• Tick alignment — Vega floors axis tick positions to integers for screen rendering; at 1200 PPI this becomes a visible gap between ticks and their marks. ds.save() corrects tick transforms to exact float positions.
• Minor tick correction — corrects sub-pixel rounding on log-scale and power-scale minor ticks so spacing is visually uniform at high DPI.
• Axis layering — moves axis elements to the front so they render above chart marks (relevant for viewFill-filled charts).
• SVG simplification — flattens Vega's redundant <g> wrappers for cleaner Illustrator imports.
• Light/dark variants — renders both background modes in a single call by toggling darkmode in the active theme.

Calling chart.save() directly skips all of the above and will produce misaligned ticks and incorrect minor tick spacing in dysonsphere charts.

ds.save() writes a chart in one or more formats and background variants. By default it writes SVG + the Vega-Lite JSON spec, light background only — myplot.svg and myplot.json. The formats ("svg"/"png"/"json") and backgrounds ("light"/"dark") are set by format / background (a string or a list), each defaulting to the theme options saveFormat / saveBackground (so you can change the defaults globally or in dysonsphere.toml). A _light/_dark suffix is added only when more than one background is rendered. It accepts any Altair chart type — Chart, LayerChart, FacetChart, HConcatChart, VConcatChart, or ConcatChart — as well as a zero-argument callable that returns one.

ds.save(chart, "myplot")                              # myplot.svg + myplot.json  (defaults)
ds.save(chart, "myplot", format="png")                # myplot.png only
ds.save(chart, "myplot", format=["svg", "png", "json"])
ds.save(chart, "myplot", background=["light", "dark"])  # myplot_light.* + myplot_dark.*
ds.save(chart, "myplot", ppi=600)                     # lower PPI for faster PNG exports
ds.save(chart, "myplot", description="Figure 1")      # your own description, in SVG <desc>, PNG iTXt, and the JSON spec
ds.save(chart, "myplot", saveMetadata=False)          # suppress the structured metadata block
ds.save(chart, "myplot", maxRows=20000)               # allow bigger data (default cap 5000)
ds.save(chart, "myplot", overrideMaxRows=True)        # remove the row cap entirely
ds.theme(saveFormat=["svg", "png"], saveBackground="dark")  # change the save defaults globally

Because every format renders through Altair's chart.to_dict(), which inlines the data (and the JSON embeds it for ds.read(what="data")), ds.save() blocks data over maxRows (default 5000) with a clear error rather than writing a huge file — raise maxRows= or pass overrideMaxRows=True to opt in.

Metadata

By default, ds.save() embeds a machine-readable JSON block — {"provenance": {...}, "statistics": [...]} — in all three outputs, so each file is self-contained and records exactly what produced it:

• Vega-Lite JSON — under usermeta.dysonsphere (merged into any usermeta you set yourself).
• SVG — in a <metadata id="dysonsphere"> element (CDATA).
• PNG — in an iTXt dysonsphere chunk (read with e.g. exiftool myplot.png).

The block has these keys:

• provenance — the generation facts as structured fields: vegaliteChecksum (a sha256: fingerprint of the chart's spec — same content ⇒ same checksum, so you can validate a file or spot duplicates), exportIdentifier (a uuid4 shared by every file from one ds.save() call), user, script, timestamp (ISO-8601), python, altair, dysonsphere. (In a Jupyter notebook script is <jupyter-notebook>; if the OS exposes no username, user is unknown_user.)
• statistics — the structured records from any add_comparisons() / add_correlation() calls (per-group descriptives, the omnibus result, the comparison test + correction method, and every comparison with exact p-values and effect sizes). Read it back with json.load(open("myplot.json"))["usermeta"]["dysonsphere"]["statistics"] — no text parsing, and trivial to turn into CSV/TSV. Only the statistics whose annotations are actually on the saved chart are embedded, so building a stats chart you never save can't leak into a later save; ds.clear_stats() drops any pending records if you want to reset (handy in notebooks).
• report — a container of human-readable renderings, keyed by section: report.provenance (a "Generated by … using Python …, Altair …, dysonsphere …" sentence, always present) and report.statistics (the descriptive + effect-size text, present when the chart has any comparisons/correlations). So you can read the whole thing straight out of the file, and the nesting leaves room for future sections (report.methods, …) as non-breaking siblings. On by default (embedReport=True); set embedReport=False to keep just the structured block. In the SVG and PNG each section rides in its own readable channel (<metadata id="dysonsphere-report-<section>"> / iTXt dysonsphere-report-<section>, real newlines) rather than escaped inside the JSON blob.
• theme — the resolved ds.theme() arguments used for the figure (dysonsphere params, not Altair's), so the exact styling is recorded and reconstructable.

None of this touches description — that stays your description= text only. (The report is also available standalone via ds.add_comparisons(..., report=True) to stdout or save="dir" to a .txt.)

Reading it back

ds.read() pulls the metadata back out of any exported PNG / SVG / JSON:

ds.read("myplot.png")                     # prints the report table, returns the text
ds.read("myplot.png", save="reports")     # + writes reports/dysonsphere_report_<ts>.txt
ds.read("myplot.png", what="statistics")  # the structured records (exact floats)
ds.read("myplot.json", what="metadata")   # the whole {provenance, statistics, theme, report} dict
ds.read("myplot.json", what="data")       # the original data, rebuilt from the spec (JSON only)
ds.read("myplot.json", what="data", output="pandas")   # or "duckdb" / "records"
ds.read("myplot.json", what="data", dataset="all")     # multi-frame charts → {name: frame}

what="report" (default) even re-renders the table from the records if the prose wasn't embedded (embedReport=False), so it works on any dysonsphere-saved file. what="data" returns the whole frame Altair inlined into the JSON — every column you passed to alt.Chart(df), including ones the chart never plotted (so mind what you hand it), dtypes re-inferred from JSON. dysonsphere's composite marks embed small internal sidecar datasets (bracket coords, mean/error bars, …); those are tagged and filtered out, so you get back just your data. output picks the form: "polars" (default), "pandas", "duckdb" (a queryable relation), or "records" (raw list[dict], no dataframe library needed) — pandas/duckdb are imported only if asked, not dependencies. If a chart genuinely layers two of your own DataFrames, what="data" raises rather than silently returning one; pass dataset="all" for a {name: frame} dict or dataset="<name>" for a specific one.

ds.load() rebuilds the chart from the Vega-Lite JSON (the .json spec):

chart = ds.load("myplot.json")            # composable Altair object; re-applies the saved theme
chart + ds.add_comparisons(df, "g", "v", pairs)    # extend it, then ds.save() again
ds.load("myplot.json", raw=True)          # the raw spec dict — re-renders pixel-identically
ds.load("myplot.json", applyTheme=False)  # don't touch the active theme

By default load() returns a real, composable Altair object with the file's theme re-applied (which, like any ds.theme() call, replaces the active theme globally). It strips the theme config (Altair's schema is stricter than Vega-Lite's), so the styling comes from the re-applied theme; use raw=True for the untouched spec dict if you want a faithful re-render without touching the global theme. JSON only — PNG/SVG carry the metadata but not the full spec.

The description= field is entirely yours: whatever you pass is stored verbatim (nothing appended) in the SVG <desc>, the PNG Description chunk, and the JSON description key — so it stays a clean chart label / aria-label.

ds.save(chart, "myplot", description="Figure 1")   # description field: "Figure 1"

Pass saveMetadata=False to suppress the structured block; your description (if any) is still written.

---

Chart utilities

Data transforms

Beeswarm

add_beeswarm() computes collision-avoiding x-offsets per group using an analytic method. Points are sorted by y position and placed greedily from the centre outward: for each point, the forbidden x intervals imposed by already-placed neighbours are computed exactly as px ± √((2·spread)² − dy²), and the candidate closest to 0 outside all intervals is chosen. Better than jitter for small n; total width grows with n.

df = ds.add_beeswarm(df, yCol="value", groupBy=["group"], spread=2.0)

alt.Chart(df).mark_circle().encode(
    x=alt.X("group:N"),
    y=alt.Y("value:Q"),
    xOffset=alt.XOffset("beeswarm_x:Q"),
)

Parameter	Default	Description
yCol	required	Value column
groupBy	required	Column(s) defining each beeswarm group
spread	theme(markSize)	Collision radius in pixels, derived as √(markSize/π) to match the rendered point radius
heightPx	theme(chartHeight)	Chart height in pixels
outCol	"beeswarm_x"	Output column name

Jitter

add_jitter() adds random Gaussian x-offsets to each row. Each offset is drawn independently from N(0, spread²) — ~68% of points fall within ±spread of centre, ~95% within ±2·spread. Points can overlap; use add_beeswarm() for small n where overlap is undesirable.

df = ds.add_jitter(df, spread=5)

alt.Chart(df).mark_circle().encode(
    x=alt.X("group:N"),
    y=alt.Y("value:Q"),
    xOffset=alt.XOffset("jitter_x:Q"),
)

Parameter	Default	Description
spread	min(chartWidth, chartHeight) / 50	Standard deviation of jitter in pixels. Auto-scaled from theme dimensions (2.0 at default 100×100 px2)
outCol	"jitter_x"	Output column name
seed	20220701	Random seed

Custom marks

Strip plots (mark_strip)

Create a Chart with jittered or beeswarm points with a median tick and optional mean ± error bars using mark_strip().

chart = ds.mark_strip(df, "group", "value", CATEGORIES)
chart = ds.mark_strip(df, "group", "value", CATEGORIES, scatter="beeswarm")

Parameter	Default	Description
scatter	"jitter"	"jitter" (fast, random Gaussian) or "beeswarm" (collision-avoidance)
palette	None	List of colors for points
markSize	theme(markSize)	Point size in sq px
markOpacity	theme(markFillOpacity)	Point opacity
spread	None	Point spread in pixels. For jitter: std dev (defaults to min(chartWidth, chartHeight) / 50). For beeswarm: collision radius (defaults to √(markSize/π) from theme)
legend	False	Show a color legend
xLabelAngle	theme(xLabelAngle)	X-axis label rotation in degrees
errorbars	True	Show mean ± error bars
errorbarExtent	"sem"	"sem" or "sd"
yTitle	yCol	Y-axis title; None suppresses it
xTitle	xCol	X-axis title; None suppresses it

Violin

Create a violin plot with an embedded boxplot with mark_violin(). The returned chart is safe to place in alt.hconcat() alongside mark_strip() or any other chart — no extra .resolve_scale() calls needed.

ds.theme(chartWidth=300)
palette = ds.palette("lavenders", n=len(CATEGORIES))

chart = ds.mark_violin(df, "group", "value", CATEGORIES, palette=palette)
ds.save(chart, "violin")

# side-by-side with mark_strip — works without special resolution
left = ds.mark_strip(df, "group", "value", CATEGORIES)
right = ds.mark_violin(df, "group", "value", CATEGORIES)
ds.save(alt.hconcat(left, right), "comparison")

Parameter	Default	Description
df	required	Polars or pandas DataFrame
xCol	required	Grouping column name
yCol	required	Value column name
categories	required	Ordered list of group labels
palette	None	Single color or list of colors for violin fills
boxplotSize	theme(markSize) * 0.8	Boxplot box width in pixels
boxplotColor	"black"	Boxplot fill color
fillOpacity	theme(markFillOpacity)	Violin fill opacity
stroke	None	Violin outline color (None = no outline)
strokeWidth	theme(markStrokeWidth)	Violin outline width
legend	False	Show a color legend
xLabelAngle	theme(xLabelAngle)	X-axis label rotation in degrees
steps	200	KDE grid resolution per group
yTitle	yCol	Y-axis title; None suppresses it
xTitle	xCol	X-axis title; None suppresses it

Statistical annotations

add_comparisons() annotates group comparisons. It has two modes, selected by test:

• Pairwise ("mannwhitneyu", "ttest_ind", "ttest_rel", "wilcoxon", "tukey_hsd") - draws a bracket per pair in pairs, stacked automatically so they don't overlap.
• Omnibus ("anova", "kruskal", "friedman", "alexandergovern") - places the omnibus result as a corner label (via add_text), and, if pairs is given, fills the brackets with a post-hoc test.

Renamed: this function was add_pvalue() in v1.0 and renamed to add_comparisons() in v1.1. The deprecated add_pvalue() alias was removed in v2.0.

Combine with any chart using +.

Pairwise tests

CATEGORIES = ["Group A", "Group B", "Group C"]

# single comparison
chart + ds.add_comparisons(
    df,
    "group",
    "value",
    pairs=[("Group A", "Group B")],
    categories=CATEGORIES,
)

# multiple comparisons — brackets stacked automatically
chart + ds.add_comparisons(
    df,
    "group",
    "value",
    pairs=[("Group A", "Group B"), ("Group A", "Group C"), ("Group B", "Group C")],
    categories=CATEGORIES,
)

From pre-computed p-values, with explicit bracket positions:

ds.add_comparisons(..., pvalues=[0.002, 0.031], yPositions=[4.5, 5.2])

Brackets below the marks using reverse - requires negative yStep so levels stack downward, and an explicit tickHeight (positive) since auto-compute would produce a negative value:

ds.add_comparisons(
    df,
    "group",
    "value",
    pairs=[("A", "B")],
    categories=["A", "B"],
    bracketStyle="bracket",
    yStart=data_min - yPad,
    yStep=-yStep,
    tickHeight=0.15,
    reverse=[("A", "B")],
)

Style or format brackets per pair by passing a dict (instead of a string) to bracketStyle or notation — keys match either pair order, and unlisted pairs fall back to the default:

ds.add_comparisons(
    df, "group", "value", pairs=[("A", "B"), ("A", "C")], categories=["A", "B", "C"],
    bracketStyle={("A", "C"): "line"},      # A-C as a plain line, the rest as brackets
    notation={("A", "C"): "scientific"},    # A-C in scientific, the rest plain
)

For notation, a special "test" key sets the omnibus label's format (e.g. notation={"test": "power"}).

Omnibus tests

Omnibus ANOVA in the corner + Tukey post-hoc brackets (omnibusVerbose=True adds the statistic, df, and effect size to the label):

chart + ds.add_comparisons(
    df,
    "group",
    "value",
    pairs=[("Group A", "Group C"), ("Group B", "Group C")],
    test="anova",                # corner: "ANOVA F(2, 57) = 6.34, P = 0.003, η² = 0.18"
    omnibusVerbose=True,
    testLabelPosition="topLeft",
    categories=CATEGORIES,        # post-hoc defaults to Tukey HSD
)

# omnibus-only (no brackets), print the full descriptive + effect-size report
chart + ds.add_comparisons(df, "group", "value", test="kruskal", categories=CATEGORIES, report=True)

The supported post-hocs are Tukey HSD and Dunnett (via scipy) plus Dunn, Nemenyi, and Games-Howell, which dysonsphere computes in-house (validated against scikit-posthocs and pingouin). Every add_comparisons() call also generates a descriptive + effect-size report that is appended to the metadata of files written by ds.save() (see report/save). For an omnibus test the report lists all pairwise post-hoc comparisons (the full table), not just the pairs you draw brackets for. Report p-values carry the real computed value at a fixed 3 significant figures (e.g. P = 1.22e-11) — never the floored P < 0.001 used for on-plot labels, and independent of the on-plot sigFigs — so the metadata stays precise regardless of how you style the plot.

Parameter	Default	Description
df	required	Polars or pandas DataFrame
xCol, yCol	required	Column names for groups and values
pairs	None	List of (group1, group2) tuples to bracket. Required for pairwise tests; optional for omnibus (omit for a corner label only)
test	"mannwhitneyu"	Pairwise: "mannwhitneyu", "ttest_ind", "ttest_rel", "wilcoxon", "tukey_hsd". Omnibus: "anova", "kruskal", "friedman", "alexandergovern"
postHoc	auto	Post-hoc filling the brackets for omnibus tests. Default per test: anova→"tukey_hsd", alexandergovern→"games_howell", kruskal→"dunn", friedman→"nemenyi". Accepts any pairwise test too
pvalues	None	Pre-computed p-values, one per pair (skips all tests)
correction	None	"bonferroni", "holm", or None. Ignored for tukey_hsd. For post-hoc matrices, adjusts over all unique pairs
nComparisons	len(pairs)	Number of comparisons for Bonferroni correction
yPositions	None	Explicit y positions per bracket (overrides auto-stacking)
yStart	auto	Y position of the lowest bracket
yStep	yPad * 2	Vertical distance between stacking levels
yPad	auto	Padding above data max when yStart is auto-placed. Defaults to a fixed ~8 px visual gap (bracketStyle="line") or ~10 px (bracketStyle="bracket"), scaled to data units via chartHeight
bracketStyle	"bracket"	"bracket" (bar + end ticks) or "line" (bar only) for all brackets; or a dict mapping a pair to its style for per-pair control, e.g. {("A","B"): "line", ("A","C"): "bracket"} (keys match either order; unlisted pairs default to "bracket")
labelStyle	"p"	"p" renders P = 0.012 / P < 0.001; "asterisks" renders * / ** / *** / ns (brackets only — the omnibus label always shows the p-value)
tickHeight	tickSize	End tick height, defaulting to the theme's tickSize (px → data units) so bracket ticks match the axis ticks. Only for bracketStyle="bracket"
reverse	None	List of (group1, group2) tuples identifying brackets to flip below the bar
categories	inferred	Ordered list of all x-axis categories
chartWidth	theme(chartWidth)	Chart width for computing text x position; auto-read from the active theme, rarely needs to be set explicitly
fontSize	theme(fontSize)	Font size of the p-value / corner labels; defaults to the theme's fontSize
sigFigs	theme(sigFigs)	Significant figures for the p-value label (and mantissa in scientific/e). Gives consistent precision across magnitudes — e.g. sigFigs=2 renders both P = 4.3×10⁻¹⁴ and P = 0.68. Trailing zeros stripped. None reads the theme (default 3). Plain notation floors at a fixed P < 0.001
notation	None	Number format for labelStyle="p". None uses P = 0.012 / P < 0.001 style. "scientific" → P = 1.23×10⁻⁵. "e" → P = 1.23e-05. "power" → P ≈ 10⁻⁵ (rounds to nearest power of 10 — values within the same order of magnitude get the same label, so best for widely spread p-values). "si" raises ValueError. Or a dict for per-pair notation, e.g. {("A","B"): "scientific", "test": "power"} — tuple keys are pairs (either order; unlisted → plain), and the special "test" key sets the omnibus label's notation
testLabelPosition	"auto"	Corner preset for the single test label, whose content adapts: the omnibus result (ANOVA P = 0.003) for omnibus tests, or the pairwise test name (Mann-Whitney U) for pairwise tests. "auto" shows it at "topLeft" for omnibus and hides it for pairwise (opt-in); a preset draws it there; None hides it (result still computed for the report/metadata)
testLabel	None	Override string for the test label
omnibusVerbose	False	Omnibus label content: False → ANOVA P = 0.003; True → ANOVA F(2, 57) = 6.34, P = 0.003, η² = 0.18
testLabelOffsetX, testLabelOffsetY	0	Pixel nudges for the test label
testLabelX, testLabelY	None	Explicit coordinates for the test label (data values, category names, or alt.value(px)), overriding the preset
report	False	True prints the full descriptive + effect-size report to stdout. The report is queued for ds.save() metadata regardless
save	False	True writes the report to dysonsphere_report_<timestamp>.txt in the cwd; a string writes to that directory

Correlation

add_correlation() annotates a scatter (two continuous variables) with a correlation coefficient, and — for method="pearson" only — draws the OLS regression line. method matches pandas' DataFrame.corr ("pearson" / "spearman" / "kendall"). Like add_comparisons(), it reports its result as a corner label and queues a structured record for ds.save() metadata. Compose it with +.

import altair as alt
import numpy as np
import polars as pl
import dysonsphere as ds

ds.theme()

rng = np.random.default_rng(0)
x = rng.uniform(0, 10, 100)
df = pl.DataFrame({"height": x, "weight": 0.9 * x + rng.normal(0, 1, 100)})

scatter = alt.Chart(df).mark_point().encode(x="height:Q", y="weight:Q")

# Pearson: draws the OLS fit line; the readout is just "r = 0.90" by default
chart = scatter + ds.add_correlation(df, "height", "weight")
ds.save(chart, "plots/correlation")

# other options
scatter + ds.add_correlation(df, "height", "weight", method="spearman")            # ρ, no line
scatter + ds.add_correlation(df, "height", "weight", includePvalue=True)           # r = 0.90, P < 0.001
scatter + ds.add_correlation(df, "height", "weight", coefficient="both")           # r + r²
scatter + ds.add_correlation(df, "height", "weight", verbose=True)                 # r, r², P, and the equation
scatter + ds.add_correlation(
    df, "height", "weight",
    color="#c0392b", strokeWidth=1.2,                                              # curated line style
    lineStyle={"strokeDash": [4, 2]},                                              # raw mark_line passthrough
)

The three methods report different coefficients; only Pearson has a straight-line model, so line= is a no-op for the rank methods:

method	coefficient	line
"pearson" (default)	r (and r², slope/intercept)	OLS line
"spearman"	ρ	none
"kendall"	τ	none

The readout is composed from independent parts — by default it shows just the coefficient (r = 0.90 / ρ = 0.81); switch on more with the parameters below. verbose=True is the shortcut for the fullest readout.

Parameter	Default	Description
df	required	Polars or pandas DataFrame
xCol, yCol	required	Column names for the two continuous variables
method	"pearson"	"pearson", "spearman", or "kendall" (matches pandas' DataFrame.corr)
line	True	Draw the OLS fit line (Pearson only; no-op for rank methods). False to suppress and, e.g., compose your own from the recorded slope/intercept
position	"topLeft"	Corner preset (an add_text position) for the readout. None computes the result for the metadata but draws no label
label	None	Override string for the corner readout
coefficient	"r"	Pearson only — "r", "r2" (just r², Excel-trendline style), or "both". Ignored for rank methods
includePvalue	False	Append the p-value to the readout
includeEquation	False	Pearson only — append the fit equation , y = 0.84x + 0.27
verbose	False	Shortcut: True = coefficient="both", includePvalue=True, includeEquation=True (overrides those three)
offsetX, offsetY	0	Pixel nudges for the readout
fontSize	theme(fontSize)	Font size of the readout; defaults to the theme's fontSize
sigFigs, notation	theme(sigFigs), None	Significant figures / number format for the readout — coefficient, r², p-value, and fit equation (as in add_comparisons). sigFigs=None reads the theme
color, strokeWidth, strokeDash, opacity	None (inherit)	Curated style overrides for the fit line (the same four knobs as add_rule). Each defaults to None, so the line inherits the theme's mark_line config; set one to override just that property
lineStyle	None	A dict of raw mark_line properties merged in last, so any Vega-Lite line property is reachable. Keys here override the curated color/strokeWidth/etc. above
report	False	True prints the report (coefficient, r², P, fit, n) to stdout; queued for ds.save() metadata regardless
save	False	True writes the report to a .txt in the cwd; a string writes to that directory

Multilabels

add_multilabel() attaches a condition table directly below a chart, replacing its x-axis labels. Both groups and categories are optional — you can call it with only sample sizes or category labels if that's all you need.

CONDITIONS = {
    "Condition 1": [True, False, True, True],
    "Condition 2": [False, False, True, False],
    "Condition 3": [False, False, False, True],
}

ds.add_multilabel(chart, CONDITIONS, categories=CATEGORIES, style="plusminus")

groups values should be booleans: True for a positive mark, False for a negative mark. If any value in a row is a non-bool (str, int, float), that row is automatically rendered as "text" regardless of style or rowStyles.

Rows can mix styles: set a global style and override individual rows with rowStyles. Connecting rules only span between "symbol" rows — rows of other styles between symbol rows are skipped in run detection without raising an error.

Three style options are available: "plusminus" renders True as + and False as −, "symbol" renders True as a filled mark and False as an unfilled mark (shape set by the symbol parameter, default "circle") with an optional connecting rule whose direction is controlled by orientation, and "text" renders raw values as strings centered under each category.

Sample sizes

Pass showSampleSize=True to add_multilabel() to automatically inject a per-category sample size row. Requires df and xCol; counts are computed via ds.count_n().

ds.add_multilabel(
    chart,
    CONDITIONS,
    categories=CATEGORIES,
    style="symbol",
    showSampleSize=True,
    df=df,
    xCol="group",           # column used for x-axis grouping
    sampleSizeIndex=0,      # insertion position among rows (default 0 = first)
    sampleSizeLabel="n =",  # row label (default "n =")
)

The n = row always renders as "text" regardless of the global style setting. sampleSizeIndex follows list.insert() semantics: 0 = first, len(groups) = last, negative indices count from the end (note: -1 is second-to-last, not last).

ds.count_n(df, xCol, categories) is also available as a standalone helper returning a list[int] of per-category row counts — useful for building custom annotation rows or reporting sample sizes elsewhere.

Since groups defaults to {}, you can show only sample sizes with no other rows:

ds.add_multilabel(chart, categories=CATEGORIES, showSampleSize=True, df=df, xCol="group")

Category labels

Pass categoryLabel=True to add_multilabel() to render the x-axis category names as angled text in a dedicated row, replacing the stripped axis labels. This row lives outside the data band scale and is always placed at the top or bottom.

ds.add_multilabel(
    chart,
    CONDITIONS,
    categories=CATEGORIES,
    style="symbol",
    categoryLabel=True,
    categoryLabelPosition="bottom",  # "top" or "bottom" (default "bottom")
    categoryLabelAngle=-45,          # degrees; default -45
    categoryLabelHeight=None,        # auto-computed when None
)

categoryLabelHeight is auto-computed as ceil(fontSize × 0.6 × max_len × |sin(angle)| + fontSize × |cos(angle)|) — the rotated bounding box of the longest label. Pass an explicit value to adjust the space between the category label text and the adjacent data rows.

Spans

Pass span= to add_multilabel() to group x-axis categories under a shared rule or bracket with an optional label. The span extends from the lowest to the highest index of the listed categories, so passing only the first and last members is equivalent to listing all of them.

ds.add_multilabel(
    chart,
    CONDITIONS,
    categories=CATEGORIES,
    span=[
        {"Span 1": ["A", "B", "C"]},
        {"Span 2": ["D", "E", "F"]},
    ],
    spanBracketStyle="line",   # "line" (default) or "bracket"
)

Use a list of single-entry dicts instead of a plain dict when you need multiple unlabeled spans (plain dict keys must be unique; None or "" as a key suppresses the label):

span=[{None: ["A", "B", "C"]}, {None: ["D", "E", "F"]}]

The span section is always placed below all annotation rows. When categoryLabel=True and categoryLabelPosition="bottom", the category label row is deferred to below the spans so the visual order is always: rows → spans → category labels.

Parameter	Default	Description
groups	{}	{row_label: [bool, ...]} — one True/False per category; non-bool values force style="text" for that row
categories	None	Ordered list of x-axis categories matching the main chart
style	"plusminus"	Global default style: "plusminus", "symbol", or "text" (auto-set per row when values are non-bool)
rowStyles	None	Per-row style overrides as {row_label: style_string} or a list of style strings in row_order; accepts the same values as style
labelAlign	"left"	"left" places row labels left of the multilabel grid; "right" places them right
labelPadding	0	Gap in pixels between the plot boundary and the label text
order	insertion order	Top-to-bottom row order
rowHeight	10	Height in pixels per row
symbol	"circle"	Vega-Lite shape name ("square", "diamond", "triangle-up", etc.) ("symbol" style only)
symbolSize	theme(markSize) * 4	Symbol area in square pixels ("symbol" style only)
connectingLine	True	Draw a connecting rule between consecutive True values ("symbol" rows only); direction set by orientation
orientation	"vertical"	"vertical" connects consecutive True rows within each column; "horizontal" connects consecutive True columns within each row ("symbol" style only)
strokeWidth	theme(markStrokeWidth)	Stroke width for dots and connecting rule
yPadding	0.1	Inner padding between rows as a fraction of band step
chartWidth	theme(chartWidth)	Width of the annotation chart in pixels
fontSize	theme(fontSize)	Font size for symbols and row labels
showSampleSize	False	Inject a per-category sample size row; requires df and xCol
df	None	Source DataFrame (Polars or Pandas) for counting samples; used with showSampleSize=True
xCol	None	Grouping column in df; used with showSampleSize=True
sampleSizeIndex	0	Insertion position of the n-row among groups rows, using list.insert() semantics
sampleSizeLabel	"n ="	Row label for the sample size row
categoryLabel	False	Render x-axis category names as angled text in a dedicated row
categoryLabelPosition	"bottom"	"bottom" places the category label row below all data rows; "top" places it above
categoryLabelAngle	-45	Rotation angle of the category name text in degrees
categoryLabelHeight	auto	Height in pixels reserved for the category label row; auto-computed from font size, angle, and longest label when None
span	None	Dict or list of single-entry dicts mapping span label → list of categories; None or "" key suppresses the label
spanBracketStyle	"line"	"line" draws a plain horizontal rule; "bracket" adds vertical end ticks
spanLabelPosition	"bottom"	Where to place the span label relative to the rule: "bottom" or "top"
spanBracketReverse	True	When True, bracket end ticks point toward the annotation rows; when False, they point away
spanTickHeight	theme(tickSize)	Height in pixels of the bracket end ticks; only used when spanBracketStyle="bracket"
spanGap	rowHeight × 0.3	Vertical gap in pixels between the last annotation row and the span rule

Dark mode: "symbol" style resolves fill colours from ds.theme() at construction time — positive marks are white, unfilled marks use greys[11]. Pass a callable to ds.save() so the chart rebuilds after each darkmode toggle:

ds.save(
    lambda: ds.add_multilabel(chart, CONDITIONS, style="symbol", ...),
    "my_plot",
)

Chart annotations

Background shading

add_shade() builds a background mark_rect layer. Compose it behind the main chart with +.

Band mode (categories provided, positions omitted): shades every x-axis band, cycling colors through palette with repeat consecutive ticks per color.

Positions mode (positions provided): shades explicit coordinate ranges as (start, end) tuples. String tuples reference category names on a nominal axis; numeric tuples reference data-space coordinates on a quantitative axis and auto-share the main chart's scale. Set axis='both' to draw intersection rects using nested pairs ((x_start, x_end), (y_start, y_end)) — each half is resolved independently, so mixed types (e.g. nominal x + quantitative y) work in the same rect.

# band mode — alternating shades for every x-axis category
shade = ds.add_shade(CATEGORIES, "group")
chart = shade + main_chart

# positions mode — y-axis region (quantitative)
shade = ds.add_shade(
    positions=[(7.5, 10.0)],
    axis="y",
    palette=[ds.palette("blues")[0]],
)

# positions mode — x-y intersection rect
shade = ds.add_shade(
    positions=[((7.5, 10.0), (7.5, 10.0))],
    axis="both",
    palette=[ds.palette("blues")[0]],
    stroke=True,
    strokeDash=True,
)
chart = shade + main_chart

# positions mode — category spans on nominal x
shade = ds.add_shade(
    positions=[("Group A", "Group C"), ("Group E", "Group F")],
    categories=CATEGORIES,
)

Parameter	Default	Description
categories	None	Ordered category list. Required for band mode and string-valued positions
xCol	None	x-axis column name (band mode only; not used internally)
positions	None	List of (start, end) tuples (single-axis) or ((x_start, x_end), (y_start, y_end)) tuples (axis='both'). Activates positions mode
axis	'x'	'x', 'y', or 'both'. Ignored in band mode (always 'x')
palette	greys[:nShades]	List of hex colors to cycle through in light mode. Ignored in dark mode — darkest nShades greys are always used. Resolved at call time — pass a callable to ds.save() for correct darkmode rendering
nShades	2	Number of colors to use. Slices the first nShades stops from palette in light mode, or the last nShades stops from "greys" in dark mode
repeat	1	Number of consecutive ticks covered by each rect before advancing to the next color (band mode only)
opacity	1.0	Fill opacity
stroke	False	True → axis-style border: black/white per dark mode, axisWidth wide
strokeWidth	None	Explicit border width in pixels. Overrides axisWidth when stroke=True
strokeDash	None	None → solid; True → inherit dashedWidth from theme; list (e.g. [4, 2]) → explicit pattern
flush	None	Extend outermost rects to the axis domain edge. None inherits from theme(closed=...)

Reference lines

add_rule() builds a horizontal or vertical mark_rule layer. Compose it with the main chart using +.

# Horizontal line at y=0
chart = base + ds.add_rule(0)

# Labeled horizontal line — label above-left by default
chart = base + ds.add_rule(5.0, label="Threshold", color="#c0392b")

# Two horizontal lines, labels at the right end of each line
chart = base + ds.add_rule(
    [4.0, 8.0],
    label=["Lower limit", "Upper limit"],
    labelAlign="right",
    color="#c0392b",
)

# Vertical line, label at top-right by default
chart = base + ds.add_rule(10, axis="x", label="Intervention", color="#c0392b")

# Vertical line, label to the left of the line
chart = base + ds.add_rule(10, axis="x", label="t₀", labelPosition="left")

labelAlign controls where along the line the label is anchored; labelPosition controls which side of the line it sits on.

Parameter	Default	Description
value	required	Coordinate(s) on the axis; float or list[float]
axis	"y"	"y" = horizontal line(s); "x" = vertical line(s)
label	None	Text label(s); one string per value
labelAlign	"left" / "top"	Where along the line to anchor the label. axis="y": "left", "center", or "right". axis="x": "top", "center", or "bottom"
labelPosition	"top" / "right"	Which side of the line the label sits on. axis="y": "top" or "bottom". axis="x": "right" or "left"
labelOffsetX	0	Additional horizontal pixel offset on the label. Positive = right, negative = left
labelOffsetY	0	Additional vertical pixel offset on the label. Positive = down, negative = up
color	None	Line and label color; None inherits from theme
strokeWidth	None	Line width in pixels; None inherits from theme
strokeDash	None	None = theme dashedRule; False = solid; True = dashedWidth; list = explicit pattern
opacity	1.0	Line opacity
fontSize	None	Label font size; None inherits from theme

Text annotations

add_text() places one or more text annotations at arbitrary positions within a chart. Compose it with the main chart using +.

# Annotation at a data coordinate (nominal x + quantitative y)
chart = base + ds.add_text("n = 20", x="Control", y=1.0, align="center", baseline="bottom")

# Named position preset — flush with the top-left axis domain edge
chart = base + ds.add_text("ANOVA p < 0.001", position="topLeft")

# Named position preset — bottom-right corner, nudged inward
chart = base + ds.add_text("Threshold = 5.0", position="bottomRight", offsetX=-4)

The x and y parameters accept three forms: a float/int for quantitative data coordinates (shares the main chart's scale automatically), a str for nominal band centers, or alt.value(n) to pin to a fixed pixel position independent of the data. The position preset sets x, y, align, and baseline automatically from chartWidth / chartHeight in the active theme; explicit arguments override any preset value.

Parameter	Default	Description
text	required	Annotation string(s); pass a list with matching-length x/y lists for multiple annotations in one call
x	None	Horizontal coordinate: float/int (quantitative), str (nominal band center), or alt.value(n) (fixed pixel); required if position not set
y	None	Vertical coordinate; same three forms as x; required if position not set
position	None	Named position preset on a 3×3 grid: "topLeft", "topCenter", "topRight", "middleLeft", "middleCenter", "middleRight", "bottomLeft", "bottomCenter", "bottomRight"
angle	0	Rotation in degrees, clockwise; negative values wrapped automatically to [0, 360]
align	"left"	Horizontal text anchor: "left", "center", or "right"; overrides position
baseline	"middle"	Vertical text anchor: "top", "middle", "bottom", or "alphabetic"; overrides position
offsetX	0	Horizontal pixel nudge after positioning; positive = right
offsetY	0	Vertical pixel nudge after positioning; positive = down
color	None	Text color; None inherits from theme
fontSize	None	Font size in points; None inherits from theme
fontWeight	None	"normal", "bold", or numeric CSS weight (100–900); None inherits from theme
fontStyle	None	"normal" or "italic"; None inherits from theme
font	None	Font family name (e.g. "sans-serif", "Georgia"); None inherits from theme
opacity	1.0	Text opacity

Non-linear axes

add_log_ticks() and add_pow_ticks() add unlabeled minor ticks to log- and power-scaled axes respectively. Both wrap your chart in a layer with an invisible second axis — your chart's data, scale domain, and axis labels are unaffected. Both work with alt.Chart, alt.LayerChart, and any chart type composable with alt.layer(), including hconcat and vconcat layouts.

Note: Always use ds.save() rather than chart.save(). ds.save() runs an SVG post-processing step that corrects the sub-pixel rounding Vega applies to tick transforms, ensuring consistent minor tick spacing at high DPI.

Axis label reformatting

log_label_expr() returns a Vega labelExpr string for log-scale axis labels. Four notations are available, although e and si are also supplied with base altair via Vega-Lite's d3 format().:

# Power notation — 10⁴, 10⁵, 10⁶, … (any integer base)
axis = alt.Axis(
    values=[10**e for e in range(exp_min, exp_max + 1)],
    labelExpr=ds.log_label_expr(),
)

# Power notation — log2 axis: 2⁰, 2¹, …, 2²⁰
axis = alt.Axis(
    values=[2**e for e in range(0, 21)],
    labelExpr=ds.log_label_expr(base=2),
)

# Scientific notation — 1×10⁴, 1×10⁵, 1×10⁶, … (base-10 only)
axis = alt.Axis(
    values=[10**e for e in range(exp_min, exp_max + 1)],
    labelExpr=ds.log_label_expr(notation="scientific"),
)

# E-notation — 1e+4, 1e+5, 1e+6, … (base-10 only)
axis = alt.Axis(
    values=[10**e for e in range(exp_min, exp_max + 1)],
    labelExpr=ds.log_label_expr(notation="e"),
)

# SI prefix notation — 10k, 100k, 1M, … (base-10 only)
axis = alt.Axis(
    values=[10**e for e in range(exp_min, exp_max + 1)],
    labelExpr=ds.log_label_expr(notation="si"),
)

Parameter	Default	Description
base	10	Logarithm base matching the axis scale
notation	"power"	"power" (e.g. 10⁴, any integer base), "scientific" (e.g. 1×10⁴), "e" (e.g. 1e+4), or "si" (e.g. 10k, 1M). All notations except "power" require base=10. Power and scientific support exponents up to ±99

Minor ticks

add_log_ticks() — Base 10 places ticks at the conventional 2×–9× integer multiples within each decade (8 minor ticks per decade, fixed). Base 2 places nMinor equally-spaced ticks per octave in log space — default nMinor=1 gives one tick at the geometric midpoint (√2 × 2ⁿ). Other integer bases also work using the same equal-spacing rule.

# log10 y-axis — exp range auto-derived from data
chart = (
    alt.Chart(df)
    .mark_line(point=True)
    .encode(
        y=alt.Y(
            "value:Q",
            scale=alt.Scale(type="log", base=10),
            axis=alt.Axis(values=[10**e for e in range(exp_min, exp_max + 1)]),
        ),
    )
)
chart = ds.add_log_ticks(chart, df, "value")

# log2 x-axis — fold change on a volcano plot
exp_min, exp_max = -4, 4
chart = (
    alt.Chart(df)
    .mark_point()
    .encode(
        x=alt.X(
            "fc:Q",
            scale=alt.Scale(type="log", base=2, domain=[2**exp_min, 2**exp_max]),
            axis=alt.Axis(values=[2**e for e in range(exp_min, exp_max + 1)]),
        ),
    )
)
chart = ds.add_log_ticks(chart, df, "fc", axis="x", base=2, expMin=exp_min, expMax=exp_max)

# log2 with 3 minor ticks per octave
chart = ds.add_log_ticks(chart, df, "fc", axis="x", base=2, nMinor=3)

# both axes log-scaled
chart = ds.add_log_ticks(chart, df, axis="both", xField="fc", yField="pvalue")

The expMin / expMax parameters are auto-derived from df[field].min() / .max() when omitted. When specifying an explicit domain= on the main chart's scale, pass matching expMin / expMax to add_log_ticks() so the minor tick layer's internal domain aligns correctly.

Parameter	Default	Description
Chart	required	Chart to add minor ticks to
df	required	Polars or pandas DataFrame
field	None	Log-scaled column name. Required for single-axis mode; omit when axis='both'
axis	'y'	'x', 'y', or 'both'. When 'both', provide xField and yField instead of field
base	10	Logarithm base matching the axis scale (10 or 2 are the common choices)
nMinor	1	Minor ticks per interval for non-base-10 axes. Ignored when base=10
expMin	auto	Lowest exponent (in the given base). Auto-derived from data when None
expMax	auto	Highest exponent. Auto-derived from data when None
xField	None	Log-scaled x column (axis='both' only)
yField	None	Log-scaled y column (axis='both' only)
xExpMin, xExpMax	auto	Exponent overrides for x axis (axis='both' only)
yExpMin, yExpMax	auto	Exponent overrides for y axis (axis='both' only)
minorTickSize	tickSize / 2	Minor tick length in pixels; defaults to half the active theme's tickSize (typically 1.5 at the default tickSize=3)

add_pow_ticks() adds minor ticks to a power- or sqrt-scale axis. Unlike add_log_ticks(), majorValues is required — it must match the values= passed to the main chart's alt.Axis so the minor tick layer can compute interval boundaries. Minor ticks are placed at positions equally spaced in the power-transformed (visual) space: tick k of nMinor between major ticks a and b falls at (a**exp + k/(nMinor+1) * (b**exp − a**exp))**(1/exp).

A useful convention for choosing major ticks on a sqrt axis: pick values whose square roots are evenly spaced. For example, [0.25, 1.0, 2.25, 4.0] gives √L = 0.5, 1.0, 1.5, 2.0 — equal visual spacing.

# sqrt y-axis — major ticks equally spaced in √y
major_values = [0, 1, 4, 9, 16, 25]
chart = (
    alt.Chart(df)
    .mark_point()
    .encode(
        y=alt.Y(
            "value:Q",
            scale=alt.Scale(type="pow", exponent=0.5),
            axis=alt.Axis(values=major_values),
        ),
    )
)
chart = ds.add_pow_ticks(chart, df, "value", majorValues=major_values)

# sqrt x-axis with 4 minor ticks per interval
chart = ds.add_pow_ticks(
    chart,
    df,
    "length",
    axis="x",
    exponent=0.5,
    majorValues=[0.25, 1.0, 2.25, 4.0],
    nMinor=4,
)

# both axes power-scaled
chart = ds.add_pow_ticks(
    chart,
    df,
    axis="both",
    xField="length",
    yField="value",
    xMajorValues=[0.25, 1.0, 2.25, 4.0],
    yMajorValues=[0, 1, 4, 9, 16, 25],
)

Parameter	Default	Description
Chart	required	Chart to add minor ticks to
df	required	Polars or pandas DataFrame
field	None	Power-scaled column name. Required for single-axis mode; omit when axis='both'
axis	'y'	'x', 'y', or 'both'. When 'both', provide xField, yField, xMajorValues, and yMajorValues
exponent	0.5	Power exponent matching the axis scale (0.5 = sqrt, 2 = quadratic)
majorValues	required	Ordered major tick data values. Must match axis.values= on the main chart
nMinor	4	Minor ticks between each pair of major ticks
minorTickSize	tickSize / 2	Minor tick length in pixels; defaults to half the active theme's tickSize (typically 1.5 at the default tickSize=3)
xField	None	Power-scaled x column (axis='both' only)
yField	None	Power-scaled y column (axis='both' only)
xMajorValues	None	Major tick values for x axis (axis='both' only)
yMajorValues	None	Major tick values for y axis (axis='both' only)

---

Development

Building palettes

scripts/build/print_palettes.py documents the Oklab recipes for all custom palette families and prints updated hex literals to stdout. Use this to calibrate or extend palettes.

# uv
uv run scripts/build/print_palettes.py

# pip
python3 scripts/build/print_palettes.py

The four recipes are:

1. Sequential single-hue — fix hue; sweep L from light to dark with C = frac × Cmax(L, hue); arc-length resample to 12 stops.
2. Sequential multi-hue — interpolate (L, hue) between keyframes; same chroma and arc-length logic.
3. Diverging — two arms meeting at an exact-white pivot; 13 stops so the white center lands exactly on the V-corner.
4. Chroma-scaling — preserve L, scale (a, b) by a constant to derive lighter variants.

Palette hex values live in dysonsphere/palettes.py as plain lists — no color math runs at import time.

Building docs

Run all build scripts in one command:

# uv
uv run scripts/build_all.py

# pip
python3 scripts/build_all.py

This runs all scripts in scripts/build/ in sorted order, rebuilding all assets in docs/ used by the README and the palette gallery.
