A multi-resolution landscape connectivity algorithm for calculating Habitat Connectivity (Connected-Habitat), PARC Connectedness and the Bioclimatic Ecosystem Resilience Index (BERI).

This algorithm operates on the overview layers of raster files which are now generated on-the-fly.

Installation

Install from PyPI

The package is published on PyPI as eco-connectivity (NOTE: pip install connectivity installs an unrelated package):

pip install eco-connectivity

The import name is still connectivity:

from connectivity import connectedness, beri

Install from Source

To build the latest development version from the GitHub repository, install Rust first, then run:

git clone https://github.com/csiro/connectivity.git
cd connectivity
pip install .

Connectivity Analysis

Resolve the bundled example paths once so they can be reused throughout the analysis:

from connectivity import beri, connectedness, example_data_path, resolution_info

condition_file = example_data_path("site_condition")
pa_file = example_data_path("pa_proportion")
current_file = example_data_path("transgrids/1990")
future_files = [
    example_data_path("transgrids/IPS50_45"),
    example_data_path("transgrids/GFD50_85"),
]

To bound the spatial extent of the connectivity calculation, the algorithm limits how far it searches across neighboring cells in the condition raster. The approximate one-sided search reach is computed as: max_reach = outer_window * max(levels) * resolution. For example, with a 1 km resolution raster, a max-level of 32, and an outer_window of 11, the resulting search reach is:

distance = outer_window × max_level × resolution
         = 11 × 32 × 1 km
         = 352 km

Use resolution_info() to preview how candidate levels will change raster dimensions and approximate search reach before running the analysis:

resolution_info(condition_file, outer_window=9)

File: .../connectivity/data/site_condition.tif
Base raster: 588 x 516 cells (303.41K total)
Base resolution: 0.008333 degrees
CRS: EPSG:4326
Bands: 1
Data type(s): float32
Nodata: -9999.0
Outer window: 9
Small-dimension warning threshold: < 16 cells
Distance note: approximate km values use centre latitude -41.550

Candidate internally generated levels:
  Level    Width   Height      Cells   % base           Resolution            Reach     Reach km  Note
      1      588      516    303.41K 100.000%     0.008333 degrees    0.075 degrees     8.349 km
      2      294      258     75.85K  25.000%      0.01667 degrees     0.15 degrees      16.7 km
      4      147      129     18.96K   6.250%      0.03333 degrees      0.3 degrees      33.4 km
      8       74       65      4.81K   1.585%      0.06667 degrees      0.6 degrees     66.79 km
     16       37       33      1.22K   0.402%       0.1333 degrees      1.2 degrees     133.6 km
     32       19       17        323   0.106%       0.2667 degrees      2.4 degrees     267.2 km
     64       10        9         90   0.030%       0.5333 degrees      4.8 degrees     534.3 km  small grid; review
    128        5        5         25   0.008%        1.067 degrees      9.6 degrees     1.07K km  small grid; review
    256        3        3          9   0.003%        2.133 degrees     19.2 degrees     2.14K km  small grid; review
    512        2        2          4   0.001%        4.267 degrees     38.4 degrees     4.27K km  small grid; review

The default window_mode="circular" uses source-centered circular annuli with fractional area/count support at annulus boundaries. The window_mode="square" option uses the same source-centered fractional construction with square annuli. These modes change indicator values, so compare outputs only between runs that use the same window mode.

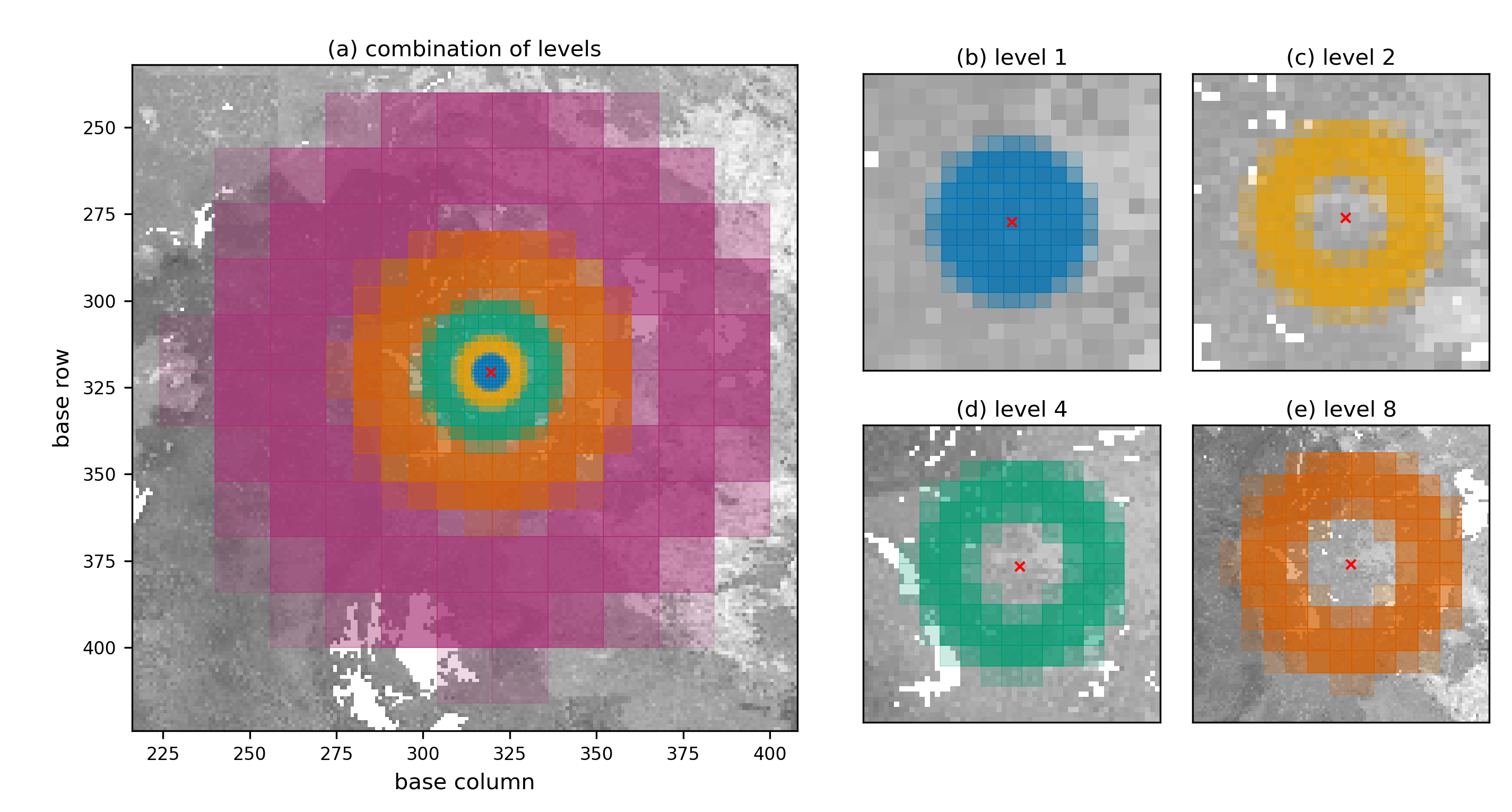

Each coloured neighbourhood represents a different raster aggregation level. Fine levels capture nearby cells at higher resolution, while coarser levels extend the search over larger distances. Their contributions are combined into a single graph, in which the least-cost path from the focal cell is calculated for each aggregated cell. See Valavi et al. (2026) for the full method.

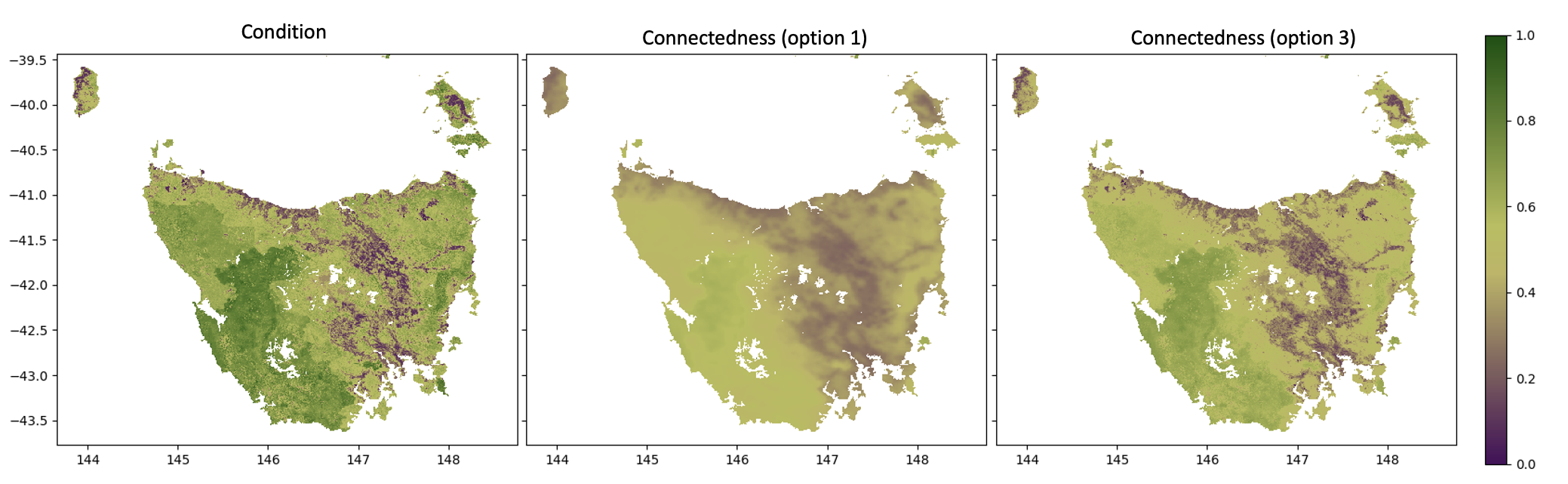

Connected Habitat (Connectedness)

To compute connected-habitat (or plain connectedness), you only need a habitat condition raster. Use option argument to generate the connected-habitat from connectedness and input condition with:

1. connectedness
2. connectedness * condition
3. sqrt(connectedness * condition) — geometric mean (default)

connd = connectedness(
    condition_file = condition_file,
    lambdas = [2, 20, 200],
    max_cost = 2.0,
    window_size = 5,
    outer_window = 11,
    window_mode = "circular",
    levels = [2, 4, 8, 16, 32],
    option = 3,
    filename = "./results/connected_habitat.tif"
)

Optional resistance surface

By default the habitat condition raster does double duty: it weights how costly each cell is to move through and supplies the habitat value used in the indicator. Pass an optional resistance_file to decouple these two roles. The resistance raster (values in [0, 1], higher = harder to cross, scaled with resistance_scale) then drives only the least-cost path traversal, while condition still supplies the habitat value:

connd = connectedness(
    condition_file = condition_file,
    resistance_file = resistance_file,   # optional; decoupled movement-cost surface
    resistance_scale = None,             # divide resistance into [0, 1] if needed
    max_cost = 2.0,
    window_mode = "circular",
    levels = [2, 4, 8, 16, 32],
)

The edge weight becomes w = (1.0 - max_cost) * (1 - resistance) + max_cost, so resistance = 0 is free (w = 1) and resistance = 1 is the most costly (w = max_cost). When resistance_file is omitted, condition is used for traversal as before, and the output is unchanged. Cells valid in condition but missing a resistance value fall back to condition for traversal and raise a warning, so the analysis domain is never changed silently. The same resistance_file / resistance_scale arguments are available on beri().

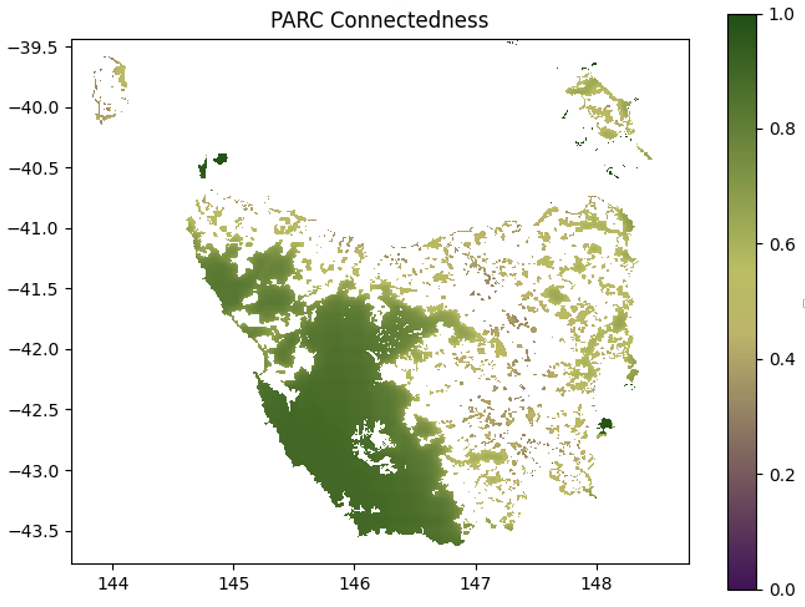

PARC-Connectedness

To compute PARC-connectedness, provide both:

• a habitat condition raster, and
• a protected-areas proportion raster.

When pa_file (proportion of protected-areas in each cell) is supplied, the function automatically returns PARC-connectedness instead of standard connectedness.

parcc = connectedness(
    condition_file = condition_file,
    pa_file = pa_file,
    lambdas = [2, 20, 200],
    max_cost = 2.0,
    window_size = 5,
    outer_window = 11,
    window_mode = "circular",
    levels = [2, 4, 8, 16, 32],
    filename = "./results/parc_connectedness.tif"
)

Use pixel_coverage() when you need the proportion of each raster pixel covered by polygon geometry. The calculation is backed by a performant Rust implementation:

from connectivity import pixel_coverage

coverage = pixel_coverage(
    "./data/polygons.gpkg",
    condition_file,
)

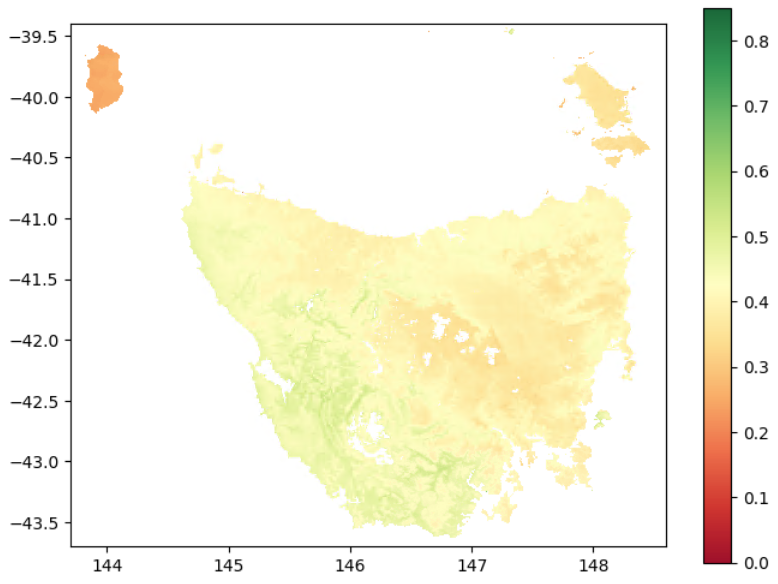

Bioclimatic Ecosystem Resilience Index (BERI)

To compute BERI, you must provide:

• a condition raster
• current GDM transgrids
• one or more future transgrids scenarios (as a list)

beris = beri(
    condition_file = condition_file,
    current_file = current_file,
    future_files = future_files,
    lambdas = [2, 20, 200],
    max_cost = 2.0,
    window_size = 5,
    outer_window = 11,
    window_mode = "circular",
    levels = [2, 4, 8, 16, 32],
    filename = "./results/berri.tif"
)

Running Analysis with Tiles

To run the model using tiles, create a rectangular tile polygon as a GeoDataFrame and pass it to the polygon_mask argument. This limits data loading to only the portion required for the tile, i.e. the output core plus the internally buffered neighborhood.

Use make_tile() to generate non-overlapping output-core tiles whose internal boundaries align with the coarsest aggregation level. This is preferred over creating overlap-expanded tile polygons externally. Be sure to set closed_border = False (the default) so that neighborhood information is included around each tile core.

from connectivity import connectedness, make_tile

levels = [2, 4, 8, 16, 32]

tile_id = 0
tile_poly = make_tile(
    raster_file = condition_file,
    nrows = 4,
    ncols = 4,
    tile_id = tile_id,
    align_to = max(levels),
)

connd = connectedness(
    condition_file = condition_file,
    polygon_mask = tile_poly,
    closed_border = False,
    margin_px = 32,
    lambdas = [2, 20, 200],
    max_cost = 2.0,
    window_size = 5,
    outer_window = 11,
    window_mode = "circular",
    levels = levels,
    option = 1,
    filename = f"./results/connected_habitat_tile_{tile_id}.tif"
)

For large, uneven workloads, use balanced tiles:

tile_poly = make_tile(
    raster_file = condition_file,
    nrows = 4,
    ncols = 4,
    tile_id = tile_id,
    align_to = max(levels),
    balanced = True,
    io_weight = 0.1,
)

Balanced tiling uses a deterministic raster-mask cost estimate while preserving the same align_to boundary alignment. It is useful for global rasters where some tiles contain mostly ocean or nodata and others contain many valid land pixels. Use balanced = False (the default) when equal aligned tiles are enough. When balanced = False, io_weight is ignored.

Citation

To cite connectivity library in publications and reports, please use:

Valavi, R., Mokany, K., Ware, C., Vickers, M., Giljohann, K. M., & Ferrier, S. (2026). A scalable multi-resolution framework for connectivity-based biodiversity indicators. EcoEvoRxiv. https://doi.org/10.32942/X2S68V
