edge-sync-sdk 0.1.1

Resilient telemetry & edge-sync SDK for the Raspberry Pi — buffer sensor data locally and sync it reliably across network dropouts, in order, with no duplicates.

Telemetry & Edge-Sync SDK

A resilient telemetry & edge-sync SDK for the Raspberry Pi — buffer sensor data locally, sync it reliably across network dropouts, in correct time order, with no duplicates. Works with any sensors; ships with a solar-race-car integration as a real, proven example.

Description

Lots of Raspberry Pi projects stream sensor data over a flaky link — a field weather station, a robot, an environmental or industrial monitor, or a solar race car threading through tunnels and dead zones. A naive "push to the cloud" loses every sample sent during an outage.

This SDK is the fix. On the device it buffers telemetry to a local SQLite queue first, batches it, and syncs it to a REST server — surviving network dropouts and reboots. A web portal visualizes it live. Your code integrates in three lines (init / track / force_flush); whoever watches the dashboard writes zero.

The pipeline is sensor-agnostic — it only moves metric / value / timestamp. Two ready integrations show the range: a hardware-free Raspberry Pi system-metrics one that runs on any Pi out of the box, and the flagship solar race car (BMS / motor / battery-temp decoded from CAN).

The one guarantee: no data is lost when the device loses signal, and it arrives in correct chronological order, with no duplicates.

Install

pip install edge-sync-sdk

from edge_sync import init, track, force_flush

init("https://your-server.example.com", api_key="<key>", device_id="pi-01")
track("cpu_temp_C", 54.2)      # any metric — non-blocking, persisted to disk
force_flush()                  # drain the queue before exit

Requires Python 3.9+. The only dependency is httpx. (To run the server + dashboard locally, clone the repo and pip install -r requirements.txt — see Quick start.)

Features

• Durable offline queue — every reading is written to on-device SQLite before any send, so dropouts and reboots lose nothing.
• Smart batching — many samples per request (by count or time): fewer round-trips, less radio/battery cost.
• Auto-sync recovery — backlog drains oldest-first the moment the link returns.
• Ordered, idempotent ingestion — points carry a client-assigned id; the server upserts on it, so retries never duplicate. Stored by device time, not arrival time.
• Network-aware sync policy — batch size & frequency adapt to link type and battery.
• Server-side alert rule engine — threshold rules over your signals, editable live from the portal.
• API keys — generate/revoke keys from the dashboard; the SDK can auto_init() from config or environment.
• Pit-wall portal — live charts, device health, alerts, rules editor, device setup.
• Your own backend — plain REST to your own server, no vendor lock-in and no cloud credentials on the car.

Screenshots

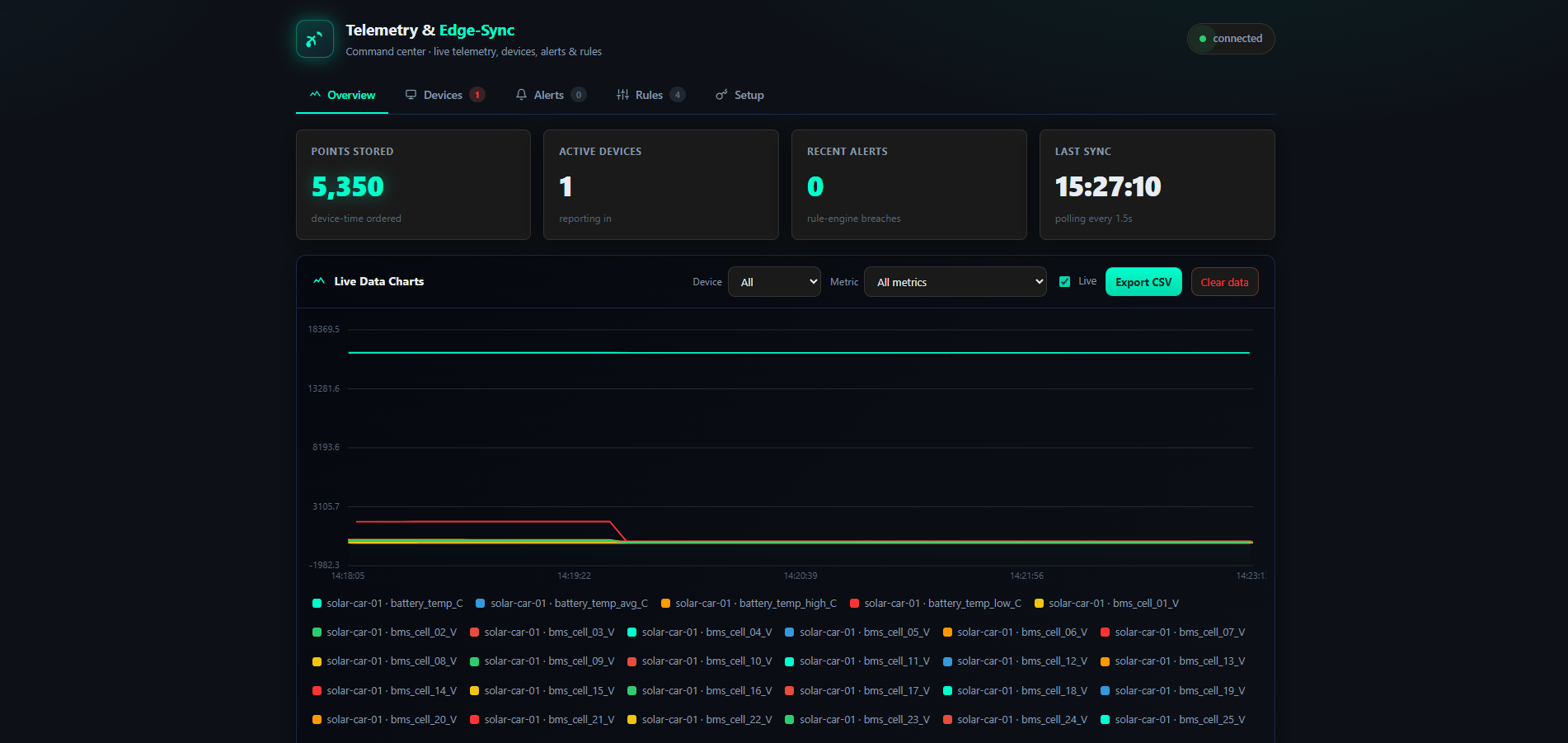

Overview — live charts

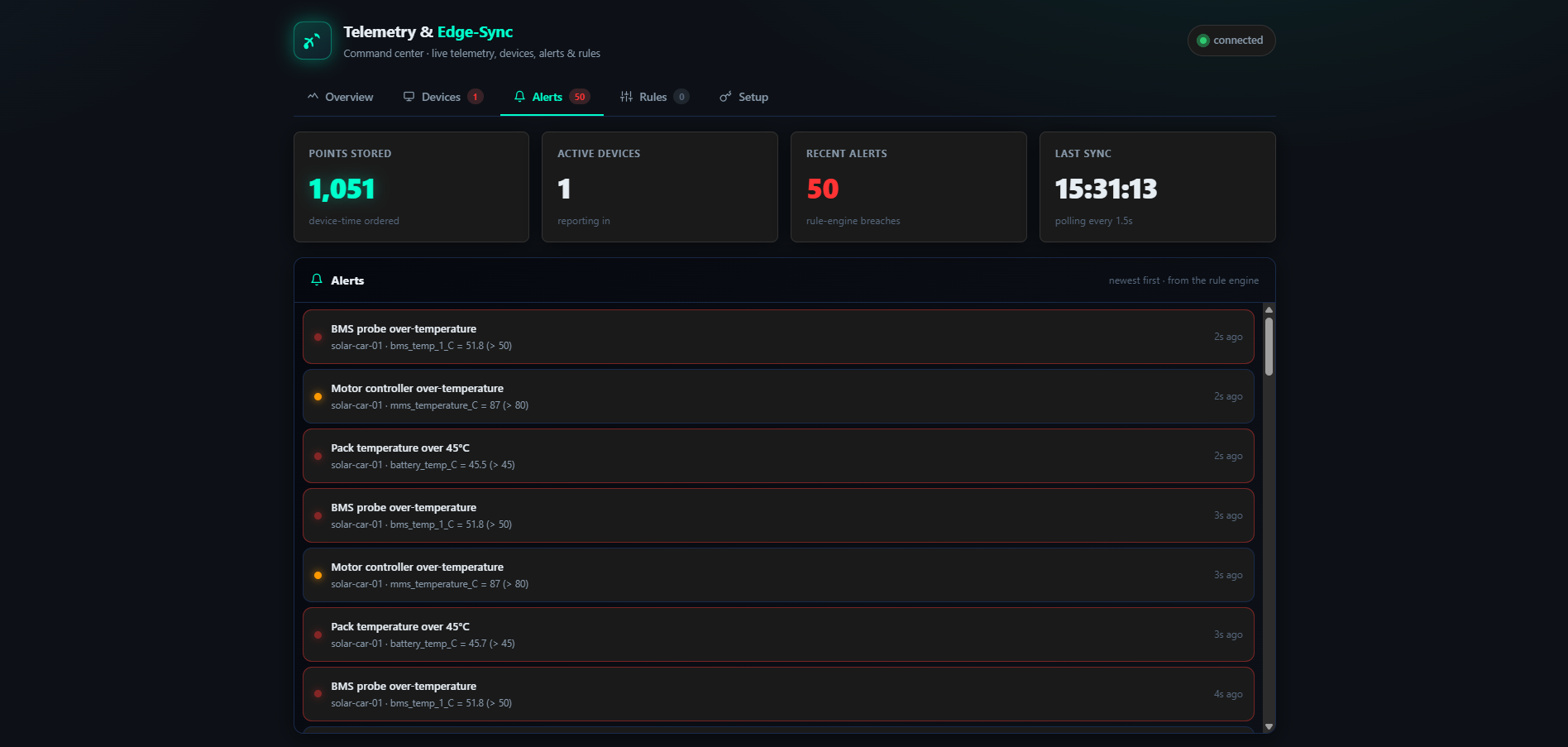

Alerts

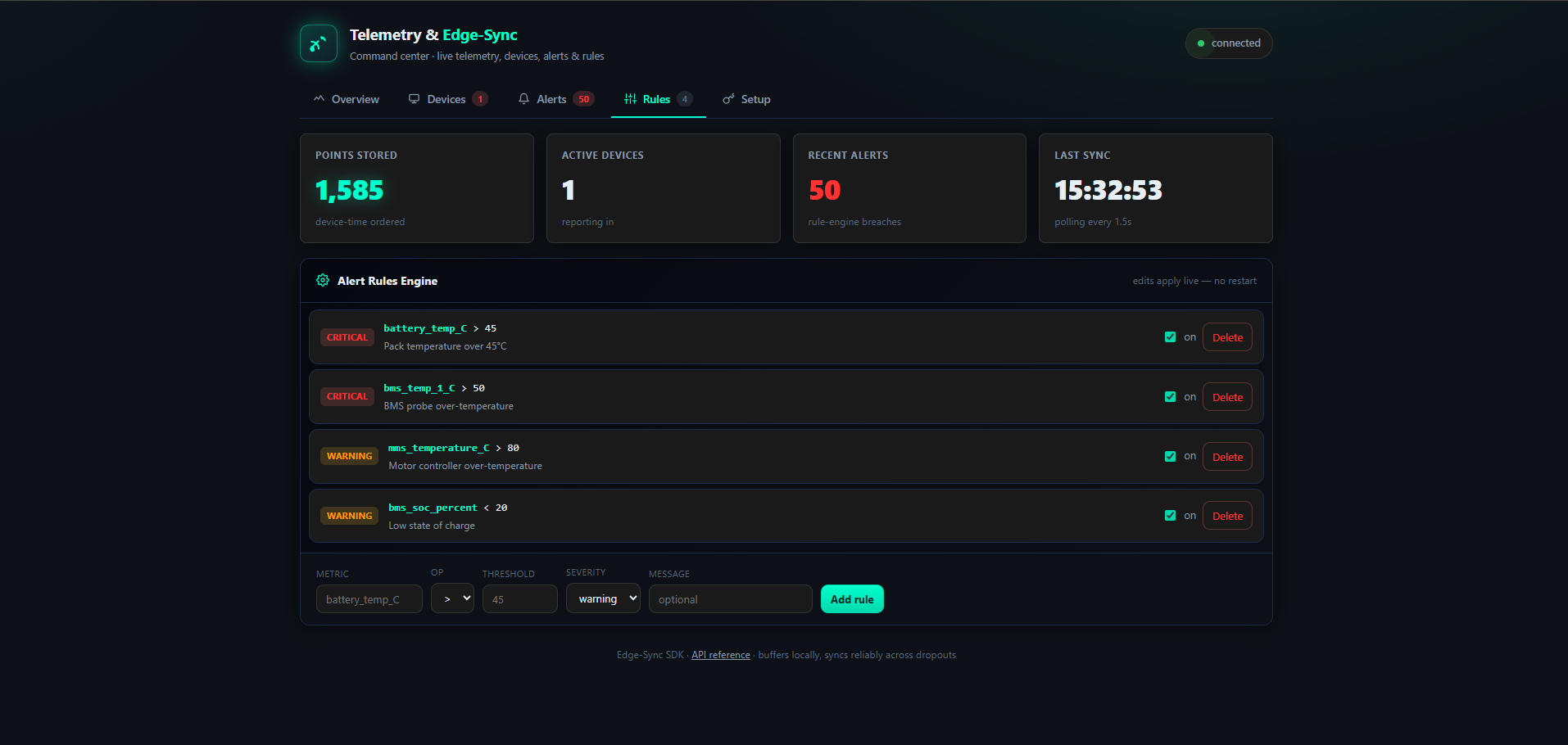

Rules editor

Video

▶ Watch the demo walkthrough

---

Data model (JSON)

A telemetry point the SDK produces:

{ "id": "solar-car-01-000042-1718900000123", "metric": "battery_temp_C", "value": 46.2, "ts": 1718900000123 }

id = device-sequence-timestamp (client-assigned → enables idempotent ingestion). ts is the device timestamp in epoch ms (the source of truth for ordering).

A batch the SDK POSTs (static metadata once, dynamic points many):

{
  "device_id": "solar-car-01",
  "metadata": { "fw": "RaceOS-2.0", "type": "solar-car", "network": "lte" },
  "points": [
    { "id": "solar-car-01-000001-1718900000100", "metric": "bms_voltage_V",   "value": 108.4, "ts": 1718900000100 },
    { "id": "solar-car-01-000002-1718900000101", "metric": "bms_soc_percent", "value": 76.0,  "ts": 1718900000101 }
  ]
}

Database

Server storage is SQLite. The core table (full schema + ERD in docs/diagrams.md):

CREATE TABLE telemetry (
  id          TEXT PRIMARY KEY,   -- client-assigned -> idempotent upsert
  device_id   TEXT NOT NULL,
  metric      TEXT NOT NULL,
  value       REAL NOT NULL,
  device_ts   INTEGER NOT NULL,   -- order + late-arrival by device time
  received_ts INTEGER NOT NULL    -- server arrival (diagnostics only)
);
-- sample row:
-- ('solar-car-01-000042-...', 'solar-car-01', 'battery_temp_C', 46.2, 1718900000123, 1718900000130)

Other tables: device_meta (latest metadata per device), alerts (rule breaches), rules (editable alert rules), api_keys (issued keys). On the car, the SDK keeps a durable outbox table.

---

Public functions

What the car's software calls. Full reference + examples in docs/sdk-reference.md.

Function	Purpose
init(server_url, api_key, device_id, **opts)	Configure the SDK (target, auth, identity, options).
auto_init(config_path=None)	Configure from a telemetry.json file or TELEMETRY_* env vars — no hand-coding.
track(metric, value, ts=None)	Record one data point. Non-blocking, durable. Returns the point id.
force_flush(timeout=15.0)	Block until the queue drains (e.g. before shutdown).
Client(...)	The SDK object behind the module API (use directly for multiple devices/instances).
Client.set_link(network=, battery=)	Update link conditions at runtime; the batcher adapts immediately.
track_vehicle_state(vehicle_state, client=None, ts=None)	Hand a SolarRace-OS dict to the SDK — tracks every numeric signal.

from edge_sync.client import init, track, force_flush
init("https://your-server.example.com", api_key="<key>", device_id="pi-01")
track("cpu_temp_C", 54.2)      # any metric — a sensor reading, a system stat, …
force_flush()

Integrations

Device-specific bridges live in edge_sync/integrations/ — write a small one for your project, or just call track() directly. Two ship with the SDK:

Integration	What it does
raspberry_pi	Streams the Pi's own system metrics (CPU temp, load, memory, uptime) — no hardware needed, runs on any Pi.
solar_race (flagship)	Hands a solar car's decoded vehicle_state (BMS / motor / battery-temp) to the SDK in one call.

Internal functions

The implementation behind the guarantee (see docs/implementation.md).

Where	Function	Role
edge_sync/queue.py	Queue.enqueue / fetch_unsent / mark_sent	Durable SQLite outbox; fetch oldest-first; mark sent only after ack.
edge_sync/client.py	_run	Background batcher loop: flush on timer/nudge, retry with exponential backoff.
edge_sync/client.py	_send_batch / _http_send	Package points into a batch and POST with X-API-Key.
edge_sync/client.py	_apply_policy / _next_id	Apply network policy; mint the client-assigned point id.
edge_sync/sync_policy.py	plan(network, battery)	Map link conditions → (batch_size, flush_interval, allow_send).
server/main.py	ingest / _valid_key / load_rules	Auth, idempotent upsert, alert-rule evaluation.

---

Diagrams

(Also in docs/diagrams.md. Mermaid renders on GitHub.)

System architecture

flowchart LR
    subgraph CAR["Solar car — Raspberry Pi"]
        OS["SolarRace-OS<br/>decodes CAN → vehicle_state"] --> BRIDGE["track_vehicle_state()"]
        subgraph SDK["Edge-Sync SDK"]
            BRIDGE --> Q[("SQLite outbox")] --> BATCH["Batcher"] --> SEND["Sender (retry)"]
        end
    end
    SEND -- "POST /api/v1/telemetry (X-API-Key)" --> API
    subgraph SERVER["REST API server (FastAPI)"]
        API["Ingest: auth · upsert · rules"] --> DB[("SQLite")]
    end
    DB --> READ["GET /metrics · /alerts · /devices"] -- "poll 1.5s" --> PORTAL["Pit-wall portal"]

Entity-relationship diagram

erDiagram
    OUTBOX      ||..|| TELEMETRY : "syncs (by point id)"
    TELEMETRY   ||--o{ ALERTS    : "breach raises"
    RULES       ||--o{ ALERTS    : "evaluated into"
    DEVICE_META ||--o{ TELEMETRY : "describes (device_id)"
    API_KEYS    ||..o{ TELEMETRY : "authenticates ingest"

Full table-by-table ERD with columns is in docs/diagrams.md.

Sequence (track → chart, with offline recovery)

sequenceDiagram
    autonumber
    participant Pi as Car (SolarRace-OS)
    participant SDK as Edge-Sync SDK
    participant API as REST server
    participant UI as Pit portal
    Pi->>SDK: track_vehicle_state(vehicle_state, ts)
    SDK->>SDK: enqueue to SQLite (durable)
    loop batcher
        alt network up
            SDK->>API: POST /telemetry (batch)
            API->>API: validate key · upsert · rules
            API-->>SDK: 200 {accepted, alerts}
            SDK->>SDK: mark_sent
        else network down
            SDK--xAPI: fails → backoff, keep buffering
        end
    end
    UI->>API: GET /metrics (poll)
    API-->>UI: points (device-time order) + alerts

State (the batcher)

stateDiagram-v2
    [*] --> Idle
    Idle --> Draining: timer / full / force_flush
    Draining --> Sending: unsent exist
    Draining --> Idle: empty
    Sending --> Idle: 200 OK (mark_sent)
    Sending --> Backoff: send failed
    Backoff --> Sending: wait (1s→2s→4s…)
    Idle --> BufferOnly: network = offline
    BufferOnly --> Idle: link restored

---

Quick start

pip install -r requirements.txt

Run the server only (no simulator — use this with a real Pi, and it's exactly what the cloud runs):

uvicorn server.main:app --host 0.0.0.0 --port 8000

Or run the all-in-one local demo (server + a simulated solar car + opens the portal — for trying it out with no hardware):

python scripts/run.py

• Portal: http://127.0.0.1:8000/ · API docs (Swagger): http://127.0.0.1:8000/docs
• In the portal's Setup tab, generate an API key — it shows a ready-to-paste auto_init() snippet for your device. Full walkthrough: docs/getting-started.md.
• On a real Pi, stream its own system metrics (no hardware) with python examples/pi_metrics.py, or wire your sensors with three track() calls.
• To run the server publicly (so a remote Pi can reach it), deploy it with the included render.yaml / Procfile.

Resilience demo: while data is streaming, stop and restart the server — the device keeps buffering and drains the backlog in order, nothing lost.

REST API

Method & path	Role
POST /api/v1/telemetry	Ingest a batch (auth X-API-Key). Idempotent upsert by point id.
GET /api/v1/metrics?device=&metric=&from=&to=	Read points, ordered by device time.
GET /api/v1/devices	Per-device health + latest metadata.
GET /api/v1/alerts?device=&limit=	Recent alerts.
GET/POST/PATCH/DELETE /api/v1/rules	Manage alert rules.
GET/POST/DELETE /api/v1/keys	Issue / list / revoke API keys.

Full reference: docs/rest-api.md.

Documentation

Full docs live in docs/ (the permalink once pushed to GitHub): index · use cases · features · getting started · SDK reference · user init & API keys · dashboard · implementation · REST API · diagrams.

Deploying to the cloud

To run the server publicly so a remote Pi (on cellular) can reach it, deploy to Render (or any Procfile host) using the included render.yaml / Procfile.

Project layout

edge_sync/              edge SDK: client (queue→batch→retry), durable queue, sync policy, auto_init
  integrations/   device bridges — raspberry_pi.py (system metrics) + solar_race.py (flagship)
server/           FastAPI REST API + alert rule engine + API keys, serves the portal
dashboard/        single-page command-center portal (no build step, no CDN)
docs/             the documentation set (architecture, API reference, diagrams, …)
examples/         runnable demo.py + pi_metrics.py + the telemetry.json config template
scripts/          run.py — one-command launcher (server + simulated solar car)
tests/            test suite + shared conftest fixtures
pyproject.toml · requirements.txt        project config + dependencies
Procfile · render.yaml · runtime.txt     cloud-deploy config (Render)

Testing

pytest

Covers the core guarantees: no-loss across a network drop, idempotency on lost acknowledgements, data survival across a process restart, the alert rule engine, the network-aware sync policy, API-key validation, and auto_init.

Design & scope

• docs/architecture.md — full design and key engineering decisions.
• docs/future-work.md — what's deferred (TSDB, message broker, Protobuf, WebSocket push, multi-car fleet) and why, with the path to add each.
