eigh 0.4.1

Differentiable eigenvalue decomposition with JAX (CPU/GPU)

Differentiable Generalized Eigenvalue Decomposition

Standalone implementation of differentiable eigenvalue decomposition with CPU (LAPACK) and GPU (cuSOLVER) backends. Extracted from pyscfad.

CPU and GPU wheels on PyPI for Linux and macOS (Apple Silicon), Python 3.10–3.13, JAX 0.5–0.10+. See Installation and Compatibility.

New

• Core code rewritten to be able to run on older cluster with JAX 0.4.XX for instance (most likely on GPU clusters).
• Builds for CUDA but I recommend just building from source, fast and easy with this package (it will work for your specific JAX version).

Features

• Generalized Problems: A @ V = B @ V @ diag(W), etc.
• JAX Integrated: Full support for jit, vmap, grad, and jvp.
• High Performance: Optimized LAPACK (CPU) and cuSOLVER (GPU) kernels.
• Precision: float32/64 and complex64/128.
• Degeneracy Handling: Configurable deg_thresh for stable gradients.

Installation & Quick Start

CPU

pip install eigh

Prebuilt CPU-only wheels — Linux (x86_64) and macOS (Apple Silicon), Python 3.10–3.13, JAX 0.5+.

GPU - Build from source (Recommended)

Make sure first that you have JAX installed that runs fine on your GPU.

Build from source for a jaxlib / CUDA / glibc combination the wheels don't cover. The main case is an environment pinned to e.g., jaxlib 0.4.29 (the prebuilt wheels require jaxlib ≥ 0.5 — the FFI binary ABI changed at 0.5, so a 0.5 wheel can't run on 0.4.x and vice-versa). The source builds against whatever jaxlib is in your env (0.4.29 or 0.5–0.10+), CPU or GPU:

git clone https://github.com/Brogis1/eigh && cd eigh
pip install "scikit-build-core>=0.8" "nanobind>=1.0.0" cmake ninja
pip install . --no-build-isolation --no-deps

• --no-build-isolation compiles against the jaxlib already in your env.
• --no-deps keeps your pinned jax/jaxlib (essential on 0.4.29 — otherwise pip would upgrade it to ≥0.5).
• For GPU, have nvcc on PATH (module load cuda/12.x); look for CUDA support enabled in the build log (CUDA not found ⇒ nvcc not on PATH). Plain jaxlib (no CUDA) yields a CPU-only build.

Full details and the why — FFI ABI, pinned-jaxlib clusters, nvcc paths, GPU verification — are in docs/TECHNICAL_NOTES.md.

GPU (CUDA 12, Linux x86_64)

You can try this and may get lucky if it happens that JAX and other libraries match. I strongly recommend to build from source (see GPU - Build from source). Pick the package matching your cluster's CUDA version:

pip install eigh-cuda120   # CUDA 12.0+ (works through 12.8+); the safe default
pip install eigh-cuda128   # CUDA 12.8+ (newer toolchain / glibc 2.34)

Both bundle the cuSOLVER kernel + NVIDIA CUDA runtime libs; import eigh auto-detects the GPU. They are separate packages from this same repo — import eigh is identical. See Compatibility.

Usage Example

import jax
import jax.numpy as jnp
# Gen. eigensolver from PySCFAD
from eigh import eigh, eigh_gen

jax.config.update("jax_enable_x64", True)
# Eigenvalue problem
A = jnp.array([[2., 1.], [1., 2.]])
B = jnp.array([[1., 1], [0.5, 1.]])
w1, v1 = eigh(A)
w2, v2 = eigh_gen(A, B)

# With gradients
grad1 = jax.grad(lambda A: eigh(A)[0].sum())(A)
grad2 = jax.grad(lambda A: eigh_gen(A, B)[0].sum())(A)
print("Eigenvalues:", w1, w2)
print("Eigenvectors:", v1, v2)
print("Gradients computed:", grad1.shape, grad2.shape)

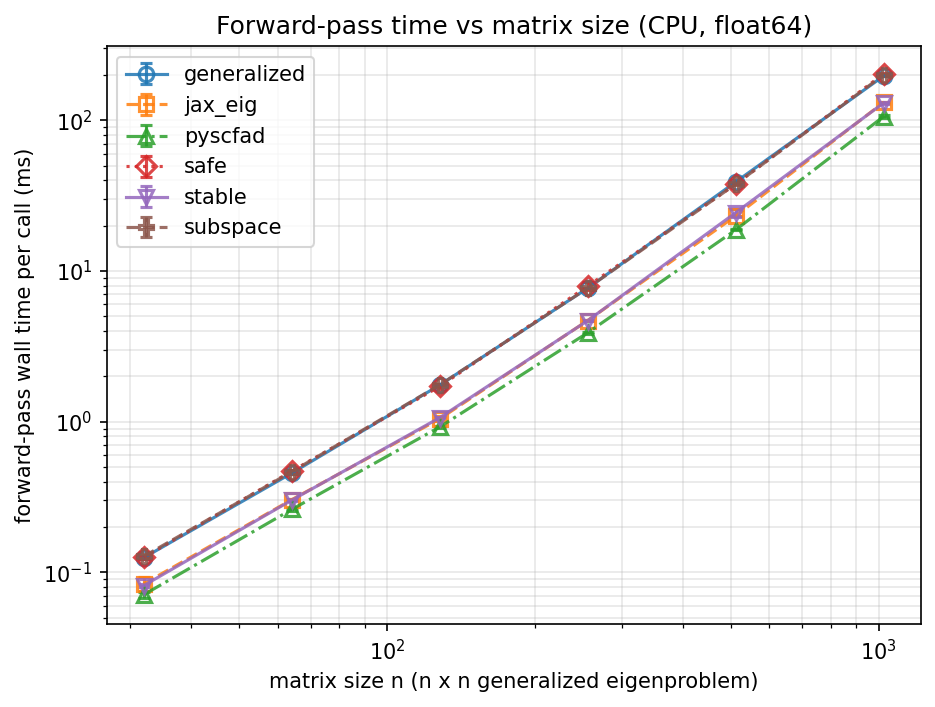

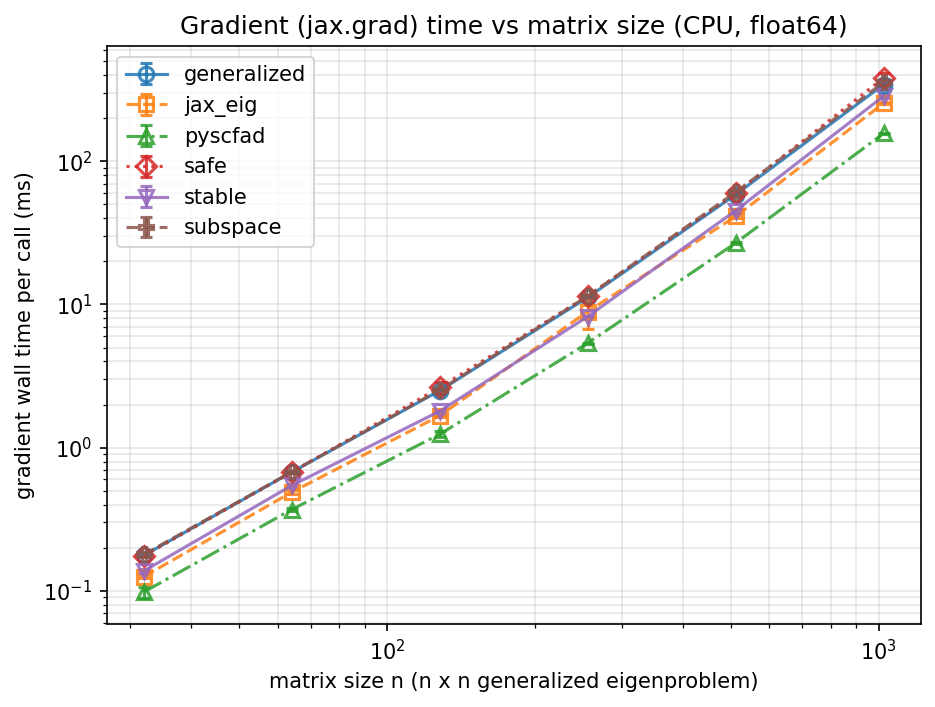

Benchmarks

Forward/backward scaling vs. matrix size, and gradient stability as eigenvalues approach degeneracy — for the JAX eigensolvers in src/jax/. See benchmarks/suite/ for the scripts.

API Reference

• eigh(a, b=None, *, lower=True, eigvals_only=False, type=1, deg_thresh=1e-9) Scipy-compatible interface. type supports 1: A@v=B@v@λ, 2: A@B@v=v@λ, 3: B@A@v=v@λ.
• eigh_gen(a, b, *, lower=True, itype=1, deg_thresh=1e-9) Lower-level generalized solver.

Degenerate Eigenvalues & Gradients

Individual eigenvalue gradients are ill-defined for degenerate (repeated) eigenvalues. However, symmetric functions (like sum, var, trace) have stable gradients. The deg_thresh parameter (default 1e-9) masks divisions by near-zero gaps to maintain stability.

JAX Eigensolvers

A collection of differentiable generalized eigensolvers with different strategies for handling degenerate eigenvalues in reverse-mode gradients. Useful for training pipelines where degeneracies are common.

If you just want a working solver, use stable_eigh_pyscfad / stable_eigh_gen_pyscfad from generalized_eigensolver_pyscfad.py. They wrap the fast LAPACK/cuSOLVER kernels with a Lorentzian-broadened custom VJP, so gradients stay stable when eigenvalues are (nearly) degenerate.

On Windows, or if you cannot build the C++ kernels, use stable_generalized_eigh from generalized_eigensolver_stable.py instead — same gradient treatment, pure JAX.

The remaining solvers below are kept for benchmarking and for reproducing prior work; they are not recommended as defaults.

Recommended

Solver	File	Strategy
stable_eigh_pyscfad / stable_eigh_gen_pyscfad	generalized_eigensolver_pyscfad.py	LAPACK/cuSOLVER kernels + Lorentzian-broadened VJP [2]
stable_eigh / stable_generalized_eigh (pure-JAX)	generalized_eigensolver_stable.py	Pure-JAX Cholesky + Lorentzian-broadened VJP [2]

Alternative stable solvers

Solver	File	Strategy	Gradient notes
subspace_eigh	generalized_eigensolver.py	Custom VJP: Lorentzian broadening F/(F²+ε²) [2]	Stable
subspace_generalized_eigh	generalized_eigensolver.py	Symmetry-breaking perturbation + subspace_eigh [2,4]	Stable
degen_eigh	generalized_eigensolver.py	Custom VJP: mask degenerate F_ij by threshold [1,3]	Stable only for symmetric-subspace losses
safe_generalized_eigh	generalized_eigensolver.py	Cholesky + degen_eigh	Inherits degen_eigh caveat

Baselines (not gradient-safe at degeneracies)

Solver	File	Strategy
standard_eig	generalized_eigensolver.py	scipy.linalg.eigh — non-differentiable reference
jax_eig	generalized_eigensolver.py	Plain Cholesky + jnp.linalg.eigh, default VJP
generalized_eigh	generalized_eigensolver.py	Symmetrized Cholesky with SPD shift, default VJP

Compatibility

• Python: 3.10–3.13. JAX: 0.5 → 0.10+ for the prebuilt wheels; jax 0.4.29 via source build (its FFI ABI differs from 0.5+, so it needs its own build — see Build from source).
• CPU wheels: Linux x86_64 (manylinux_2_28, bundled OpenBLAS) and macOS arm64.
• GPU wheels: Linux x86_64, CUDA 12 — eigh-cuda120 (CUDA 12.0+, glibc 2.17) and eigh-cuda128 (CUDA 12.8+, glibc 2.34).
• Windows: no compiled wheel — use the pure-JAX solvers in src/jax/, or build from source.

Full detail — the FFI binary-ABI rules, why GPU ships as separate packages, the abi3 wheel matrix, HPC/cluster notes, and how to build on a pinned old jaxlib — is in docs/TECHNICAL_NOTES.md.

References

• [1] Kasim, M. F., & Vinko, S. M. Learning the exchange–correlation functional from nature with fully differentiable density functional theory. Phys. Rev. Lett. 127, 126403 (2021). https://doi.org/10.1103/PhysRevLett.127.126403
• [2] Colburn, S., & Majumdar, A. Inverse design and flexible parameterization of meta-optics using algorithmic differentiation. Communications Physics 4, 54 (2021). https://doi.org/10.1038/s42005-021-00568-6
• [3] JAX Issue #2748 — Differentiable eigh with degeneracies. https://github.com/jax-ml/jax/issues/2748
• [4] JAX Issue #5461 — Stable generalized eigh. https://github.com/jax-ml/jax/issues/5461

Development & Testing

• Requirements: CMake 3.18+, C++17, JAX, NumPy, LAPACK/CUDA.
• Tests:

  pytest tests/test_eigh.py     # Core functionality
  pytest tests/test_eigh_gen.py # Generalized itypes
  pytest tests/test_eigh_jit.py # JIT & vmap


• GPU Setup:

  source setup_gpu_env_clean.sh
  ./run_gpu.sh python example_simple.py


License & Citation

Apache License 2.0. If used in research, please cite:

@software{sokolov2026eigh,
  author={Sokolov, Igor},
  title={Eigh: Differentiable eigenvalue decomposition with jax (cpu/gpu)},
  url={https://github.com/Brogis1/eigh},
  year={2026}
}

@software{pyscfad,
  author = {Zhang, Xing},
  title = {PySCFad: Automatic Differentiation for PySCF},
  url = {https://github.com/fishjojo/pyscfad},
  year = {2021-2025}
}

@article{10.1063/5.0118200,
    author = {Zhang, Xing and Chan, Garnet Kin-Lic},
    title = {Differentiable quantum chemistry with PySCF for molecules and materials at the mean-field level and beyond},
    journal = {The Journal of Chemical Physics},
    volume = {157},
    number = {20},
    pages = {204801},
    year = {2022},
    month = {11},
    issn = {0021-9606},
    doi = {10.1063/5.0118200},
    url = {https://doi.org/10.1063/5.0118200},
}

@article{sokolov2026xc,
  title = {Quantum-enhanced neural exchange-correlation functionals},
  author = {Sokolov, Igor O. and Both, Gert-Jan and Bochevarov, Art D. and Dub, Pavel A. and Levine, Daniel S. and Brown, Christopher T. and Acheche, Shaheen and Barkoutsos, Panagiotis Kl. and Elfving, Vincent E.},
  journal = {Phys. Rev. A},
  volume = {113},
  issue = {1},
  pages = {012427},
  numpages = {24},
  year = {2026},
  month = {Jan},
  publisher = {American Physical Society},
  doi = {10.1103/m51l-fys2},
  url = {https://link.aps.org/doi/10.1103/m51l-fys2}
}
