EnSim

Liquid rocket engine analysis and six-degree-of-freedom flight simulation, as a desktop application and a Python library.

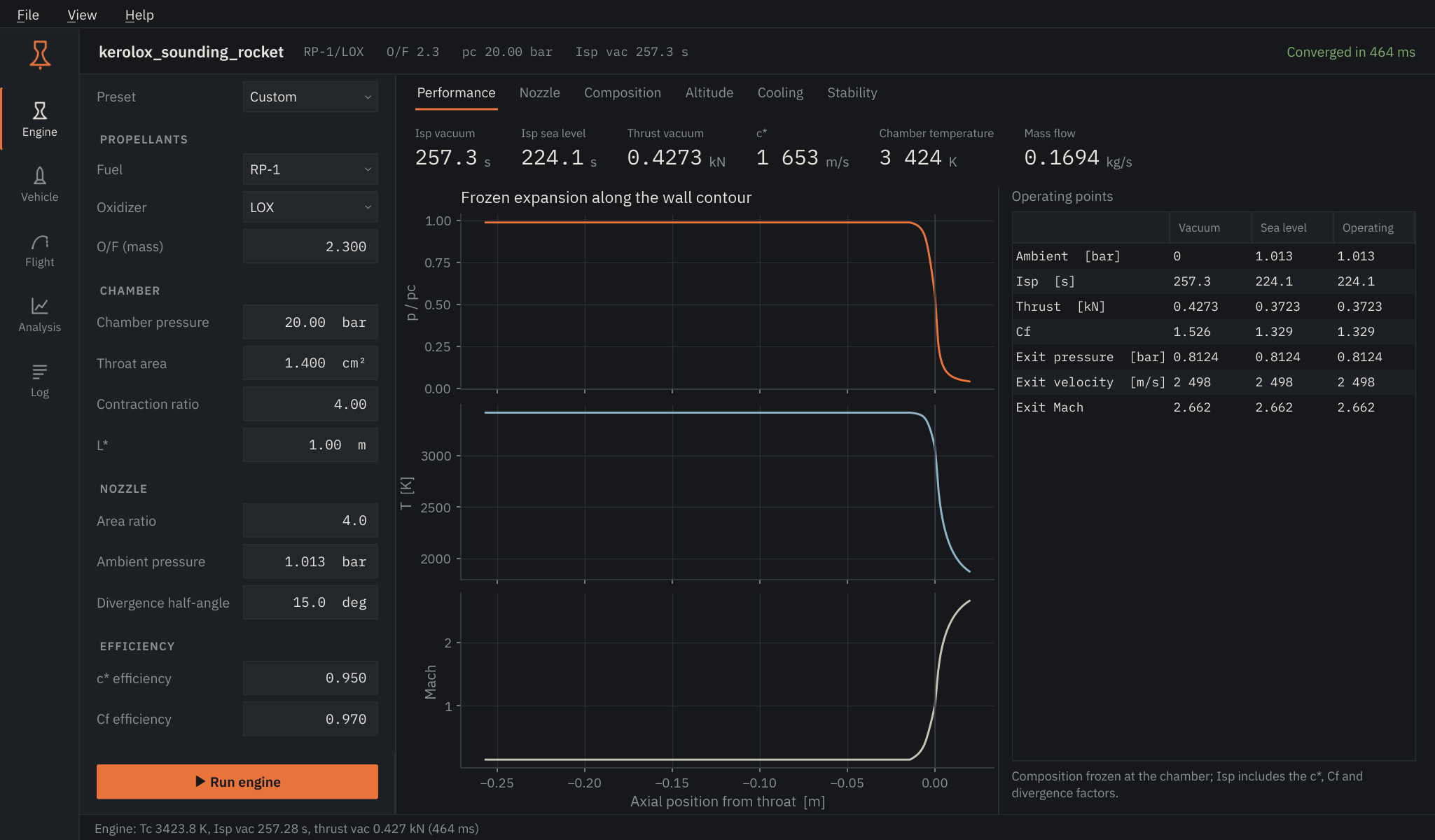

Pick two propellants, a mixture ratio and a chamber pressure. EnSim finds the chamber equilibrium, expands the gas through the nozzle and gives you Isp, thrust and the composition of the exhaust, matching NASA CEA to within 0.05 %. From there you can draw and cool the chamber, put the engine in a rocket, fly it from the rail to landing and scatter a few hundred flights to see where it comes down.

Documentation: https://spaceengineerss.github.io/EnSim/

Install

The desktop application:

$ pip install "ensim[gui]"
$ ensim

or a self-contained download for Windows, macOS and Linux from the releases page.

The library and the command line only, without Qt:

$ pip install ensim
$ ensim engine --fuel LCH4 --of 3.4 --pc 100 --eps 35 --throat-area 200

Python 3.10 or newer.

In Python

from ensim.core.engine import EngineInputs, analyze_engine

engine = analyze_engine(EngineInputs(
    fuel="LCH4", oxidizer="LOX", of_ratio=3.4,
    chamber_pressure=100e5, expansion_ratio=35, throat_area=0.02,
))
engine.chamber_temperature                 # 3598.0 K
engine.vacuum.isp, engine.sea_level.isp    # 337.7 s, 272.2 s
engine.vacuum.thrust                       # 366.0 kN

Flights, dispersion studies, staging and the lower-level solvers are covered in the library guide.

What is inside

How far to trust it

Engine numbers are checked against NASA CEA 3.3.2 on every commit, and the flight model against two NASA NESC check cases. Neither the cooling model nor the aerodynamics has been compared with hardware. The validation and model limitations pages say exactly what has and has not been checked. EnSim is for design studies and teaching, not for certifying hardware.

Moving from 3.x

Projects open unchanged, but propellants now enter the chamber as liquids and several flight and staging errors were fixed, so results move. See Moving to 4.0 and the changelog.

Development

$ git clone https://github.com/SpaceEngineerSS/EnSim.git
$ cd EnSim
$ pip install -e ".[all]"
$ pytest
$ ruff check . && ruff format --check .
$ mkdocs serve

CONTRIBUTING.md explains the layout of the code and what a change needs before it is merged; ARCHITECTURE.md describes how the pieces fit.

Bug reports and challenges to the physics are welcome in the issue tracker. Please include the inputs, units and, for a physics question, the reference you compare with.

Licence

MIT. The bundled IBM Plex fonts are under the SIL Open Font License (src/ensim/assets/fonts/OFL.txt).
