enufft 1.0.0

Elastic non-uniform FFT and elastic mode selection for polygonal terrain windows.

ENUFFT

ENUFFT is a Python package for local Fourier analysis on irregularly sampled terrain, polygonal cells, and other scattered two-dimensional fields.

It combines two pieces of the Elastic Non-Uniform FFT framework:

• A Kaiser-Bessel non-uniform FFT path for estimating local Fourier coefficients directly from scattered samples.
• Elastic Mode Selection (EMS), which compresses the spectrum to an adaptive number of physically paired retained modes.

The canonical research repository, derivation, case studies, and citation metadata live at TridibBanerjee/Elastic-Non-Uniform-FFT.

Install

pip install enufft

Optional extras:

pip install "enufft[plots]"
pip install "enufft[test]"

Install the package directly from the repository:

pip install "git+https://github.com/TridibBanerjee/Elastic-Non-Uniform-FFT.git#subdirectory=package"

ENUFFT requires Python 3.10 or newer, NumPy, and SciPy.

Quick Start

import numpy as np
from enufft import EMSConfig, WindowConfig, enufft_on_polygon

polygon = np.array([
    [0.10, 0.16],
    [1.35, 0.02],
    [1.72, 0.82],
    [1.05, 1.55],
    [0.16, 1.18],
])

rng = np.random.default_rng(8)
points = rng.uniform([-0.45, -0.45], [2.05, 2.05], size=(3600, 2))
values = np.cos(2.0 * np.pi * (3.0 * points[:, 0] + 2.0 * points[:, 1]))

result = enufft_on_polygon(
    points,
    values,
    polygon,
    mode_limit=6,
    window_config=WindowConfig(
        support="square",
        alignment="centroid",
        expansion=1.42,
    ),
    ems_config=EMSConfig(k_min=1, k_max=6, alpha_min=0.0, alpha_max=0.78),
    weight_type="voronoi",
)

print(result.selected_modes)
print(result.mode_pair_count, result.signed_mode_count)
print(result.power_retained)

What You Get

• Exact scattered-point DFT coefficients for reference calculations.
• Kaiser-Bessel NUFFT coefficient blocks for faster local spectral analysis.
• Polygon-derived square analysis windows with square, polygon, or circular sample supports.
• Uniform or local Voronoi-style quadrature weights.
• EMS diagnostics for any nonnegative spectrum.
• Pair-aware EMS for signed Fourier coefficient blocks.
• Sparse inverse reconstruction at arbitrary local coordinates.

Public API

The most useful entry points are:

Function or class	Purpose
enufft_on_polygon	Compute polygon-windowed NUFFT coefficients and apply EMS.
nufft_on_polygon	Compute the raw polygon-windowed NUFFT coefficient block.
compute_nufft_coefficients	Compute a Kaiser-Bessel NUFFT block from explicit samples and modes.
compute_direct_dft_coefficients	Compute the exact scattered direct DFT block.
elastic_mode_selection	Run EMS on a one-dimensional nonnegative spectrum.
select_sparse_conjugate_modes	Apply EMS to signed Fourier coefficients by conjugate mode pair.
reconstruct_at_points	Evaluate an inverse Fourier series at local coordinates.
WindowConfig, NUFFTConfig, EMSConfig	Configure windowing, NUFFT, and EMS behavior.

See the API notes for additional examples.

EMS On A Supplied Spectrum

import numpy as np
from enufft import EMSConfig, elastic_mode_selection

energy = np.array([10.0, 3.0, 1.0, 0.4, 0.1])
diagnostics = elastic_mode_selection(
    energy,
    EMSConfig(k_min=1, k_max=5, alpha_min=0.0, alpha_max=0.7),
)

print(diagnostics.retain_count("pairs"))
print(diagnostics.retain_count("signed"))

Coefficient Convention

ENUFFT follows the sample-mean Fourier convention used by the research code:

h_hat[m, n] = mean_q h_q exp[-i(k_m x_q + l_n y_q)]
k_m = 2 pi m / Lx
l_n = 2 pi n / Ly

Optional sample weights are normalized into the same sample-mean convention before direct DFT or NUFFT evaluation.

Method

The NUFFT path spreads irregular samples to an oversampled auxiliary grid with a compact Kaiser-Bessel kernel, applies fft2, deconvolves the kernel transform, and extracts the requested signed mode block.

EMS sorts nonnegative mode or pair energies, computes a participation-ratio effective count, measures local spectral smoothness from adjacent energy gaps, and selects the smallest admissible retained count that satisfies the resulting adaptive retained-power target.

For signed Fourier coefficient blocks, non-DC modes are grouped as conjugate pairs (m, n) and (-m, -n). Retaining both signs keeps inverse reconstructions real-valued and keeps energy accounting consistent.

Validation Figures

The repository includes proof plots generated from synthetic fields and polygonal cells.

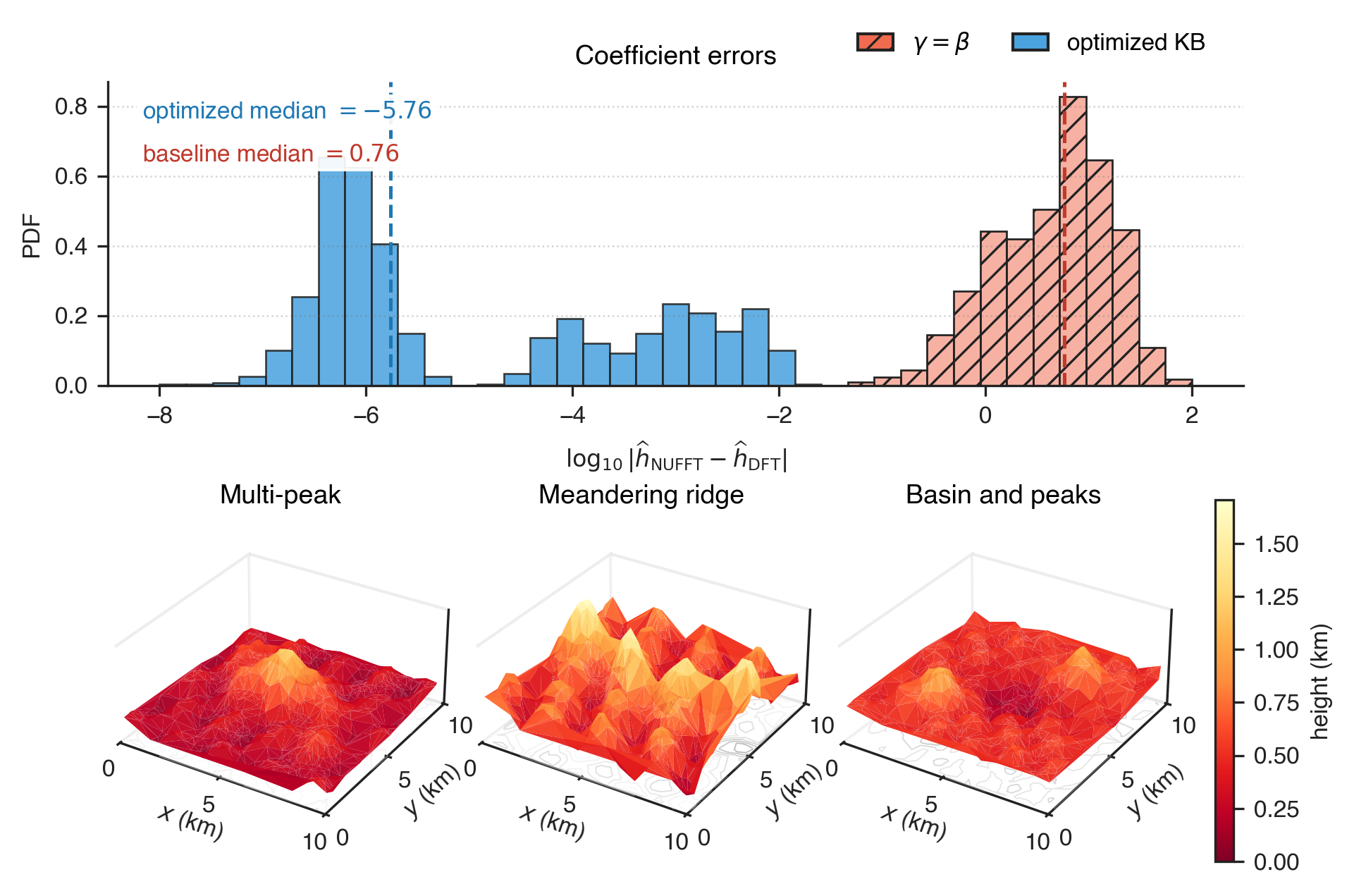

The NUFFT proof compares accelerated coefficients against exact direct DFT coefficients across three synthetic terrain fields.

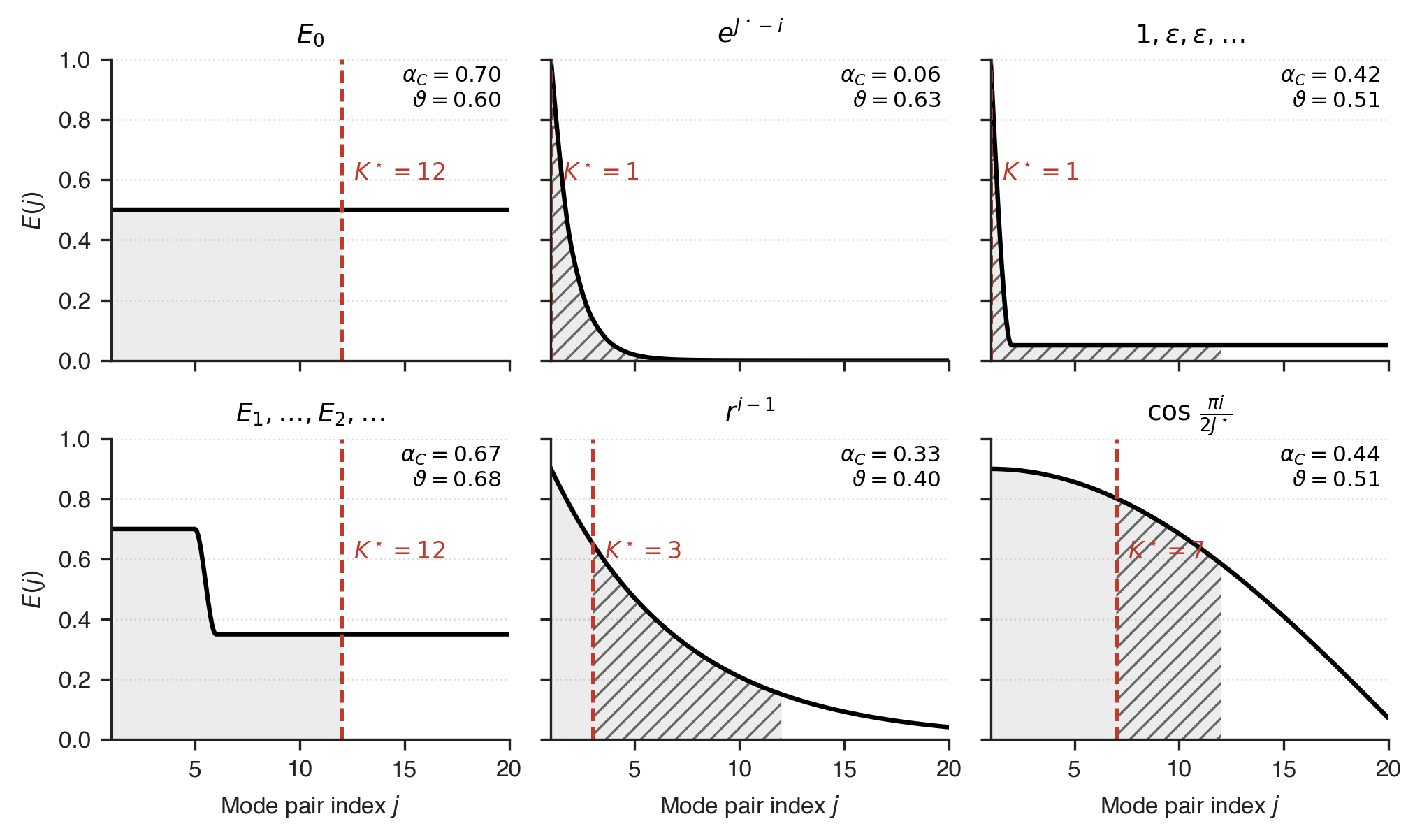

The EMS proof evaluates the retained-count rule across analytical spectra. The red dashed line marks the selected retained count.

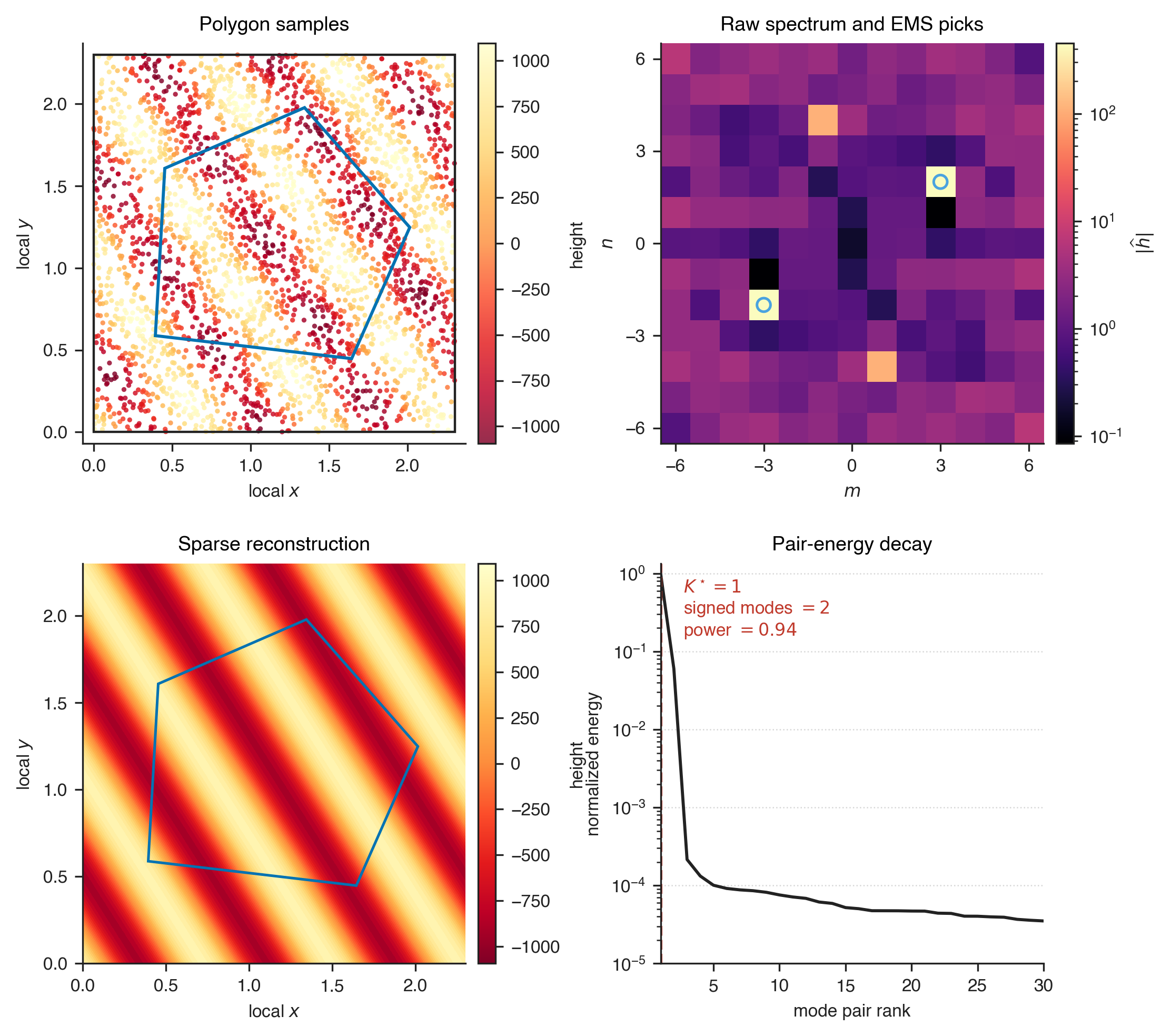

The polygon proof shows the supplied samples, raw Fourier block, EMS-selected pair, sparse reconstruction, and sorted pair-energy decay for one polygonal cell.

Regenerate the proof artifacts from a source checkout with:

python package/scripts/make_proof_plots.py

Citation

If you use ENUFFT in scholarly, published, or publicly distributed work, cite the framework metadata in CITATION.cff:

Banerjee, Tridib. Elastic Non-Uniform FFT (ENUFFT).
https://github.com/TridibBanerjee/Elastic-Non-Uniform-FFT
DOI: 10.5281/zenodo.20544458

License

Released under the Apache License 2.0. See LICENSE and NOTICE.
