EnvGeo-Seawater 🌊

EnvGeo-Seawater is an interactive platform for exploring seawater isotope and hydrographic data.

日本語版 README

Latest stable release: 1.3.5 (2026-10-17) — GitHub Release and archived Zenodo record: https://doi.org/10.5281/zenodo.23428743.

An interactive platform for exploring seawater isotope and hydrographic data.

---

Overview

EnvGeo-Seawater is a Streamlit-based interactive web application for exploring, visualizing, and comparing seawater isotope and hydrographic data for marine geochemistry research.

It supports marine geochemical and hydrographic datasets, including stable water isotopes (δ¹⁸O, δD), salinity, temperature, and depth.

The platform combines the EnvGeo Dataset, whose measurements around Japan were analyzed under standardized procedures, with regional and global reference datasets, including NASA GISS and PAGES CoralHydro2k. Approximately 50,000 cited records can be filtered, compared, and visualized under common selection conditions.

The platform is designed to support both exploratory data analysis and reproducible research workflows in marine geochemistry and oceanography.

---

Key Features

• 🌍 Interactive map visualization with adaptive zoom
• 📊 Depth profiles with gap-aware plotting
• 📈 Temperature–Salinity (T–S) diagrams with approximate σ0 reference contours
• 📉 Regression analysis (e.g., salinity–δ¹⁸O relationships)
• 🧭 3D / 4D visualization of spatial–temporal structures
• 🗂️ Cross-dataset comparison of the EnvGeo Dataset with regional and global reference collections
• 📚 Dataset-name and Reference / Citation filtering for provenance-aware selection
• 📂 Session-only browser uploads and optional persistent local User Excel data for comparison with reference datasets
• 🧾 Transparent data handling (filtered / excluded samples clearly reported)
• 🔎 Duplicate-candidate review and filtering between bundled reference datasets or uploaded data
• 🖼️ Export of publication-quality figures

Why EnvGeo-Seawater?

EnvGeo-Seawater complements general-purpose oceanographic visualization tools with a seawater-isotope workflow that keeps heterogeneous datasets and their provenance together. Users can compare the EnvGeo Dataset with regional and global reference collections, filter by dataset and citation, inspect potential cross-dataset overlaps, and generate figures without silently altering the source workbooks.

After local installation, bundled-data loading, filtering, analysis, and figure generation do not depend on a hosted web service. Online basemap tiles and external links remain dependent on network availability.

---

Main Pages

The following is the page inventory for the development source. The Streamlit app uses home.py for the about, data-source, manual, update-log, and Japanese information tabs. The pages/ directory contains the main visualization tools, along with selected beta and local-development pages:

• pages/03_[Interactive]_2Dplus_Visualizer.py Interactive 2D/2.5D plots for isotope-hydrographic relationships and selected sample locations.

• pages/04_[Interactive]_3D_4D_Visualizer.py Interactive 3D/4D seawater visualizer for longitude, latitude, depth, and selected variables.

• pages/05_[Utils]_User_Data_Check_Quick_Visualizer.py User Data Check & Quick Visualizer for reference and CSV/XLSX upload data. It combines shared filtering, missing-value and quality review, 2D Map, Salinity-d18O, Temperature-Salinity, arbitrary 2D/3D/4D, geographic 3D, and filtered CSV export.

• pages/06_[Utils]_Data_Overlap_Check.py Read-only cross-dataset overlap screening for bundled reference datasets and one session-only uploaded table. It separates Strong and Review candidates, exports matching evidence, and supports optional reversible display screening while preserving all source records.

• pages/31_Salinity-d18O_Relationship.py
  Salinity-δ18O relationship plots with optional regression lines.

• pages/32_Isotope_Hydrographic_Mapping.py
  Isotope and hydrographic maps for d18O, dD, d-excess, salinity, and temperature distributions.

• pages/34_T-S_diagram.py
  Temperature-salinity diagrams with density contours.

• pages/37_Depth_Profile.py Depth profiles for δ18O, δD, d-excess, temperature, and salinity.

• pages/35_Custom_Parameter_Plot.py Flexible custom 2D parameter plots with selectable X axis, Y axis, color, and marker size.

• pages/53_Vertical_Section_Visualizer.py Vertical Section Visualizer for section-line selection, interpolation, bathymetry handling, and vertical-section plotting.

• pages/80_Correlation_Overview.py Archive display of the original hand-written exploratory workflow used during development. It is retained as a development record; no new features are planned.

• pages/90_Integrated_Visualizer_beta.py Experimental integrated visualizer. It can run the original visualization workflows inside one beta page, temporarily merge uploaded user data into those workflows, and test a shared-filter tab workflow with ocean-region map presets for future integration. The standalone uploader page remains separate because it uses its own upload-first workflow.

• pages/99_Environment_Check.py Local-development wrapper for the environment checker. It is useful for local diagnostics but is not intended for the public Streamlit deployment sidebar.

Public pages in the stable release

Stable v1.3.5 includes Pages 03, 04, 05, 31, 32, 34, 35, 37, 53, and 80. Pages 90, 91, and 99 are for development or local diagnostics and are excluded from the stable distribution package and public Streamlit sidebar.

The former standalone about page was merged into home.py.

---

Local Diagnostic Tool

The installed package includes a local Streamlit-based environment checker. It is intended for local use when confirming Python paths and installed dependency versions. The diagnostic results can be exported as CSV or PDF reports:

envgeo-seawater-check

In a source checkout, the equivalent command is streamlit run tools/env_check_streamlit.py. The development-only pages/99_Environment_Check.py wrapper is not included in the installed package or public deployment, so the normal application navigation contains only public visualization pages.

---

User Data Integration

Use the browser upload controls in the visualization pages to load CSV or XLSX measurements for the current Streamlit session. The Data Check & Quick Visualizer is the upload-first entry point for quality review and simple 2D--4D exploration; supported specialist pages also expose Uploaded data in their shared Data filtering controls.

The repository bundles local_data/user_data.xlsx as a zero-value public sample for the always-loaded User Excel data workflow. It is assigned the dataset name User Excel data and combined with each selected reference source, so it appears in Data filtering from app startup without a browser upload. For researcher-owned measurements, either edit local_data/user_data.xlsx for local use or set ENVGEO_LOCAL_USER_DATA_PATH to a CSV, XLSX, or XLS file. Before committing or synchronizing a public copy, restore the zero-value sample and never commit research data. Restart Streamlit or clear its data cache after changing either table.

The always-loaded User Excel data and browser Uploaded data are independent. A browser upload does not overwrite the local workbook; when both categories are selected, both are combined with the selected reference data.

Browser-uploaded files are handled in memory during the current Streamlit session only. The app does not save uploads or merged user/reference datasets.

Spreadsheet numbers copied from web pages, PDFs, or other workbooks may contain invisible Unicode spaces. EnvGeo removes common regular, non-breaking, narrow non-breaking, and full-width spaces before numeric conversion and normalizes a Unicode minus sign. Values that still cannot be interpreted as numbers remain missing rather than being guessed. The same normalization is used for the always-loaded local table and browser uploads.

---

Why this tool?

EnvGeo-Seawater enables integrated exploration of isotope and hydrographic data, which are typically analyzed separately.

Unlike conventional tools that treat datasets and visualization separately, EnvGeo-Seawater provides an integrated, interactive framework for exploring isotope–hydrographic relationships and enables direct comparison with user-provided data.

• Integrated multi-parameter visualization
• Consistent filtering across datasets
• Direct comparison between user data and curated datasets
• A unified analytical framework across regional and global datasets

---

Data Characteristics

The platform includes internally consistent datasets (e.g., around Japan) analyzed under unified criteria, enabling rigorous cross-comparison.

A key strength is that a substantial portion of the regional datasets (around Japan) has been analyzed by the author using consistent analytical protocols, ensuring high comparability across sampling campaigns.

In particular, regional datasets curated by the author provide:

• Consistent analytical methods
• Harmonized data structure
• High comparability across sampling campaigns

This ensures that observed patterns reflect environmental signals rather than methodological differences.

---

Data Availability

The bundled datasets are public source records or project-derived workbooks included under the project's documented scholarly-use distribution decision. This does not make third-party records project-owned or assert a general redistribution licence beyond the source-specific records. See docs/dataset_redistribution_audit.md, docs/provenance_inventory.md, and docs/THIRD_PARTY_NOTICES.md.

• Provided in a standardized format for immediate use

Unpublished or restricted datasets are not included.

Cross-dataset overlap screening

Integrated datasets, including NASA GISS and PAGES CoralHydro2k, can contain records derived from the same original observation. Data Overlap Check supports candidate review and filtering between bundled reference datasets, or between one session-only uploaded table and a selected bundled reference dataset. Candidates are reported as Strong or Review; they do not confirm a duplicate, and source workbooks are never modified.

See the Data Overlap Check manual for the matching criteria, candidate classes, audit table, and filtering workflow.

---

Installation & Requirements

Continuous integration validates the final wheel on Python 3.10 and 3.12. The release baselines are Python 3.10.15 / Streamlit 1.42 and Python 3.12.14 / Streamlit 1.63, with Plotly 5.24. Python 3.12 is recommended for local installation. Python 3.13 is conditionally supported on every platform because some dependencies may require a local native build. See docs/streamlit_migration.md for the test record and environment matrix.

Install the published package

Install and launch the published application without cloning the source repository:

python -m pip install envgeo-seawater
envgeo-seawater

💡 Python 3.13 and macOS setup

Use the standard pip command above first; Python 3.12 is recommended. Python normally installs ready-made package files (wheels), which do not need a compiler. For Python 3.13, however, a compatible wheel for the pinned NumPy or PyProj version is not always available. Pip then tries to build that package from source. This can take several minutes and requires a working native build toolchain, so a standard pip install is not guaranteed to work on every computer. This condition is not specific to an M1 Mac or to Cartopy.

If you intentionally use Python 3.13 on macOS, install Apple's Command Line Tools first and then retry the standard command:

xcode-select --install
python -m pip install --upgrade pip
python -m pip install envgeo-seawater

If installation specifically fails while installing pyproj or cartopy, use the following Conda fallback (Python 3.12 is recommended for this route):

# 1. Create and activate a fallback environment
conda create -n envgeo python=3.12
conda activate envgeo

# 2. Install the geospatial prerequisites
conda install -c conda-forge proj pyproj=3.6.1 cartopy=0.25.0 -y

# 3. Install and launch EnvGeo-Seawater
python -m pip install envgeo-seawater
envgeo-seawater

Python 3.14 is not supported by the fixed dependencies in v1.3.5.

---

Source checkout (development)

git clone https://github.com/envgeo/seawater_map.git
cd seawater_map
python -m pip install -r requirements.txt
streamlit run home.py

Use this route only when developing, inspecting, or testing the source. Then open the local URL shown in the terminal (typically http://localhost:8501).

---

Offline and Shipboard Use

Offline operation is an important design goal for EnvGeo-Seawater. A key use case is checking newly collected seawater data aboard a research vessel, where satellite connectivity may be limited, unstable, or unavailable. Local analysis can help researchers identify outliers, coordinate errors, missing values, and unexpected depth profiles while there is still time to repeat measurements, collect additional samples, or adjust the cruise plan.

The bundled datasets and most non-map analysis workflows can be run locally after the Python environment has been installed. Plotly map pages include a local coastline layer: selecting Coastline (offline) uses a tile-free white background, and an unavailable online tile service automatically falls back to that local map with an explicit warning. The online manual video remains supplementary and may be unavailable at sea without affecting the core workflow. Folium's map-drawing A–B selector still needs online browser assets; Vertical Section remains usable offline through manual A/B coordinate entry.

The static Cartopy maps (page 32 – Isotope Hydrographic Mapping) draw their land mask from a Natural Earth 50m land shapefile that is bundled in the repository under coastline/natural_earth_50m_land/. No external Natural Earth download is required to render those maps.

Pages 03 (2D+ Visualizer), 04 (3D/4D Visualizer), and 05 (Quick Visualizer) provide a "Download interactive HTML" button below each main figure. The downloaded file embeds Plotly.js inline, so its Plotly interaction works without a network connection. If a saved map uses an online background style, its basemap tiles are not embedded; select Coastline (offline) before exporting a map intended for offline geographic use.

---

API Usage

Core functionality can be accessed programmatically:

import envgeo_utils

df = envgeo_utils.load_isotope_data(envgeo_utils.data_source_GLOBAL)

df_filtered = envgeo_utils.sidebar_filter_and_display(
    df,
    ref_data=envgeo_utils.data_source_GLOBAL,
    data_source_ENVGEO=envgeo_utils.data_source_ENVGEO,
    data_source_AROUND_JAPAN=envgeo_utils.data_source_AROUND_JAPAN
)

---

Testing

Run tests from the project root. After installing the development dependencies, run the complete suite:

python -m pip install -r requirements-dev.txt
python -m pytest -q test

For a quick development check, run the shared-utility and repository-health tests:

python -m pytest -q test/test_envgeo_utils.py test/test_repository_health.py

The suite covers data loading, numeric conversion and quality information, shared filtering, user-data handling, gap rows for depth profiles, map and plotting helpers, public page structure, and documentation links. See docs/testing.md for the complete test inventory and known limitations.

GitHub Actions CI runs the full suite on Linux with Python 3.10 and 3.12 for pushes, pull requests, and manual dispatch. It also builds a wheel and installs it into a clean virtual environment outside the checkout, verifying imports, packaged pages, the diagnostic tool, and exclusion of development-only pages.

Browser interaction, visual figure comparison, online-map behaviour, complete scientific interpretation of every page, and performance are not yet fully automated. Release preparation therefore also includes manual smoke tests in Streamlit Community Cloud and local environments.

Additional Documentation

Project checklists and longer development notes are kept under docs/.

• Figure-supported online user guide: public English and Japanese, page-by-page operating guidance for the stable release.

• docs/THIRD_PARTY_NOTICES.md: concise source, attribution, and scope notice for bundled third-party data and geospatial assets.

• docs/release_checklist.md
  Release and deployment checklist for local testing, Streamlit deployment, GitHub release preparation, and Zenodo archiving.

• docs/testing.md
  Overview of the pytest suite, current coverage, limitations, and planned test expansion.

• docs/manual/
  Source Markdown for the page-by-page manual published through the online user guide.

---

Directory Structure

• home.py Main Streamlit entry point for EnvGeo-Seawater.

• envgeo_utils.py Shared utilities for dataset loading, data cleaning, filtering, common Plotly layout, map styles, coastline loading, and table display.

• envgeo_assets.py Resolves paths to read-only resources bundled with the application, without depending on the launch directory.

• envgeo_user_data.py Provides session-only browser-upload controls, column normalisation, and display helpers for user-supplied data. Browser uploads are not written to disk by this module.

• envgeo_launcher.py Starts the installed application through the envgeo-seawater command.

• envgeo_diagnostic_launcher.py Starts the local diagnostic tool through the envgeo-seawater-check command; it is separate from the public app navigation.

• pages/
  Stable visualization page files shown in the app sidebar.

• tools/
  Local support tools that are included in the package but not shown in the public Streamlit app sidebar.

• dataset/
  Curated seawater isotope and hydrographic datasets used by the application.

• data/
  Sample files and media used by the app, including template data, GIF/MP4 examples, and temporary coastline sample files.

• data_text/
  Markdown resources for about text, references, manuals, Japanese notes, and English/Japanese update logs.

• images/
  Figures and example outputs used in README and documentation.

• coastline/
  Local 50m and 110m coastline coordinate CSV files for map and 3D reference overlays, plus a bundled Natural Earth 50m land shapefile (natural_earth_50m_land/) used as the land mask on static Cartopy maps. Made with Natural Earth (https://www.naturalearthdata.com/). Public domain.

• test/
  Basic pytest tests for imports, dataset loading, numeric conversion, gap-row insertion, colorscales, and coastline loading.

Core functionality is implemented as reusable Python functions in envgeo_utils.py, allowing programmatic access outside the Streamlit interface.

---

Usage

1. Select a dataset (EnvGeo / EnvGeo + Around Japan / EnvGeo + Global)
2. Apply filters (location, depth, time, parameters)
3. Explore:
   • Maps
   • T–S diagrams
   • Depth profiles
   • Regression plots
4. Upload your own data for comparison (optional)
5. Export figures

---

Reproducibility

This repository contains:

• The full source code of the visualization platform
• All required public datasets (lightweight, <30 MB total)
• A template for user-defined data integration

Therefore, the core visualizations can be reproduced in a local environment using the provided code, datasets, and documented settings.

Figures can be reproduced by running the application locally using the provided datasets and following the Quick Start instructions above, with the caveat that experimental beta workflows may change between development versions.

Due to the interactive nature of the application, functionality is validated through manual testing and visual inspection.

Experimental features are included for development purposes and may change in future versions. These features are clearly separated from the core functionalities.

---

Limitations

• Interactive 3D/4D visualizations can be slow with large global selections.
• Plotly 3D interaction is best on a PC; 2D plots are more suitable for smartphones and tablets.
• User data upload is currently Excel-centered and depends on the expected column structure.
• Dataset interpretation depends on the original data sources, analytical methods, and metadata. Users should cite and evaluate the underlying data providers when using outputs in publications.

---

Data Sources and Attribution

The platform integrates major seawater isotope datasets:

• CoralHydro2k: a global seawater oxygen isotope database (Atwood et al., 2026, ESSD)
• NASA GISS Global Seawater Oxygen-18 Database (Schmidt et al., 1999)
• Kodama et al. (2024), Geochemical Journal
• Additional regional datasets

For publication, teaching material, or redistributed outputs, cite both EnvGeo-Seawater and the original dataset providers used in the selected visualization. Source details are shown in the app and in the Markdown files under data_text/.

Software and geospatial acknowledgements

EnvGeo-Seawater uses Streamlit for the application interface and Plotly for interactive figures. Selected scientific colour palettes are provided by cmocean. The T–S diagram draws explicitly approximate σ0 reference contours with the Gibbs SeaWater (GSW) implementation of TEOS-10; it does not perform a per-observation conversion to Absolute Salinity and Conservative Temperature. The Vertical Section Visualizer can use a project-derived, downsampled GEBCO 2025 Grid for seafloor context only; it is not a navigation product. Natural Earth supports the bundled land assets; its attribution appears above. Full bibliographic and provenance records are maintained in paper.bib and docs/.

AI-assisted development and human oversight

From version 1.3 onward, development of EnvGeo-Seawater has made substantial use of AI coding assistants — OpenAI Codex and Anthropic Claude Code — for code review, implementation drafting, refactoring, test design and authoring, bug investigation, and documentation.

AI tools are used as assistants, not as authors or co-developers. Every adopted change is reviewed, edited, and verified by the human author before being merged. The author is solely responsible for all scientific and technical judgment, the accuracy of the software and its documentation, licensing, and the content published under this project. See docs/development_notes.md for more detail on this policy.

Live Demo

Primary stable demo: https://envgeo-seawater-map.streamlit.app

Stable demo with experimental updates: https://envgeo-seawater-pre.streamlit.app

---

Prior workflow use

Before EnvGeo-Seawater had an archival software DOI, it was used in the author's and collaborators' workflows to select, explore, and visualize subsets of the EnvGeo Dataset [ECS–Japan Sea], whose primary reference is Kodama et al. (2024). The resulting publications cited the underlying dataset paper rather than this software. They are therefore examples of workflow use, not direct software citations.

---

Future development

The data model can accommodate additional datasets after their sources, provenance, and redistribution status have been recorded. Reusable visualization, asset-resolution, and distribution components may support future related EnvGeo applications. These are future directions, not functions or datasets included in the stable v1.3.5 release.

---

Citation

Ishimura, T. (2026).

EnvGeo-Seawater: An Interactive Platform for Exploring Seawater Isotope and Hydrographic Data (Version 1.3.5). Zenodo. https://doi.org/10.5281/zenodo.23428743

The DOI badge above resolves to the all-versions concept DOI (10.5281/zenodo.23117783). Cite the fixed v1.3.5 DOI (10.5281/zenodo.23428743) whenever the version used in an analysis is known. Please also cite the original providers of every dataset used in an analysis.

---

Examples

EnvGeo-Seawater enables multi-scale exploration of seawater isotope and hydrographic data, from global distributions to detailed interactive analysis.

---

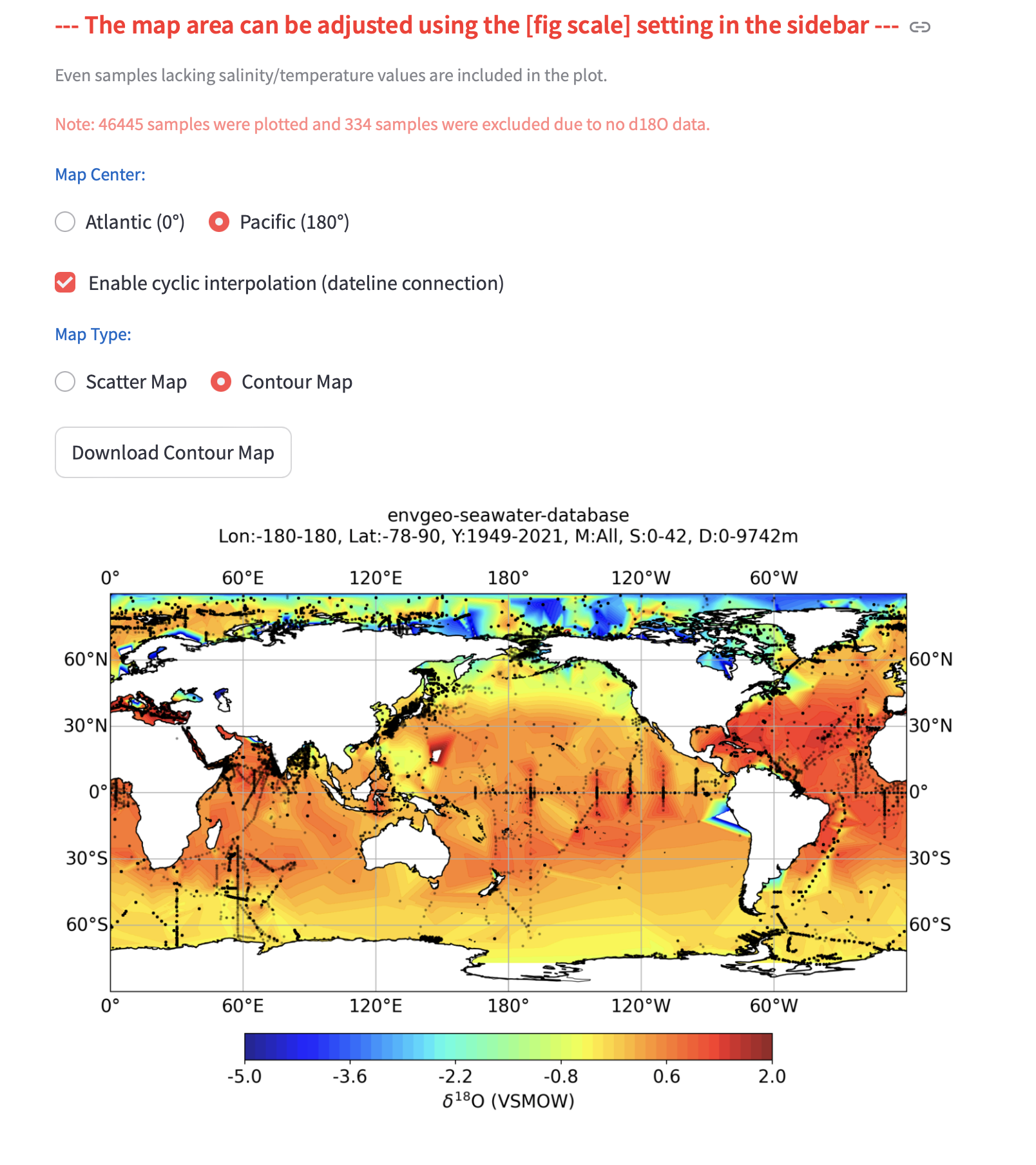

Global Isotope Distribution (Contour Map)

Spatial distribution of seawater δ18O at the global scale, based on integrated datasets (approximately 50,000 records).
Contour interpolation highlights large-scale oceanographic patterns and basin-scale variability.

---

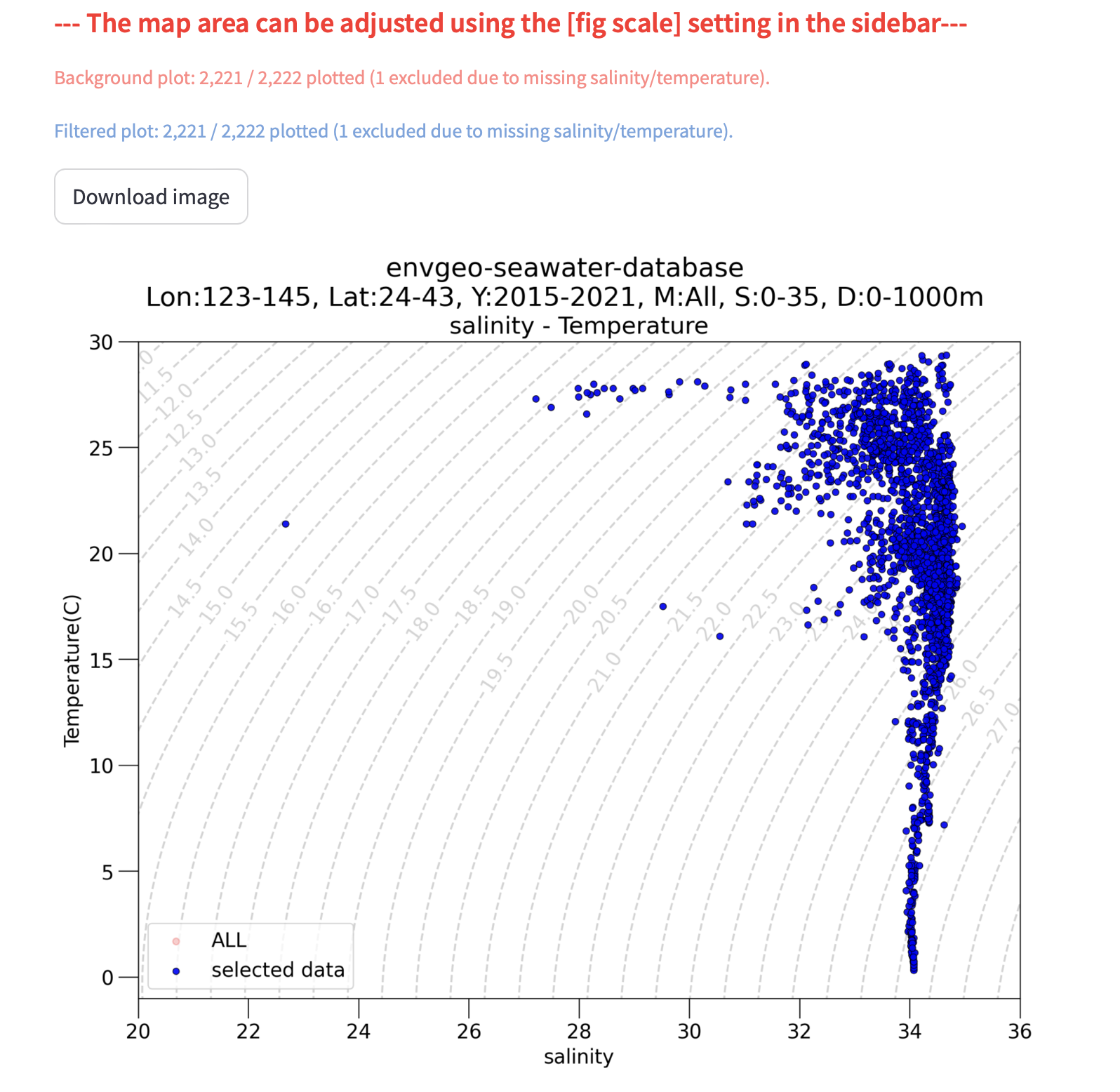

Temperature–Salinity Diagram

Temperature–salinity (T–S) relationships with overlaid approximate σ0 reference contours (Practical Salinity ≈ Absolute Salinity; in-situ temperature ≈ Conservative Temperature). This visualization supports identification of water masses and examination of isotope–hydrography relationships.

---

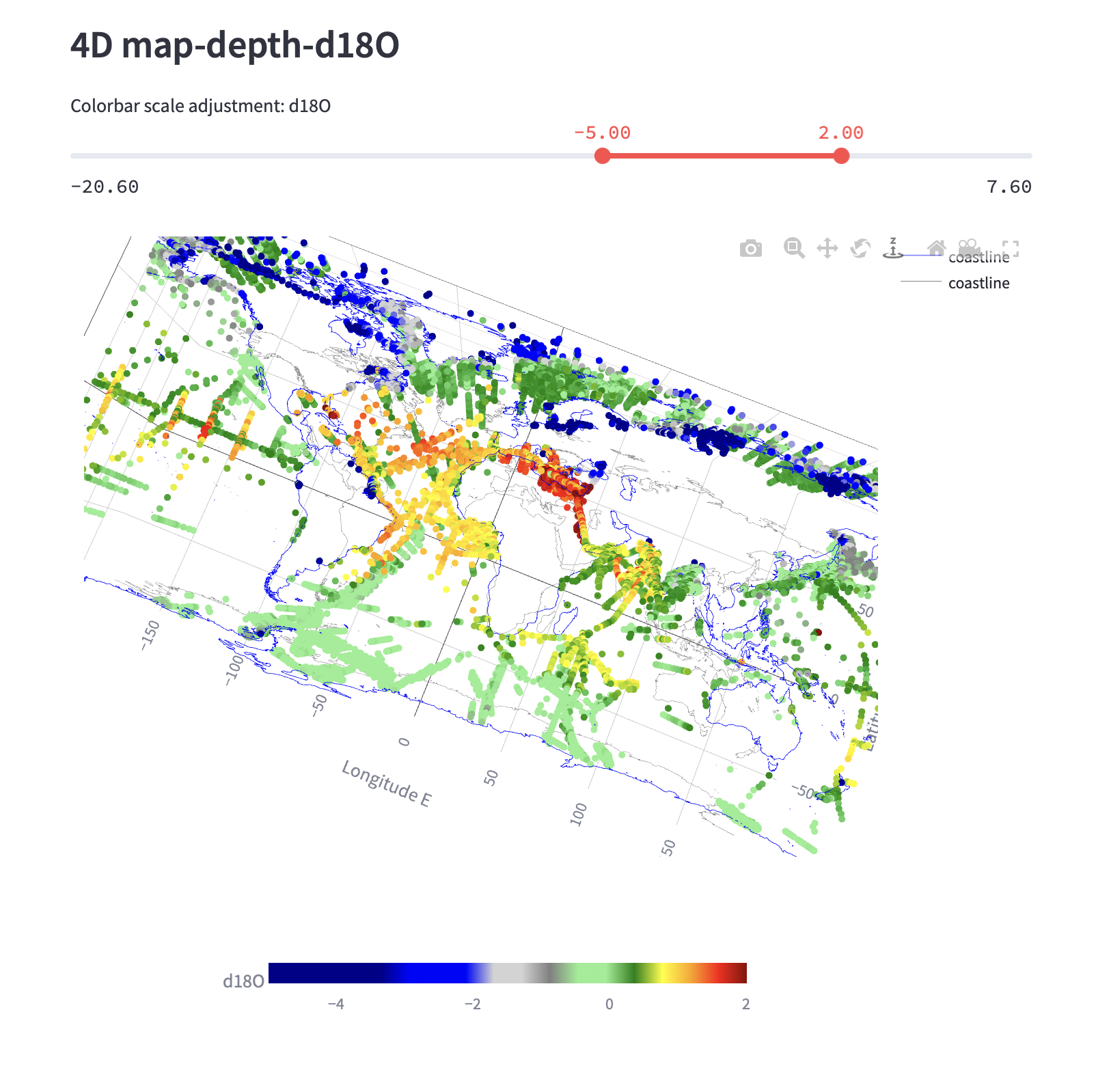

4D Visualization (Longitude–Latitude–Depth–δ18O)

Multi-dimensional visualization of seawater isotope data, incorporating spatial coordinates and depth.
This allows exploration of vertical structure and spatial gradients simultaneously.

---

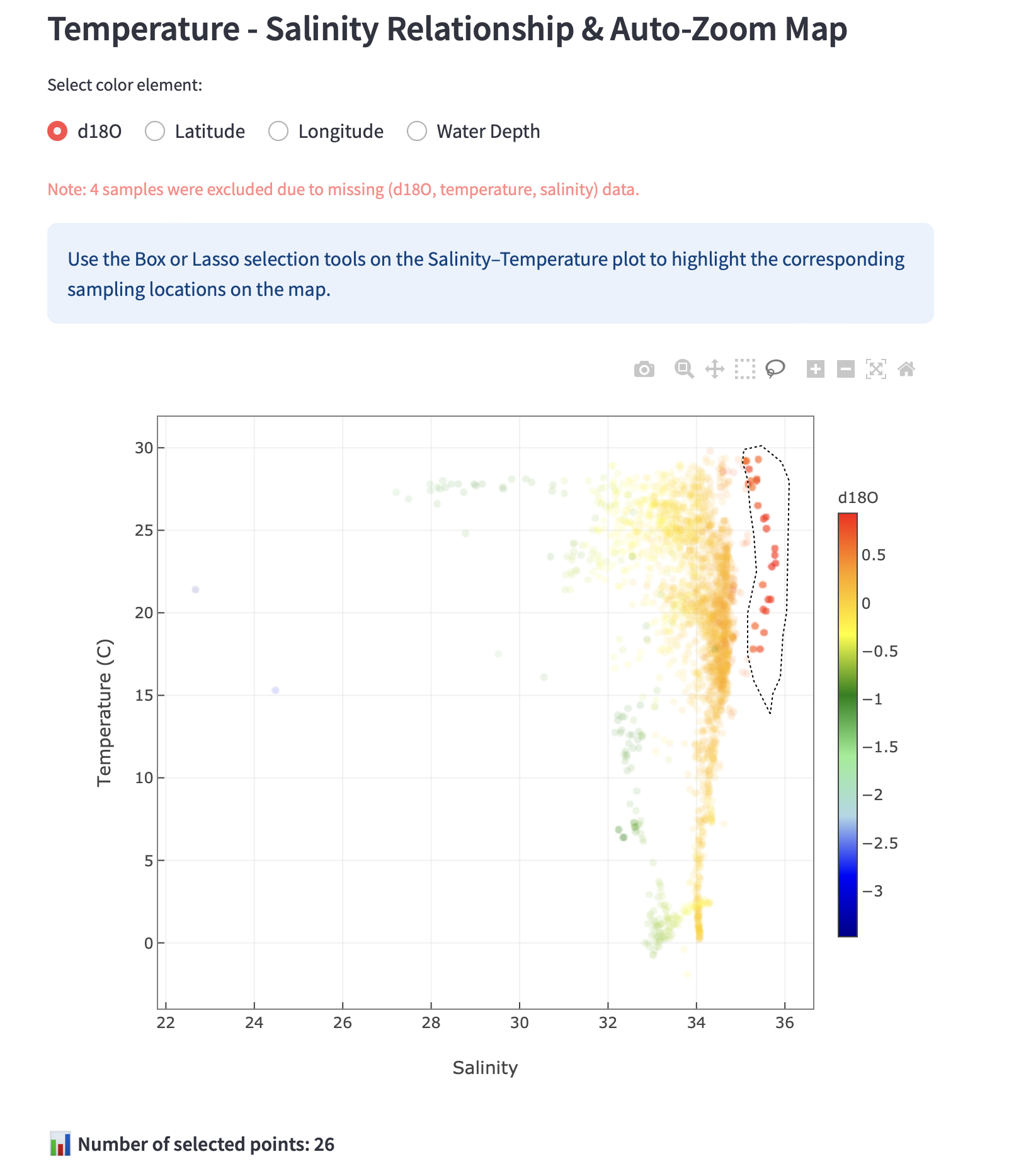

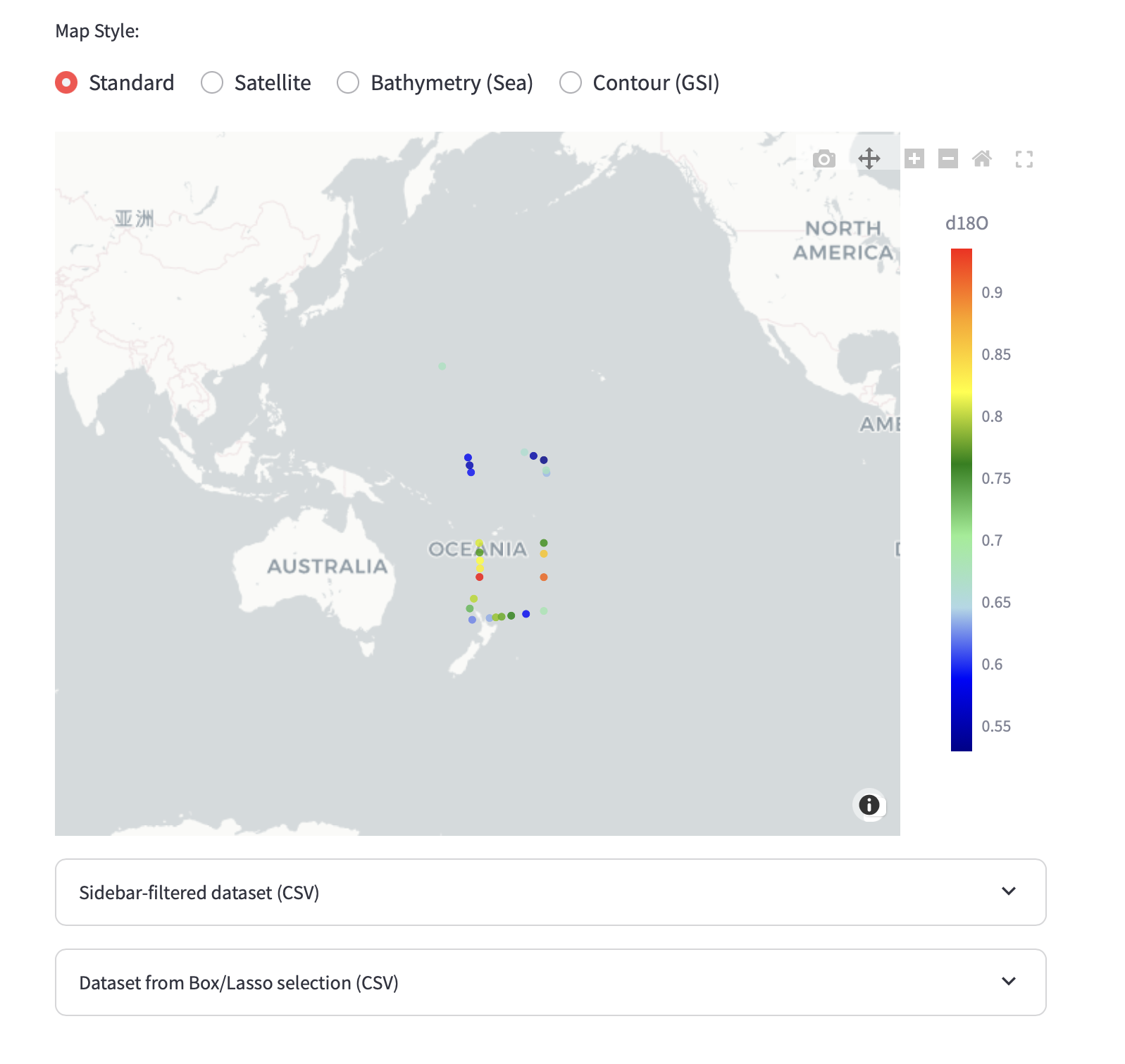

Interactive Selection (Map–T–S Linkage)

Linked visualization between T–S space and geographic location.
Selected subsets in the T–S diagram are dynamically highlighted on the map, enabling intuitive interpretation of water mass origins.

---

License

MIT License
