envscan 0.1.0

Scan directories to find Python virtual environments

Directory Structure Visualizer

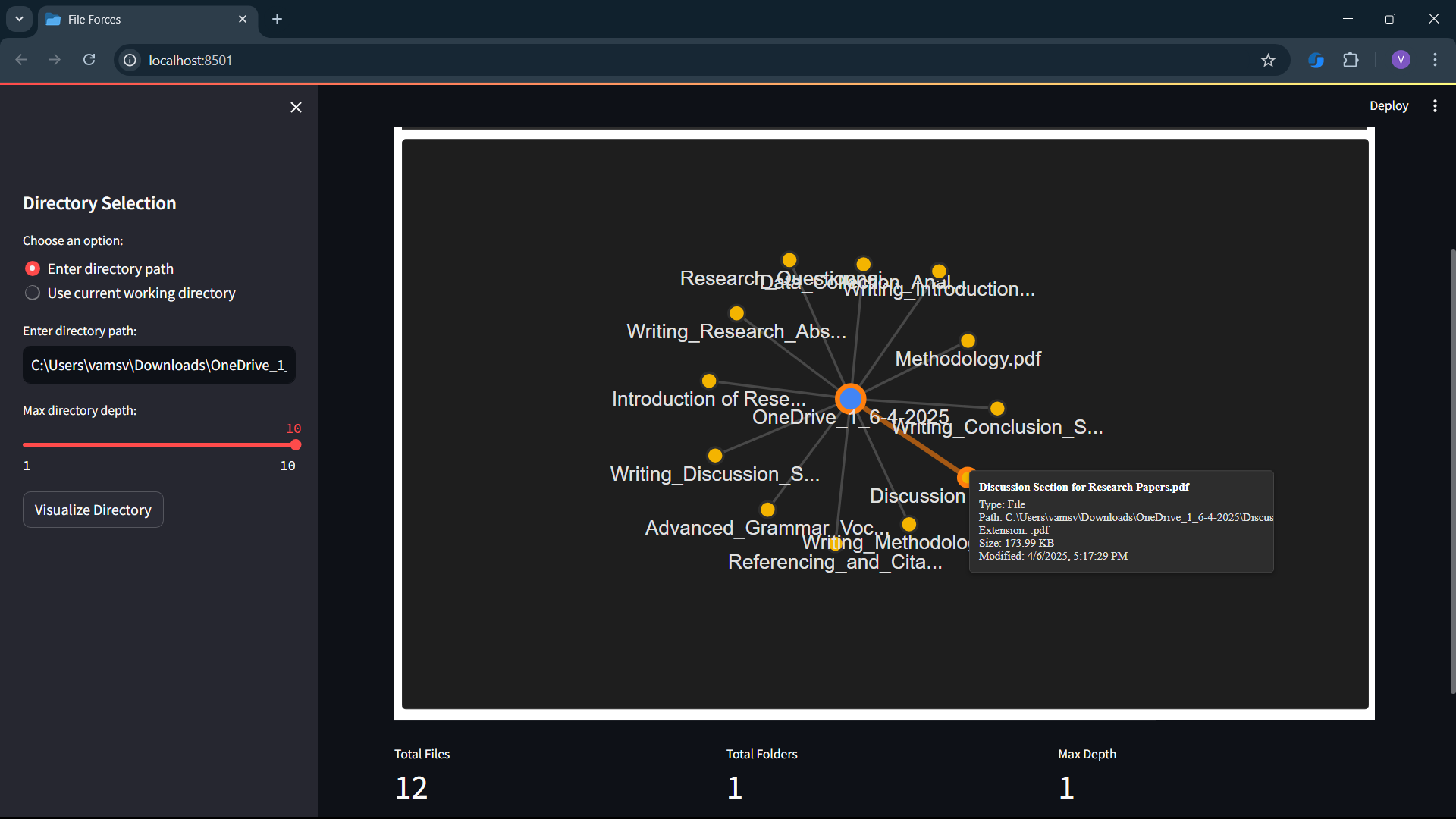

A Streamlit web application that visualizes folder directory structures as interactive D3.js force-directed graphs.

Features

• Interactive Visualization: View your directory structure as an interactive force-directed graph
• Dark Mode Interface: Clean, modern dark theme for comfortable viewing
• File Type Categorization: Files are color-coded by type for easy identification
• Detailed Information: Hover over nodes to see detailed file/folder information
• Customizable Depth: Control how deep the directory scanning goes
• Connection Highlighting: Click on nodes to highlight their connections
• Progress Indicators: Visual feedback during directory scanning and processing

Installation

Prerequisites

• Python 3.7 or higher
• Git (for cloning the repository)

Quick Start

1. Clone the repository

   git clone https://github.com/yourusername/directory-visualizer.git
   cd directory-visualizer


2. Set up a virtual environment (recommended)

   # On Windows
   python -m venv venv
   venv\Scripts\activate

   # On macOS/Linux
   python -m venv venv
   source venv/bin/activate


3. Install dependencies

   pip install -r requirements.txt


   Or install directly:

   pip install streamlit


4. Run the application

   streamlit run app.py


5. Open in your browser

   The application should automatically open in your default web browser. If not, navigate to:

   http://localhost:8501


Usage

1. Select a directory to visualize

   • Choose between entering a custom directory path or using the current working directory
   • Adjust the maximum directory scanning depth using the slider

2. Click "Visualize Directory"

   • Wait for the directory to be scanned and processed
   • The visualization will appear in the main area

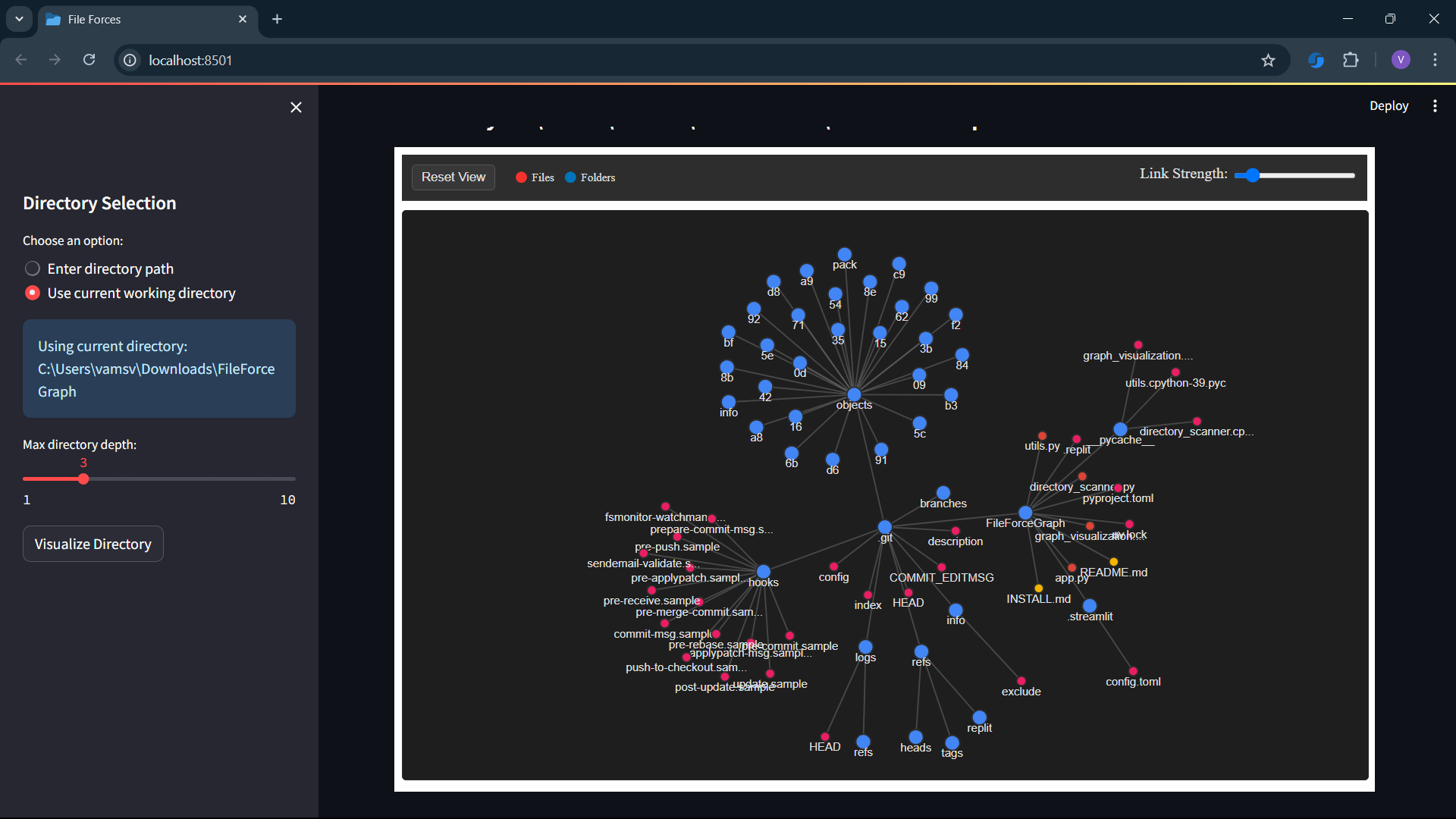

3. Interact with the visualization

   • Drag nodes to rearrange the graph
   • Hover over nodes to see file/folder details
   • Click on nodes to highlight connections
   • Use the scroll wheel to zoom in/out
   • Drag the background to pan around
   • Adjust the link strength using the slider
   • Click "Reset View" to reset the visualization

---

CLI: envscan (new)

envscan is a CLI tool that scans a directory for Python environments and reports them in the terminal.

Basic usage:

# Scan current directory and print text results (default)
envscan

# Scan a specific path and print JSON
envscan --path ./project --format json

# Write JSON output to a file
envscan --path ./project --format json --json-file results.json

# Probe environments to get their Python version (optional)
envscan --probe --verbose

# Show installed version of envscan
envscan --version

Options:

• --path, -p : Path to scan (default .)
• --depth, -d : Max recursion depth (default 3)
• --format, -f : Output format text or json (default text)
• --include-hidden : Include hidden directories and files
• --follow-symlinks : Follow symbolic links
• --probe : Probe discovered environments to get Python version (optional, time-limited)
  • Note: if probing fails for any environment, run with --verbose to see informational logs explaining the failure.
• --json-file : Write JSON output to the given file
• --verbose : Verbose output

The CLI is implemented using click and the detection heuristics look for common markers (e.g., pyvenv.cfg, conda-meta, Pipfile, .python-version).

---

Publishing to PyPI

To publish on PyPI:

1. Verify the package name is available (we checked envscan is currently available).
2. Create an account on PyPI if you don't have one.
3. Create a PyPI API token ("Programmatic API token") and add it as PYPI_API_TOKEN in your repository's Secrets (Settings → Secrets → Actions).
4. Tag a release and push the tag, e.g.:

git add -A ; git commit -m "Release v0.1.0" ; git tag v0.1.0 ; git push origin main --tags

5. The GitHub Actions release.yml workflow will build and publish the package to PyPI when it sees a v*.*.* tag.

Local publish (alternative):

python -m pip install --upgrade build twine
python -m build
python -m twine upload dist/*

Notes:

• Ensure pyproject.toml contains accurate metadata (authors, license, README, homepage). The streamlit dependency is optional in web extras.
• We recommend a small test release (0.1.0) and then iterating.

---

File Structure

directory-visualizer/
├── .streamlit/
│   └── config.toml       # Streamlit configuration
├── app.py                # Main Streamlit application
├── directory_scanner.py  # Directory scanning functionality
├── graph_visualization.py # D3.js visualization code
├── utils.py              # Utility functions
└── README.md             # This documentation

Extending Functionality

To add more features:

1. File type categorization: Extend the get_file_type_group function in directory_scanner.py
2. Additional statistics: Modify the calculate_directory_stats function in app.py
3. UI improvements: Add more Streamlit components in app.py

License

This project is open-source and available under the MIT License.
