erdalchemy 0.4.0

Interactive ERD visualization for SQLAlchemy 2.0 models

erdalchemy

Interactive ERD visualizer for SQLAlchemy 2.0 models. Introspects your DeclarativeBase metadata and generates diagram files with no manual configuration required.

• Drag-and-drop interactive HTML output
• Two layout algorithms: force-directed (general) and star (optimized for star/warehouse schemas)
• Hover highlighting for tables and relationships
• Export to HTML, SVG, PNG, and PDF
• Built-in color themes and per-table color overrides
• Multi-schema support with visual grouping and cross-schema FKs
• Zero dependencies beyond SQLAlchemy

Installation

pip install erdalchemy

PNG and PDF export require an optional dependency:

pip install "erdalchemy[all]"

Quick start

from sqlalchemy_erd import generate_erd
from myapp.models import Base

generate_erd(Base, output="erd.html")

CLI

# Interactive HTML (default)
sqlalchemy-erd myapp.models:Base

# Specific format and output path
sqlalchemy-erd myapp.models:Base --format svg --output erd.svg

# With theme and custom title
sqlalchemy-erd myapp.models:Base --format png --theme blue --title "My Schema"

# Per-table color overrides as JSON
sqlalchemy-erd myapp.models:Base --colors '{"users": "#1d4ed8", "orders": "#059669"}'

# High-resolution PNG
sqlalchemy-erd myapp.models:Base --format png --scale 3

# Only include specific database schemas
sqlalchemy-erd myapp.models:Base --schemas public,billing,audit

# Tune layout parameters
sqlalchemy-erd myapp.models:Base --k-repulse 50000 --k-attract 0.05 --ideal-len 350

# Use star layout for star/warehouse schemas or disconnected tables
sqlalchemy-erd myapp.models:Base --layout star

# Star layout with 2 catalog columns per side (for many catalogs)
sqlalchemy-erd myapp.models:Base --layout star --star-cols 2

# Auto-size card width to fit column names
sqlalchemy-erd myapp.models:Base --node-width auto

# Fixed card width
sqlalchemy-erd myapp.models:Base --node-width 400
# Custom header color via hex
sqlalchemy-erd myapp.models:Base --theme "#6d28d9"

Python API

from sqlalchemy_erd import generate_erd
from myapp.models import Base

generate_erd(Base, output="erd.html", format="html")
generate_erd(Base, output="erd.svg",  format="svg")
generate_erd(Base, output="erd.png",  format="png", scale=2)   # requires cairosvg
generate_erd(Base, output="erd.pdf",  format="pdf")             # requires cairosvg

# Only include specific database schemas
generate_erd(Base, output="erd.html", schemas=["public", "billing", "audit"])

# Tune layout parameters
generate_erd(Base, output="erd.html", k_repulse=50000, k_attract=0.05, ideal_len=350)

# Use star layout for star/warehouse schemas or disconnected tables
generate_erd(Base, output="erd.svg", format="svg", layout="star")

# Auto-size card width to fit column names
generate_erd(Base, output="erd.svg", format="svg", node_width="auto")

# Fixed card width for wide column names
generate_erd(Base, output="erd.svg", format="svg", node_width=400)

Layout algorithms

Force-directed (default)

General-purpose physics-based layout. Works well for most schemas with connected tables.

generate_erd(Base, output="erd.html", layout="force")

Star

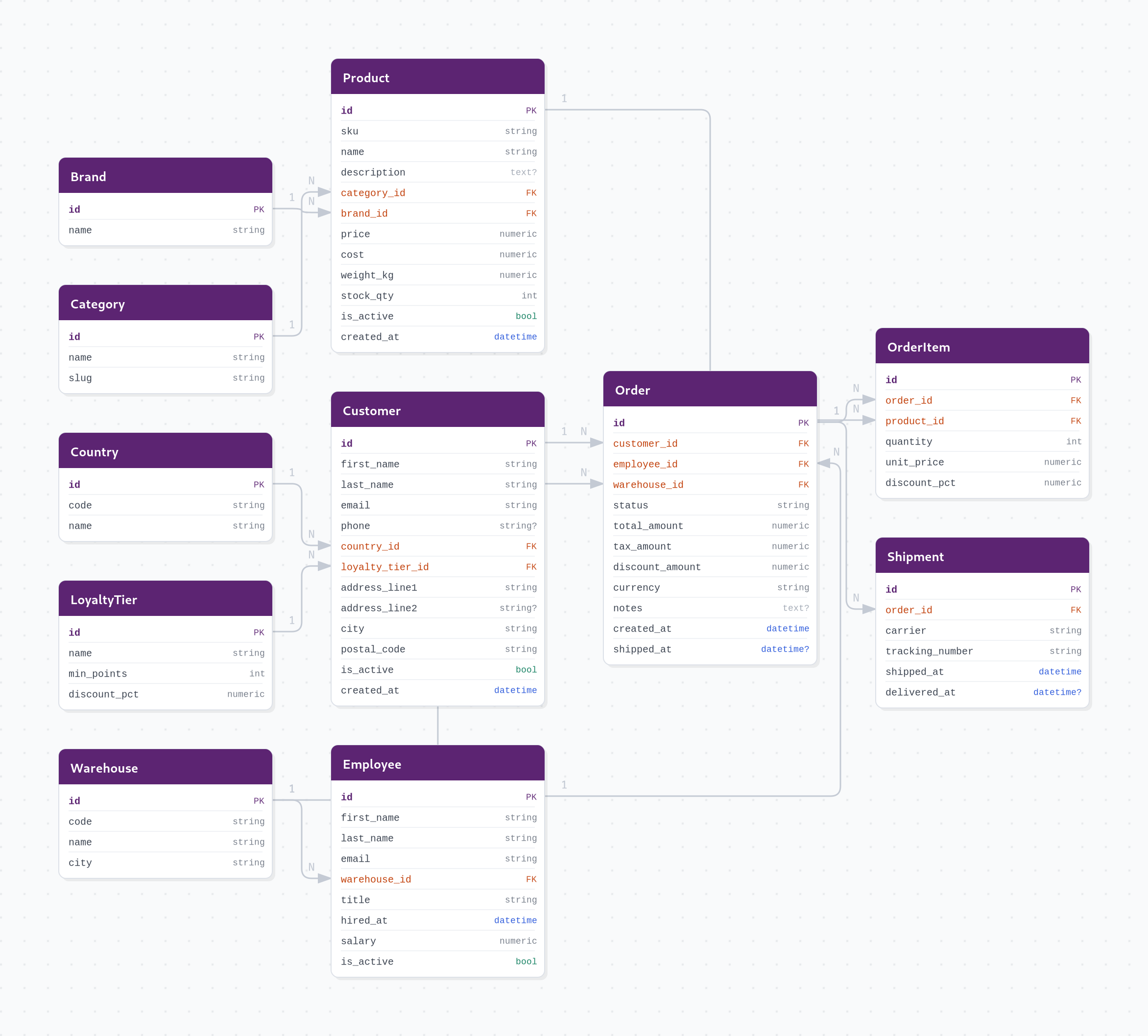

Deterministic column-based layout optimized for star/snowflake schemas and disconnected tables. Produces clean, readable diagrams without arrow crossings for ETL/data warehouse patterns.

generate_erd(Base, output="erd.html", layout="star")

The star_cols parameter controls how many catalog columns are placed on each side of the fact table:

# Auto (default): 1 per side when ≤12 catalogs, 2 per side when >12
generate_erd(Base, output="erd.html", layout="star")

# Force 2 catalog columns per side → 5 total columns
generate_erd(Base, output="erd.html", layout="star", star_cols=2)

star_cols	Total columns	Description
None (default)	Auto	1 per side for ≤12 catalogs, 2 per side for >12
1	3	One column per side (left, center, right)
2	5	Two columns per side
3	7	Three columns per side

The algorithm:

1. Fact tables (most FK columns) are placed in the center
2. Catalog tables (FK targets) are distributed across left and right columns, ordered by FK column position
3. Disconnected tables (no FK edges) are arranged in a grid below

When there are multiple fact tables, catalogs are placed above and fact tables side by side below.

Themes

Eight built-in themes: default, blue, green, dark, rose, yellow, pink, navy.

Preview images for each theme are available in examples/themes/.

generate_erd(Base, theme="dark")
generate_erd(Base, theme="pink")
generate_erd(Base, theme="navy")

You can also pass a hex color string to set a custom header color:

generate_erd(Base, theme="#6d28d9")

Per-table color overrides let you assign any hex color to individual tables while keeping the rest of the theme intact:

generate_erd(
    Base,
    theme="default",
    table_colors={
        "users":    "#1e40af",
        "orders":   "#065f46",
        "products": "#9f1239",
    },
)

Card width

By default, cards are 218px wide. For schemas with long column names, you can auto-size or set a fixed width:

# Auto: calculates width based on the longest column name + type label
generate_erd(Base, node_width="auto")

# Fixed: set exact width in pixels
generate_erd(Base, node_width=400)

node_width	Behavior
None (default)	218px (built-in default)
"auto"	Fits the widest column name + type label across all tables
int	Fixed width in pixels

Force-directed layout tuning

The force-directed layout (layout="force") can be customized via four parameters:

Parameter	Default	Description
k_repulse	35000	Repulsion strength between all nodes. Increase to spread tables further apart.
k_attract	0.1	Attraction strength between connected nodes. Higher values pull FK-related tables closer.
k_align	0.02	Horizontal-alignment force. Pushes connected tables to the same Y, favoring side-by-side placement.
ideal_len	280	Target edge length (px) between connected tables.

Supported column types

SQLAlchemy type	Badge
Primary key	PK
Foreign key	FK
String	string
Text	text
Integer / BigInteger / SmallInteger	int / bigint / smallint
Float / Numeric	float / numeric
Date	date
DateTime	datetime
Time	time
Boolean	bool
JSON / JSONB	json
Uuid	uuid
Enum	enum
ARRAY	array
Interval	interval
LargeBinary	binary
TypeDecorator	resolves to underlying impl type

Nullable columns display a ? suffix (e.g. text?, date?).

Relationship types

Cardinality	Line style
1:N	Solid with arrow
N:N	Dashed with arrow
Cross-schema FK	Dashed with longer gaps

Examples

See the examples/ directory:

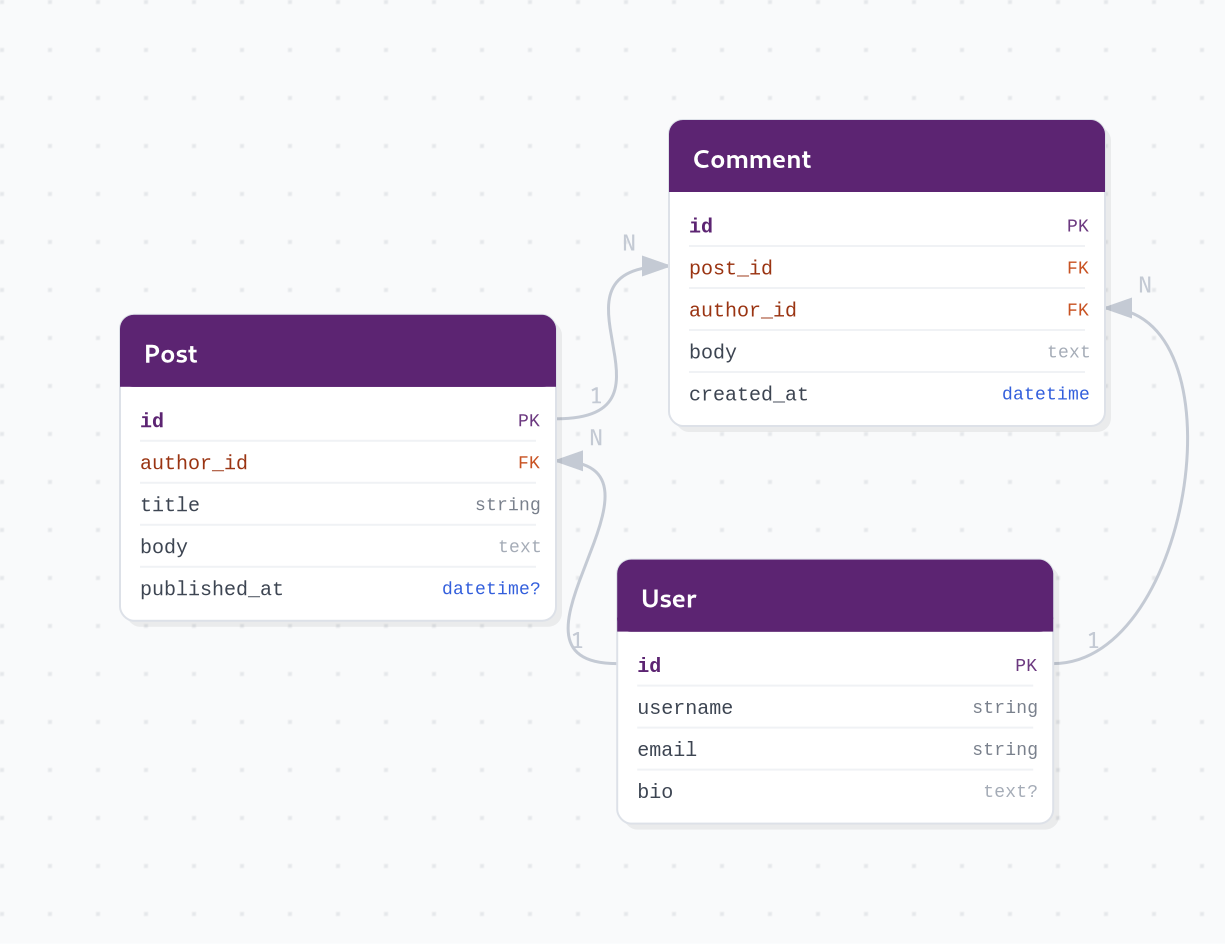

• examples/blog/ - blog schema (User, Post, Comment)
• examples/ecommerce/ - 1:N chains (Category, Product, Order, Customer, OrderItem)
• examples/university/ - N:N via association tables (Student, Course, Professor, Department)
• examples/hr/ - 1:1 and 1:N (Employee, EmployeeProfile, Department, Project)
• examples/multi_schema/ - multi-schema with cross-schema FKs (public, billing, audit)

License

MIT
