EtherCAT Master

Generic EtherCAT master library built on PySOEM. Provides bus management, slave discovery, configurable PDO mapping, automatic reconnection, and a built-in web interface for configuration.

Developed by Henschel Robotics GmbH.

Features

• Bus management -- connect, configure, and run an EtherCAT bus with one or more slaves
• Generic slave handle -- read/write raw PDO bytes for any device (Beckhoff terminals, servos, I/O modules, ...)
• PDO mapping -- configure SyncManager assignments per slave via a JSON file or SDO writes
• Bus discovery -- scan the bus and detect any EtherCAT device (Beckhoff, Henschel, or any other vendor)
• Auto-reconnect -- background health monitoring with automatic recovery on cable disconnect
• Web interface -- built-in browser GUI for adapter selection, bus scanning, PDO configuration, and going OP
• Extensible -- subclass GenericSlave or implement the slave handle interface to build device-specific drivers (see python-hdrive-etc)

Prerequisites

Windows

Dependency	Purpose	License
Npcap	Raw Ethernet packet capture	Free for personal use (up to 5 systems). Commercial / redistribution requires an Npcap OEM license.

Install Npcap with WinPcap API-compatible mode enabled (checkbox during setup).

Linux

Dependency	Purpose	License
libpcap	Raw Ethernet packet capture	BSD (free for any use)

Install via your package manager:

# Debian / Ubuntu
sudo apt install libpcap-dev

# Fedora / RHEL
sudo dnf install libpcap-devel

On Linux, raw Ethernet access requires root. Either run with sudo or grant the capability once:

# Option A – run with sudo
sudo pip install ethercat-master --break-system-packages
sudo ecmaster-web

# Option B – grant raw socket capability (no sudo needed afterwards)
sudo setcap cap_net_raw=ep $(readlink -f $(which python3))

Npcap is not needed on Linux -- libpcap provides the same functionality and is BSD-licensed.

Raspberry Pi Quick-Start

# 1. Install libpcap
sudo apt update
sudo apt install libpcap-dev

# 2. Install ethercat-master system-wide (so sudo can find it)
sudo pip install ethercat-master --break-system-packages

# 3. Add ~/.local/bin to PATH (if not already)
echo 'export PATH="$HOME/.local/bin:$PATH"' >> ~/.bashrc
source ~/.bashrc

# 4. Launch the web interface (requires root for raw Ethernet)
sudo ecmaster-web --adapter eth0

Open http://<pi-ip>:8080 from any device on your network.

Connect the EtherCAT slave(s) directly to the Pi's Ethernet port (eth0). Use Wi-Fi or a second USB-Ethernet adapter for SSH / network access.

Python

• Python 3.8+
• PySOEM >= 1.1.0 -- Cython wrapper around SOEM (installed automatically by pip)

Installation

pip install ethercat-master

Or install from source:

git clone https://github.com/henschel-robotics/python-ethercat-master.git
cd python-ethercat-master
pip install -e .

Quickstart

1. Find your network adapter

from ethercat_master import EtherCATBus

for a in EtherCATBus.list_adapters():
    print(f"{a.desc}  ->  {a.name}")

Copy the adapter name (e.g. \Device\NPF_{GUID} on Windows, eth0 on Linux).

2. Connect and read PDO data

from ethercat_master import EtherCATBus, GenericSlave
import time

bus = EtherCATBus(adapter=r"\Device\NPF_{...}", cycle_time_ms=1)

slave = GenericSlave(0)
bus.register_slave(slave)
bus.open()

# Read inputs
print(slave.input.hex())

# Write outputs
slave.output = bytes([0xFF])

time.sleep(2)
bus.close()

3. Discover slaves on the bus

slaves = EtherCATBus.discover(adapter=r"\Device\NPF_{...}")
for s in slaves:
    print(f"[{s['index']}] {s['device_name']}  "
          f"In={s['input_bytes']}B  Out={s['output_bytes']}B")

PDO Configuration

Create a ethercat_config.json to control which PDOs are assigned per slave:

{
  "network": {
    "adapter": "\\Device\\NPF_{...}",
    "cycle_ms": 1.0
  },
  "default": {},
  "slaves": {
    "0": {
      "rx_pdo": ["0x1600", "0x1605"],
      "tx_pdo": ["0x1A00", "0x1A05"]
    }
  }
}

Pass it when creating the bus:

bus = EtherCATBus(adapter=..., cycle_time_ms=1, pdo_config_path="ethercat_config.json")

Or use the web interface to scan the bus, select PDOs with checkboxes, and save.

Raspberry Pi / Linux: When installed via pip, the default ethercat_config.json is inside the package directory (e.g. /usr/local/lib/python3.13/dist-packages/ethercat_master/ethercat_config.json). Copy it to your working directory for easy editing:

cp $(python3 -c "import ethercat_master, os; print(os.path.join(os.path.dirname(ethercat_master.__file__), 'ethercat_config.json'))") .

Web Interface

Start the built-in web server using the console script (after pip install ethercat-master):

sudo ecmaster-web
sudo ecmaster-web --port 8080
sudo ecmaster-web --pdo-config /path/to/ethercat_config.json

Or run the same entry point as a module (useful in venvs, CI, or when ecmaster-web is not on PATH):

sudo python -m ethercat_master.webserver
sudo python -m ethercat_master.webserver --port 8080
sudo python -m ethercat_master.webserver --pdo-config /path/to/ethercat_config.json

On Windows, omit sudo (Npcap provides raw Ethernet access for the current user).

Then open http://localhost:8080 in your browser.

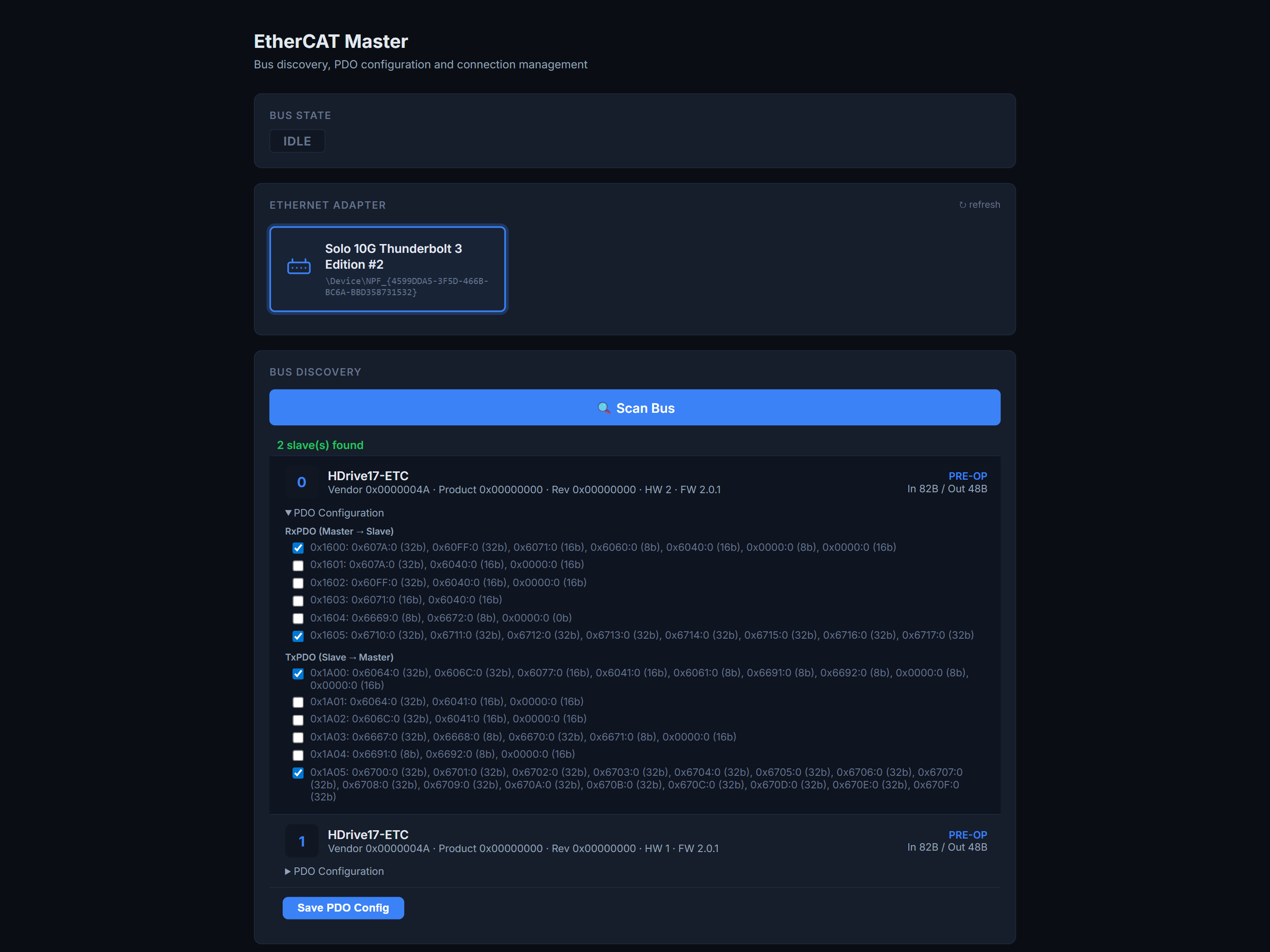

The web GUI lets you:

• Select a network adapter
• Scan the bus and discover any EtherCAT device — Beckhoff terminals, IO modules, servo drives, and more
• Configure PDO assignments per slave
• Set the cycle time and go to OP state
• Run network latency tests (SDO round-trip measurement with histogram)

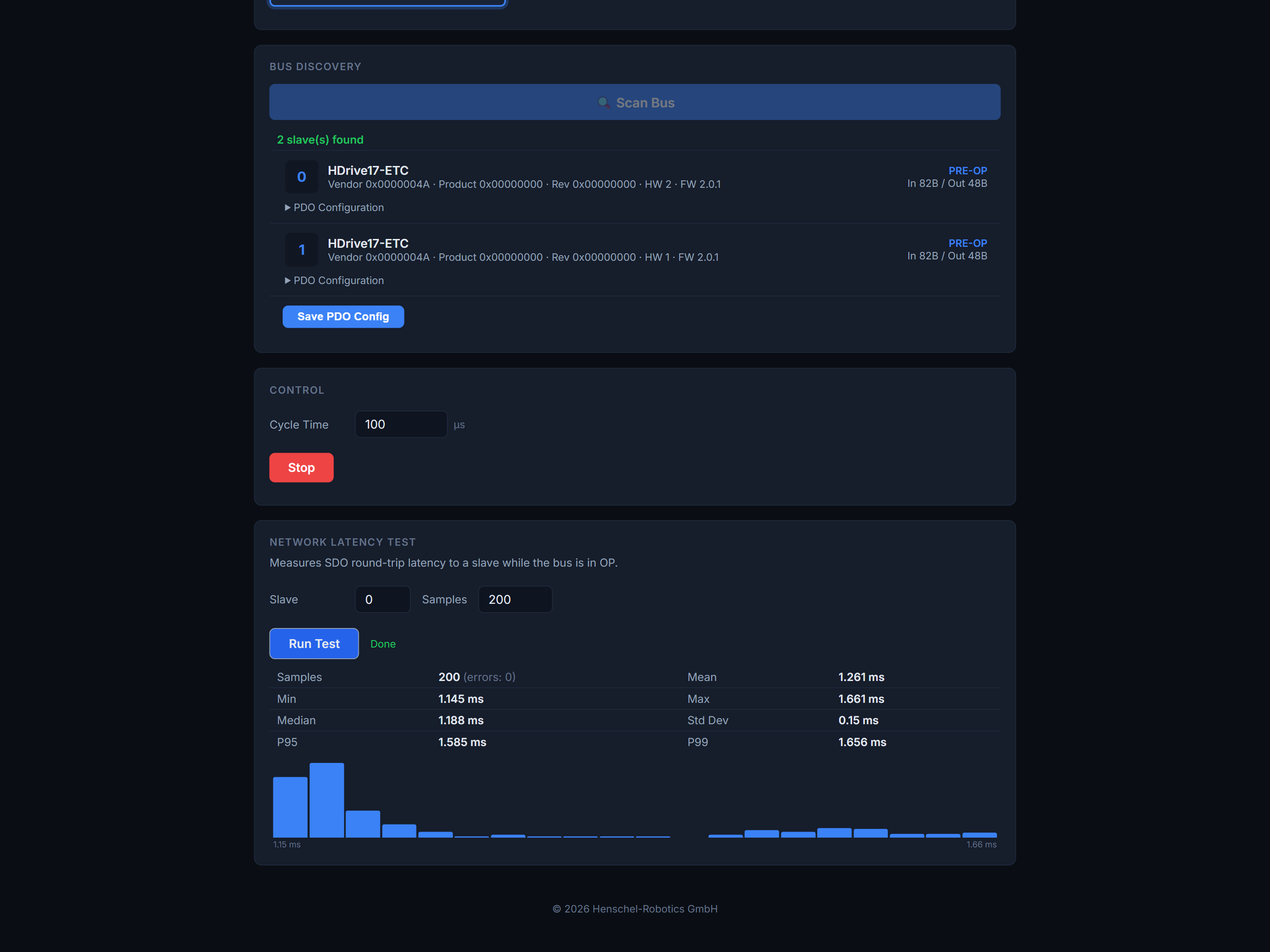

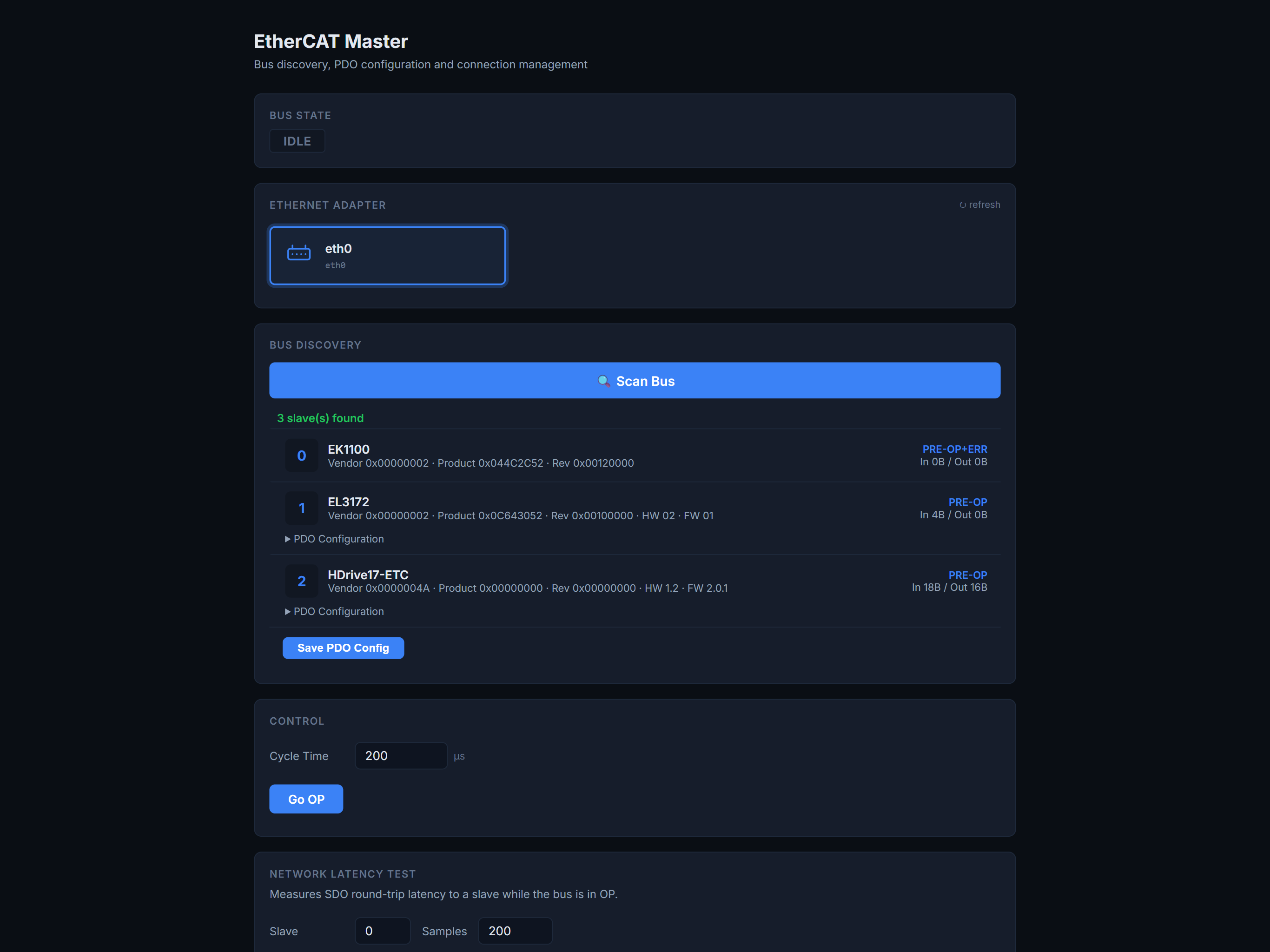

Mixed bus (Beckhoff + HDrive)	Network Latency Test

Full guide: docs/web-interface.md

Project Structure

python-ethercat-master/
├── ethercat_master/
│   ├── __init__.py          # Public API
│   ├── bus.py               # EtherCATBus — core bus management
│   ├── slave.py             # GenericSlave — universal slave handle
│   ├── pdo.py               # PDO mapping configuration
│   ├── exceptions.py        # Custom exceptions
│   ├── webserver.py         # Built-in web server
│   └── webgui/
│       ├── index.html       # Web GUI frontend
│       └── style.css        # Stylesheet
├── examples/
│   ├── connect.py           # Minimal single-slave example
│   ├── beckhoff.py          # Beckhoff EK1100 + terminals
│   └── mixed_bus.py         # HDrive motor + Beckhoff terminals
├── ethercat_config.json         # Example PDO config
└── pyproject.toml

Examples

The examples/ folder contains ready-to-run scripts. The recommended workflow is:

1. Configure the bus using the web interface (ecmaster-web):

   • Select your network adapter
   • Click Scan Bus to discover all slaves
   • Expand each slave and configure the PDO assignments
   • Click Save PDO Config — this writes ethercat_config.json with the adapter, cycle time, and per-slave PDO mapping

2. Copy ethercat_config.json next to your script (or point to it with pdo_config_path)

3. Run the example — the bus uses the preconfigured adapter and PDO mapping from the file:

sudo python3 examples/connect.py          # Linux
python examples\connect.py                 # Windows

connect.py — Minimal single-slave example

Connects to one slave and continuously prints the raw input PDO bytes. Good for verifying that the bus works and PDOs are mapped correctly.

beckhoff.py — Beckhoff coupler + terminals

Scans the bus, discovers all terminals behind an EK1100 coupler, and reads their inputs in a loop. Standard Beckhoff terminals use factory-default PDO mappings from the SII EEPROM, so no ethercat_config.json is needed.

mixed_bus.py — HDrive motor + Beckhoff terminals

Demonstrates running an HDrive servo motor alongside Beckhoff I/O terminals on the same bus. Requires pip install hdrive-etc. The HDriveETC class is a slave handle that plugs into EtherCATBus just like GenericSlave, so you can combine any devices.

API Overview

EtherCATBus

Method	Description
EtherCATBus(adapter, cycle_time_ms, pdo_config_path)	Create a bus instance
list_adapters()	List available network adapters
discover(adapter, pdo_config_path)	Scan the bus without going to OP
register_slave(handle)	Register a slave handle
open()	Configure slaves, map PDOs, start threads, go to OP
close()	Stop all slaves and close the connection

GenericSlave

Property / Method	Description
GenericSlave(slave_index, use_default_pdo)	Create a handle for slave at the given index
slave.input	Read-only bytes of the last received input PDO
slave.output	Read/write bytes for the output PDO

Exceptions

Exception	When
ConnectionError	Adapter not found, no slaves, state transition failed
CommunicationError	Bus communication lost or timed out
ConfigurationError	PDO mapping or config_map() failed

Background Threads

When bus.open() is called, three background threads are started:

Thread	Interval	Purpose
ProcessData	1 ms	Raw EtherCAT frame send/receive
PDO Update	configurable	Decode RX / encode TX per slave
State Check	300 ms	Health monitoring, auto-reconnect

Publishing to PyPI

Install maintainer tools (includes build and twine):

pip install -e ".[dev]"

Configure PyPI API token (example for a shell):

export TWINE_USERNAME=__token__
export TWINE_PASSWORD=pypi-...your-token...

From the repository root:

# Build, check, upload to PyPI
python scripts/publish_pypi.py

# Test upload to TestPyPI
python scripts/publish_pypi.py --testpypi

# Build and validate only (no upload)
python scripts/publish_pypi.py --dry-run

# Remove dist/ and build/ before a clean build
python scripts/publish_pypi.py --clean

License

This project is MIT-licensed -- see pyproject.toml.

Copyright (c) Henschel Robotics GmbH

Third-party license notice

Component	License	Notes
PySOEM	MIT	Cython wrapper (installed via pip)
SOEM	GPLv3 / Commercial	Bundled inside PySOEM. As of SOEM 2.0 the license is GPLv3 or a commercial license from rt-labs. If GPLv3 is incompatible with your product, contact rt-labs for a commercial SOEM license.
Npcap (Windows only)	Proprietary	Free for personal use (≤ 5 installs). Commercial use or redistribution requires an Npcap OEM license.
libpcap (Linux only)	BSD	Free for any use, no restrictions.

Important for commercial products: If you ship a product that includes this library, you need to consider the SOEM (GPLv3) and Npcap (proprietary) license obligations. On Linux, only the SOEM license applies since libpcap is BSD.
