event-statemachine 0.0.3

A simple event driven state machine

Event State Machine

A simple event driven state machine

• Free software: MIT license

• Documentation: https://event-statemachine.readthedocs.io.

Welcome to Event StateMachine. I always struggled to find a simple statemachine that could be used in a python project. So I decided to create my own, it’s simple but useful. The desing is based on transitions more than states, so you can define a transition from a state to another and the event that triggers it.

Getting started

To install Event StateMachine, run this command in your terminal:

$ pip install event_statemachine

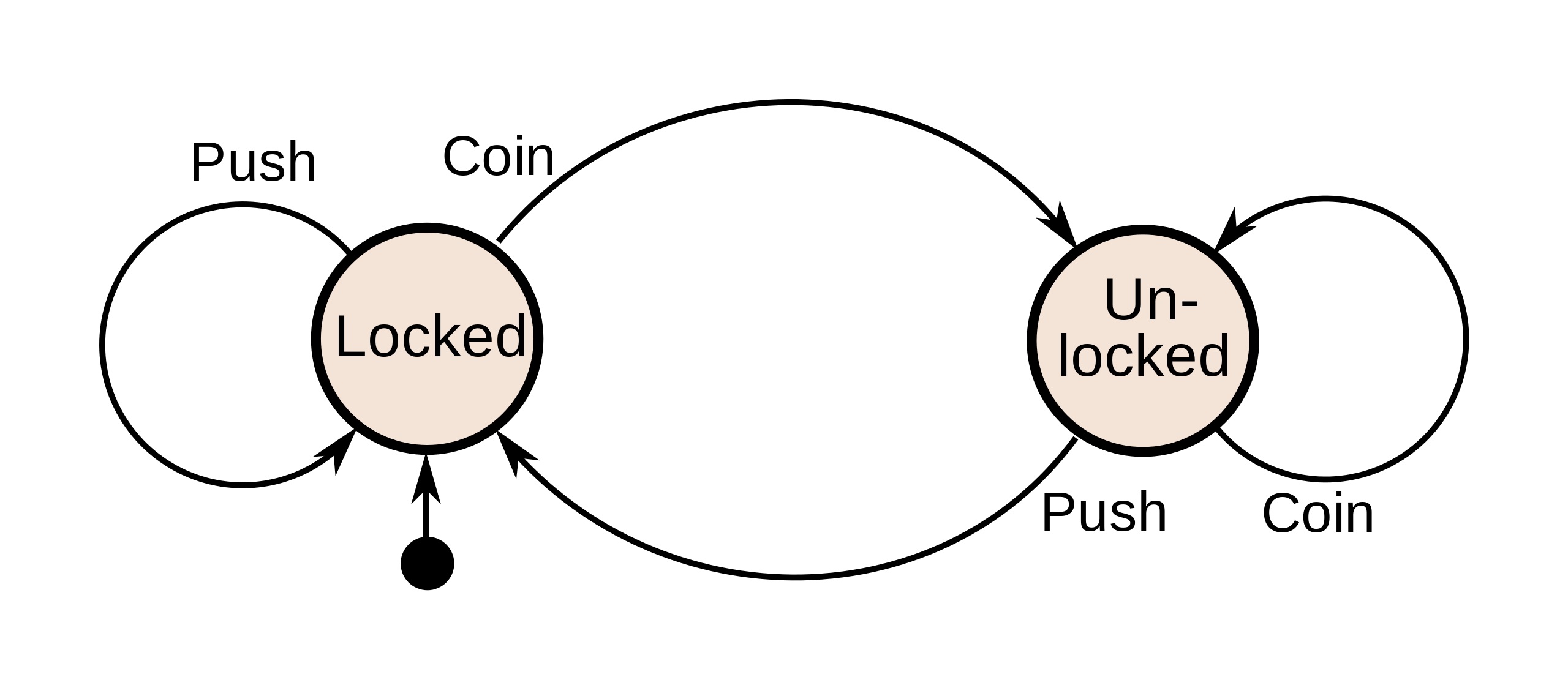

Let’s implement this simple turnstile example:

Define your state machine:

from event_statemachine import StateMachine
from event_statemachine import transition
from event_statemachine import event_condition


class Turnstile(StateMachine):
    @transition("Locked -> Unlocked")
    @event_condition(
        lambda self: self.evt.get("action") == "coin"
        and self.evt.get("coin") == "valid"
    )
    def on_coin(self):
        print("Unlocking turnstile")

    @transition("Locked -> Locked")
    @event_condition(
        lambda self: self.evt.get("action") == "coin"
        and self.evt.get("coin") == "invalid"
    )
    def on_coin_invalid(self):
        print("Invalid coin, try again")

    @transition("Unlocked -> Unlocked")
    @event_condition(lambda self: self.evt.get("action") == "coin")
    def on_unlocked_coin(self):
        print("turnstile already unlocked, returning coin")

    @transition("Unlocked -> Locked")
    @event_condition(lambda self: self.evt.get("action") == "push")
    def on_push(self):
        print("Locking turnstile")

Initialize your state machine:

turnstile = Turnstile(initial_state="Locked")

Send events to your state machine:

evt = {"action": "push"}
sm.run_state(evt)  # Do nothing

evt = {"action": "coin", "coin": "invalid"}
sm.run_state(evt)  # Print: Invalid coin, try again

evt = {"action": "coin", "coin": "valid"}
sm.run_state(evt)  # Print: Unlocking turnstile

evt = {"action": "coin", "coin": "valid"}
sm.run_state(evt)  # Print: turnstile already unlocked, returning coin

evt = {"action": "push"}
sm.run_state(evt)  # Print: Locking turnstile

Features

• Define your transitions using @transition decorator

• Each transition can have a condition to be executed using @event_condition decorator.

• You can get the context of the state maching using the method get_context() and load it using the method set_context(). This allows you to use an stateless architecture and save the context of the state machine in a database.

• You can override the methods on_entry and on_exit in the SM. This code will be executed always at the beginning and at the end of each transition respectively.

• Using the decorators @on_state_entry and @on_state_exit you can archieve the same as the previous point but for each state.

History

0.0.1 (2023-09-26)

• First release on PyPI.
