Python read-only implementation of the EventIO file format

Project description

A Python (read-only) implementation of the EventIO data format invented by Konrad Bernloehr as used for example by the IACT extension for CORSIKA: https://www.ikp.kit.edu/corsika

Documentation of the file format: https://www.mpi-hd.mpg.de/hfm/~bernlohr/sim_telarray/Documentation/eventio_en.pdf

Most blocks of the IACT extension and SimTel are implemented. The following blocks are known, but reading their data is not (yet) implemented, because we do not have any test files containing these objects.

If you want support for these objects, please open an issue.

Code

Description

1206

IACT Camera Layout

1207

IACT Trigger Time

2017

SimTel Pixel Calibriation

2024

SimTel Run Statistics

2025

SimTel MC Run Statisitics

2029

SimTel Auxiliary Digital Traces

2030

SimTel Auxiliary Analog Traces

2031

SimTel FSPhot

install with

pip install eventio

Open a file produced by the IACT CORSIKA extension

First Example

One may iterate over an instance of IACTFile class in order to retrieve events. Events have a small number of fields. The most important one is the photon_bunches field, which is dictionary mapping telescope ids to a simple structured np.array, containing the typical parameters Cherenkov photon bunches in CORSIKA have, like:

  • x, y coordinate in the observation plane (in cm)

  • direction cosine cx, cy in x and y direction of the incident angle of the photon

  • wavelength lambda of the photon (in nm)

  • number of photons associated with this bunch

  • the time since the first interaction (in ns, I believe)

  • the production height of the photon bunch (called zem)

  • a bool flag, whether the photon was scattered in the atmosphere

An event has the following attributes: * header: a namedtuple containing the Corsika Event Header data * end_block: a numpy array containing the Corsika Event End data * time_offset, x_offset, y_offsett, the offset of the array

This prints energy and the number of photons for the first telescope in every event:

import eventio

with eventio.IACTFile('eventio/resources/one_shower.dat') as f:
    for event in f:
        print(event.header.total_energy)
        print(event.photon_bunches[0]['photons'].sum())

Second Example

If you like to plot the origin of the Cherenkov photons of the first event in file eventio/resources/one_shower.data for the first telescope, have a look into this example

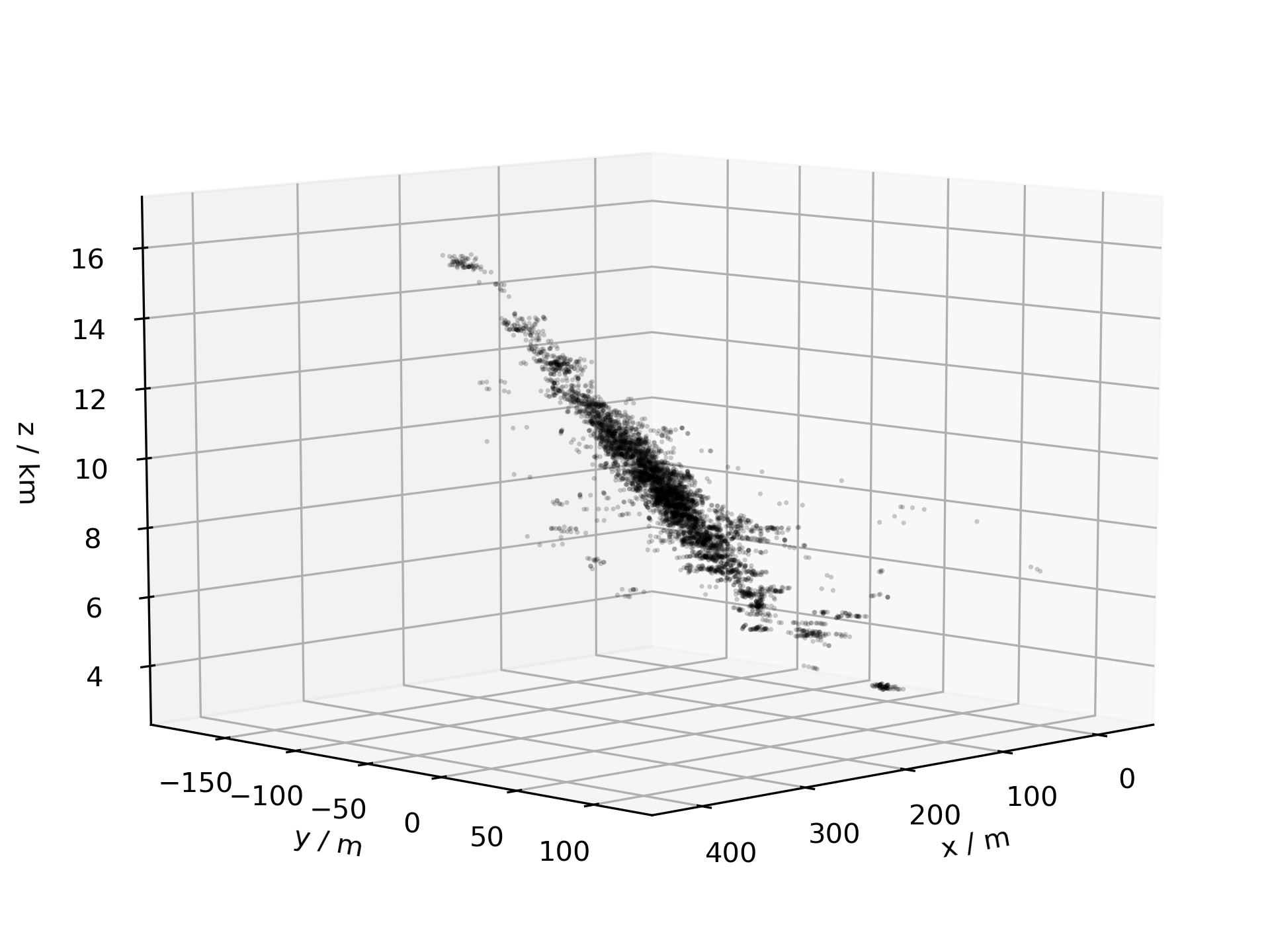

It might look similar to this picture:

an example shower

an example shower

Open a file produced by simtel_array

import eventio

with eventio.SimTelFile('eventio/resources/gamma_test.simtel.gz') as f:

    print(len(f.telescope_descriptions))
    for array_event in f:
        print(array_event['mc_shower']['energy'])

Commandline Tools

We provide a few commandline tools to look into eventio files.

eventio_print_structure

To get an overview over the structure of a file, use eventio_print_structure, for larger files, you might want to pipe its output into e.g. less:

$ eventio_print_structure eventio/resources/gamma_test.simtel.gz
History[70]
    HistoryCommandLine[71]
    HistoryConfig[72]
    HistoryConfig[72]
    And 127 objects more of the same type
...
RunHeader[2000](run_id=31964)
MCRunHeader[2001]
MCRunHeader[2001]
InputCard[1212]
InputCard[1212]
CameraSettings[2002](telescope_id=1)
CameraOrganization[2003](telescope_id=1)
PixelSettings[2004](telescope_id=1)
DisabledPixels[2005](telescope_id=1)
CameraSoftwareSettings[2006](telescope_id=1)
DriveSettings[2008](telescope_id=1)
PointingCorrection[2007](telescope_id=1)
CameraSettings[2002](telescope_id=2)
CameraOrganization[2003](telescope_id=2)

eventio_print_object_information

To get table of all object versions and counts in a file, use eventio_print_object_information, it can also print json if given the --json option

$ eventio_print_object_information eventio/resources/gamma_test.simtel.gz
 Type | Version | Level | #Objects | eventio-class
------------------------------------------------------------
   70 |       1 |     0 |        3 | simtel.objects.History
   71 |       1 |     1 |        3 | simtel.objects.HistoryCommandLine
   72 |       1 |     1 |    32840 | simtel.objects.HistoryConfig
 1212 |       0 |     0 |        2 | iact.objects.InputCard
 2000 |       2 |     0 |        1 | simtel.objects.RunHeader
 2001 |       4 |     0 |        2 | simtel.objects.MCRunHeader
 2002 |       2 |     0 |       98 | simtel.objects.CameraSettings
 2002 |       3 |     0 |       28 | simtel.objects.CameraSettings
 2003 |       1 |     0 |      126 | simtel.objects.CameraOrganization
 2004 |       2 |     0 |      126 | simtel.objects.PixelSettings
 2005 |       0 |     0 |      126 | simtel.objects.DisabledPixels
 2006 |       0 |     0 |      126 | simtel.objects.CameraSoftwareSettings
 2007 |       0 |     0 |      126 | simtel.objects.PointingCorrection
 2008 |       0 |     0 |      126 | simtel.objects.DriveSettings
 2009 |       2 |     1 |       10 | simtel.objects.TriggerInformation
 2010 |       0 |     0 |       10 | simtel.objects.ArrayEvent
 2011 |       1 |     2 |       50 | simtel.objects.TelescopeEventHeader
 2013 |       3 |     2 |       50 | simtel.objects.ADCSamples
 2014 |       5 |     2 |       44 | simtel.objects.ImageParameters
 2016 |       1 |     2 |       49 | simtel.objects.PixelTiming
 2020 |       1 |     0 |      122 | simtel.objects.MCShower
 2021 |       1 |     0 |     1214 | simtel.objects.MCEvent
 2022 |       0 |     0 |      126 | simtel.objects.CameraMonitoring
 2023 |       2 |     0 |      126 | simtel.objects.LaserCalibration
 2026 |       2 |     0 |       21 | simtel.objects.MCPhotoelectronSum
 2027 |       0 |     2 |       93 | simtel.objects.PixelList
 2100 |       0 |     1 |       42 | simtel.objects.TrackingPosition
 2200 |       1 |     1 |       50 | simtel.objects.TelescopeEvent
------------------------------------------------------------

eventio_plot_histograms

To plot histograms stored in an eventio file (Type 100), use eventio_plot_histograms.

$ eventio_plot_histograms gamma_20deg_180deg_run99___cta-prod3_desert-2150m-Paranal-merged_cone10.simtel.gz

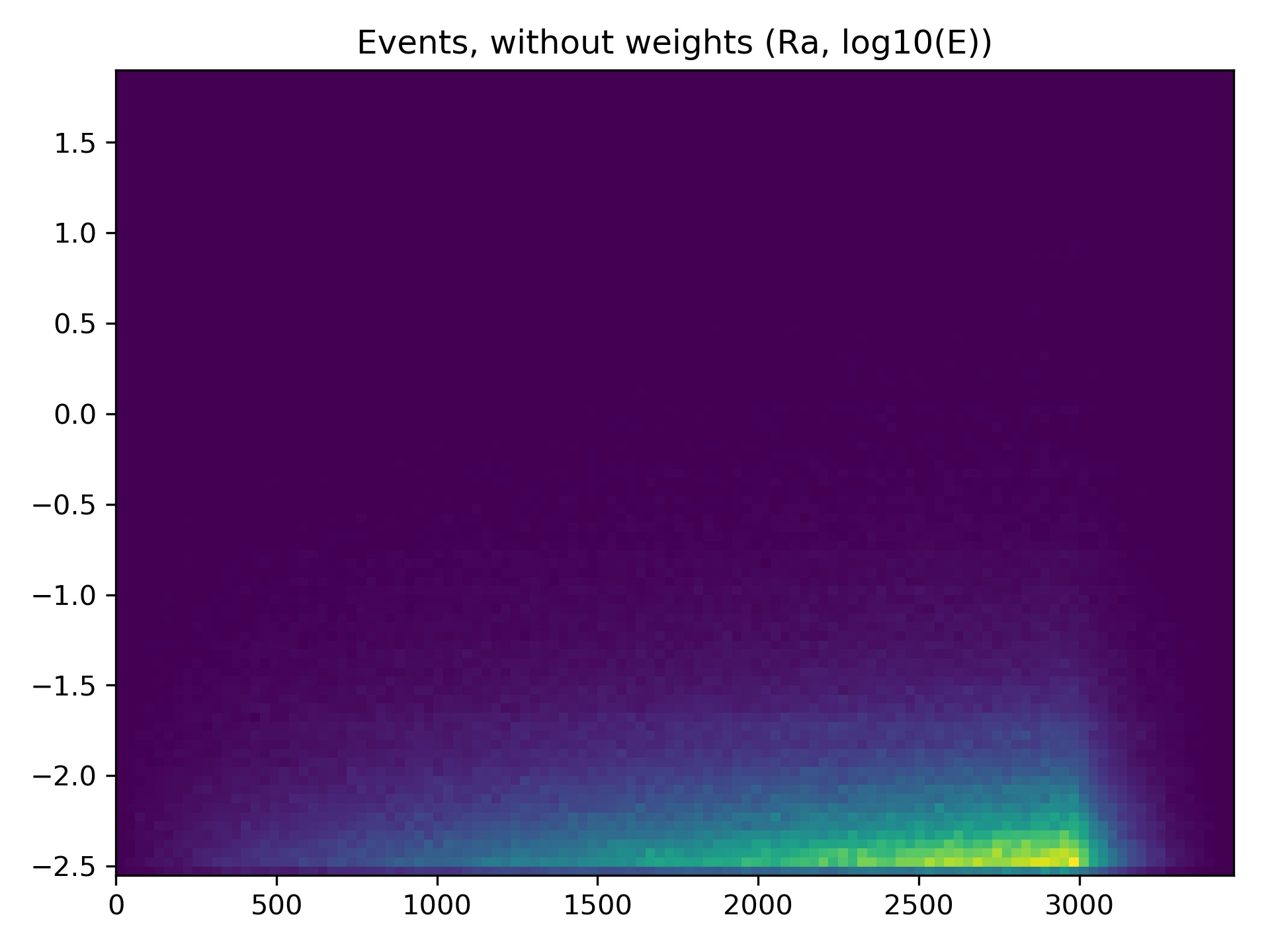

First histogram of a prod3b file

Histogram of Impact distance vs log10(E / TeV)

eventio_print_simtel_metaparams

To print the metaparameters stored in an eventio file (the values of the parameters used in the simulation), use eventio_print_simtel_metaparams.

$ eventio_print_simtel_metaparams tests/resources/history_meta_75.simtel.zst

Global METAPARAMs
-----------------
CONFIG_RELEASE = Release "2021-12-16 (development beyond prod-5)" from 2021-12-25T19:33:19 UTC.
CONFIG_VERSION =
ARRAY_CONFIG_NAME = LaPalma-baseline-prod5
ARRAY_CONFIG_VARIANT = LST/MST-NectarCam (including other MST camera type) at CTA North prod-5/prod-5b (extended)
ARRAY_CONFIG_VERSION = 2020-11-20
RANDOM_GENERATOR = mt19937
RANDOM_STATE = auto
RANDOM_SEED = auto
SIMTEL_VERSION = 2021-12-16 18:31:13 CET (konrad@wizard4)
SIMTEL_RELEASE = 2021-12-16 (development beyond prod-5)
SIMTEL_BASE_RELEASE = 2021-12-16 (development beyond prod-5)

METAPARAMs for telescope=1
--------------------------
OPTICS_CONFIG_NAME = LST
OPTICS_CONFIG_VARIANT = LST-1 prototype
OPTICS_CONFIG_VERSION = 2020-04-29
CAMERA_CONFIG_NAME = LST
CAMERA_CONFIG_VARIANT = LST-1 prototype, with nsb_autoscale_airmass
CAMERA_CONFIG_VERSION = 2020-11-24

METAPARAMs for telescope=2
--------------------------
OPTICS_CONFIG_NAME = LST
OPTICS_CONFIG_VARIANT =
OPTICS_CONFIG_VERSION = 2020-04-29
CAMERA_CONFIG_NAME = LST
CAMERA_CONFIG_VARIANT = LST camera, with nsb_autoscale_airmass
CAMERA_CONFIG_VERSION = 2020-11-24

METAPARAMs for telescope=3
--------------------------
OPTICS_CONFIG_NAME = LST
OPTICS_CONFIG_VARIANT =
OPTICS_CONFIG_VERSION = 2020-04-29
CAMERA_CONFIG_NAME = LST
CAMERA_CONFIG_VARIANT = LST camera, with nsb_autoscale_airmass
CAMERA_CONFIG_VERSION = 2020-11-24

...

Low level access

For more low level access to the items of an EventIO file (or to implement a higher level abstraction like IACTFile) one can use the EventIOFile class which gives access to the objects and subobjects in EventIO files.

This is how our test file looks like in the low level view:

In [3]: with EventIOFile('eventio/resources/one_shower.dat') as f:
   ...:     for obj in f:
   ...:         print(obj)
   ...:         if obj.header.only_subobjects:
   ...:             for subobj in obj:
   ...:                 print('   ', subobj)
CORSIKARunHeader[1200](size=1096, only_subobjects=False, first_byte=16)
CORSIKAInputCard[1212](size=448, only_subobjects=False, first_byte=1128)
CORSIKATelescopeDefinition[1201](size=20, only_subobjects=False, first_byte=1592)
CORSIKAEventHeader[1202](size=1096, only_subobjects=False, first_byte=1628)
CORSIKAArrayOffsets[1203](size=16, only_subobjects=False, first_byte=2740)
CORSIKATelescopeData[1204](size=6136, only_subobjects=True, first_byte=2772)
    IACTPhotons(length=6124, n_bunches=382)
CORSIKAEventEndBlock[1209](size=1096, only_subobjects=False, first_byte=8924)
CORSIKARunEndBlock[1210](size=16, only_subobjects=False, first_byte=10036)
