ex4nicegui 0.6.6

Extension library based on nicegui, providing data responsive,BI functionality modules

ex4nicegui

中文 README

• Install
• Usage
• Features
• BI Module

An extension library for nicegui. It has built-in responsive components and fully implements data-responsive interface programming.

📦 Install

pip install ex4nicegui -U

examples

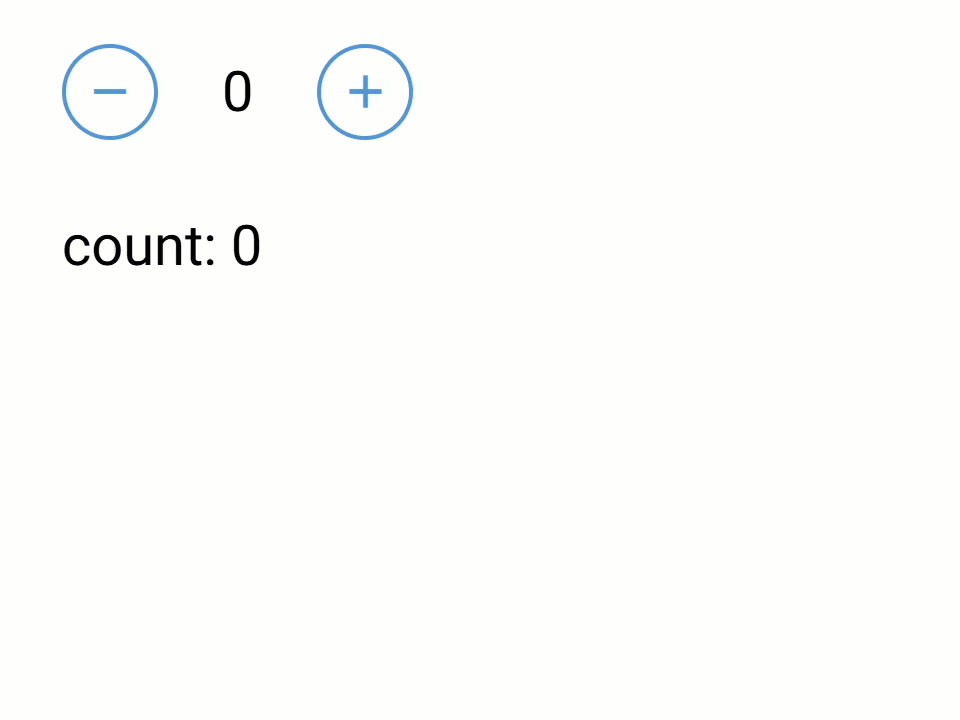

• basic
• todo list mvc

🦄 Usage

from nicegui import ui
from ex4nicegui import ref_computed, effect, to_ref
from ex4nicegui.reactive import rxui

# Define responsive data
r_input = to_ref("")

# Pass in the responsive data according to the nicegui usage method.
rxui.input(value=r_input)
rxui.label(r_input)

ui.run()

🚀 Features

echarts components

from nicegui import ui
from ex4nicegui import ref_computed, effect, to_ref
from ex4nicegui.reactive import rxui

r_input = to_ref("")


# ref_computed Creates a read-only reactive variable
# Functions can use any other reactive variables automatically when they are associated
@ref_computed
def cp_echarts_opts():
    return {
        "title": {"text": r_input.value}, #In the dictionary, use any reactive variable. Get the value by .value
        "xAxis": {
            "type": "category",
            "data": ["Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"],
        },
        "yAxis": {"type": "value"},
        "series": [
            {
                "data": [120, 200, 150, 80, 70, 110, 130],
                "type": "bar",
                "showBackground": True,
                "backgroundStyle": {"color": "rgba(180, 180, 180, 0.2)"},
            }
        ],
    }


input = rxui.input("Enter the content, and the chart title will be synchronized", value=r_input)

# Get the native nicegui component object through the element attribute of the responsive component object
input.element.classes("w-full")

rxui.echarts(cp_echarts_opts).classes('h-[20rem]')

ui.run()

echarts mouse events

the on function parameters event_name and query to view theecharts English Documentation

The following example binds the mouse click event

from nicegui import ui
from ex4nicegui.reactive import rxui

opts = {
    "xAxis": {"type": "value", "boundaryGap": [0, 0.01]},
    "yAxis": {
        "type": "category",
        "data": ["Brazil", "Indonesia", "USA", "India", "China", "World"],
    },
    "series": [
        {
            "name": "first",
            "type": "bar",
            "data": [18203, 23489, 29034, 104970, 131744, 630230],
        },
        {
            "name": "second",
            "type": "bar",
            "data": [19325, 23438, 31000, 121594, 134141, 681807],
        },
    ],
}

bar = rxui.echarts(opts)

def on_click(e: rxui.echarts.EChartsMouseEventArguments):
    ui.notify(f"on_click:{e.seriesName}:{e.name}:{e.value}")

bar.on("click", on_click)

The following example only triggers the mouseover event for a specified series.

from nicegui import ui
from ex4nicegui.reactive import rxui

opts = {
    "xAxis": {"type": "value", "boundaryGap": [0, 0.01]},
    "yAxis": {
        "type": "category",
        "data": ["Brazil", "Indonesia", "USA", "India", "China", "World"],
    },
    "series": [
        {
            "name": "first",
            "type": "bar",
            "data": [18203, 23489, 29034, 104970, 131744, 630230],
        },
        {
            "name": "second",
            "type": "bar",
            "data": [19325, 23438, 31000, 121594, 134141, 681807],
        },
    ],
}

bar = rxui.echarts(opts)

def on_first_series_mouseover(e: rxui.echarts.EChartsMouseEventArguments):
    ui.notify(f"on_first_series_mouseover:{e.seriesName}:{e.name}:{e.value}")


bar.on("mouseover", on_first_series_mouseover, query={"seriesName": "first"})

ui.run()

---

responsive

from ex4nicegui import (
    to_ref,
    ref_computed,
    on,
    effect,
    effect_refreshable,
    batch,
    event_batch,
    deep_ref,
)

Commonly used to_ref,deep_ref,effect,ref_computed,on

to_ref

Defines responsive objects, read and written by .value.

a = to_ref(1)
b = to_ref("text")

a.value =2
b.value = 'new text'

print(a.value)

When the value is a complex object, responsiveness of nested objects is not maintained by default.

a = to_ref([1,2])

@effect
def _().
    print(len(a.value))

# doesn't trigger the effect
a.value.append(10)

# the whole substitution will be triggered
a.value = [1,2,10]

Depth responsiveness is obtained when is_deep is set to True.

a = to_ref([1,2],is_deep=True)

@effect
def _():
    print('len:',len(a.value))

# print 3
a.value.append(10)

deep_ref is equivalent to to_ref if is_deep is set to True.

---

deep_ref

Equivalent to to_ref when is_deep is set to True.

Especially useful when the data source is a list, dictionary or custom class. Objects obtained via .value are proxies

data = [1,2,3]
data_ref = deep_ref(data)

assert data_ref.value is not data

You can get the raw object with to_raw.

from ex4nicegui import to_raw, deep_ref

data = [1, 2, 3]
data_ref = deep_ref(data)

assert data_ref.value is not data
assert to_raw(data_ref.value) is data

---

effect

Accepts a function and automatically monitors changes to the responsive objects used in the function to automatically execute the function.

a = to_ref(1)
b = to_ref("text")


@effect
def auto_run_when_ref_value():
    print(f"a:{a.value}")


def change_value():
    a.value = 2
    b.value = "new text"


ui.button("change", on_click=change_value)

The first time the effect is executed, the function auto_run_when_ref_value will be executed once. After that, clicking on the button changes the value of a (via a.value) and the function auto_run_when_ref_value is executed again.

Never spread a lot of data processing logic across multiple ons or effectss, which should be mostly interface manipulation logic rather than responsive data processing logic

---

ref_computed

As with effect, ref_computed can also return results from functions. Typically used for secondary computation from to_ref.

a = to_ref(1)
a_square = ref_computed(lambda: a.value * 2)


@effect
def effect1():
    print(f"a_square:{a_square.value}")


def change_value():
    a.value = 2


ui.button("change", on_click=change_value)

When the button is clicked, the value of a.value is modified, triggering a recalculation of a_square. As the value of a_square is read in effect1, it triggers effect1 to execute the

ref_computed is read-only to_ref

If you prefer to organize your code by class, ref_computed also supports acting on instance methods

class MyState.
    def __init__(self) -> None.
        self.r_text = to_ref("")

    @ref_computed
    def post_text(self): return self.r_text.value
        return self.r_text.value + "post"

state = MyState()

rxui.input(value=state.r_text)
rxui.label(state.post_text)

---

async_computed

Use async_computed when asynchronous functions are required for computed.

# Simulate asynchronous functions that take a long time to execute
async def long_time_query(input: str):
    await asyncio.sleep(2)
    num = random.randint(20, 100)
    return f"query result[{input=}]:{num=}"


search = to_ref("")
evaluating = to_ref(False)

@async_computed(search, evaluating=evaluating, init="")
async def search_result():
    return await long_time_query(search.value)

rxui.lazy_input(value=search)

rxui.label(
    lambda: "Query in progress" if evaluating.value else "Enter content in input box above and return to search"
)
rxui.label(search_result)

• The first argument to async_computed must explicitly specify the responsive data to be monitored. Multiple responses can be specified using a list.
• Parameter evaluating is responsive data of type bool, which is True while the asynchronous function is executing, and False after the computation is finished.
• Parameter init specifies the initial result

---

on

Similar to effect, but on needs to explicitly specify the responsive object to monitor.

a1 = to_ref(1)
a2 = to_ref(10)
b = to_ref("text")


@on(a1)
def watch_a1_only():
    print(f"watch_a1_only ... a1:{a1.value},a2:{a2.value}")


@on([a1, b], onchanges=True)
def watch_a1_and_b():
    print(f"watch_a1_and_b ... a1:{a1.value},a2:{a2.value},b:{b.value}")


def change_a1():
    a1.value += 1
    ui.notify("change_a1")


ui.button("change a1", on_click=change_a1)


def change_a2():
    a2.value += 1
    ui.notify("change_a2")


ui.button("change a2", on_click=change_a2)


def change_b():
    b.value += "x"
    ui.notify("change_b")


ui.button("change b", on_click=change_b)

• If the parameter onchanges is True (the default value is False), the specified function will not be executed at binding time.

Never spread a lot of data processing logic across multiple ons or effectss, which should be mostly interface manipulation logic rather than responsive data processing logic

---

new_scope

By default, all watch functions are automatically destroyed when the client connection is disconnected. For finer-grained control, the new_scope function can be utilized.

from nicegui import ui
from ex4nicegui import rxui, to_ref, effect, new_scope

a = to_ref(0.0)

scope1 = new_scope()

@scope1.run
def _():
    @effect
    def _():
        print(f"scope 1:{a.value}")


rxui.number(value=a)
rxui.button("dispose scope 1", on_click=scope1.dispose)

---

functionality

vmodel

Create two-way bindings on form input elements or components.

Bidirectional bindings are supported by default for ref simple value types

from ex4nicegui import rxui, to_ref, deep_ref

data = to_ref("init")

rxui.label(lambda: f"{data.value=}")
# two-way binding
rxui.input(value=data)

• Simple value types are generally immutable values such as str, int, etc.

When using complex data structures, deep_ref is used to keep nested values responsive.

data = deep_ref({"a": 1, "b": [1, 2, 3, 4]})

rxui.label(lambda: f"{data.value=!s}")

# No binding effect
rxui.input(value=data.value["a"])

# readonly binding
rxui.input(value=lambda: data.value["a"])

# two-way binding
rxui.input(value=rxui.vmodel(data.value["a"]))

• The first input box will be completely unresponsive because the code is equivalent to passing in a value 1 directly
• The second input box will get read responsiveness due to the use of a function.
• The third input box, wrapped in rxui.vmodel, can be bi-directionally bound.

Most use vmodel with vfor, see todo list examples

---

vfor

Render list components based on list responsive data. Each component is updated on demand. Data items support dictionaries or objects of any type

from nicegui import ui
from ex4nicegui.reactive import rxui
from ex4nicegui import deep_ref, ref_computed
from typing import Dict

# refs
items = deep_ref(
    [
        {"id": 1, "message": "foo", "done": False},
        {"id": 2, "message": "bar", "done": True},
    ]
)

# ref_computeds
@ref_computed
def done_count_info():
    return f"done count:{sum(item['done'] for item in items.value)}"

# method
def check():
    for item in items.value:
        item["done"] = not item["done"]


# ui
rxui.label(done_count_info)
ui.button("check", on_click=check)


@rxui.vfor(items,key='id')
def _(store: rxui.VforStore[Dict]):
    # function to build the interface for each row of data
    item = store.get()  # Get responsive object with `store.get`
    mes = rxui.vmodel(item.value['message'])

    # Enter the content of the input box,
    # you can see the title of the radio box changes synchronously
    with ui.card():
        with ui.row():
            rxui.input(value=mes)
            rxui.label(lambda: f"{mes.value=!s}")
        rxui.checkbox(text=mes, value=rxui.vmodel(item.value['done']))

• rxui.vfor decorator to custom function
  • The first argument is passed to the responsive list. Each item in the list can be a dictionary or other object (dataclasses etc.)
  • Second parameter key: In order to be able to keep track of the identity of each node, and thus reuse and reorder existing elements, you can provide a unique key for the block corresponding to each element. The default(None) is to use the list element index.
• The custom function takes one argument. The current row's can be retrieved via store.get, which is a responsive object.

vfor are created only when new data is added.

---

Bind class names

All component classes provide bind_classes for binding class, supporting three different data structures.

Bind dictionaries

bg_color = to_ref(False)
has_error = to_ref(False)

rxui.label("test").bind_classes({"bg-blue": bg_color, "text-red": has_error})

rxui.switch("bg_color", value=bg_color)
rxui.switch("has_error", value=has_error)

Dictionary key is the class name, and a dictionary value of a responsive variable with value bool. When the responsive value is True, the class name is applied to the component class.

---

Bind a responsive variable whose return value is a dictionary.

bg_color = to_ref(False)
has_error = to_ref(False)

class_obj = ref_computed(
    lambda: {"bg-blue": bg_color.value, "text-red": has_error.value}
)

rxui.switch("bg_color", value=bg_color)
rxui.switch("has_error", value=has_error)
rxui.label("bind to ref_computed").bind_classes(class_obj)

# or direct function passing
rxui.label("bind to ref_computed").bind_classes(
    lambda: {"bg-blue": bg_color.value, "text-red": has_error.value}
)

---

Bind to list

bg_color = to_ref("red")
bg_color_class = ref_computed(lambda: f"bg-{bg_color.value}")

text_color = to_ref("green")
text_color_class = ref_computed(lambda: f"text-{text_color.value}")

rxui.select(["red", "green", "yellow"], label="bg color", value=bg_color)
rxui.select(["red", "green", "yellow"], label="text color", value=text_color)

rxui.label("binding to arrays").bind_classes([bg_color_class, text_color_class])

Each element in the list is a responsive variable that returns the class name

---

bind-style

from nicegui import ui
from ex4nicegui.reactive import rxui
from ex4nicegui.utils.signals import to_ref


bg_color = to_ref("blue")
text_color = to_ref("red")

rxui.label("test").bind_style(
    {
        "background-color": bg_color,
        "color": text_color,
    }
)

rxui.select(["blue", "green", "yellow"], label="bg color", value=bg_color)
rxui.select(["red", "green", "yellow"], label="text color", value=text_color)

bind_style passed into dictionary, key is style name, value is style value, responsive string

---

rxui.echarts

Charting with echarts

---

rxui.echarts.from_javascript

Create echart from javascript code

from pathlib import Path

rxui.echarts.from_javascript(Path("code.js"))
# or
rxui.echarts.from_javascript(
    """
(myChart) => {

    option = {
        xAxis: {
            type: 'category',
            data: ['Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat', 'Sun']
        },
        yAxis: {
            type: 'value'
        },
        series: [
            {
                data: [120, 200, 150, 80, 70, 110, 130],
                type: 'bar'
            }
        ]
    };

    myChart.setOption(option);
}
"""
)

• The first parameter of the function is the echart instance object. You need to configure the chart in the function with setOption.

---

rxui.echarts.register_map

Register a map.

rxui.echarts.register_map(
    "china", "https://geo.datav.aliyun.com/areas_v3/bound/100000_full.json"
)

rxui.echarts(
    {
        "geo": {
            "map": "china",
            "roam": True,
        },
        "tooltip": {},
        "legend": {},
        "series": [], }
    }
)

• The parameter map_name is a customized map name. Note that map must correspond to a registered name in the chart configuration.
• The parameter src is a valid network link to the map data.

You can also provide the path to the local json file for the map data.

from pathlib import Path

rxui.echarts.register_map(
    "china", Path("map-data.json")
)

---

gsap

js animation library. gsap documentation

from nicegui import ui
from ex4nicegui import gsap

gsap.from_

Set the start property, the animation will transition from the set property to the original position

ui.label("test from").classes("target")
gsap.from_(".target", {"x": 50,'duration':1})

After the screen is loaded, the starting position of the text is shifted to the right by 50px, and then moved to the original position within 1 second.

• Arguments targets are css selectors.
• Arguments vars are attribute values

---

gsap.to

Set the end property, the animation will transition from the original property to the set property.

ui.label("test to").classes("target")
gsap.to(".target", {"x": 50,'duration':1})

After loading the screen, the text will be moved back 50px from the original position within 1 second.

• Arguments targets are css selectors.
• Arguments vars are attribute values

---

gsap.run_script

Setting up animations by writing js

gsap.run_script(
            r"""function setGsap(gsap) {
    gsap.to('.target',{"duration": 0.3,y:60})
}
""")

• The parameter script can be text or a file with a js extension Path.
• The name of the defined js function doesn't matter, the first argument is a gsap object.

---

BI Module

Create an interactive data visualization report using the minimal API.

from nicegui import ui
import pandas as pd
import numpy as np
from ex4nicegui import bi
from ex4nicegui.reactive import rxui
from ex4nicegui import effect, effect_refreshable
from pyecharts.charts import Bar


# data ready
def gen_data():
    np.random.seed(265)
    field1 = ["a1", "a2", "a3", "a4"]
    field2 = [f"name{i}" for i in range(1, 11)]
    df = (
        pd.MultiIndex.from_product([field1, field2], names=["cat", "name"])
        .to_frame()
        .reset_index(drop=True)
    )
    df[["idc1", "idc2"]] = np.random.randint(50, 1000, size=(len(df), 2))
    return df


df = gen_data()

# Create a data source.
ds = bi.data_source(df)

# ui
ui.query(".nicegui-content").classes("items-stretch no-wrap")

with ui.row().classes("justify-evenly"):
    # Create components based on the data source `ds`.
    ds.ui_select("cat").classes("min-w-[10rem]")
    ds.ui_select("name").classes("min-w-[10rem]")


with ui.grid(columns=2):
    # Configure the chart using a dictionary.
    @ds.ui_echarts
    def bar1(data: pd.DataFrame):
        data = data.groupby("name").agg({"idc1": "sum", "idc2": "sum"}).reset_index()

        return {
            "xAxis": {"type": "value"},
            "yAxis": {
                "type": "category",
                "data": data["name"].tolist(),
                "inverse": True,
            },
            "legend": {"textStyle": {"color": "gray"}},
            "series": [
                {"type": "bar", "name": "idc1", "data": data["idc1"].tolist()},
                {"type": "bar", "name": "idc2", "data": data["idc2"].tolist()},
            ],
        }

    bar1.classes("h-[20rem]")

    # Configure the chart using pyecharts.
    @ds.ui_echarts
    def bar2(data: pd.DataFrame):
        data = data.groupby("name").agg({"idc1": "sum", "idc2": "sum"}).reset_index()

        return (
            Bar()
            .add_xaxis(data["name"].tolist())
            .add_yaxis("idc1", data["idc1"].tolist())
            .add_yaxis("idc2", data["idc2"].tolist())
        )

    bar2.classes("h-[20rem]")

    # Bind the click event to achieve navigation.
    @bar2.on_chart_click
    def _(e: rxui.echarts.EChartsMouseEventArguments):
        ui.open(f"/details/{e.name}", new_tab=True)


# with response mechanisms, you can freely combine native nicegui components.
label_a1_total = ui.label("")


# this function will be triggered when ds changed.
@effect
def _():
    # prop `filtered_data` is the filtered DataFrame.
    df = ds.filtered_data
    total = df[df["cat"] == "a1"]["idc1"].sum()
    label_a1_total.text = f"idc1 total(cat==a1):{total}"


# you can also use `effect_refreshable`, but you need to note that the components in the function are rebuilt each time.
@effect_refreshable
def _():
    df = ds.filtered_data
    total = df[df["cat"] == "a2"]["idc1"].sum()
    ui.label(f"idc1 total(cat==a2):{total}")


# the page to be navigated when clicking on the chart series.
@ui.page("/details/{name}")
def details_page(name: str):
    ui.label("This table data will not change")
    ui.aggrid.from_pandas(ds.data.query(f'name=="{name}"'))

    ui.label("This table will change when the homepage data changes. ")

    @bi.data_source
    def new_ds():
        return ds.filtered_data[["name", "idc1", "idc2"]]

    new_ds.ui_aggrid()


ui.run()

Details

bi.data_source

The data source is the core concept of the BI module, and all data linkage is based on this. In the current version (0.4.3), there are two ways to create a data source.

Receive pandas's DataFrame:

from nicegui import ui
from ex4nicegui import bi
import pandas as pd

df = pd.DataFrame(
    {
        "name": list("aabcdf"),
        "cls": ["c1", "c2", "c1", "c1", "c3", None],
        "value": range(6),
    }
)

ds =  bi.data_source(df)

Sometimes, we want to create a new data source based on another data source, in which case we can use a decorator to create a linked data source:

df = pd.DataFrame(
    {
        "name": list("aabcdf"),
        "cls": ["c1", "c2", "c1", "c1", "c3", None],
        "value": range(6),
    }
)

ds =  bi.data_source(df)

@bi.data_source
def new_ds():
    # df is pd.DataFrame
    df = ds.filtered_data
    df=df.copy()
    df['value'] = df['value'] * 100
    return df

ds.ui_select('name')
new_ds.ui_aggrid()

Note that since new_ds uses ds.filtered_data, changes to ds will trigger the linkage change of new_ds, causing the table component created by new_ds to change.

---

Remove all filter states through the ds.remove_filters method:

ds = bi.data_source(df)

def on_remove_filters():
    ds.remove_filters()

ui.button("remove all filters", on_click=on_remove_filters)

ds.ui_select("name")
ds.ui_aggrid()

---

Reset the data source through the ds.reload method:

df = pd.DataFrame(
    {
        "name": list("aabcdf"),
        "cls": ["c1", "c2", "c1", "c1", "c3", None],
        "value": range(6),
    }
)

new_df = pd.DataFrame(
    {
        "name": list("xxyyds"),
        "cls": ["cla1", "cla2", "cla3", "cla3", "cla3", None],
        "value": range(100, 106),
    }
)

ds = bi.data_source(df)

def on_remove_filters():
    ds.reload(new_df)

ui.button("reload data", on_click=on_remove_filters)

ds.ui_select("name")
ds.ui_aggrid()

---

ui_select

Dropdown Select Box

from nicegui import ui
from ex4nicegui import bi
import pandas as pd

df = pd.DataFrame(
    {
        "name": list("aabcdf"),
        "cls": ["c1", "c2", "c1", "c1", "c3", None],
        "value": range(6),
    }
)

ds = bi.data_source(df)

ds.ui_select("name")

The first parameter column specifies the column name of the data source.

---

Set the order of options using the parameter sort_options:

ds.ui_select("name", sort_options={"value": "desc", "name": "asc"})

---

Set whether to exclude null values using the parameter exclude_null_value:

df = pd.DataFrame(
    {
        "cls": ["c1", "c2", "c1", "c1", "c3", None],
    }
)

ds = bi.data_source(df)
ds.ui_select("cls", exclude_null_value=True)

---

You can set the parameters of the native nicegui select component through keyword arguments.

Set default values through the value attribute:

ds.ui_select("cls",value=['c1','c2'])
ds.ui_select("cls",multiple=False,value='c1')

For multiple selections (the parameter multiple is defaulted to True), value needs to be specified as a list. For single selections, value should be set to non-list.

---

ui_table

Table

from nicegui import ui
from ex4nicegui import bi
import pandas as pd

data = pd.DataFrame({"name": ["f", "a", "c", "b"], "age": [1, 2, 3, 1]})
ds = bi.data_source(data)

ds.ui_table(
    columns=[
        {"label": "new colA", "field": "colA", "sortable": True},
    ]
)

• The parameter columns are consistent with nicegui ui.table. The key value field corresponds to the column name of the data source, and if it does not exist, this configuration will not take effect
• The rows parameter will not take effect. Because the data source of the table is always controlled by the data source.

---

ui_aggrid

from nicegui import ui
from ex4nicegui import bi
import pandas as pd

data = pd.DataFrame(
    {
        "colA": list("abcde"),
        "colB": [f"n{idx}" for idx in range(5)],
        "colC": list(range(5)),
    }
)
df = pd.DataFrame(data)

source = bi.data_source(df)

source.ui_aggrid(
    options={
        "columnDefs": [
            {"headerName": "xx", "field": "no exists"},
            {"headerName": "new colA", "field": "colA"},
            {
                "field": "colC",
                "cellClassRules": {
                    "bg-red-300": "x < 3",
                    "bg-green-300": "x >= 3",
                },
            },
        ],
        "rowData": [{"colX": [1, 2, 3, 4, 5]}],
    }
)

• The parameter options is consistent with nicegui ui.aggrid. The key value field in columnDefs corresponds to the column name of the data source, and if it does not exist, this configuration will not take effect.
• The rowData key value will not take effect. Because the data source of the table is always controlled by the data source.
