eye-annotation-tool 1.0.2

A tool for annotating pupil and iris in eye images

EyE Annotation Tool

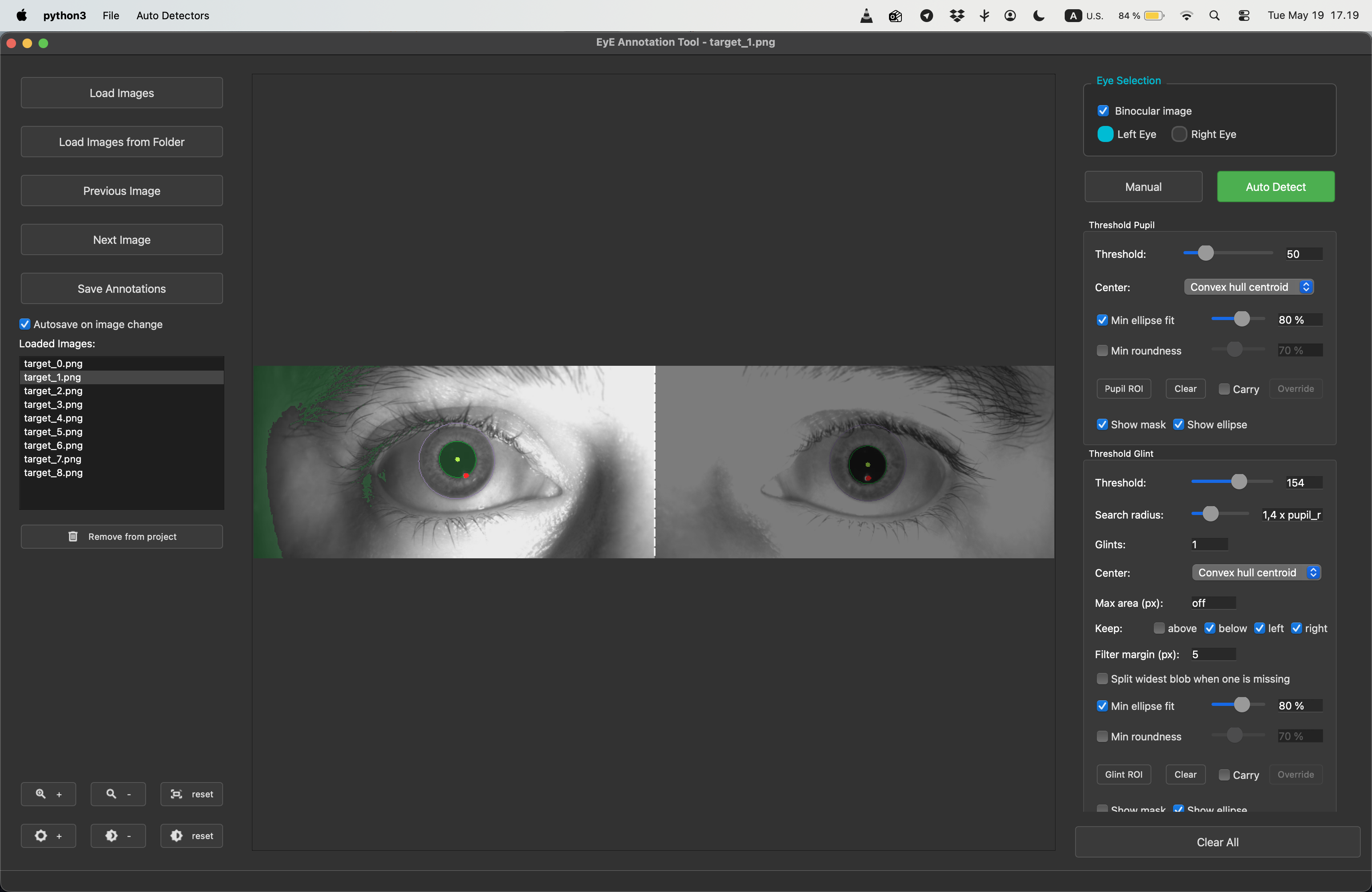

A Qt-based desktop tool for annotating pupil, limbus (iris), eyelid, and glints in eye images. Supports monocular and binocular projects, auto-detector plugins for each annotation type, and per-eye carry-across-frames workflows.

Features

• Monocular and binocular projects; per-eye overrides for ROI, carry, and defaults.
• Manual annotation of pupil ellipse, limbus ellipse, eyelid mask, and glints.
• Auto-detector plugins per annotation type; live detection re-runs on image load and plugin swap.
• Built-in auto-detectors backed by lavan (pupil, limbus, glint).
• Project sessions with persistent defaults, undo, brightness/zoom controls, and review mode for revisiting an existing project.
• Plugin system with three discovery channels (built-in, env-var directories, Python entry-points).
• CLI flags for batch use: --images, --review, --auto-detectors.

Built-in auto-detectors

Annotation	Detector	Backend
Pupil	pupil_labs_2d	lavan.pupil_detector_2d (Pupil Labs 2D detector)
Pupil	threshold_pupil	lavan.detect (threshold + ellipse fit)
Limbus	daugman_limbus	lavan.boundary (Daugman integro-differential / active contour)
Glint	threshold_glint	lavan.detect (threshold + shape-quality gates)

See auto_detectors/README.md for the full plugin contract.

Installation

Requirements

• Python ≥3.10

From PyPI

pip install eye_annotation_tool

Using uv

uv pip install eye_annotation_tool

Or, to add it to an existing uv project:

uv add eye_annotation_tool

From source (editable / development)

git clone https://github.com/mh-salari/eye_annotation_tool.git
cd eye_annotation_tool
uv sync

Or with pip:

git clone https://github.com/mh-salari/eye_annotation_tool.git
cd eye_annotation_tool
python3 -m pip install -e .

Usage

eye_annotation_tool

Or as a module:

python -m eye_annotation_tool

Common CLI flags:

# Open a project and load extra images on top
eye_annotation_tool --project my_project.json --images img1.png img2.png

# Re-annotate a subset of images against an existing project (read-only)
eye_annotation_tool --project my_project.json --review img1.png img2.png

# Enable only a subset of auto-detectors this session
eye_annotation_tool --auto-detectors pupil,limbus

See eye_annotation_tool --help for the full flag list.

Adding Custom Plugins

Every auto-detector is a self-contained plugin that owns its algorithm, its Qt panel, its serialization, its overlay drawing and its colour palette — adding one requires no edits to the core application. Three discovery channels are scanned at startup:

• Built-in — eye_annotation_tool/auto_detectors/plugins/ (for plugins contributed upstream).
• Env-var directories — EYE_ANNOTATION_PLUGIN_PATH (os.pathsep-separated) for drop-in .py files. Easiest path for a one-off plugin: write a single file, point the env var at its directory, restart the app.
• Python entry-points — [project.entry-points."eye_annotation_tool.plugins"] in any installed distribution. For pip-installable plugin packages.

The full plugin authoring guide — minimal example, the DetectorPlugin contract, optional panel signals, mask + ROI rendering — lives in the Plugin Development Guide.

Citing

If you use this software, please cite it using the following BibTeX entry:

@software{salari2025eye,
  author    = {Salari, Mohammadhossein},
  title     = {{EyE Annotation Tool}},
  year      = {2026},
  url       = {https://github.com/mh-salari/eye_annotation_tool},
  doi       = {10.5281/zenodo.18723470},
  license   = {MIT}
}

You can also click the "Cite this repository" button on the GitHub page for more citation formats.

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

License

This project is licensed under the MIT License - see the LICENSE file for details.

Acknowledgments

This project has received funding from the European Union's Horizon Europe research and innovation funding program under grant agreement No 101072410, Eyes4ICU project.
