FastLSQ 0.4.2

One-shot PDE solving via Fourier features with exact analytical derivatives; rank-revealing solvers, learnable anisotropic bandwidth, and CPU/CUDA/MPS support

FastLSQ

BerkeleyLab ATAP Talk

Solving PDEs in one shot via Fourier features with exact analytical derivatives.

FastLSQ is a lightweight PDE solver built around SinusoidalBasis, an analytical derivative engine for random Fourier features. For sinusoidal features phi_j(x) = sin(W_j . x + b_j), every derivative of every order admits an exact closed-form expression -- no automatic differentiation needed.

Linear PDEs are solved in a single least-squares step. The random-feature system is typically rank-deficient, so the solve is routed through a backward-stable, auto-selected least-squares back-end (Cholesky fast-path -> Householder QR -> rank-revealing SVD) that runs on CPU, CUDA, or Apple-MPS. Nonlinear PDEs are solved via Newton-Raphson iteration with Tikhonov regularisation, 1/sqrt(N) feature normalisation, and continuation/homotopy.

Installation

pip install fastlsq

For development (includes testing and build tools):

git clone https://github.com/sulcantonin/FastLSQ.git
cd FastLSQ
pip install -e ".[dev]"

Quick start

Solve a linear PDE in one line

from fastlsq import solve_linear
from fastlsq.problems.linear import PoissonND

problem = PoissonND()
result = solve_linear(problem, scale=5.0)

u_fn = result["u_fn"]
print(f"Value error: {result['metrics']['val_err']:.2e}")

Solve a nonlinear PDE

from fastlsq import solve_nonlinear
from fastlsq.problems.nonlinear import NLPoisson2D

problem = NLPoisson2D()
result = solve_nonlinear(problem, max_iter=30)

print(f"Converged in {result['n_iters']} iterations")
print(f"Value error: {result['metrics']['val_err']:.2e}")

Choose a solver back-end and device

The linear solve is routed automatically, but solve_linear exposes the back-end via method= (see How it works for the routing):

from fastlsq import solve_linear, set_device
from fastlsq.problems.linear import PoissonND

# "auto" (default) -- Cholesky fast-path -> QR -> rank-revealing SVD
# "qr"             -- Householder QR; SVD-grade accuracy at QR cost (full-rank A)
# "svd"            -- rank-revealing truncated SVD; the rank-deficient-safe reference
# "cholesky"       -- normal-equations Cholesky; fast, well-conditioned A only
# "rsvd"           -- randomized SVD, O(MNk), for strongly low-rank A
result = solve_linear(PoissonND(), scale=5.0, method="qr")

# Device selection (CPU / CUDA / Apple-MPS), or set FASTLSQ_DEVICE=cuda
set_device("cuda")   # the float64 default stays on CPU/CUDA; MPS is float32-only

Use the basis directly

import torch
from fastlsq.basis import SinusoidalBasis

basis = SinusoidalBasis.random(input_dim=2, n_features=1500, sigma=5.0)
x = torch.rand(5000, 2)

# Arbitrary mixed partial via multi-index
d2_dxdy = basis.derivative(x, alpha=(1, 1))

# Or use fast-path methods
H     = basis.evaluate(x)            # (5000, 1500)
dH    = basis.gradient(x)            # (5000, 2, 1500)
lap_H = basis.laplacian(x)           # (5000, 1500)

Compose PDE operators symbolically

import torch
from fastlsq.basis import SinusoidalBasis, Op

basis = SinusoidalBasis.random(input_dim=2, n_features=1500, sigma=5.0)
x = torch.rand(5000, 2)

# Coefficients can be scalars or nn.Parameter (for AdamW optimisation)
k, c = 10.0, 2.0
helmholtz = Op.laplacian(d=2) + k**2 * Op.identity(d=2)
A_pde = helmholtz.apply(basis, x)    # (5000, 1500)

wave = Op.partial(dim=2, order=2, d=3) - c**2 * Op.laplacian(d=3, dims=[0, 1])

Vector-valued solutions

solve_linear / solve_nonlinear support vector-valued u: ℝᵈ → ℝᵏ for coupled systems (elasticity, Stokes, Maxwell vector potential, …) and for decoupled multi-output problems sharing one basis. The math is unchanged; the solver just allocates beta with shape (N, k) so that solver.predict(x) returns shape (M, k) directly.

A problem opts in by setting self.n_outputs = k and assembling its operator in block-stacked form A ∈ ℝ^{Mk × Nk}, b ∈ ℝ^{Mk × 1}. The helper block_concat removes the manual torch.cat bookkeeping:

import torch
from fastlsq import solve_linear, block_concat

class Stokes2D:
    n_outputs = 3        # (u, v, p)
    dim = 2
    name = "Stokes 2D"
    # ... exact, exact_grad, get_train_data, get_test_points ...

    def build(self, slv, x, bcs, f):
        basis = slv.basis
        cache = basis.cache(x)
        dx = basis.derivative(x, (1, 0), cache=cache)
        dy = basis.derivative(x, (0, 1), cache=cache)
        lap = basis.laplacian(x, cache=cache)

        # Rows = equations (mom_x, mom_y, continuity);
        # columns = coefficient blocks (u, v, p)
        A = block_concat([
            [-lap,  None,  dx  ],   # -Δu + ∂p/∂x = f_x
            [ None, -lap,  dy  ],   # -Δv + ∂p/∂y = f_y
            [ dx,   dy,    None],   #  ∂u/∂x + ∂v/∂y = 0
        ])
        b = block_concat([[f[:, 0:1]], [f[:, 1:2]], [torch.zeros_like(f[:, 0:1])]])
        # ... add BC blocks the same way ...
        return A, b

result = solve_linear(Stokes2D(), scale=5.0)
u = result["u_fn"](x_test)        # shape (M, 3): columns are (u, v, p)

Partial derivatives for a vector u

The basis-level operators (basis.derivative, basis.gradient, basis.laplacian, DiffOperator.apply) all return shape (M, N) regardless of how many components u has — vector-ness only enters when you contract with beta:

# Full Jacobian, then slice (M, d, k) -> per (component, dim)
u, J = solver.predict_with_grad(x)   # J shape (M, d, k); J[:, j, c] = ∂u_c/∂x_j

# Single operator on a single component
D_y = solver.basis.derivative(x, alpha=(0, 1))   # (M, N): ∂φ/∂y
du0_dy = D_y @ solver.beta[:, 0:1]               # ∂u_0/∂y

# Symbolic operator, all components at once
from fastlsq import Op
yy = Op.partial(dim=1, order=2, d=2)
A  = yy.apply(solver.basis, x)                   # (M, N)
u_yy = A @ solver.beta                           # (M, k): ∂²u/∂y² per component

Scalar problems are untouched: n_outputs defaults to 1, solver.beta keeps shape (N, 1), and predict_with_grad returns gradient shape (M, d) for backward compatibility (the trailing component axis is squeezed when k=1). The Stokes2D sketch above and tests/test_block.py -- a runnable block_concat + unpack_beta solve that recovers both components of a k=2 system -- are the reference for the block-stacked vector path.

Plot solutions

from fastlsq.plotting import plot_solution_2d_contour, plot_convergence

plot_solution_2d_contour(result["solver"], problem, save_path="solution.png")
plot_convergence(result["history"], problem_name=problem.name, save_path="convergence.png")

Benchmarks

# Linear PDE benchmark (Fast-LSQ vs PIELM)
python examples/run_linear.py

# Nonlinear PDE benchmark (Newton-Raphson)
python examples/run_nonlinear.py

# Learnable Helmholtz wavenumber (nn.Parameter + AdamW)
python examples/learnable_helmholtz.py

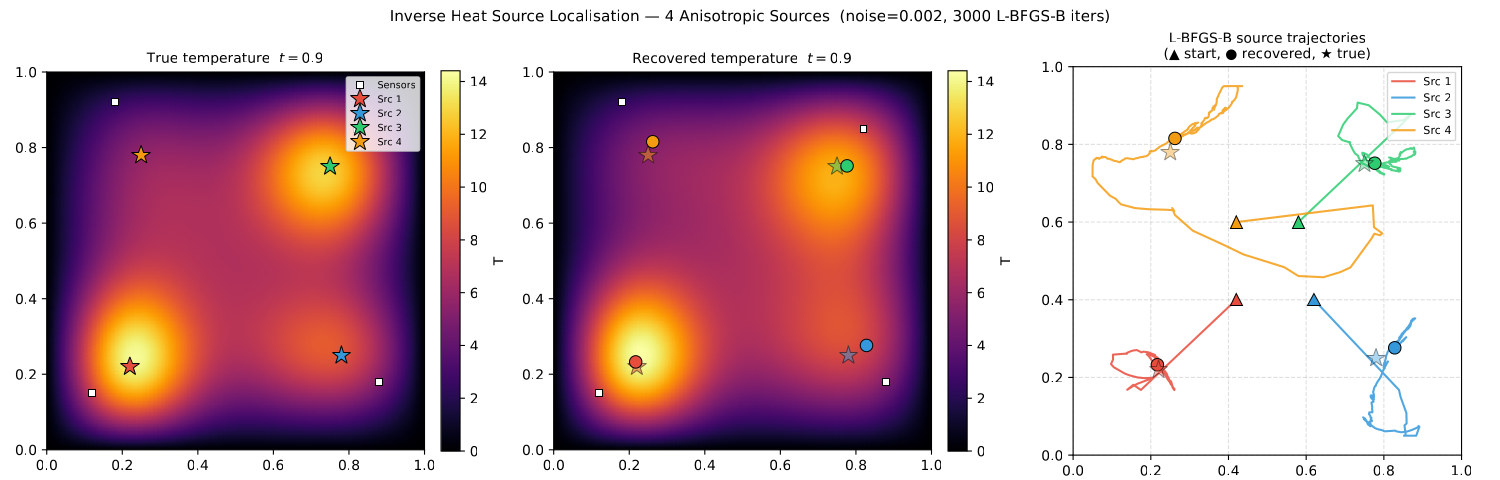

Inverse problems

The analytical derivatives enable gradients through the pre-factored solve, making inverse problems tractable. Example: recovering 4 anisotropic Gaussian heat sources (24 parameters) from 4 sparse sensors. The heat equation is solved in space-time; L-BFGS-B optimises source positions and shapes to match sensor time-series. (Click image for animation.)

python examples/inverse_heat_source.py

Core architecture

The framework is built around SinusoidalBasis -- the analytical derivative engine:

Class	Purpose
SinusoidalBasis	Evaluates basis functions and arbitrary-order derivatives in O(1) via the cyclic identity
BasisCache	Pre-computes sin(Z)/cos(Z) once, reuses across multiple derivative evaluations
DiffOperator / Op	Symbolic linear differential operators that compose via +, -, scalar *; coefficients can be nn.Parameter for learnable PDEs
IntegralOperator / IntegroDifferentialOperator	Closed-form single-axis definite / running (Volterra) integrals, including order=n iterated integrals ∫_lo^x (x−t)^{n−1}/(n−1)! φ dt; compose with Op into one integro-differential design matrix
GaussianWindowedBasis / ProjectionOperator	Windowed-Fourier (Gabor) basis + closed-form projection (Radon) operator ∫ f δ(c·z−u) dz for tomographic / line-integral inverse problems; quadrature-free and differentiable in the optics c
FeatureBasis	Adapter for non-sinusoidal solvers (e.g. PIELM with tanh)
FastLSQSolver	Manages feature blocks; exposes .basis for all derivative computations
LearnableFastLSQ	Differentiable solver with learnable bandwidth via reparameterisation trick
block_concat, pack_beta, unpack_beta	Block-structured assembly helpers for vector-valued u (coupled systems). solver.beta has shape (N, k); scalar problems are the k=1 case
solve_lstsq	Multi-back-end least-squares solve (auto/qr/svd/cholesky/rsvd); rank-revealing by default for the rank-deficient feature matrix
resolve_device / set_device / get_device	CPU / CUDA / Apple-MPS selection, dtype-aware (MPS is float32-only; factorizations fall back to CPU)

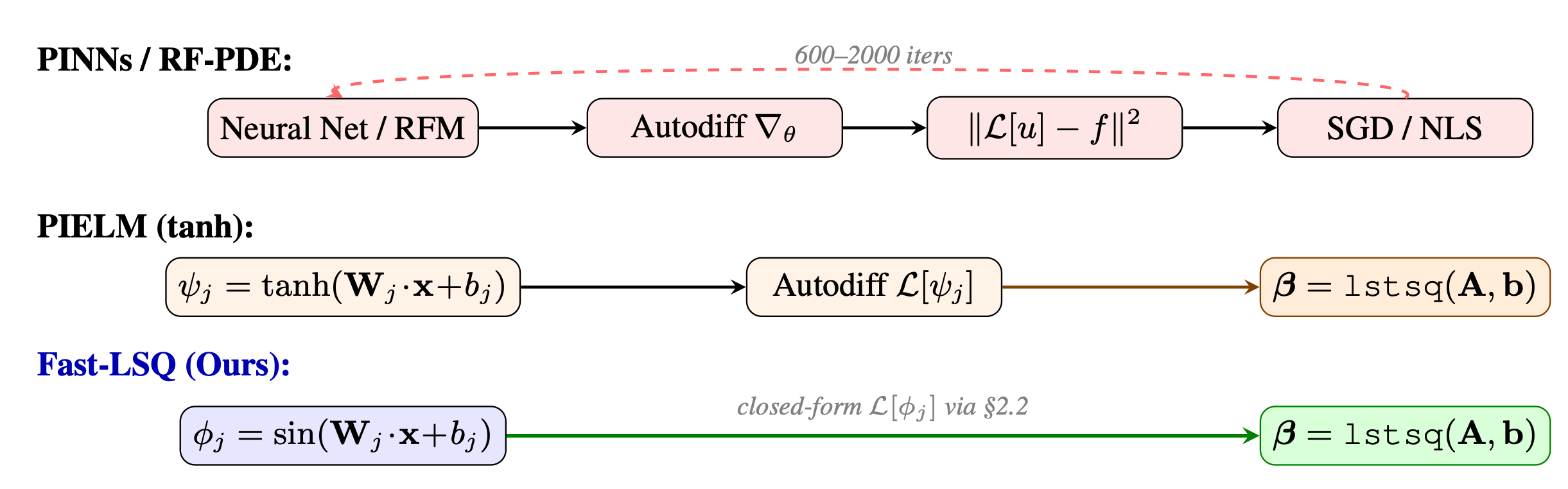

How it works

1. Basis construction. Given collocation points x, construct a SinusoidalBasis with random weights W and biases b. The collocation counts default to scale with the feature count (n_pde = max(3000, 3 * n_blocks * hidden_size), n_bc = max(800, n_pde // 5)).

2. Analytical derivatives. Exploit the cyclic derivative identity: the n-th derivative of sin(z) cycles through {sin, cos, -sin, -cos} with monomial weight prefactors. Any mixed partial D^alpha phi_j(x) is computed in O(1) -- no computational graph, no automatic differentiation.

3. PDE assembly. Define the differential operator symbolically with Op (e.g. Op.laplacian(d=2)) and apply it to the basis to get the system matrix A.

4. Linear solve. Solve A beta = b in the least-squares sense. The random-feature matrix A is typically rank-deficient (near-duplicate columns), so the default method="auto" starts from a Cholesky fast-path (guarded by a cheap conditioning probe), falls back to backward-stable Householder QR, and resorts to a rank-revealing SVD only if the QR solution blows up. A Tikhonov ridge mu enters via the [A; sqrt(mu) I] augmentation, not the condition-squaring normal equations.

5. Newton iteration (nonlinear). Linearise the PDE residual, solve J delta_beta = -R with backtracking line search, and repeat.

Adding your own PDE

Define a problem class and use solver.basis to build the linear system:

import torch, numpy as np
from fastlsq import solve_linear, Op
from fastlsq.geometry import sample_box, sample_boundary_box

class MyPoisson2D:
    def __init__(self):
        self.name = "My Poisson"
        self.dim = 2
        self.pde_op = -Op.laplacian(d=2)

    def exact(self, x):
        return torch.sin(np.pi * x[:, 0:1]) * torch.sin(np.pi * x[:, 1:2])

    def exact_grad(self, x):
        sx, cx = torch.sin(np.pi * x[:, 0:1]), torch.cos(np.pi * x[:, 0:1])
        sy, cy = torch.sin(np.pi * x[:, 1:2]), torch.cos(np.pi * x[:, 1:2])
        return torch.cat([np.pi * cx * sy, np.pi * sx * cy], dim=1)

    def source(self, x):
        return 2 * np.pi**2 * self.exact(x)

    def get_train_data(self, n_pde=5000, n_bc=1000):
        x_pde = sample_box(n_pde, self.dim)
        f_pde = self.source(x_pde)
        x_bc = sample_boundary_box(n_bc, self.dim)
        u_bc = self.exact(x_bc)
        return x_pde, [(x_bc, u_bc)], f_pde

    def build(self, solver, x_pde, bcs, f_pde):
        basis = solver.basis
        cache = basis.cache(x_pde)
        A_pde = self.pde_op.apply(basis, x_pde, cache=cache)
        As, bs = [A_pde], [f_pde]
        for (x_bc, u_bc) in bcs:
            As.append(100.0 * basis.evaluate(x_bc))
            bs.append(100.0 * u_bc)
        return torch.cat(As), torch.cat(bs)

    def get_test_points(self, n=5000):
        return sample_box(n, self.dim)

result = solve_linear(MyPoisson2D(), scale=5.0)

See examples/add_your_own_pde.py for the complete tutorial.

Features

• Analytical derivative engine: SinusoidalBasis computes arbitrary-order derivatives exactly in O(1) -- the foundation of the entire framework
• Symbolic PDE operators: Compose differential operators with Op (Laplacian, wave, Helmholtz, biharmonic, custom) via intuitive arithmetic; coefficients can be nn.Parameter for AdamW optimisation
• Closed-form integral operators: IntegralOperator (single-axis definite / Volterra integrals) composes with Op into one integro-differential least-squares block. The integral class now also includes the projection (Radon) operator (ProjectionOperator on a GaussianWindowedBasis) -- quadrature-free ∫ f δ(c·z−u) dz line/hyperplane integrals for tomographic inverse problems, differentiable in the optics c for experiment design
• Vector-valued solutions: First-class support for u: ℝᵈ → ℝᵏ (elasticity, Stokes, Maxwell). Problems declare n_outputs = k; block_concat assembles coupled block systems; solver.predict(x) returns shape (M, k). Scalar problems are the k=1 case
• High-level API: Solve PDEs in one line with solve_linear() and solve_nonlinear()
• Robust linear solver: Pluggable least-squares back-ends; the default auto routes Cholesky -> QR -> SVD, and backward-stable QR delivers SVD-grade accuracy at QR cost on the rank-deficient random-feature system
• Learnable bandwidth: LearnableFastLSQ optimises the bandwidth (scalar or anisotropic) via reparameterisation
• Learnable PDE coefficients: Plug nn.Parameter into Op (e.g. Helmholtz wavenumber k) and optimise via AdamW; gradients flow through the prebuilt linear solve
• Auto-tuning: Automatic scale selection via grid search
• Device support: CPU / CUDA / Apple-MPS via set_device() or the FASTLSQ_DEVICE env var, dtype-aware (the float64 high-accuracy path stays on CPU/CUDA)
• Adaptive collocation: n_pde / n_bc default to feature-count-scaled values, overridable per solve
• Built-in plotting: Solution visualization, convergence plots, spectral sensitivity
• Geometry samplers: Box, ball, sphere, interval, custom samplers
• Diagnostics: Problem validation, conditioning checks, error detection
• Export utilities: NumPy conversion, checkpoint saving/loading
• PyTorch Lightning: Integration for training loops
• 20+ benchmark problems: Linear, nonlinear, and regression-mode PDEs

Paper

The full preprint is available on arXiv

Citing this work

If you use FastLSQ in your research, please cite:

@misc{sulc2026fastlsqframeworkoneshotpde,
      title={FastLSQ: A Framework for One-Shot PDE Solving},
      author={Antonin Sulc},
      year={2026},
      eprint={2602.10541},
      archivePrefix={arXiv},
      primaryClass={math.NA},
      url={https://arxiv.org/abs/2602.10541},
}

License

This project is licensed under the MIT License -- see LICENSE for details.
