FermiSimplex

Adaptive, occupation-certified spectral calculations on simplex meshes.

FermiSimplex finds Fermi surfaces and computes zero-temperature charge and density matrices without paying for a dense momentum grid. Its central object is the local occupation

$$ N(k; \mu) = \mathrm{Tr}\left[\Theta\left(\mu I - H(k)\right)\right], $$

and its central question is simple: can the occupation be proved constant on this simplex, or should we look more closely?

The upstream development repository is GitLab; the GitHub repository is a public mirror.

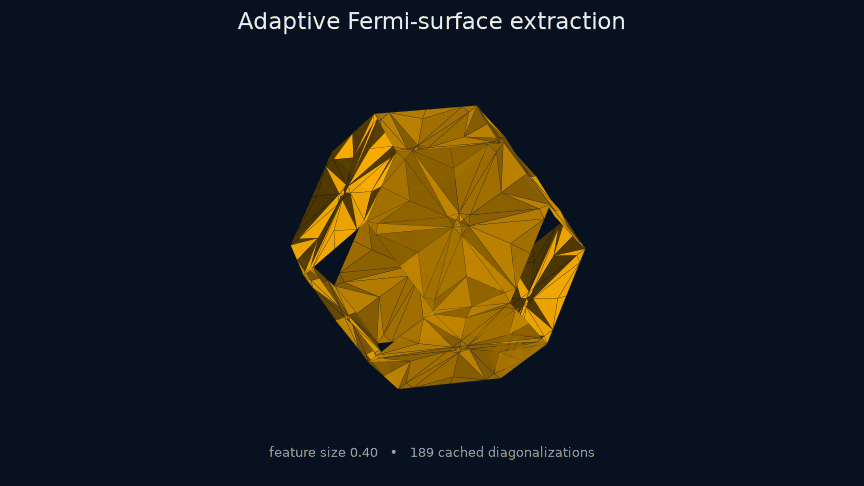

See the visual Python tour for a presentation-ready introduction with real adaptive sampling traces, multiband examples, and a rotating noble-metal-inspired three-dimensional surface.

• 🛡️ Gapped-region proofs combine cached eigensystems with rigorous spectral bounds to exclude a Fermi-level crossing throughout a simplex and to bound the remaining charge.
• ⚡ Adaptive sampling, built on AdaptiveSimplex, concentrates diagonalizations near unresolved Fermi surfaces instead of refining the entire Brillouin zone uniformly.
• 🚀 Numerical efficiency by design: adaptive refinement, shared spectral caching, and the compiled numerical core avoid repeated work as the Fermi surface becomes progressively sharper.
• 🎯 Projected charge estimates compare sampled projected eigenvalues with vertex-linear interpolation only in the bands whose occupation is still ambiguous.
• 🧩 Python and C++ share one numerical core; models can be dense callables or translation-invariant tight-binding Hamiltonians.

Quick start

From a source checkout with a C++20 compiler and BLAS/LAPACK available:

pip install .

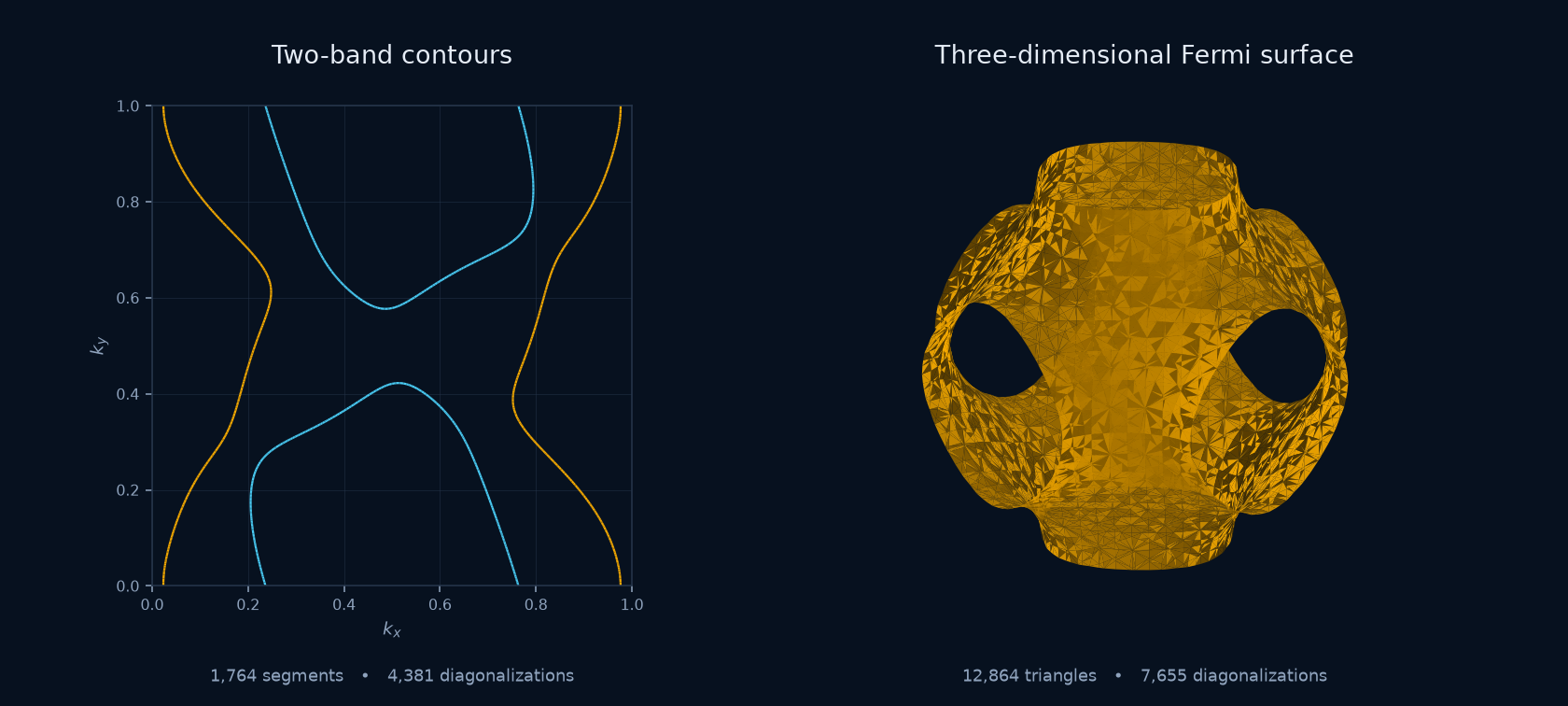

The model below produces the three-dimensional surface shown above:

import numpy as np

from fermisimplex import SpectralMesh


def hamiltonian(kx, ky, kz):
    phase = 2 * np.pi * np.array([kx, ky, kz])
    return np.array([[np.cos(phase).sum()]], dtype=complex)


mesh = SpectralMesh(hamiltonian)
surface = mesh.fermi_surface(
    mu=0.17,
    min_feature_size=0.07,
    curvature_bound=(2 * np.pi) ** 2,
)

surface.points      # (npoints, 3)
surface.cells       # (ntriangles, 3)
surface.cell_bands  # band index for every triangle

The coordinates are reduced coordinates in $[0,1]^d$. Here $M=(2\pi)^2$ bounds every directional second derivative of the scalar Hamiltonian. SpectralMesh infers the momentum-space dimension from the callable arguments and the matrix dimension by evaluating it at the origin. Callables receive separate coordinates: hamiltonian(kx, ky, ...).

The same SpectralMesh can drive the other observables and reuse every eigensystem it has already computed:

charge = mesh.integrate_charge(
    mu=0.17,
    target_error=1e-2,
    max_refinements=10_000,
    curvature_bound=(2 * np.pi) ** 2,
)
density = mesh.integrate_density_matrix(
    mu=0.17,
    lattice_vectors=[(0, 0, 0), (1, 0, 0)],
    target_error=1e-2,
    max_refinements=10_000,
)

charge.value
charge.stopping_error
charge.certified_error_bound
density.matrices  # (number of lattice vectors, ndof, ndof)

For a tight-binding model,

$$ H(k)=\sum_R H_R e^{-2\pi i k\cdot R}, $$

pass {R: H_R, ...} directly to SpectralMesh. Opposite hoppings are checked for $H_{-R}=H_R^\dagger$.

What does the certificate prove?

At each simplex, FermiSimplex asks: can the occupation change between the sampled vertices? It combines their eigensystems with curvature_bound, which limits how much the Hamiltonian can bend in between. If occupied and unoccupied trial subspaces remain on opposite sides of $\mu$, the occupation is fixed everywhere—without sampling the interior.

• Certified: no Fermi surface crosses the simplex.
• Partially certified: rigorous lower and upper occupation bounds remain.
• Inconclusive: this is not a gapless verdict; FermiSimplex refines and tries again.

Every charge and Fermi-surface simplex is checked. The remaining uncertainty becomes charge.certified_error_bound; surface.coverage_certified concerns classification down to min_feature_size, not topology or geometric accuracy. Density matrices currently use adaptive estimates instead.

The guarantee assumes a valid curvature_bound. Omitting it, None, and 0.0 all assert zero curvature; none disables certification. See the mathematics guide for the proof and error bounds.

API at a glance

• SpectralMesh: accept a callable or tight-binding dictionary and own the adaptive geometry and cached eigensystems.
• certify_simplex: certify supplied vertex eigenpairs directly; eigenvalues must be finite and ascending, and eigenvector columns must be finite and orthonormal. These performance-sensitive numerical preconditions are not rechecked.
• mesh.integrate_charge: adaptive filling and $dQ/d\mu$.
• mesh.integrate_density_matrix: real-space density-matrix components.
• mesh.fermi_surface: band-labelled points and cells in reduced coordinates.

Adaptive controls such as target_error, max_refinements, and preview_depth are ordinary keyword arguments on the calculation that uses them—there is no separate options object. Charge calculations default to preview_depth=0 because their sampled projected-error estimate drives refinement intrinsically; positive depths are intended for explicit diagnostic comparisons.

See the visual Python tour, runnable quick start, and two-band plotting example, the visual-generation notes, and the build and architecture guide.

Development

AdaptiveSimplex provides the mesh geometry, refinement, vertex caching, and cut-simplex integration; FermiSimplex adds the spectral models, certificates, and observable-specific algorithms.

pixi run test

This builds the standalone C++ library, verifies an installed downstream CMake consumer, rebuilds the Python extension, and runs the Python tests. The dense 60-band stress case lives in benchmarks/fermi_surface_60.py.

FermiSimplex is licensed under the BSD 3-Clause license. If you use it in research, please cite the metadata in CITATION.cff.
