fiat-tool 0.7.0.12

Fast Image Annotation Tool, Free image labeling tool for deep learning

FIAT 0.7 (Fast Image Annotation Tool)

FIAT is a free image labeling tool developed in C# WPF based on Visual Studio 2022
The current version supports labeling classification datasets and provides a PyTorch dataset loader.

Development Environment

• Visual Studio 2022
• Microsoft .NET 6

Installation

pip install fiat-tool

Download

• FIAT Labeling tool download
• .NET6 framework

Reference

• FIAT dataset example
• PyTorch training loop example (classification)

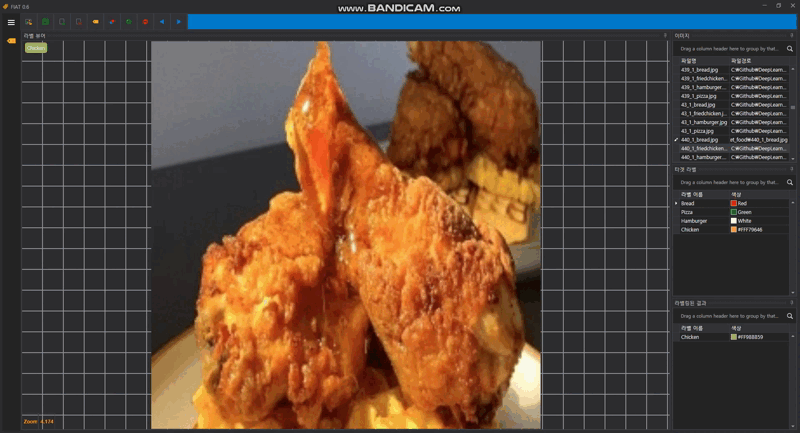

DEMO

• Classification

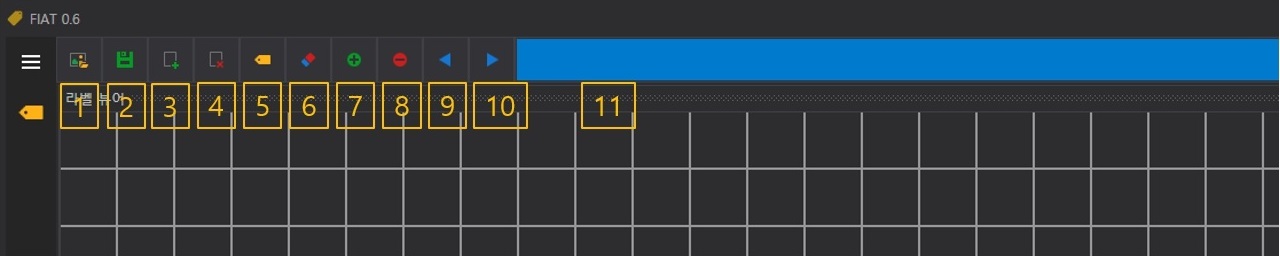

Menu

No	Function	No	Function
1	Open image folder	2	Save dataset
3	Add target label	4	Delete target label
5	Add label	6	Delete label
7	Add label on all	8	Delete label on all
9	Previous image	10	Nex image
11	Progress bar

Shortcut Key

Shortcut Key	Function
F1 ~ F12	Label the image with the target label at that index
Ctrl + S	Save all label information
Ctrl + O	Open image folder
Up	Previous image
Down	Next image

PyTorch training loop example

from fiat_tool.FIATClassificationDataset import FIATClassificationDataset
from torch.utils.data import DataLoader


batch_size = 1
training_epochs = 1

datasets = FIATClassificationDataset('C://Github//FIAT//example_dataset//food//',
                                     label_height=224,
                                     label_width=224,
                                     isColor=True,
                                     isNorm=False)

data_loader = DataLoader(datasets, batch_size=batch_size, shuffle=True)

for epoch in range(training_epochs): # 앞서 training_epochs의 값은 15로 지정함.
    avg_cost = 0
    avg_acc = 0
    total_batch = len(data_loader)

    for x_input, y_input in data_loader:
        print('x_input shape = ', x_input.shape)
        print('y_input shape = ', y_input.shape)




print('Training loop finished')

C:\Python\python.exe C:/Github/FIAT/python/torch_classification_FIATC_test.py
{'Color': '#FFFF0000', 'Name': 'Bread'}
{'Color': '#FF008000', 'Name': 'Pizza'}
{'Color': '#FFFFFFFF', 'Name': 'Hamburger'}
{'Color': '#FFF79646', 'Name': 'Chicken'}
x_input shape =  torch.Size([1, 3, 224, 224])
y_input shape =  torch.Size([1, 4])
x_input shape =  torch.Size([1, 3, 224, 224])
y_input shape =  torch.Size([1, 4])

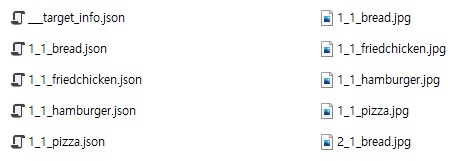

Strcture

Classification

• __target_info.json
  • File containing representative label information

[
    {
        "Color":"#FFFF0000",
        "Name":"Bread"

    },
    {
        "Color":"#FF008000",
        "Name":"Pizza"

    },
    {
        "Color":"#FFFFFFFF",
        "Name":"Hamburger"

    },
    {
        "Color":"#FFF79646",
        "Name":"Chicken"

    }
]

• (each file).json
  • A file containing user-labeled information about an image.

{
    "FileName":"1_1_bread.jpg",
    "FilePath":"C:\\Users\\Fiat\\Desktop\\food\\1_1_bread.jpg",
    "ClassCollection":[
        {
            "Color":"#FFFF0000",
            "Name":"Bread"

        }
    ]

}

TOP
