flakemap

Find the failures that green retries hide. Inspect JUnit history locally, down to the failed attempts and source records.

CI can turn green after a test fails twice and passes on its third attempt. Surefire preserves those failures as <flakyFailure> records, but a reader that only looks for <failure> sees an ordinary pass. Flakemap keeps the failed attempts, distinguishes retry recovery from final failure rate, and lets you inspect the source file and testcase behind each finding.

Give it one report to inspect retries, or a history of reports to rank intermittent failures, compare runners, and look for regressions. Duplicate identifiers and conflicting shard metadata stay visibly excluded instead of becoming extra statistical samples. Reports are local, self-contained files, with no CI-provider account or service required. It pairs with the same author's logdelta (diff logs from a failing CI run against known-good baselines) once you know which test to look at.

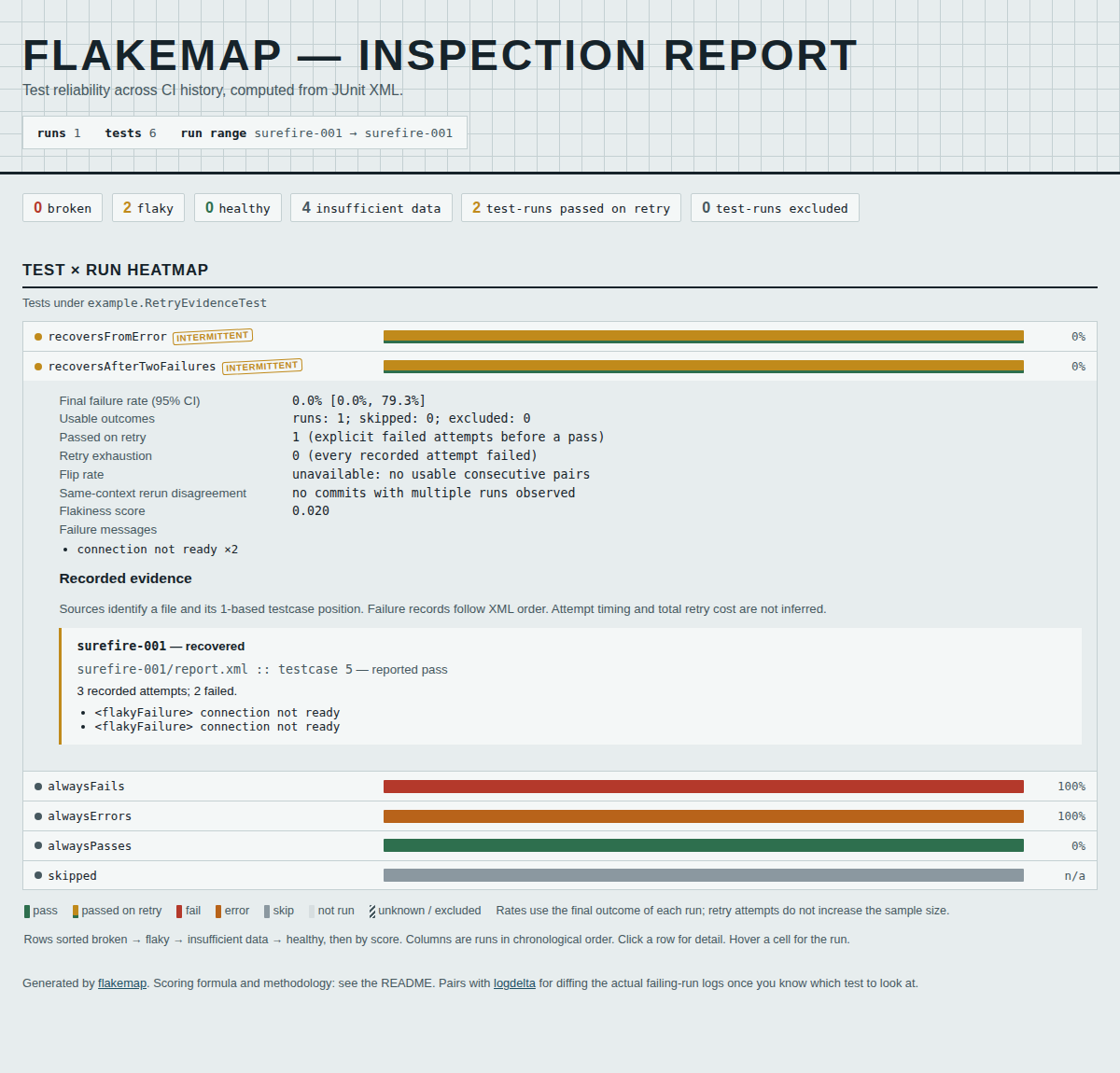

What a green result can hide

uv run flakemap examples/retry_history --html retry-report.html
uv run flakemap examples/retry_history --json --fail-on-retry > retry-report.json

The second command writes valid JSON and exits 1: two tests in this fixture passed only after failures. The fixture was produced by Maven Surefire 3.5.4 running the included Java tests, with controlled failures. It is not evidence about a production project's reliability.

The XML's suite counter says 13 tests; there are 6 testcases, including an ordinary pass and a skip. Attempt totals do not become sample sizes. One reported recovery is direct evidence of a passed-on-retry result, but one run cannot estimate its long-term frequency precisely. The exhausted cases therefore remain insufficient_data, rather than being labeled permanently broken.

Retry inspection is in the CLI and in every generated HTML report. The hosted demo's pytest history contains no retries, so the retry view shows up only in reports built from retry data, like the commands above.

Quickstart

$ git clone https://github.com/antonsoo/flakemap && cd flakemap
$ uv sync
$ uv run flakemap examples/demo_project/runs

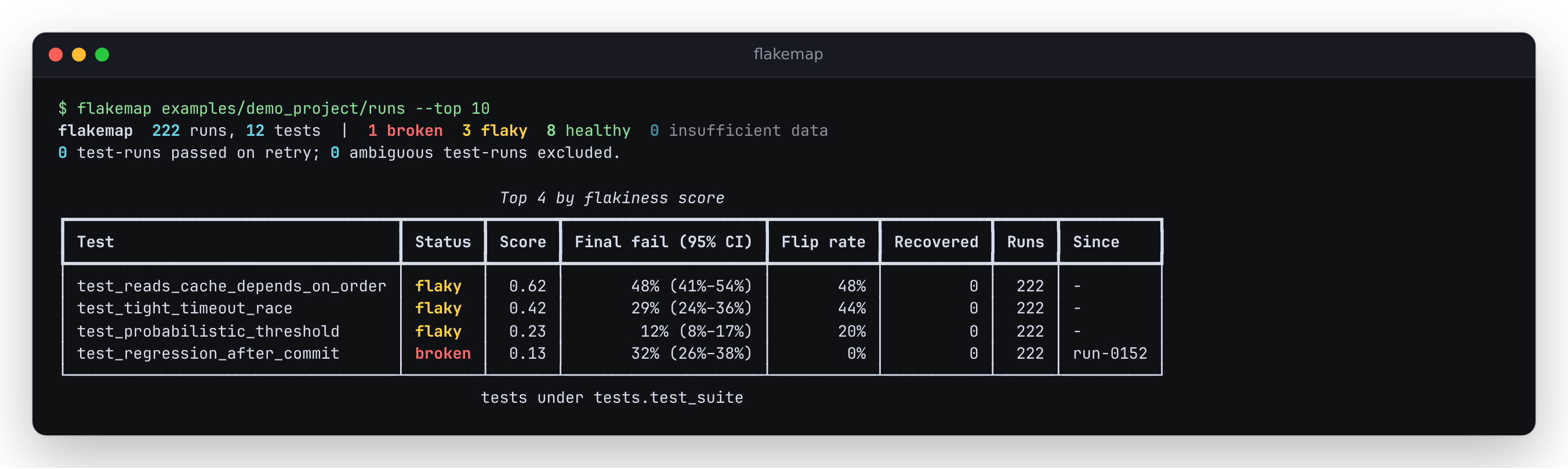

That last command analyzes the ~220 real pytest runs committed in this repo (see Honest real demo data) and prints the terminal report below -- no setup, no fixtures to write yourself. To use it on your own reports, install it from PyPI: pip install flakemap, or run it without installing: uvx flakemap path/to/reports.

Features

• JUnit XML parsing: pytest, Jest (jest-junit), and Maven Surefire checked against real tool output; Gradle merged retries and go-junit-report supported against their documented formats.
• .NET TRX: dotnet test --logger trx output (MSTest, xUnit, NUnit), checked against twelve real MSTest runs in examples/trx_history. Data rows stay separate tests, and each file's own start time orders the runs. Malformed and truncated files degrade to a warning, never a crash. Details and sources: docs/formats.md.
• Retry evidence: explicit recovered and exhausted attempts, source file and testcase positions, failure messages, and a separate recovered-run count. Retries never inflate the per-run failure-rate denominator.
• Input integrity: duplicate test identifiers and inconsistent run metadata are excluded with inspectable records. Warnings survive JSON, Markdown, and HTML export. --fail-on-incomplete makes these omissions fail a CI check.
• Run metadata (commit, branch, timestamp, runner, OS) from a sidecar JSON, a directory-per-run layout, or file mtime as a last resort.
• Per-test statistics: Wilson-interval failure rate, flip rate, same-commit rerun disagreement (the "failed then passed on identical code" signal), a documented flakiness score, single change-point detection, duration trend, duration-vs-failure correlation, and per-runner/per-OS failure rate breakdowns.
• Classification: broken (consistently failing since a commit) vs. flaky (intermittent) vs. healthy vs. insufficient_data, plus grouping by suite/module.

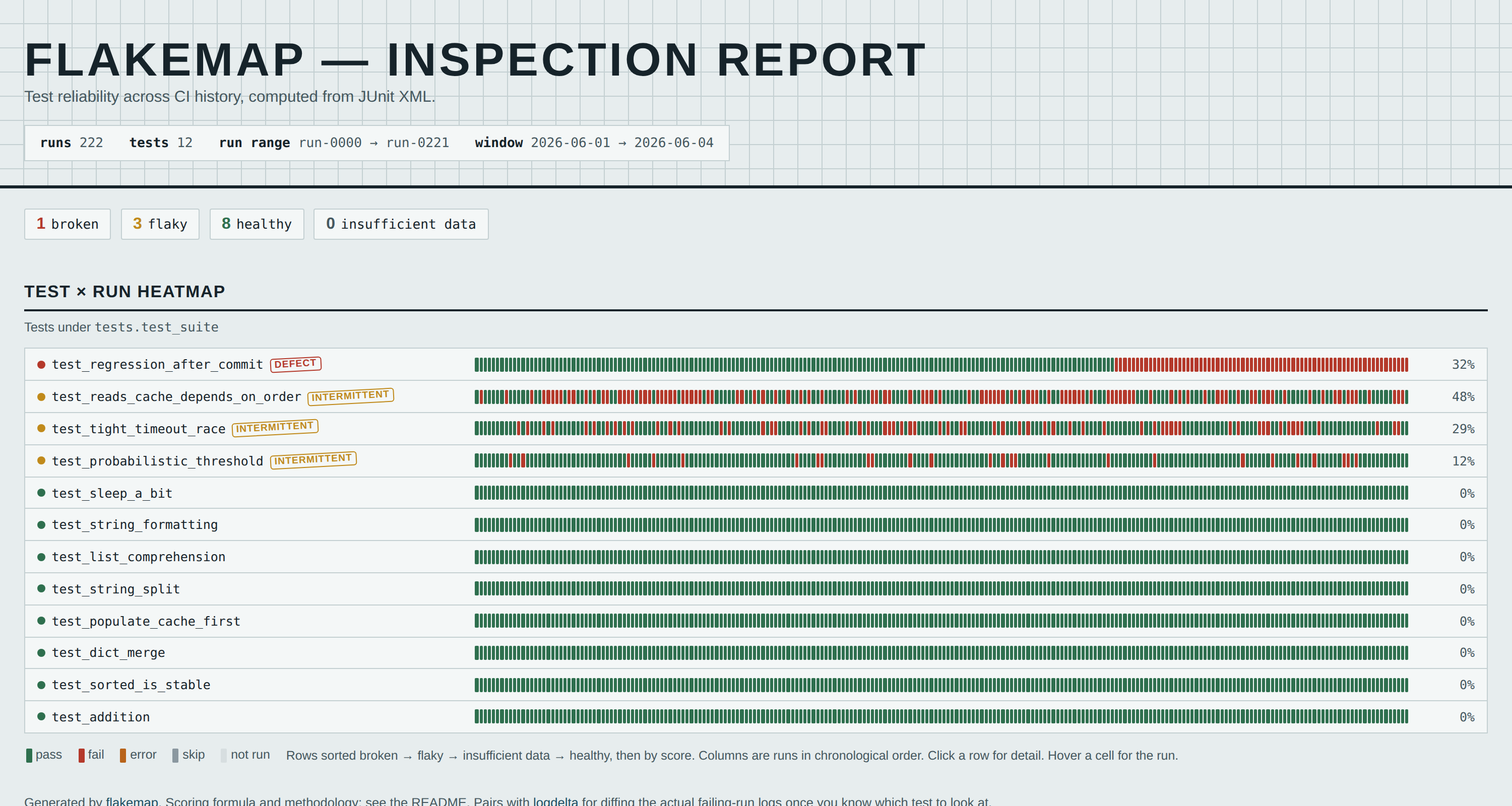

• Outputs: a rich terminal report, --json, --markdown for PR comments, and a self-contained --html report with a test x run heatmap, per-test detail, and failure-message clustering.
• --fail-on-new-flake for CI gating: exit 1 if a test's change-point falls inside a trailing window and it's classified flaky or broken.
• --fail-on-retry exits 1 for any explicitly recovered test in the supplied history, including a single run. Pass only the current run when gating a build.

Usage

$ flakemap examples/demo_project/runs --top 10

$ flakemap examples/demo_project/runs --json | jq '.tests[0]'
$ flakemap examples/demo_project/runs --markdown > flake-report.md   # for a PR comment
$ flakemap examples/demo_project/runs --html report.html            # self-contained, open in a browser
$ flakemap examples/demo_project/runs --fail-on-new-flake; echo "exit: $?"

Click any row in the HTML report to expand its full statistics (see docs/assets/heatmap-detail.png for a worked example); hover a cell for that run's id, commit, duration, and failure message. It respects prefers-color-scheme for dark mode and has zero external requests -- open it from a CI artifact zip with no network.

How it works

Full formulas and citations are in the module docstrings (src/flakemap/stats/); this is the summary.

• Final failure rate: fails / (pass + fail + error), one outcome per test per run. Skips, ambiguous duplicates, and contradictory outcomes are excluded. A passed-on-retry test remains a final pass, with its recovery counted separately. The rate is reported with a Wilson score interval (Wilson, E.B., 1927, "Probable Inference, the Law of Succession, and Statistical Inference," JASA 22(158):209-212) rather than a plain Wald interval, because Wald intervals can extend past [0, 1] and have poor coverage exactly where most tests live: small samples, rates near 0 or 1.
• Flip rate: the fraction of consecutive observed, non-skipped outcome pairs that changed (pass -> fail or fail -> pass). Unknown outcomes break pairs; absent tests and skips are not observations. flip_pairs gives the denominator.
• Same-context rerun disagreement: group by commit, branch, runner and OS; among groups with 2+ runs, report the fraction with both a pass and a failure. This avoids treating a Linux pass and a Windows failure as a rerun on the same environment. Unrecorded configuration can still differ (cf. Lam et al., "iDFlakies: A Framework for Detecting and Partially Classifying Flaky Tests," ICST 2019, which uses repeated execution on a fixed revision as the ground-truth signal for flakiness).
• Flakiness score (0-1, a heuristic, not a literature standard): confidence * (0.4 * flip_rate + 0.4 * max(rerun_signal, recovered_runs/n) + 0.2 * intermittency), where intermittency = 2 * min(p, 1-p) (0 when always-pass or always-fail, 1 at p=0.5) and confidence = min(1, n/20) shrinks the score for small samples to reduce their influence on the ranking. Recovery is based only on explicit retry markers; its observed frequency is not an estimate of unreported retries. No retry markers means no change to the previous score formula.
• Change point: a single-change-point likelihood-ratio detector for a Bernoulli sequence (see Chen, J. & Gupta, A.K., Parametric Statistical Change Point Analysis, 2nd ed., Birkhauser, 2012, ch. 3) -- the split that best explains the run history as two constant-rate segments instead of one, subject to a minimum segment length (3), a minimum rate shift (0.2), and a significance threshold on the likelihood-ratio statistic (13.8). Scanning every split always finds a best one, even in a test that has failed at the same rate all along; the threshold is the statistic's approximate 99th percentile under no change, from simulation over 50-1000 runs and 5-50% failure rates (scripts/changepoint_null.py prints the table). A steadily flaky test now reports a change about 1% of the time, where before the threshold it was up to half the time, and one in its last 10 runs 12-16% of the time (the window --fail-on-new-flake gates on). The price is sensitivity to small, recent shifts: a test going from 0% to 20% failures in its last 10 runs is caught about half the time. The selected split is not proof of the cause or onset.
• Duration signals: an OLS trend (seconds per run) and the point-biserial correlation between duration and outcome (Tate, R.F., 1954, "Correlation Between a Discrete and a Continuous Variable," Annals of Mathematical Statistics 25(3):603-607) -- the signature of a timeout-driven flake is a positive correlation (failures ran longer). Retry-bearing records are excluded: Surefire's time describes a single attempt, not the retry cost. Missing/invalid durations stay unknown; trend is per usable duration observation, which may skip runs.
• Runner/OS correlation: per-category Wilson intervals rather than a chi-square p-value. With the handful of runners and modest per-category sample sizes typical of a CI matrix, a hypothesis test would overstate precision; a report should show the spread and let a non-overlapping interval speak for itself.
• Classification: an explicit recovered retry is labeled flaky, even from one run. Otherwise (src/flakemap/stats/analyze.py::_classify), fewer than 5 observations -> insufficient_data. Zero failures and zero flips -> healthy. A significant change point with a post-change failure rate >= 75% (and no rerun disagreement) -> broken; this comes before the flip rate, because in a short history the one pass-to-fail switch of a regression is itself a flip rate over 8%. Flip rate > 8% or any rerun disagreement -> flaky. An overall failure rate >= 60% -> broken. Any remaining failures -> flaky. These thresholds are documented, not tuned against a labeled corpus beyond the synthetic one below -- treat them as a reasonable default, not a calibrated model. Excluded outcomes prevent a healthy label and suppress change-point inference for that test. The confidence interval measures final-failure frequency, not confidence in the classification or a claim about the cause.

Honest real demo data

examples/demo_project/ is a small synthetic pytest suite (tests/test_suite.py) with planted, documented failure patterns: a timing race against a tight budget, random()-driven flakiness, a shared-mutable-state test that's order-dependent under pytest-randomly, a handful of always-passing tests, and one test that reliably regresses from a specific simulated commit onward (BUG_INTRODUCED_AT = 130). generate_demo_data.py runs that real suite 222 times (190 simulated commits, 32 with a same-commit rerun) with pytest-randomly reshuffling test order and reseeding random every run, tags roughly a quarter of runs as a slower macos-latest runner (a scripted constant delay added to real, measured sleeps -- see the script's docstring), and writes each run's real pytest --junitxml output plus a meta.json sidecar. The committed examples/demo_project/runs/ (~2.7 MB across 222 run directories, every file well under 1 MB) is that exact output; regenerate it yourself with uv run python examples/demo_project/generate_demo_data.py.

Nothing about the outcomes is scripted -- every pass/fail in the XML is a real pytest result. Running flakemap on that corpus recovers the planted ground truth:

Reproduce this table: uv run flakemap examples/demo_project/runs --json.

Accuracy and limitations

• Change points are calibrated approximately, not exactly. The significance threshold is one fixed value from simulation, so the false-positive rate on a constant-rate test varies from about 0% to 2% with history length and failure rate, and short histories are held to a stricter standard than they need. Both the "since" run and the classification are triage hints, not causal conclusions.
• Format coverage is explicit. The original basic Go/Surefire fixtures were hand-authored. Retry support now also has real Surefire output; Gradle's merged retry convention is checked against documentation, not a local Gradle run. See docs/formats.md for exactly what was and wasn't verified against real tool output.
• Unmerged retries are ambiguous. Repeated <testcase> identifiers can also mean parameter collisions or copied artifacts. Flakemap excludes them instead of assuming order or counting them as independent runs. For Gradle, enable mergeReruns; for CI job reruns or matrix variants, supply distinct run_ids.
• Reports can omit retry history. A clean-looking record proves only that no supported retry markers were present. No attempt times or causal diagnosis are reconstructed. Failure messages are limited to their first 500-character line; source pointers refer to testcase ordinals, not line numbers.
• mtime-ordered runs are only as reliable as the filesystem. A fresh git clone or artifact re-download can collapse many files to nearly the same mtime; flakemap warns when more than half a batch falls back to mtime, but a sidecar or directory-per-run layout is strongly preferred (see docs/formats.md).
• Message clustering is a digit-normalization heuristic (\d+ -> #), not semantic diffing -- it merges "timed out after 4123ms" variants but won't merge two differently-worded messages for the same root cause. That's closer to what logdelta does on the actual log content once you know which run to inspect.
• The flakiness score and classification thresholds are a documented heuristic, not fit against a labeled real-world corpus beyond the synthetic demo above. They're a reasonable default starting point for ranking, not a calibrated flakiness probability.
• This is an offline batch tool. It doesn't talk to any CI provider's API; you still need a step that collects JUnit XML as artifacts (see the CI recipe below).

CI recipe (example)

A weekly job that pulls the last N runs' JUnit XML artifacts and gates on new flakes. Adjust the artifact-collection step to your CI provider; this is GitHub Actions collecting pytest --junitxml output into a rolling directory of run artifacts, then running flakemap against it:

# .github/workflows/flakemap-weekly.yml (example -- adapt to your own artifact storage)
name: flakemap weekly
on:
  schedule:
    - cron: "0 6 * * 1"
  workflow_dispatch:
jobs:
  flake-report:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v7
      - uses: astral-sh/setup-uv@v10
        with: { python-version: "3.12" }
      # download-artifact (or your artifact store) into ci-runs/<run_id>/report.xml
      # each with a meta.json sidecar -- see docs/formats.md's convention.
      - run: uvx flakemap ci-runs/ --markdown >> "$GITHUB_STEP_SUMMARY"
      - run: uvx flakemap ci-runs/ --fail-on-new-flake --fail-on-incomplete

Use --fail-on-retry on a current-run artifact to gate on observed retry recovery. Exit codes: 0 report completed with no requested gate hit; 1 a requested flake/retry gate hit; 2 an input/output error, no usable outcomes, or an incomplete report with --fail-on-incomplete. Code 2 takes precedence. Diagnostics go to stderr, so --json --html report.html --fail-on-retry still emits one valid JSON document on stdout. JSON schema version 2 includes retry and excluded-record evidence.

Contributing

See CONTRIBUTING.md. Tests, lint (ruff), format (ruff format), and typecheck (mypy --strict) all run via uv run; no network access is needed beyond uv sync.

License

MIT (c) 2026 Anton Soloviev.
