flexft 0.1.1

Flexible-grid approximations to continuous Fourier transforms

FlexFT

FlexFT evaluates finite-sum approximations to continuous Fourier transforms (CFTs) on uniform input and output grids whose spacings can be chosen independently. It uses the Bailey-Swarztrauber fractional DFT/Bluestein convolution, implemented with JAX FFTs.

For samples f(x) on

x[n] = x0 + (n - floor(N / 2)) * dx

the forward transform flexft(f, dx=dx, dk=dk, x0=x0, k0=k0) returns approximations on

k[m] = k0 + (m - floor(N / 2)) * dk.

Computational cost

flexft uses Bluestein's algorithm to rewrite the discretised CFT approximation as a linear convolution, then evaluates that convolution with FFTs. A one-shot transform currently needs two forward FFTs and one inverse FFT, each of length 2N, where N is the number of samples.

The asymptotic complexity is therefore the same as an FFT, but with a larger constant prefactor. When the convolution kernel is precomputed by reusing a FlexFT plan, each subsequent transform needs only one forward FFT and one inverse FFT of length 2N.

Installation

pip install flexft

The quick-start plot below also uses Matplotlib.

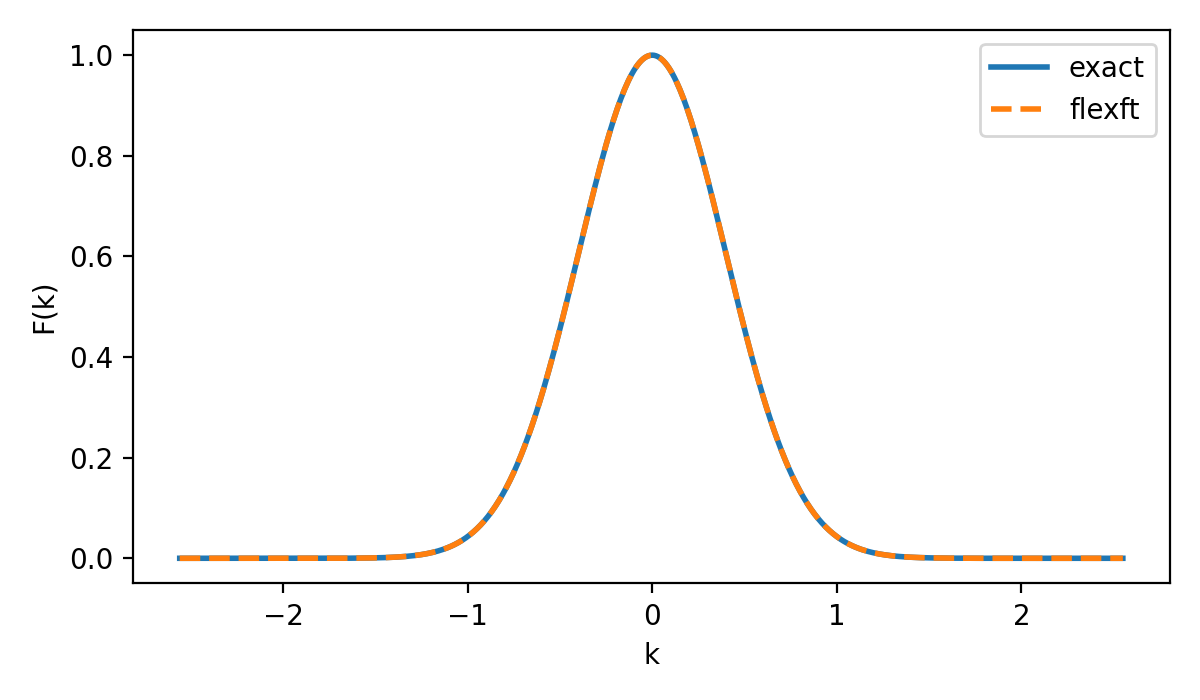

Quick start

import jax.numpy as jnp
import matplotlib.pyplot as plt
from flexft import flexft

N = 512
dx = 0.04
dk = 0.01

x = (jnp.arange(N) - N // 2) * dx
k = (jnp.arange(N) - N // 2) * dk

# With the convention F(k) = integral f(x) exp(-i 2 pi k x) dx,
# exp(-pi x^2) is its own continuous Fourier transform.
f = jnp.exp(-jnp.pi * x**2)
F_flexft = flexft(f, dx=dx, dk=dk)
F_exact = jnp.exp(-jnp.pi * k**2)

fig, ax = plt.subplots(figsize=(6, 3.5))
ax.plot(k, F_exact, label="exact", linewidth=2)
ax.plot(k, F_flexft.real, "--", label="flexft", linewidth=2)
ax.set(xlabel="k", ylabel="F(k)")
ax.legend()
fig.tight_layout()
fig.savefig("docs/assets/readme-quick-start.png", dpi=200)

Omit dk in the forward transform to use the FFT-compatible spacing 1 / (N * dx). Conversely, omit dx in the inverse transform to use 1 / (N * dk).

For repeated transforms with unchanged grids, construct and reuse FlexFT or IFlexFT; this reuses the precomputed convolution kernel.

Documentation

Read the full documentation for the derivation, shifted grids, 2D transforms, API reference, and more examples.
