flexlayout-dash

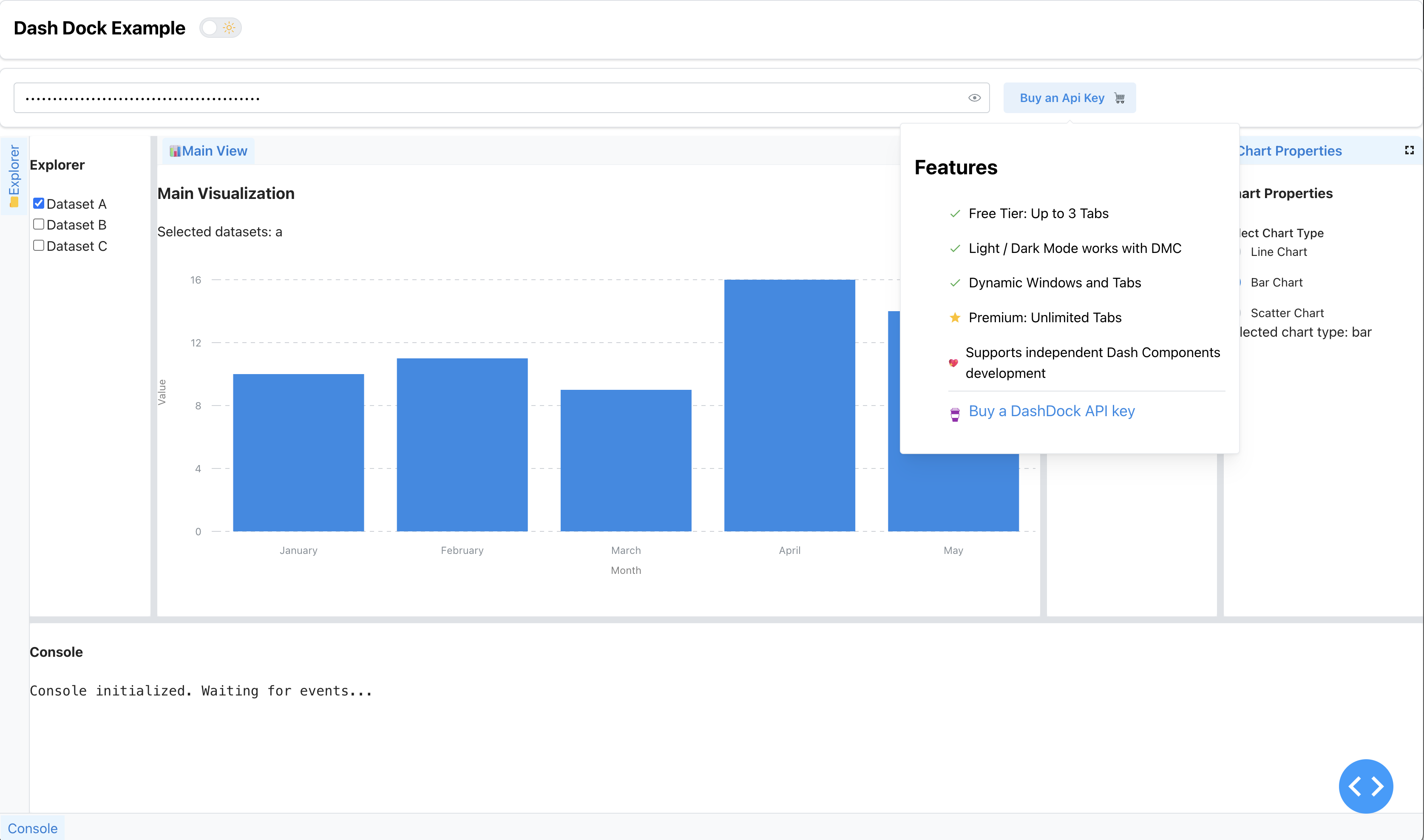

IDE-style dockable, resizable and floatable window panels for Plotly Dash.

Drag tabs between tabsets · split rows and columns · collapsible edge borders · maximize · pop out into a real browser window · automatic Mantine light/dark theming · full Dash callback interoperability.

Documentation · PyPI · Discord · GitHub

Maintained by Pip Install Python LLC.

Overview

Dash gives you one page. flexlayout-dash gives you a workspace: a dock where every panel is a tab the user can drag, split, resize, collapse into an edge border, maximize, or tear off into its own browser window — the layout model a code editor or a trading terminal has, driven entirely from Python.

It wraps FlexLayout-React, and the part that makes it usable from Dash is how tab content is rendered:

• Portal-based rendering. FlexLayout owns the panel DOM, but each Tab's children are rendered through a React portal from the Dash tree. Your components keep their real identity, so ordinary @callbacks work inside a panel — including one that is currently hidden behind another tab, docked in a collapsed border, or popped out into a separate window.
• Content is matched by id, not by position. A Tab(id="editor") fills the {"type": "tab", "id": "editor"} node wherever it currently lives in the model. Dragging a tab to a different tabset never re-mounts its content and never breaks its callbacks.
• Theme follows Mantine automatically. With no colorScheme prop the component reads data-mantine-color-scheme off the document and re-styles itself, so a Dash Mantine Components theme toggle drives the dock for free.

The package ships the compiled JS bundle — FlexLayout-React and the theme CSS all live inside flexlayout_dash.min.js. A normal pip install needs no Node and no external_scripts.

One build, no tiers. There is no tab limit, no licence-key check and no paid edition — the whole component is MIT. Releases up to 1.0.0 were described on PyPI as a free build "limited to 3 tabs" alongside a premium one; that split no longer exists anywhere in the package or the compiled bundle.

Installation

pip install flexlayout-dash

The import name matches the distribution: import flexlayout_dash. (Releases before 2.0.0 imported as dash_flex_layout; that name is gone.)

Quick Start

from dash import Dash, html
import flexlayout_dash as dfl

app = Dash(__name__)

model = {
    "global": {"tabEnableClose": False, "tabEnableFloat": True},
    "layout": {
        "type": "row",
        "children": [
            {"type": "tabset", "weight": 50, "children": [
                {"type": "tab", "name": "Editor", "id": "editor"},
            ]},
            {"type": "tabset", "weight": 50, "children": [
                {"type": "tab", "name": "Output", "id": "output"},
            ]},
        ],
    },
}

app.layout = html.Div([
    dfl.DashFlexLayout(
        id="dock",
        model=model,
        useStateForModel=True,
        # REQUIRED — the dock has no intrinsic height. See below.
        style={"height": "600px"},
        children=[
            dfl.Tab(id="editor", children=html.H3("Editor panel")),
            dfl.Tab(id="output", children=html.H3("Output panel")),
        ],
    ),
])

if __name__ == "__main__":
    app.run(debug=True)

Drag the Output tab onto the left panel and the two become one tabset. Drag it to an edge and the dock splits. Neither re-mounts the content.

The height requirement

Set an explicit height in the component's own style. FlexLayout renders its panels with position: absolute; .dash-dock-container is position: relative with overflow: hidden and has no height of its own, so without one it collapses to zero and nothing renders.

# ✓ height on the component itself — style is applied to .dash-dock-container
dfl.DashFlexLayout(..., style={"height": "600px"})

# ✗ height on an outer wrapper — the container still collapses
html.Div(dfl.DashFlexLayout(...), style={"height": "600px"})

"100%", "70vh" and "calc(100vh - 60px)" all work, as long as the value lands on the component.

Documentation

Full documentation, with a live interactive dock on every page:

📚 flexlayout.2plot.dev

Every page also serves /<page>/llms.txt — the prose plus the complete example source, directive-expanded and ready to paste into a chat window. The whole site is at /llms.txt.

Run the docs locally:

pip install -r requirements.txt
pip install --no-deps markdown2dash==0.1.2   # see requirements.txt: gunicorn CVE pin
python run.py                          # http://localhost:8055

run.py sits beside the built flexlayout_dash/, so that local build is what the docs exercise — no install step, and edits to the component show up on the next reload. The site needs Python 3.10+; the package does not.

Components

Two components. DashFlexLayout is the dock; Tab holds one panel's content.

DashFlexLayout

Tab

The generated prop tables — including the complete nested model schema, which is large — live in the flexlayout_dash/DashFlexLayout.py docstring and are rendered on the reference page.

The model

model = {
    "global": {                 # defaults applied to every node
        "tabEnableClose": False,
        "tabEnableFloat": True,
    },
    "borders": [                # collapsible edge panels
        {"type": "border", "location": "left", "size": 240, "children": [
            {"type": "tab", "name": "Files", "id": "files"},
        ]},
    ],
    "layout": {                 # the dock itself
        "type": "row",          # "row" | "column"
        "weight": 100,
        "children": [
            {"type": "tabset", "weight": 60, "children": [
                {"type": "tab", "name": "Chart", "id": "chart"},
            ]},
        ],
    },
}

• row lays children out horizontally, column vertically; nest them for any split arrangement.
• weight is a share, not a pixel size — siblings divide the space in proportion.
• Every tab node needs an id, and that id is the contract with Tab.

The data boundary

• model round-trips. The user drags a tab, the component writes the new model back to model, and a callback with Input("dock", "model") sees the rearrangement. Push a new model in from Python and the dock re-arranges to match.

• useStateForModel decides who owns the layout. True keeps the model in the component, so drags are instant and never wait on a callback — the right default for a UI the user rearranges freely. False makes Python the owner, which is what you want when the layout is computed, persisted, or restored.

• modelAction changes the layout without replacing it. Writing a whole new model is the blunt instrument: under useStateForModel=True it is ignored outright, and otherwise it re-mounts every tab. modelAction applies a single FlexLayout action to the live model, so sibling panels keep their DOM and their state:

  @callback(Output("dock", "modelAction"), Input("open-editor", "n_clicks"))
  def open_editor(n):
      return {
          "type": "addNode", "nonce": n,          # nonce MUST change to fire
          "json": {"type": "tab", "name": "Editor", "id": "editor"},
          "toNodeId": "main-tabset", "select": True,
      }


  Types: addNode, deleteTab, selectTab, renameTab, updateNodeAttributes, adjustWeights. nonce guards against a re-render re-applying the same action, and addNode with an id already in the model selects that tab instead of raising. Keep the Tab children for dynamically-added tabs in children permanently — a Tab whose id is not in the model is simply not rendered, so addNode / deleteTab control visibility on their own.

• Hidden panels stay live. A tab behind another tab, in a collapsed border, or popped out is still mounted in the Dash tree, so its callbacks keep firing and its dcc.Store keeps its data. Nothing needs re-hydrating when the user brings it back.

• Only JSON crosses the boundary. The FlexLayout instance and the panel DOM stay in the browser.

Dash compatibility

Verified, not assumed. scripts/compat_matrix.py builds a throwaway virtualenv per Dash version, installs the documentation site into each, and runs the smoke suite there:

python scripts/compat_matrix.py                     # 4.1.0, 4.2.0, 4.3.0, 4.4.1
python scripts/compat_matrix.py 4.4.1 --component-only
python scripts/compat_matrix.py --report COMPATIBILITY.md

Results land in COMPATIBILITY.md. The same harness runs on every push in .github/workflows/ci.yml, across the Dash matrix and across Python 3.9–3.13 against the built wheel.

The per-version harness is scripts/smoke_test.py, which also runs standalone:

python scripts/smoke_test.py              # component + documentation site
python scripts/smoke_test.py --component  # component only

It checks that flexlayout_dash imports, that its JS bundle shipped and every _js_dist entry resolves, and that a dock model with a row, a tabset and a border survives Dash's JSON encoder — then that every markdown page registered a route with no duplicate paths, that every page layout builds and serialises, and that every route plus /_dash-layout, /_dash-dependencies, /healthz, /llms.txt, /robots.txt and /sitemap.xml answers over Flask's test client. No socket, no browser.

It does not verify that FlexLayout paints panels in a real browser. That layer is exercised by hand against the documentation site.

Development

# Install dependencies
npm install                              # TypeScript + webpack toolchain
pip install -r requirements.txt          # docs-site + build deps
pip install --no-deps markdown2dash==0.1.2   # second command on purpose — see requirements.txt

# Build the JS bundle + regenerate the Python wrappers
npm run build                            # webpack bundle + dash-generate-components
npm run build:js                         # webpack only (after .tsx edits)
npm run build:backends                   # regenerate Python classes only

# Run
python run.py                            # documentation site → http://localhost:8055

# Test
python scripts/smoke_test.py
python scripts/check_release.py          # version drift, stale bundle, packaging

# Build a distribution
python -m build                          # → dist/*.tar.gz + *.whl

• TypeScript source of truth is src/lib/ — components/DashFlexLayout.tsx and components/Tab.tsx are the public surface; utils/dash3.ts is the Dash 2/3 compatibility shim and utils/theme.ts the Mantine bridge; styles/theme.css carries the dock CSS.
• After editing src/lib/**/*.tsx you must npm run build — the Python classes and the JS bundle are generated artifacts, and both are committed so pip install -e . works without npm.
• ⚠️ flexlayout_dash/__init__.py is hand-maintained. On a build where that file is absent, dash's R-package generator dies with a TypeError in generate_js_metadata after writing the Python components but before writing __init__.py, leaving the package unimportable. With the file already present the generator completes normally (verified 2026-07-29) — so this is an initial-build hazard, not an every-build one. Never delete it: it must set package_name = 'flexlayout_dash' and register flexlayout_dash.min.js in _js_dist. scripts/check_release.py asserts both.
• The version lives in pyproject.toml — that is what the wheel is named. Three files must agree with it: package.json (which dash-generate-components copies into flexlayout_dash/package-info.json, the file flexlayout_dash.__version__ actually reads at runtime) and lib/constants.py. Run scripts/check_release.py after any bump — a drift produces a wheel that installs cleanly and reports the wrong version, which is exactly the kind of thing no test catches.
• The CSS classes dash-dock-container / dash-dock-light / dash-dock-dark are load-bearing public API from the project's former name and must not be renamed.

Releasing

Push a v* tag. .github/workflows/release.yml verifies the tag matches package.json, runs the release checks and the smoke suite, builds, publishes to PyPI via OIDC trusted publishing (no stored token), and opens a GitHub Release with that version's CHANGELOG.md section.

Documentation site

The docs site lives at the repo root — run.py, docs/, pages/, lib/, components/, templates/, assets/ — the same layout as every other *.2plot.dev satellite. Each page is a docs/<slug>/<slug>.md with frontmatter plus a docs/<slug>/example.py exporting a component; pages/markdown.py walks them and registers each as a Dash page. .. exec:: embeds a live demo, .. source:: renders the example source, .. toc:: builds the aside, and .. kwargs::flexlayout_dash.DashFlexLayout generates the prop table. Adding a page is one file and no routing code.

The deployed site at flexlayout.2plot.dev also runs as a 2plot network satellite — a cross-host directory, an ad slot and traffic rollups. All are dormant without their environment keys, so a local python run.py is just the docs. See DEPLOYMENT.md.

Requirements

• Python >= 3.9
• Dash >= 4.1
• Node.js >= 16 — only to rebuild the JS bundle

The package needs only Python 3.9+ and Dash 4.1+; every combination in that range is verified in CI. Running the documentation site from source additionally needs Python 3.10+, because python-frontmatter imports typing.TypeGuard. That floor does not apply to pip install flexlayout-dash.

Community & support

• 💬 Discord — discord.gg/WEnZR35mrK
• ▶️ YouTube — @pipinstallpython
• 🐛 Issues — github.com/pip-install-python/dash-flex-layout/issues

More from Pip Install Python LLC

flexlayout-dash is one of several tools built and maintained by Pip Install Python LLC:

License

MIT — see LICENSE. Built by Pip Install Python LLC to bring a real docking workspace into the Dash framework.
