frappeviz 0.0.2

Python app for visualizing class diagrams for a Frappe Framework App using PlantUML

Frappe App Visualizer

A python app for visualizing class diagrams of a Frappe App's doctypes using PlantUML

Dependencies

• Python 3
• PlantUML

Installation

$ pip install frappeviz

Usage

Command Line

$ frappeviz [-h] [--output output-dir] [--format {txt,img,all}]
                 frappe-app-directory

Example

$ frappeviz path/to/frappe/app/dir -o /path/to/output/dir -f img

Module

>>> from frappeviz import generate_uml
>>> generate_uml('path/to/frappe/app/dir', '/path/to/output/dir' 'img')

Arguments

• -h: help
• --output / -o: output directory
• --format / -f: Output format (txt | img | all)
• frappe directory

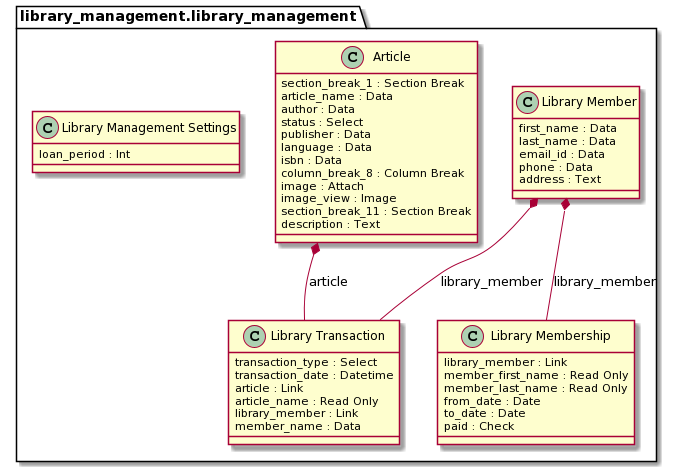

The UML for each module in the app is generated in separate files (PlantUML text and .png images) that shares the same name as the app's respective modules.

Supported Environment

Tested on the following OS:

• Ubuntu OS
• macOS
