This release is a pre-release and may not be stable for production use.
What's New: GemPy 2026.0.3 — June 2026
GemPy 2026.0.3 is the latest stable release of GemPy v3. It brings together matching releases of gempy, gempy_engine, and gempy_viewer, with updates across model setup, serialization, octree handling, PyTorch support, visualization, and example models.
For the full release notes, see the GemPy 2026.0.3 release. For background on the GemPy v3 transition, see What's New in GemPy v3.
GemPy v2 remains available as gempy_legacy for users who still depend on previous workflows. The core team is not developing new features for this version, but maintenance can continue based on community needs.
Overview
GemPy is a Python-based, open-source geomodeling library. It is capable of constructing complex 3D geological models of folded structures, fault networks and unconformities, based on the underlying powerful implicit representation approach.
Installation
We provide the latest release version of GemPy via PyPi package services. We highly recommend using PyPi,
$ pip install gempy[base]
Resources
After installation, you can either check the notebook tutorials or the video introduction to get started.
Go to the documentation site for further information and enjoy the tutorials and examples.
For questions and support, please use discussions.
If you find a bug or have a feature request, create an issue.
Follow these guidelines to contribute to GemPy.

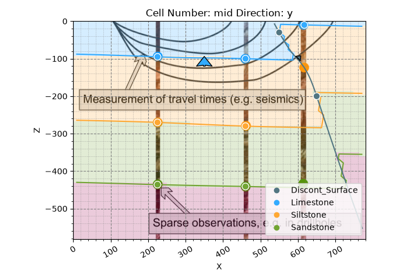

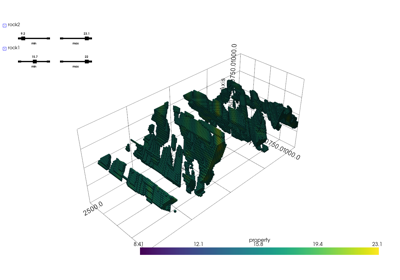

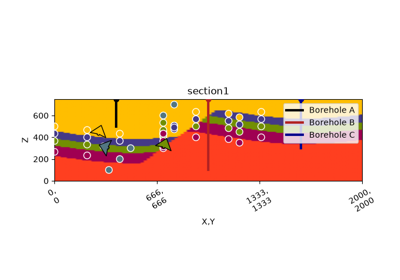

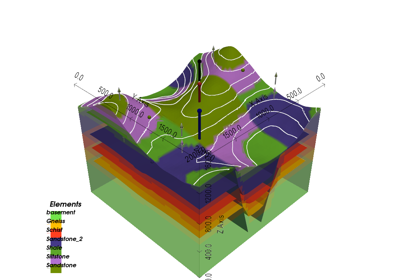

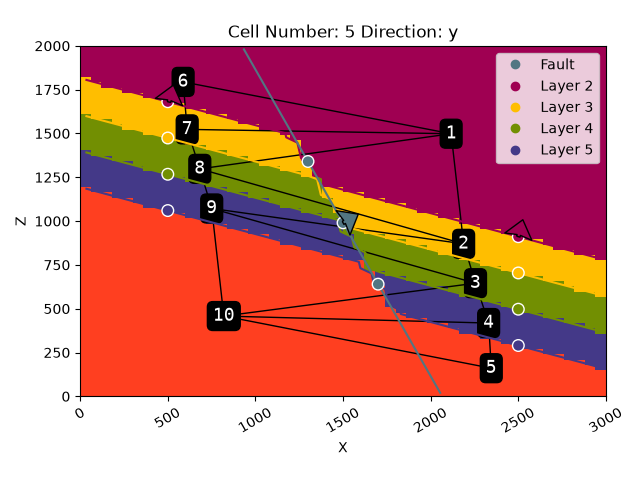

Gallery
Geometries
|
|
|
|
|
|
Features
|
|
|
|
|
|
Case studies
|
|
|
Publications using GemPy
-
Montaño-Caro, J.C. & Morales-Casique, E. (2026). Implicit 3D structural geological modeling of the Mexico Basin: a scalable and reproducible open-source workflow. Earth Science Informatics, 19, 12.
-
Marquetto, L., Jüstel, A., Troian, G.C., Reginato, P.A.R & Simões, J.C. (2024). Developing a 3D hydrostratigraphical model of the emerged part of the Pelotas Basin along the northern coast of Rio Grande do Sul state, Brazil. Environmental Earth Sciences, 83, 329.
-
Brisson, S., Wellmann, F., Chudalla, N., von Harten, J., & von Hagke, C. (2023). Estimating uncertainties in 3-D models of complex fold-and-thrust belts: A case study of the Eastern Alps triangle zone. Applied Computing and Geosciences, 18, 100115.
-
Liang, Z., de la Varga, M., & Wellmann, F. (2023). Kernel method for gravity forward simulation in implicit probabilistic geologic modeling. Geophysics, 88(3), G43-G55.
-
Kong, S., Oh, J., Yoon, D., Ryu, D. W., & Kwon, H. S. (2023). Integrating Deep Learning and Deterministic Inversion for Enhancing Fault Detection in Electrical Resistivity Surveys. Applied Sciences, 13(10), 6250.
-
Thomas, A. T., Micallef, A., Duan, S., & Zou, Z. (2023). Characteristics and controls of an offshore freshened groundwater system in the Shengsi region, East China Sea. Frontiers in Earth Science, 11, 1198215.
-
Haehnel, P., Freund, H., Greskowiak, J. & Massmann, G. (2023) Development of a three-dimensional hydrogeological model for the island of Norderney (Germany) using GemPy. Geoscience Data Journal, 00, 1–17.
-
Jüstel, A., de la Varga, M., Chudalla, N., Wagner, J. D., Back, S., & Wellmann, F. (2023). From Maps to Models-Tutorials for structural geological modeling using GemPy and GemGIS. Journal of Open Source Education, 6(66), 185.
-
Thomas, A. T., von Harten, J., Jusri, T., Reiche, S., Wellmann, F. (2022). An integrated modeling scheme for characterizing 3D hydrogeological heterogeneity of the New Jersey shelf. Marine Geophysical Research, 43, 11.
-
Sehsah, H., Eldosouky, A. M., & Pham, L. T. (2022). Incremental Emplacement of the Sierra Nevada Batholith Constrained by U-Pb Ages and Potential Field Data. The Journal of Geology, 130(5), 381-391.
-
von Harten, J., de la Varga, M., Hillier, M., Wellmann, F. (2021). Informed Local Smoothing in 3D Implicit Geological Modeling. Minerals 2021, 11, 1281.
-
Schaaf, A., de la Varga, M., Wellmann, F., & Bond, C. E. (2021). Constraining stochastic 3-D structural geological models with topology information using approximate Bayesian computation in GemPy 2.1. Geosci. Model Dev., 14(6), 3899-3913. doi:10.5194/gmd-14-3899-2021
-
Güdük, N., de la Varga, M. Kaukolinna, J. and Wellmann, F. (2021). Model-Based Probabilistic Inversion Using Magnetic Data: A Case Study on the Kevitsa Deposit, Geosciences, 11(4):150.
-
Wu, J., & Sun, B. (2021). Discontinuous mechanical analysis of manifold element strain of rock slope based on open source Gempy. In E3S Web of Conferences (Vol. 248, p. 03084). EDP Sciences.
-
Stamm, F. A., de la Varga, M., and Wellmann, F. (2019). Actors, actions, and uncertainties: optimizing decision-making based on 3-D structural geological models, Solid Earth, 10, 2015–2043.
-
Wellmann, F., Schaaf, A., de la Varga, M., & von Hagke, C. (2019). From Google Earth to 3D Geology Problem 2: Seeing Below the Surface of the Digital Earth. In Developments in Structural Geology and Tectonics (Vol. 5, pp. 189-204). Elsevier.
Please let us know if your publication is missing!
A continuously growing list of gempy-applications (e.g. listing real-world models) can be found here.
References
- de la Varga, M., Schaaf, A., and Wellmann, F. (2019). GemPy 1.0: open-source stochastic geological modeling and inversion, Geosci. Model Dev., 12, 1-32.
- Wellmann, F., & Caumon, G. (2018). 3-D Structural geological models: Concepts, methods, and uncertainties. In Advances in Geophysics (Vol. 59, pp. 1-121). Elsevier.
- Calcagno, P., Chilès, J. P., Courrioux, G., & Guillen, A. (2008). Geological modelling from field data and geological knowledge: Part I. Modelling method coupling 3D potential-field interpolation and geological rules. Physics of the Earth and Planetary Interiors, 171(1-4), 147-157.
- Lajaunie, C., Courrioux, G., & Manuel, L. (1997). Foliation fields and 3D cartography in geology: principles of a method based on potential interpolation. Mathematical Geology, 29(4), 571-584.
