gen-avr8 2.6.3

Python package for generation of AVR8 project

AVR project skeleton generator

gen_avr8 is tool for generation of AVR8 project skeleton for development of embedded applications.

Developed in python code.

The README is used to introduce the tool modules and provide instructions on how to install the tool modules, any machine dependencies it may have and any other information that should be provided before the modules are installed.

Table of Contents

• Installation
  • Install using pip
  • Install using build
  • Install using py setup
  • Install using docker
• Dependencies
• Usage
• Supported MCUS
• Tool structure
• Code coverage
• Docs
• Contributing
• Copyright and Licence

Installation

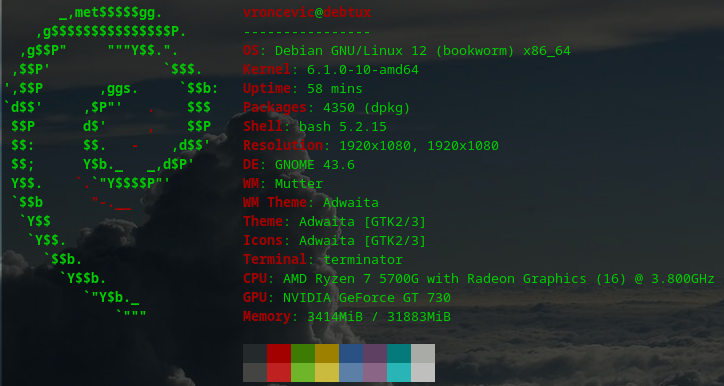

Used next development environment

Currently there are three ways to install package

• Install process based on using pip mechanism
• Install process based on build mechanism
• Install process based on setup.py mechanism
• Install process based on docker mechanism

Install using pip

Python is located at pypi.org.

You can install by using pip

#python3
pip3 install gen-avr8

Install using build

Navigate to release page download and extract release archive.

To install gen_avr8 type the following

tar xvzf gen_avr8-x.y.z.tar.gz
cd gen_avr8-x.y.z/
# python3
wget https://bootstrap.pypa.io/get-pip.py
python3 get-pip.py
python3 -m pip install --upgrade setuptools
python3 -m pip install --upgrade pip
python3 -m pip install --upgrade build
pip3 install -r requirements.txt
python3 -m build --no-isolation --wheel
pip3 install ./dist/gen_avr8-*-py3-none-any.whl
rm -f get-pip.py
chmod 755 /usr/local/lib/python3.9/dist-packages/usr/local/bin/gen_avr8_run.py
ln -s /usr/local/lib/python3.9/dist-packages/usr/local/bin/gen_avr8_run.py /usr/local/bin/gen_avr8_run.py

Install using py setup

Navigate to release page download and extract release archive.

To install gen_avr8 locate and run setup.py with arguments

tar xvzf gen_avr8-x.y.z.tar.gz
cd gen_avr8-x.y.z
# python3
pip3 install -r requirements.txt
python3 setup.py install_lib
python3 setup.py install_egg_info

Install using docker

You can use Dockerfile to create image/container.

Dependencies

gen_avr8 tool requires other modules/libraries

• ats-utilities - Python App/Tool/Script Utilities

Usage

Short example of usage gen_avr8 tool

Create workspace directory Blink

mkdir Blink
cd Blink/

Crete AVR8 project files, by using parameters

python gen_avr8_run.py -n Blink -t app

Running build process

cd build/
make all

In case for missing subtool from toolchain, please install the following packages with your favorite package manager

• gcc-avr
• binutils-avr
• gdb-avr
• avr-libc
• avrdude

Install directly from the shell as root user (debian)

apt-get install gcc-avr binutils-avr gdb-avr avr-libc avrdude

Supported MCUS

Current list of supported microcontrollers

attiny2313    atmega128      at90s2313
attiny24      atmega1280     at90s2333
attiny25      atmega1281     at90s4414
attiny26      atmega1284p    at90s4433
attiny261     atmega16       at90s4434
attiny44      atmega163      at90s8515
attiny45      atmega164p     at90s8535
attiny461     atmega165
attiny84      atmega165p
attiny85      atmega168
attiny861     atmega169
              atmega169p
              atmega2560
              atmega2561
              atmega32
              atmega324p
              atmega325
              atmega3250
              atmega329
              atmega3290
              atmega32u4
              atmega48
              atmega64
              atmega640
              atmega644
              atmega644p
              atmega645
              atmega6450
              atmega649
              atmega6490
              atmega8
              atmega8515
              atmega8535
              atmega88

Tool structure

gen_avr8 is based on Template mechanism

Generator structure

    gen_avr8/
        ├── conf/
        │   ├── fosc.yaml
        │   ├── gen_avr8.cfg
        │   ├── gen_avr8.logo
        │   ├── gen_avr8_util.cfg
        │   ├── mcu.yaml
        │   ├── project_app.yaml
        │   ├── project_lib.yaml
        │   └── template/
        │       ├── adc/
        │       ├── app/
        │       │   ├── cflags.template
        │       │   ├── csflags.template
        │       │   ├── Makefile.template
        │       │   ├── module.template
        │       │   ├── objects.template
        │       │   ├── ocflags.template
        │       │   ├── odflags.template
        │       │   ├── sources.template
        │       │   ├── subdir.template
        │       │   └── tools.template
        │       ├── eeprom/
        │       ├── gpio/
        │       ├── lib/
        │       │   ├── aflags.template
        │       │   ├── avr_lib_c.template
        │       │   ├── avr_lib_h.template
        │       │   ├── cflags.template
        │       │   ├── csflags.template
        │       │   ├── Makefile.template
        │       │   ├── objects.template
        │       │   ├── ocflags.template
        │       │   ├── odflags.template
        │       │   ├── sources.template
        │       │   ├── subdir.template
        │       │   └── tools.template
        │       └── uart
        ├── __init__.py
        ├── log/
        │   └── gen_avr8.log
        ├── pro/
        │   ├── __init__.py
        │   ├── mcu_selector.py
        │   ├── module_type.py
        │   ├── osc_selector.py
        │   ├── read_template.py
        │   ├── template_dir.py
        │   ├── template_type.py
        │   └── write_template.py
        ├── py.typed
        └── run/
            └── gen_avr8_run.py

    12 directories, 41 files

Code coverage

Name	Stmts	Miss	Cover
gen_avr8/__init__.py	74	10	86%
gen_avr8/pro/__init__.py	79	4	95%
gen_avr8/pro/mcu_selector.py	51	0	100%
gen_avr8/pro/module_type.py	47	0	100%
gen_avr8/pro/osc_selector.py	51	0	100%
gen_avr8/pro/read_template.py	36	0	100%
gen_avr8/pro/template_dir.py	35	0	100%
gen_avr8/pro/template_type.py	43	1	98%
gen_avr8/pro/write_template.py	87	0	100%
Total	503	15	97%

Docs

More documentation and info at

• gen_avr8.readthedocs.io
• www.python.org

Contributing

Contributing to gen_avr8

Copyright and Licence

Copyright (C) 2018 - 2026 by vroncevic.github.io/gen_avr8

gen_avr8 is free software; you can redistribute it and/or modify it under the same terms as Python itself, either Python version 3.x or, at your option, any later version of Python 3 you may have available.

Lets help and support PSF.
