gpgraph-v2

NetworkX-backed, Rust-accelerated graphs over genotype-phenotype maps.

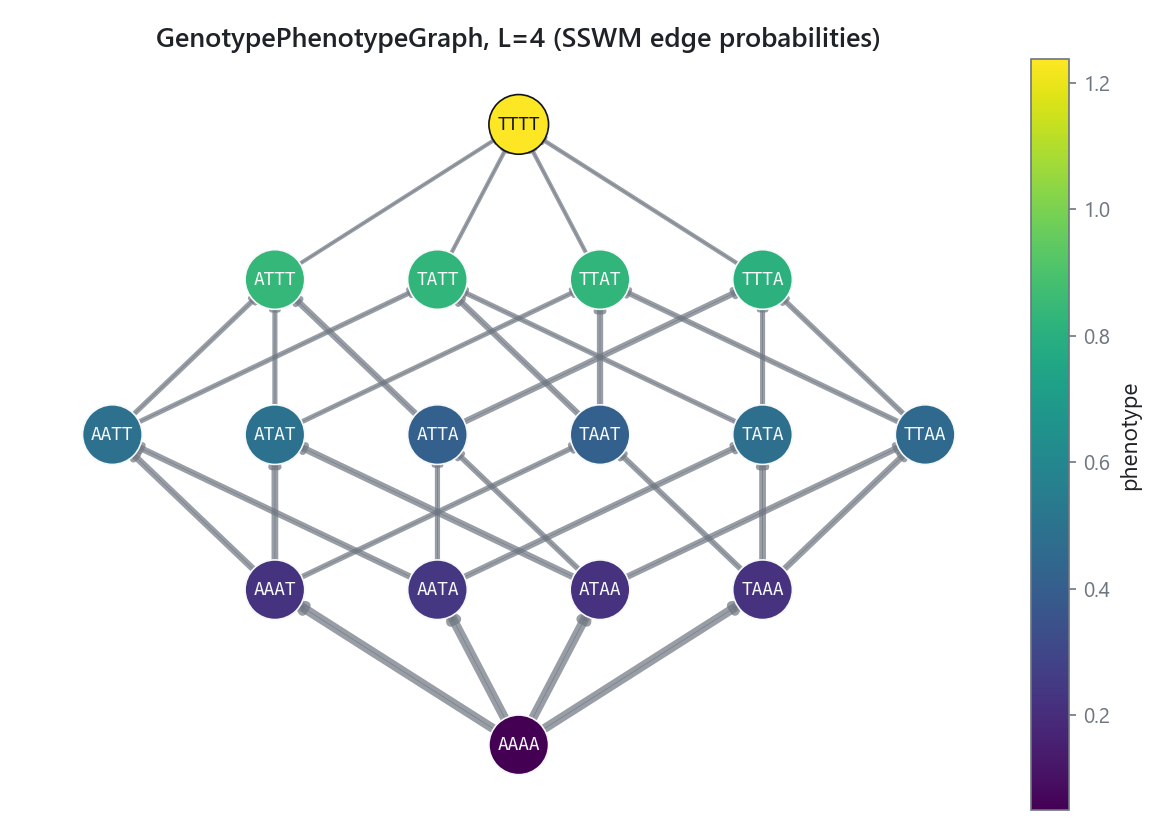

gpgraph-v2 lifts a gpmap-v2 GenotypePhenotypeMap into a NetworkX DiGraph. Nodes carry the row attributes from the map; edges connect neighbors under a chosen distance metric (Hamming or codon). Fixation models (SSWM, ratio, Moran, McCandlish) populate an edge prob attribute for evolutionary trajectory analysis.

This is a clean-break rewrite of harmslab/gpgraph. Hot paths live in Rust via PyO3 + rayon; fixation models stay in vectorized numpy.

Why v2

• Fast. Neighbor detection runs in Rust with rayon parallelism. Biallelic cutoff-1 and cutoff-2 hit a bit-flip fast path: O(N * L^cutoff) instead of O(N^2 * L).
• Typed. Full type hints, mypy --strict in CI.
• Modern tooling. uv + maturin + pyproject.toml. Releases via python-semantic-release. OIDC-based PyPI publishing.
• Consumes gpmap-v2. Speaks the locked SCHEMA.md contract; reads binary_packed, n_mutations, and phenotypes (not the removed v1 fitnesses).
• No Cython, no setup.py, no .c blobs.

Install

pip install gpgraph-v2

Or with uv:

uv add gpgraph-v2

Plotting support is optional. For matplotlib:

pip install "gpgraph-v2[plot]"

Python 3.11+. Prebuilt wheels ship for Linux (x86_64, aarch64), macOS (x86_64, aarch64), and Windows (x64).

Quick start

from gpmap import GenotypePhenotypeMap
from gpgraph import GenotypePhenotypeGraph

gpm = GenotypePhenotypeMap(
    wildtype="AAA",
    genotypes=["AAA", "AAT", "ATA", "TAA", "ATT", "TAT", "TTA", "TTT"],
    phenotypes=[0.1, 0.2, 0.2, 0.6, 0.4, 0.6, 1.0, 1.1],
    stdeviations=[0.05] * 8,
)

G = GenotypePhenotypeGraph.from_gpm(gpm)
G.number_of_nodes()  # 8
G.number_of_edges()  # 24 directed (12 undirected pairs)

G.add_model(column="phenotypes", model="sswm")
G.edges[(0, 1)]["prob"]  # SSWM fixation probability from AAA -> AAT

Available fixation models: "sswm", "ratio", "moran", "mcclandish". Pass population_size=N as a keyword for the last two. Pass any f(fi, fj, **kw) -> float for a custom model.

Forward paths and flux

from gpgraph.paths import forward_paths_prob, paths_prob_to_edges_flux

G.add_model(column="phenotypes", model="sswm")
paths = forward_paths_prob(G, source=0, target=7)
flux = paths_prob_to_edges_flux(paths)

Plotting

from gpgraph.pyplot import draw_gpgraph, draw_paths

fig, ax = draw_gpgraph(G)             # Hamming-weight vertical layout
draw_paths(G, source=0, target=7)     # paths flux overlay

Benchmarks

vs v1 (harmslab/gpgraph 0.2.0)

Measured on Windows 11 against gpgraph==0.2.0. Full biallelic space (AT alphabet), timeit best-of-5. See benchmarks/vs_v1.py for scripts. v1 is capped at L=12 because its O(N^2 * L) neighbor search becomes impractical past that.

Build graph (neighbor detection)

Both versions are bottlenecked by NetworkX node/edge insertion at scale. The Rust neighbor detection eliminates the O(N^2) comparison but NetworkX graph mutation is the dominant cost. SSWM (below) shows the larger win.

Add SSWM fixation model

v1 iterates over edges one at a time in Python. v2 vectorizes fixation probability over all edges at once using NumPy, giving 5-7x speedup.

Rust kernels vs pure-Python pairwise reference

Windows 11, Ryzen, release build. Run via uv run pytest tests/benchmarks/ --benchmark-only.

At L=6 the Rust bit-flip path is ~380x faster than a naive Python loop. Past N = 1000 on biallelic data the bit-flip specialization pulls away from the rayon-parallel pairwise version by another ~7x.

Dispatch policy (neighbor kernels)

gpgraph.neighbors.get_neighbors chooses the fastest available implementation:

See SCHEMA.md for the full node/edge contract.

Development

git clone https://github.com/lperezmo/gpgraph-v2
cd gpgraph-v2
uv sync
uv run maturin develop --release
uv run pytest
uv run ruff check python/gpgraph tests

After editing Rust:

uv run maturin develop --release && uv run pytest

Consuming from another local project

During co-development with gpmap-v2, point at the local source:

[tool.uv.sources]
gpgraph-v2 = { path = "/absolute/path/to/gpgraph-v2", editable = true }

[project]
dependencies = ["gpgraph-v2"]

Imports remain from gpgraph import GenotypePhenotypeGraph.

Migration from v1 (harmslab/gpgraph)

gpgraph-v2 is not wire-compatible with v1. Key differences:

• Distribution name is gpgraph-v2 on PyPI; import path is still gpgraph.
• Construction: use GenotypePhenotypeGraph.from_gpm(gpm, ...). v1 took gpm directly in the constructor (GenotypePhenotypeGraph(gpm)), which internally called add_gpm.
• Reads gpmap-v2 columns: node attribute is phenotypes, not fitnesses.
• __repr__ no longer renders a matplotlib figure as a side effect.
• Matplotlib is an optional extra (gpgraph-v2[plot]); the core install is headless.
• The _nx_wrapper introspection shim in pyplot/primitives.py is gone. NetworkX is version-pinned to >=3.6.
• gpgraph.neighbor_functions is renamed gpgraph.neighbors and the pairwise get_neighbors returns a NumPy (E, 2) int64 array instead of a list of tuples.
• Python 3.11+.

Releases

Releases are driven by python-semantic-release on merge to main. Commits follow Conventional Commits:

• fix: ... -> patch
• feat: ... -> minor
• feat!: ... or a BREAKING CHANGE: footer -> major

CHANGELOG.md, version bumps, Git tags, GitHub Releases, wheel builds, and PyPI uploads all happen automatically.

License

MIT. See LICENSE.
