gpilab 1.4.5

Graphical Programming Interface

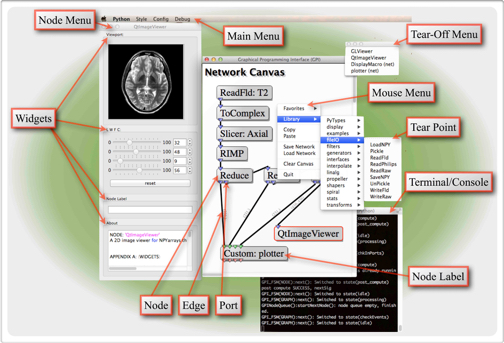

GPI stands for Graphical Programming Interface which is a development environment for scientific algorithms that provides a visual workspace for assembling algorithms. Algorithm elements (i.e. nodes) can be linked together to form a flow diagram. Each node is executed according to the hierarchy of the diagram.

• Website

• Documentation

• Issues

Installing

PIP

GPI is available on PyPI:

$ pip install gpilab

GPI officially supports Python 3.7 to 3.9.

Source

$ git clone https://github.com/gpilab/framework.git gpi
$ cd gpi
$ pip install -r requirements.txt

Running

If you have installed GPI using pip you can run it as follows:

$ gpi

If you have install GPI from source you can run it as follows:

$ ./bin/gpi

Compiling PyFI files

You will need to have fftw and eigen to compile PyFI, you can get them by running the following command:

$ conda install fftw eigen

First navigate to the directory with your PyFI files.

If you have installed GPI using pip you can make PyFI as follows:

$ gpi_make --all

If you have install GPI from source you can run PyFI as follows:

$ ./bin/gpi_make --all
