gpx2roadbook

gpx2roadbook (command: roadbook) turns a GPX route with points of interest (water, food, toilets, …) into a compact road book you can print. You cut the strips out and tape them to your bike's top tube. Each one lists the stops, climbs and distances for a stretch of the ride, next to a small elevation profile. A booklet to fold and take along gives the details: every stop's shops and their hours, the climbs, the long stretches with nothing on the way, and a map (see The booklet).

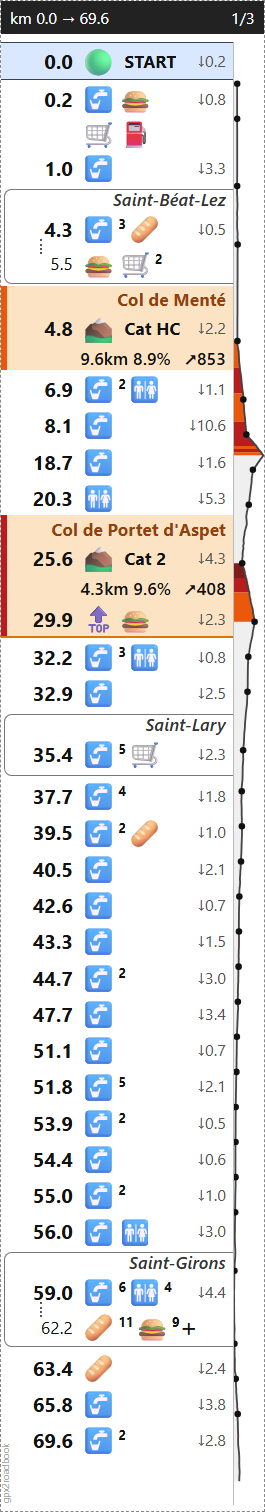

The first strip of samples/entrainement_ubf.gpx, with the default settings, shown here at about twice its printed size. On paper it is 35 mm wide. Town and col names come from OpenStreetMap; the steeper a climb, the darker its colour.

Getting a GPX with POIs

The easiest source is onroutemap.de. It is free and needs no account. Upload your route's GPX ("Upload GPX file") and set the maximum distance to the route: roadbook keeps every POI of the export, so that distance is the one that counts. It then finds supermarkets, bakeries, cafés, drinking water, toilets, fuel stations, fast food and more along the way. Use the download button (top left of the map) and choose the export with the route and every discovered POI, as GPX. The routes in samples/ were made this way.

Any other GPX works if it has:

• a track or a route, ideally with elevation (without elevation you get no climbs and no profile);
• waypoints for the POIs, each with a <type> or a <name> that one of the categories in src/roadbook/default.toml can match. For example, a type Boulangerie or bakery becomes 🥖, and Eau potable or drinking water becomes 🚰. Matching ignores case and accents. Waypoints that match no category are dropped.

Install

You need:

• uv, which installs Python and the tool for you (or pipx, with Python 3.12 or later);
• Google Chrome or Microsoft Edge, only if you want --pdf.

Then:

uv tool install gpx2roadbook     # or: pipx install gpx2roadbook

This puts the roadbook command on your PATH (gpx2roadbook works too, it is the same command). To update to the latest release:

uv tool upgrade gpx2roadbook     # or: pipx upgrade gpx2roadbook

roadbook --version tells you which version you have.

For the window (see The window), install the gui extra instead. It also gives you roadbook:

uv tool install "gpx2roadbook[gui]"     # or: pipx install "gpx2roadbook[gui]"

To try it once without installing anything:

uvx gpx2roadbook my_ride.gpx

Usage

roadbook my_ride.gpx

This writes my_ride.roadbook.html, with the strips, and my_ride.booklet.html, the booklet, next to the GPX, and prints a short summary: distance, climbing, and how many POIs, stops and climbs were found. To write it somewhere else, use -o:

roadbook my_ride.gpx -o ~/Desktop/ride.html

Interactive mode

Not sure which options to use? Let roadbook ask:

roadbook -i                 # or: roadbook -i my_ride.gpx

It asks for the GPX file (if you didn't give one, with Tab to complete the path), then the layout, paper size and booklet (pick with the arrow keys), checkpoints, whether to name towns and to look up opening hours, then the ride date, start time, speed and planned breaks for arrival times (leave the date empty to skip them), the POI categories to show (tick them with Space), PDF and output file. Each starts on its default, so Enter keeps it. A last checklist shows the advanced settings with their current values (strip size, how POIs are grouped into stops, smallest climb, emoji lines, reference sheet, arrival margin, climb names, summit rows, climb pages, the map, its style and its contour lines, and the booklet's warnings); tick the ones to change. Options given on the command line become the defaults. It needs a real terminal (on Windows: Windows Terminal, PowerShell or cmd).

At the end it prints the equivalent command, e.g. Same as: roadbook my_ride.gpx --page A5 --min-climb 50, so next time you can run it straight away.

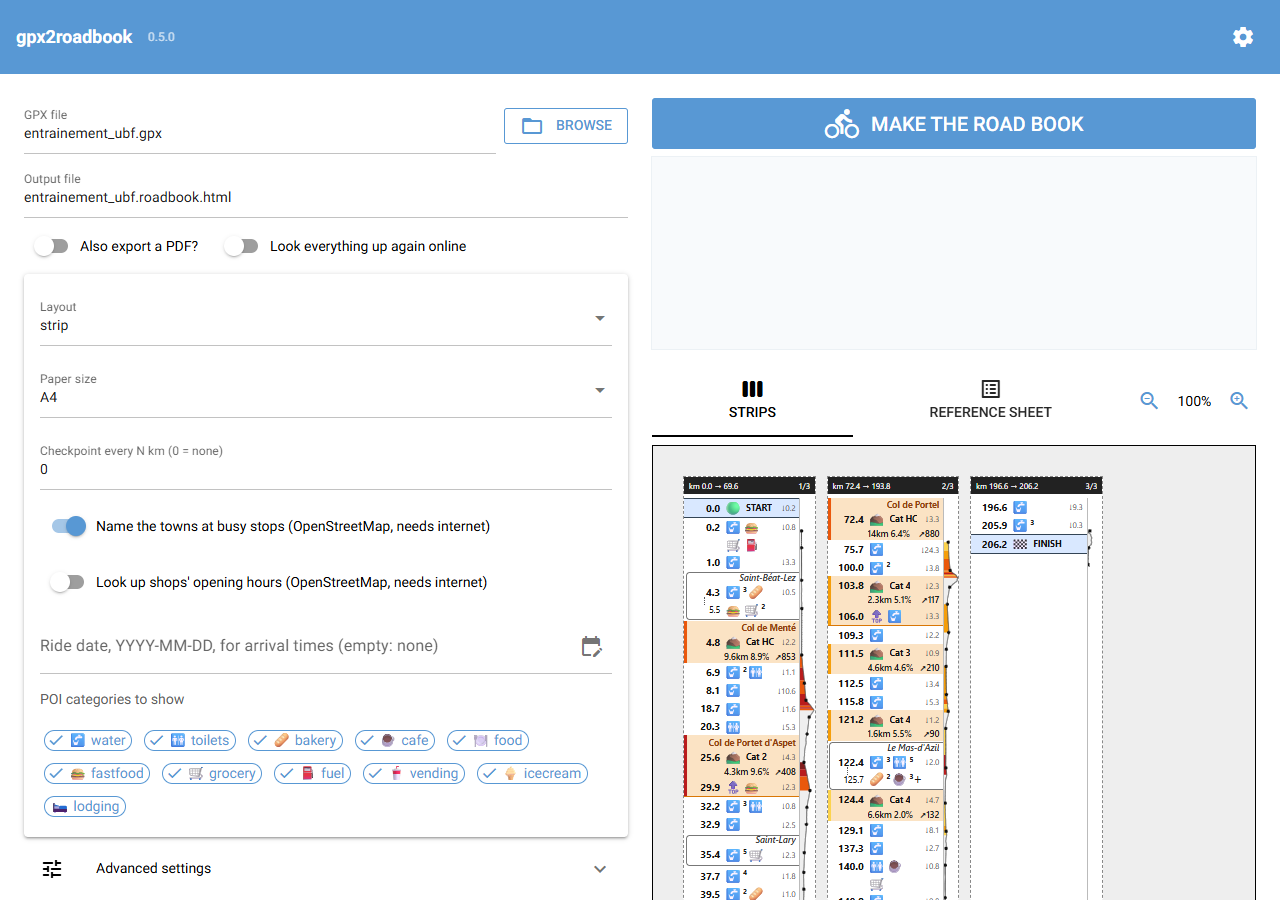

The window

Rather click than type? With the gui extra installed, open the window:

roadbook-gui                # or: roadbook-gui --browser

• Browse for the GPX. The road book goes next to it, unless you change the output file.
• Set the options. Hover over one to see what it does. The usual ones are on top, the rest under Advanced settings. Options that depend on others show up when they apply: the start time once you set a ride date, then the speed and planned breaks.
• The preview follows your changes, at true size when it fits (Fit), or zoomed in or out. The booklet has a tab of its own, or the reference sheet and the map without one. It uses only the town names, climb names, hours and map tiles already looked up, and says when some are missing: they come with the first Make the road book.
• Make the road book writes the HTML and the booklet (and their PDFs if asked), shows the summary, and lets you open them, Strips and Booklet, print them to PDF, or open their folder. Without a booklet, the road book holds the reference sheet and the map too, and its buttons say Road book. It also shows the same roadbook … command, to copy.

The window remembers your settings for next time, in gui.toml in your user config folder (%LOCALAPPDATA%\gpx2roadbook on Windows, ~/.config/gpx2roadbook on Linux, ~/Library/Application Support/gpx2roadbook on macOS). The gear menu at the top right resets them to the defaults, or saves them as a file for roadbook --config (see Customising). That's a handy way to share an event's setup with the other riders.

On Windows the window uses the Edge WebView2 runtime, which comes with Windows 10 and 11. If the window won't open, roadbook-gui --browser shows the same page in a browser tab instead. There you drop the GPX onto the page, and the road book goes to your Downloads folder.

The page fits narrow windows and phones too, in one column. To use it from your phone, run roadbook-gui --lan on your computer, then open http://<your computer's address>:8642 on the phone, on the same Wi-Fi. Your firewall may ask whether to allow it. A phone uploads the GPX and downloads the road book: it never sees or writes your computer's files. Without --lan, the page is served to your computer only. Anyone on your network can open it while --lan runs, so stop it (Ctrl+C) when you're done.

Printing

Open the HTML in your browser and print it. Print at 100 % scale, not "fit to page", so the strips keep their real size in millimetres. If the coloured rows come out white, turn on "background graphics".

Or let roadbook make the PDFs for you. It drives Chrome or Edge in the background and writes my_ride.roadbook.pdf and my_ride.booklet.pdf next to the HTML:

roadbook my_ride.gpx --pdf

Either way, cut the strips along the dashed lines. The booklet prints double-sided, then folds: see The booklet.

Layouts

• --layout strip (default): vertical strips, 35 mm wide and 200 mm long, read top to bottom. One row per stop or climb, with an elevation profile down the right edge. Made for the top tube.
• --layout line: horizontal ribbons, 16 mm high, read left to right. One small block per stop or climb, with short climb stats and no profile. Use it when a 35 mm strip is too wide for where you want to tape it.

Common options

For the full list:

roadbook --help

Customising

Every setting lives in src/roadbook/default.toml. Don't edit it. Write a small TOML file with only the keys you want to change and pass it with --config. It is merged over the defaults, table by table.

For example, to show hotels and campsites, snap stops onto climbs from further away, and widen the profile:

# my.toml
[pois]
# a list replaces the default list entirely, so repeat the categories you want to keep
enabled = ["water", "toilets", "bakery", "cafe", "food", "grocery", "lodging"]

[climbs]
snap_m = 500      # default 300

[render]
gutter_mm = 6     # default 4; 0 turns the profile off

roadbook my_ride.gpx --config my.toml

The climb colours are climbs.grade_colours, a list of [grade, colour] steps: each colour applies from its grade up, in %.

To add a category of your own, add a table and put its name in pois.enabled. The order of the tables sets which emoji comes first when a row is short of space:

[categories.bike]
emoji = "🔧"
match = ["bicycle", "velo", "cycle shop"]

How to read the road book

Each strip has a dark header with its km range and its number (2/3). The tool's name runs in small grey letters up its bottom-left edge (up the right end of a line ribbon), in space no row uses. Below the header, one row per point on the road:

• The bold number is the km where the row sits. ↓4.3 at the right is the distance to the next row; the profile on the right shows the climbing and descent on the way.
• 🟢 START, 🏁 FINISH, 🚩 CP… are the start, the finish and checkpoints, on a blue background.
• Emojis are the POIs at that stop. A small number after one (🚰²) says how many POIs of that kind are there. When a stop has more kinds than fit beside its km, they carry on a line below (up to --emoji-lines). A + means there are still more kinds than fit. They are all listed in the booklet, or on the reference sheet.
• A second, lighter km under a stop's km, joined to it by dots, is where the stop ends: its POIs stretch from the first km to the second, e.g. 122.4 to 129.1. Stops longer than 1 km (render.stop_range_m) show it, in a town or with a large --gap. It sits on the stop's second line of emojis when it has one, or else on a short line of its own. On a line ribbon, a long stop's token says →129.1 instead.
• Saint-Girons in italics, at the right above a row, is the town that stop is in (see Town names).
• ⛰️ rows (orange) mark the foot of a climb. The bar down their left edge is in the colour of the climb's average grade (see below). The line below gives its length, average grade and total gain, e.g. 4.3km 2.6% ↗110, or 21km 7.4% ↗1552 from 10 km on. The gain sits at the right, under the distances, and is never cut: on a narrow strip, the length and grade give way first. Cat 4 … Cat HC is its category, scored as length × grade, the same way as the Tour de France. Small climbs have no category. Ascents gaining less than 80 m (--min-climb) are not shown as climbs at all.
• Col de Portet d'Aspet in brown, at the right above a ⛰️ row, is the col or peak that climb tops out at (see Climb names).
• Stops on a climb. A stop within 300 m (climbs.snap_m) of a climb's foot or summit is merged into that row rather than given a row of its own. A ⛰️ row with a stop on it has no room for "Cat 4", so the category becomes a small superscript on the mountain (⛰️⁴ 🍔).
• 🔝 rows mark a summit. They only appear when a stop sits at the top; the profile already shows every other summit. --summit-rows gives every climb one, to see each top's elevation at the cost of a row per climb. If there is room, the row also gives the summit's elevation. A 🔝 row closes its climb with an orange line.

The profile on the right

The narrow strip on the right edge of each strip is the elevation profile of that stretch. Elevation grows to the right.

• Climbs are coloured by grade, a kilometre at a time, so the steep ones show where they are: yellow under 3 %, then orange (3–6 %), dark orange (6–9 %), red (9–12 %) and dark red from 12 %. Grey is everything else. The colours get darker as the road steepens, so they still read printed in black and white. A key on the booklet's cover, or at the end of the reference sheet, recalls them, and each climb there is marked in the colour of its average grade.
• Each dot lines up with a row, so you can see where each stop is on the profile.
• Distance on the profile is not to scale. The profile is stretched to fit between the rows, so a 10 km gap between two rows takes the same space as a 1 km gap. Use it to see the shape of the climbs, not to measure distance.
• Elevation is scaled for each strip separately. A big slope on one strip is not the same height as a big slope on the next. Very flat stretches are kept flat, so small rolls don't look like mountains.

The booklet

The stops, climbs and map also go into a booklet, my_ride.booklet.html (and my_ride.booklet.pdf with --pdf), to print, fold and take on the ride, in a jersey pocket or a bar bag:

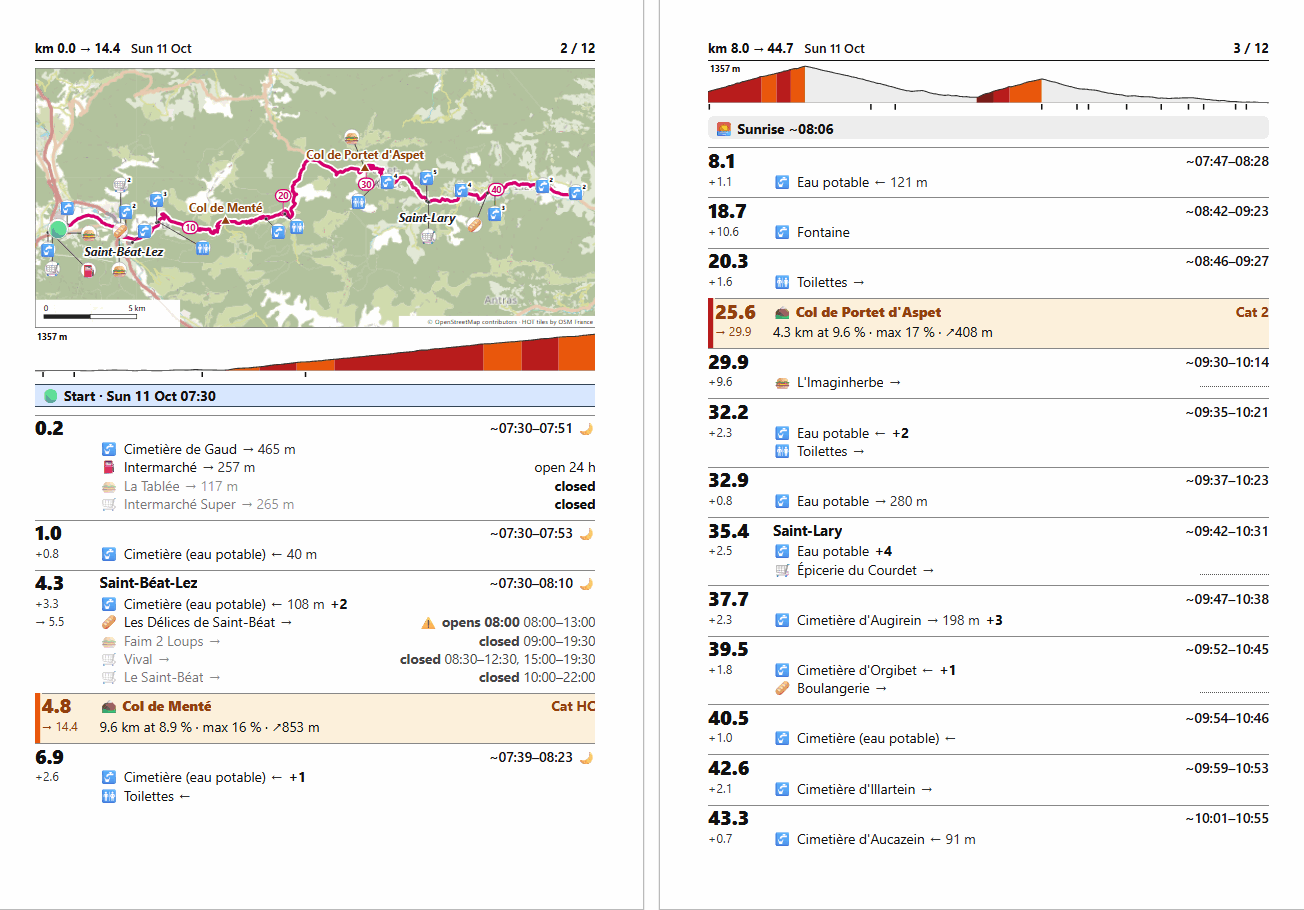

Pages 2 and 3 of the A5 booklet of samples/entrainement_ubf.gpx, with --hours --date 2026-10-11 --start 07:30 --speed 24.

• A5 or A6. The booklet is A5 by default (--booklet A5), four pages to a sheet of A4. --booklet A6 makes one that fits a pocket, eight pages to a sheet. With --booklet off there's none, and the reference sheet, the map and the climb pages stay in the road book.

• Printing it. The pages are laid out on the sheets in the order that folds into a booklet. Print at 100 %, with background graphics on:

  • A5: on A4, double-sided, flipping on the short edge. Fold the stack in half and staple it at the fold.
  • A6: on A4, double-sided, flipping on the long edge. Cut the stack across the middle, put the bottom pile under the top one, fold it all in half and staple it at the fold.

  On screen, the pages read in order, with these steps above them. The samples' booklets take 3 or 4 sheets of A4 in A5 (5 for Paris–Le Mans with its shops' hours), 2 or 3 in A6.

• The cover has the ride at a glance: its distance and climbing, the start and pace of a timed ride, the profile of the whole route, the checkpoints, the warnings and the climbs, and the keys to the emojis and climb colours. The back page has the credits. Spare pages at the end are lined, for notes.

• Each page is headed by its km range, the day on a timed ride, and its number, over a profile of its stretch with a tick for each stop. It starts at a stop: a stop never runs over two pages, unless it's too long for one, like Le Mans, which carries on over the next page, "continued".

• Each stop has its km, large, on the left, with the distance from the stop before (+3.3) and, for a long one, where it ends (→ 5.5). On the right, its town and arrival window (🌙 when it's dark), then what it has:

  • Water and toilets on one line each: the nearest named, and how many more (+2).
  • Each shop on a line of its own, with the side of the road it's on as you ride (← or →), and how far off the route when it's more than 30 m: Intermarché → 257 m. At most 5 of a kind, the nearest first (booklet.max_per_kind), then + 6 more 🥖.
  • With --hours, each shop's hours: that day's with --date, else the whole week's, on lines of their own when they're long. A shop closed when you pass is greyed and listed last, with closed; one opening or closing while you may be there says so: ⚠ opens 08:00.

• Between the stops:

  • The climbs, where they start, in the colour of their average grade, with their length, average and steepest grade and gain. With --climb-pages, their profile too (see Climb pages).
  • Warnings before a long stretch with nowhere to get water or nothing to eat, after the last stop that has some. You drink and eat by the hour, whatever the distance, so with a --speed a stretch is as long as it takes to ride, its climbing included (see Arrival times): 3 hours or more without water (--water-hours), 4 without food (--food-hours). Round Mont Ventoux at 24 km/h: ⚠ 3h25 (45 km) without water: next at km 44.9 (~08:53–09:56). Without a speed, it's 50 km without water (--water-km) and 70 km without food (--food-km). Every shop sells drinks, so only a stretch without taps or shops counts as one without water. Shops known to be closed when you pass don't count, nor, after dark, shops not known to be open; taps do. booklet.water and booklet.food list the categories that count.
  • Checkpoints, and on a timed ride each new day, and sunset 🌇 and sunrise 🌅 where you'll be then. The sun's times are worked out in your computer's time zone, as the arrival times are: right for a ride in your own country.

• A mini-map for each spread. Each pair of facing pages has a map of the stretch they cover on its left-hand page, north up, with the stops' POIs at their places, their towns and climbs, and km markers. Only the road on that stretch is drawn: on a loop, the other side going by doesn't clutter it. A spread whose places are all on the road itself gets none, and the room for more stops.

• The map of the whole route goes across the middle of the booklet, on the two pages printed side by side on the innermost sheet: A4 landscape in an A5 booklet, A5 in an A6 one (see The map). It shows no POIs, the mini-maps do; instead it marks where each spread starts (p. 4), to find the page for where you are.

The map

A map of the whole route, to see where the ride goes, and to plan it. It goes across the middle of the booklet, two pages wide, or, without one, on a page right after the strips:

• What it shows. The route, in magenta. Every POI at its place, as its emoji on a white disc: POIs of the same kind close together share one, with their count, and one moved aside to make room has a thin line back to its place. In the booklet, the POIs are on each spread's mini-map instead, and the map marks where each spread starts. The towns named at busy stops (see Town names), the climbs' names at their summits ▲ (see Climb names), 🟢 the start and 🏁 the finish. A km marker every few km (every 20 km on a 200 km ride) ties the map to the strips; checkpoints show with their label, in blue. map.km_every in a --config file sets the markers' spacing.

• Contour lines show the lie of the land: thin and brown, every fifth bolder with its height written along it, wherever that hides nothing else. Their interval suits the map, as close as keeps them about a millimetre apart on most of its slopes: every 20 m from Paris to Le Mans, every 100 m in the Pyrenees foothills or round Mont Ventoux. They are white on satellite; topo has its own, so it gets none. --no-map-contours leaves them off.

• Its scale. The map is drawn at the zoom where its own place names print about as large as they show on a screen, with the route filling the page. In the booklet it is landscape. Without one, its page is turned to landscape when that shows the route larger, for a ride heading east or west, whatever the other pages. A scale bar sits at the bottom left.

• Its look, with --map-style:

  Style	Look	Tiles
  osm (default)	OpenStreetMap's humanitarian style: plain and light, so the route and labels stand out	OpenStreetMap France
  cyclosm	CyclOSM: cycle paths and routes, hill shading	OpenStreetMap France
  topo	OpenTopoMap: its own contour lines, and relief	OpenTopoMap
  satellite	Sentinel-2 cloudless imagery of 2017, 10 m a pixel	EOX

• Where the tiles come from. A map is made of tiles, small square images, fetched when the road book is made, only from servers whose terms allow a map that a tool like this one prints. Not from openstreetmap.org's own servers: their tile usage policy forbids offline use, and a road book is kept to be printed. OpenStreetMap France lets free, non-profit apps that name themselves use its maps freely, printed on paper too. OpenTopoMap (CC-BY-SA) allows apps that don't strain its server, and printing. EOX's Sentinel-2 cloudless 2017 is under CC BY 4.0; its later years are for non-commercial use only. The contour lines' heights come from Mapzen's Terrain Tiles, free on AWS Open Data; each says which surveys it was made from (SRTM, EU-DEM…), and the map credits those it shows. Each one's credit is printed on the map, as they ask.

• Politely, and once. A road book takes only the tiles its map shows, a dozen to forty, and a few terrain tiles for its contour lines, one at a time, with gpx2roadbook's name in each request. The first time, that takes about a second a tile, a few seconds for a terrain tile. Tiles are then kept on your computer for 30 days (map.max_age_days); after that, each is checked again, and downloaded only if it changed. --refresh checks all of them again.

• In the one file. The tiles are embedded in the HTML, so it opens and prints without internet. That makes it larger: on A4, the samples' road books grow from 0.3 MB to about 0.9 MB with satellite, 1.1 to 1.5 MB with the other styles; 0.2 MB of that is the contour lines.

• If a tile can't be fetched, it is left blank and you get a warning; the road book is made all the same. --no-map leaves the page out.

The reference sheet

Without a booklet (--booklet off), after the strips and the map comes a page listing every stop by km (as a range, e.g. km 122.4 → 129.1, for long stops), with the name of each POI grouped by emoji. When a POI is more than 30 m off the route, its distance from the route is shown in brackets, e.g. Intermarché Super (265 m). Keep it in a pocket, or leave it out with --no-details. A footer line at its end says which version of gpx2roadbook made it and where to get it.

Climb pages

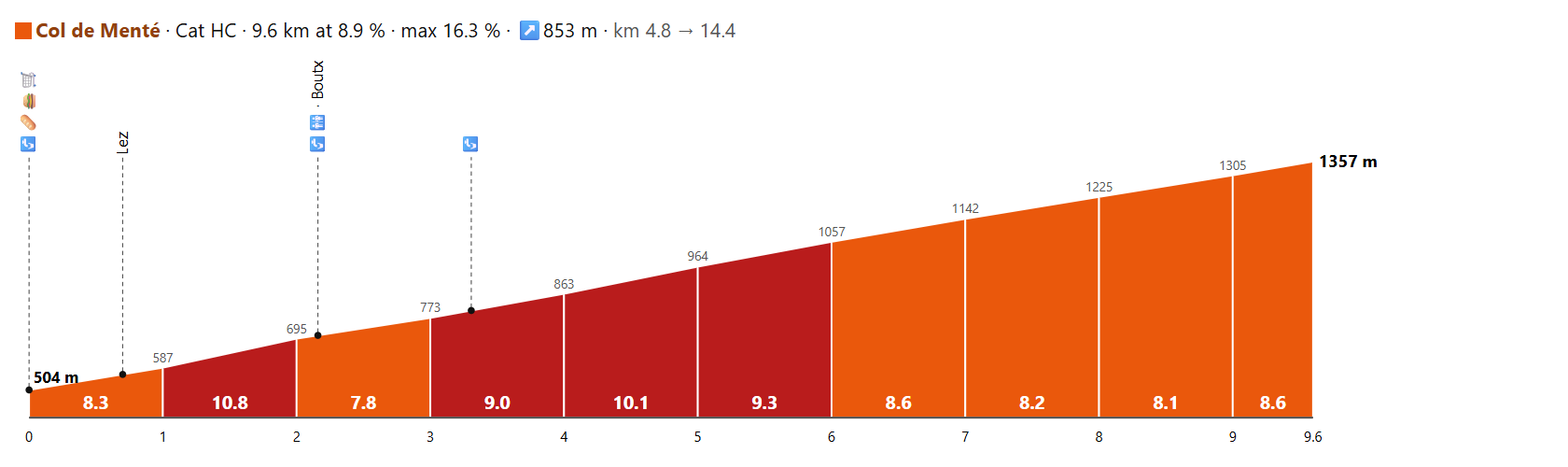

--climb-pages adds climb profiles like the ones the big races print, to read before the ride or on the way: in the booklet, each where its climb starts; without one, on a page after the reference sheet:

• What each card shows. The climb is cut from its foot into slabs, each coloured and labelled with its own grade on the same colour scale as the strips; the last one runs to the summit. Above the slabs: the altitude at their edges, at the foot and at the top.
• Slab length. A kilometre, as the big races print it, on a climb of 6 km or more. A shorter one gets 500 m slabs, or 250 m under 3 km, so it still has at least 6 (climb_pages.min_sections) and its steep bits show. No shorter: the elevation is smoothed over about 200 m (elevation.smooth_m), so a grade over 100 m would only blur its neighbours'. With min_sections = 0, every climb goes a kilometre at a time.
• Places and stops. With town names on, the towns, villages and hamlets the road goes through are marked above the profile, within 250 m of the road (climb_pages.place_m). These are looked up on OpenStreetMap, once per run and cached. The stops on the strips are marked with their emojis.
• Scale. Every card draws a grade equally steep, so climbs compare at a glance: a short, steep climb gets a narrower card, a long, gentle one a lower card.
• Which climbs. Only climbs of category 3 or harder get a card, so a hilly ride doesn't get one for every small bump. --climb-pages-from 4 includes every categorised climb, and --climb-pages-from HC keeps only the biggest.

Town names

A stop grouping many POIs is usually a town, so it gets the town's name: easier to remember than a km, and handy to talk about the plan ("lunch in Saint-Girons"). --no-towns leaves them out.

km 60.0 → 61.5 · Saint-Girons
🚰 Eau potable (124 m), Eau potable (146 m)
🚻 Toilettes (183 m), Toilettes, Toilettes (209 m)
🥖 Boulangerie, Le Blé Doré (234 m), Pâtisserie Boissonnot, …

• Which stops. Those with at least 8 POIs (towns.min_pois), or at least 5 when one is a bakery or a grocery (towns.shop_min_pois, towns.shops), counting only the categories you show: a town centre, or a village with its shop, not a fountain, a cemetery tap or a lone bakery.
• One stop per town. A town's POIs often fall into several stops, split by --gap. Its named stops, and the unnamed ones between them, are merged into one, whatever --gap says: Le Mans is one row from km 264.8 to 269.4 rather than three. Only stops up to 5 km apart join (towns.group_km; 0 never groups), since a route may come back through a town later. The small stops just outside a town's named ones, up to 2 km (towns.edge_km), are asked which town they are in, and join it if it's the same: the supermarket on the way out of Saint-Girons does, the next village's bakery doesn't. That's one more request, once, for each such stop.
• On the strip, the name gets a line of its own above the stop's row, in italics and right-aligned, so the km down the left read on undisturbed. A thin frame, open on the right, holds the name, the row and the town's range together. That line takes 3.2 mm, so a strip holds a little less. When two busy stops in a row are in the same town but too far apart to be one, only the first names it.
• The finish never ends up alone. If the last row doesn't quite fit, the last strip runs up to 6 mm longer rather than start a new strip for it.
• In the booklet and on the reference sheet, every busy stop has its name next to its km.
• Where it comes from. The GPX has no place names, so each busy stop asks Nominatim (OpenStreetMap) which city, town or village its middle POI is in. That is one request per busy stop, one per second: a few seconds for most routes.
• Then it's instant. Answers are cached on your computer for a year (towns.max_age_days); --refresh looks them up again. If Nominatim doesn't answer, you get a warning and a road book without the missing names.

Climb names

A climb is easier to recognise, and to talk about, by its name. Each climb that tops out at a named col, pass or peak gets that name (--no-climb-names leaves them out):

km 25.6 → 29.9 · Col de Portet d'Aspet
⛰️ Cat 2 · 4.3 km at 9.6 % · ↗️408 m

• On the strip, the name gets a line of its own above the climb's ⛰️ row, the row at its foot: it announces the climb before you start it, right above its length and grade. It is right-aligned and in the climbs' brown, and takes 3.2 mm like a town line. The 🔝 summit row isn't used, as it only shows when a stop sits at the top. A climb starting at a busy stop in a named town gets both lines: the town, then the climb.
• In the booklet and on the reference sheet, each named climb gets an entry of its own, at its foot's km between the stops: its name, category, length, grade and gain.
• Which name. OpenStreetMap places tagged as a mountain pass (mountain_pass=yes), a saddle (natural=saddle) or a peak (natural=peak), with a name, near the climb's top. A pass or saddle within 300 m (climb_names.pass_m) wins, since the road crosses it; else a peak within 200 m (climb_names.peak_m), since the road only skirts one: the nearest peak is often a summit off to the side, not where the road tops out. Then the closest. Most small rises have neither, and get no name.
• Where it comes from. One Overpass request for the whole route; if its servers are busy, a mirror, then Nominatim, up to three requests per climb, one per second.
• Then it's instant. Answers are cached on your computer for a year (climb_names.max_age_days); --refresh looks them up again. If OpenStreetMap doesn't answer, or you're offline, you get a warning and a road book without the missing names.

Opening hours

With --hours, each bakery, grocery, petrol station, café, fast food and ice cream shop in the booklet, or on the reference sheet, gets its own line with its opening hours, as listed on OpenStreetMap:

km 4.3
🥖 Les Délices de Saint-Béat Th-Tu 08:00–13:00
🛒 Vival Mo-Su 08:30–12:30, 15:00–19:30

• On your ride day. Add --date 2026-10-11 and each shop shows only that day's hours, e.g. 08:00–12:30, 15:00–19:30, or closed. Public holidays count, for the country the shop is in: a shop marked PH off is closed on 11 November in France. A ? after hours means OpenStreetMap isn't sure the shop is open then. Hours that aren't in OpenStreetMap's format are shown as written, in grey.
• Where they come from. The GPX has no hours, so each shop is matched to the OpenStreetMap place within 80 m of it with the closest name (hours.match_m). onroutemap.de uses OpenStreetMap too, so the names usually line up.
• Coverage. OpenStreetMap doesn't know every shop's hours: expect roughly half of them, more for supermarkets. The others get a dotted blank instead, to write their hours in by hand: check the ones you plan to stop at (the shop's website, a map app) and fill them in after printing.
• It takes a while the first time. The hours are looked up online, through the Overpass API or, when its servers are busy, Nominatim, which allows one request per second. For a 200 km route, count from half a minute to a few minutes.
• Then it's instant. Answers are cached on your computer for 30 days (hours.max_age_days), so rendering the same route again needs no internet. Use --refresh to look them up again.
• If the lookup fails, you get a warning and a road book without the missing hours. Run it again later.
• Check the ones you rely on. Hours change, and OpenStreetMap may be out of date.

Choose which categories get hours in your --config file:

[hours]
categories = ["bakery", "grocery"]

Arrival times

Give a start time and your speed on the flat, short stops included, and the road book works out when you reach each stop:

roadbook my_ride.gpx --hours --date 2026-10-17 --start 07:00 --speed 28 --break 95:45

km 123.9 ~13:39–15:46
☕ Le Bistrot 08:00–20:00
🛒 Proxi Super ⚠ opens 15:00 08:00–12:15, 15:00–19:15
km 151.7 ~14:45–17:15
🥖 De Oliveira ⚠ opens 15:30 07:00–12:45, 15:30–19:15
🛒 Carrefour Express 08:00–20:00

• A window, not a time. You won't ride exactly at the planned speed, so each stop gets the earliest and latest time you may reach it: ±15 % of the time ridden so far, at least ±20 min (--margin). The window widens along the route, as small differences add up.
• closed: closed the whole time you may be there. The shop's hours that day follow, in grey, so you can see when it opens instead.
• ⚠ closes 12:15, ⚠ opens 09:30: it opens or closes while you may be there. Whether you make it depends on your pace, so check before counting on it.
• Shops shown with just their hours are open the whole time.
• On the strip, a POI emoji is greyed out when every shop it stands for is known to be closed when you pass. Shops with unknown hours never grey out an emoji.
• Climbing slows you down. Each 100 m climbed adds 5 minutes (--climb), on top of the distance at your flat speed. So the stop after a big climb comes later than at a constant speed, and the flat stretches after it go quicker. Fitted on real 100–250 km rides with 800–4,100 m of climbing, this got the ride time within about half an hour. Descents are not counted separately: the 5 minutes are what a climb costs once the descent after it has given some time back.
• Planned breaks, such as --break 95:45 for a 45-minute lunch at km 95, delay every stop after them. They don't widen the margin, since you plan them.
• The booklet's cover, or the sheet's title, sums up the assumptions, e.g. start Sat 17 Oct 2026 07:00 at 28 km/h + 5 min/100 m climbed (±15 %, ≥20 min) · breaks: km 95 (45 min).

Development

git clone https://github.com/bnogaro/gpx2roadbook.git
cd gpx2roadbook
make dev                       # install everything, plus the commit hooks (Conventional Commits, ruff, …)
uv run roadbook my_ride.gpx    # run your working copy
make lint test                 # what CI checks

Releasing

Versions come from the commit messages (Conventional Commits): fix: bumps the patch, feat: the minor version.

make release

This works out the next version with commitizen, updates pyproject.toml, uv.lock and CHANGELOG.md, and opens a bump: version X.Y.Z pull request. Merging it publishes the release: the release workflow builds and smoke-tests the package, uploads it to PyPI with trusted publishing (no API token), then tags vX.Y.Z and creates the GitHub Release.

It needs a clean working tree. To see what it would do without pushing or opening a PR, run make release DRY_RUN=1 (it tells you how to drop the local branch afterwards).

License

Copyright © 2026 Bastien Nogaro. Released under the GNU Affero General Public License v3.0 or later: you may use, change and share this software, including commercially, as long as you keep the copyright notice and share your changes under the same license, also when you run a modified version as a web service.
