grafito-canstepper 0.1.0

Host library for Grafito CANStepper boards (GCSP v1): multi-node CAN stepper control with encoders, homing, groups and coordinated motion

Grafito CANStepper

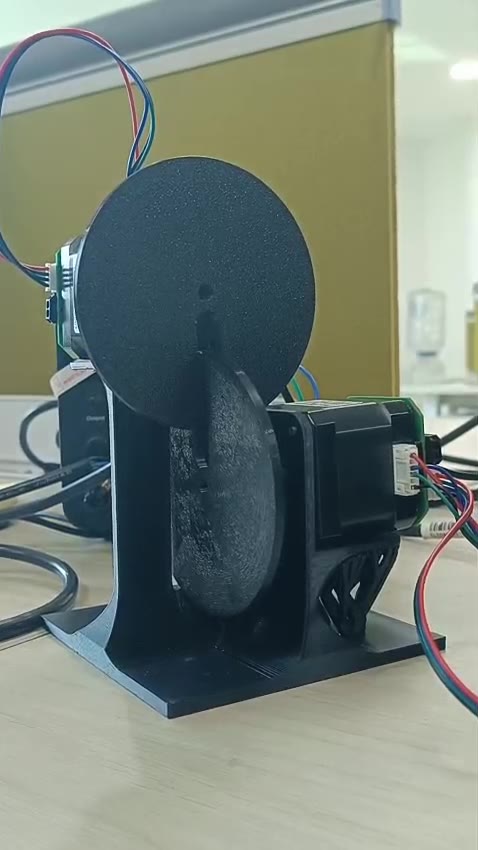

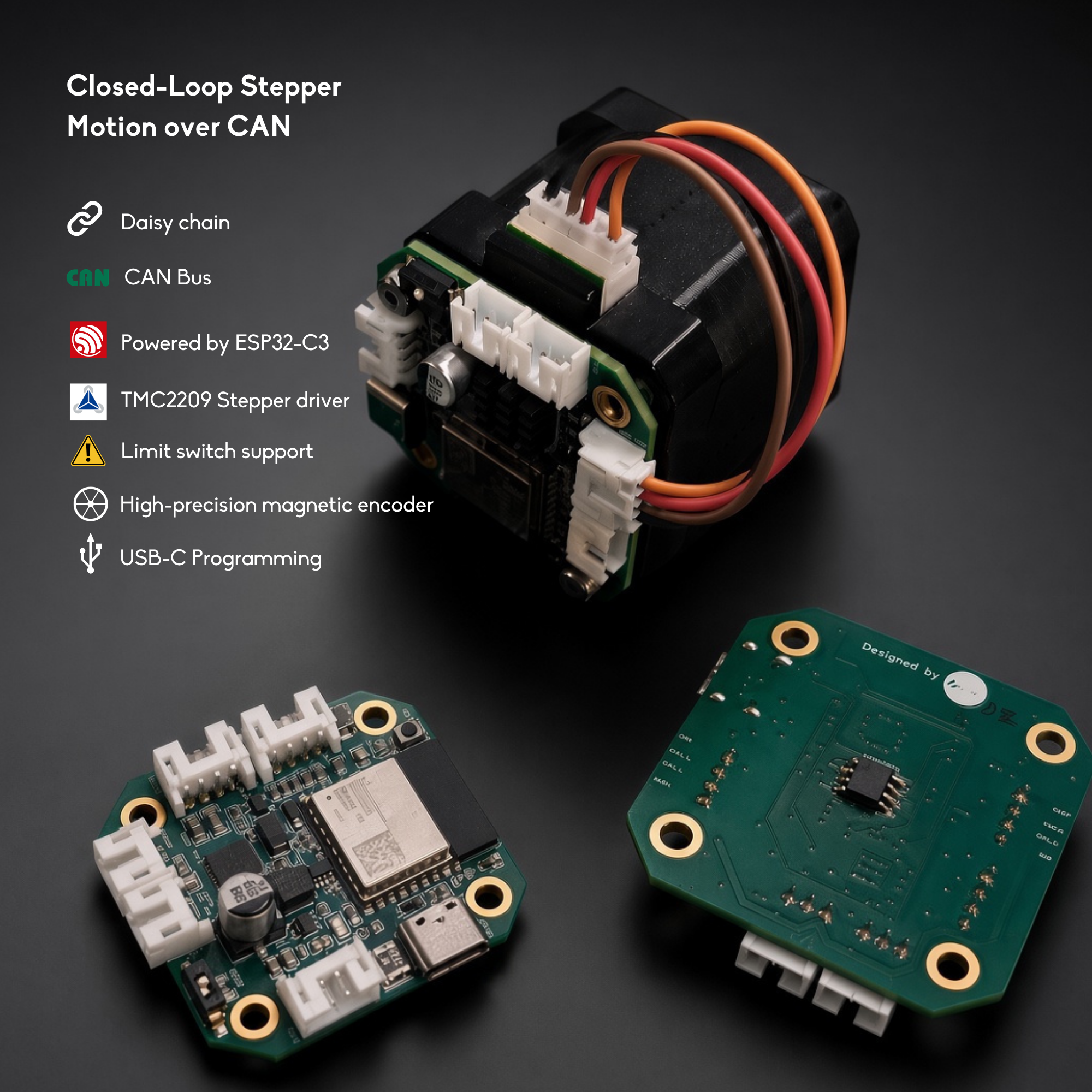

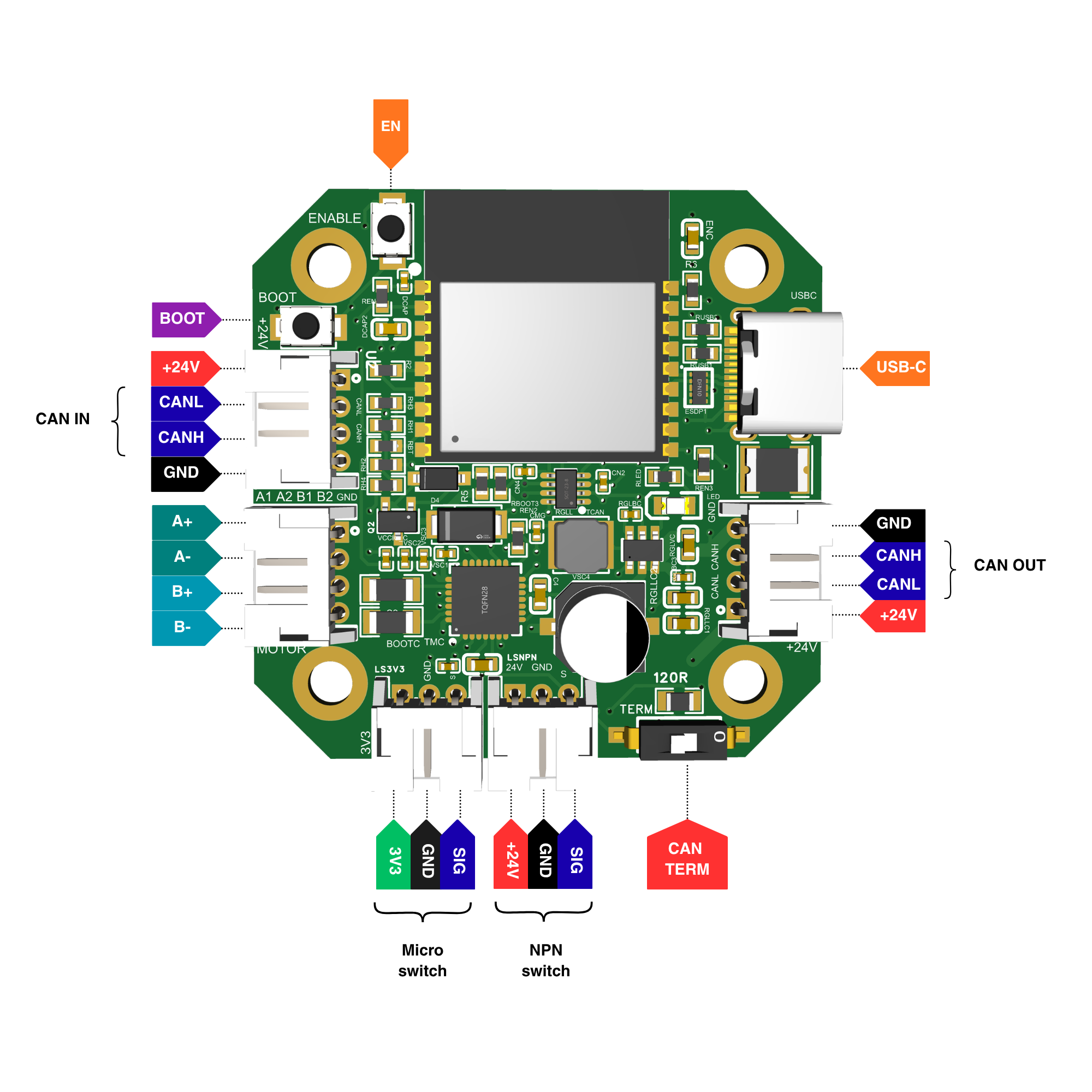

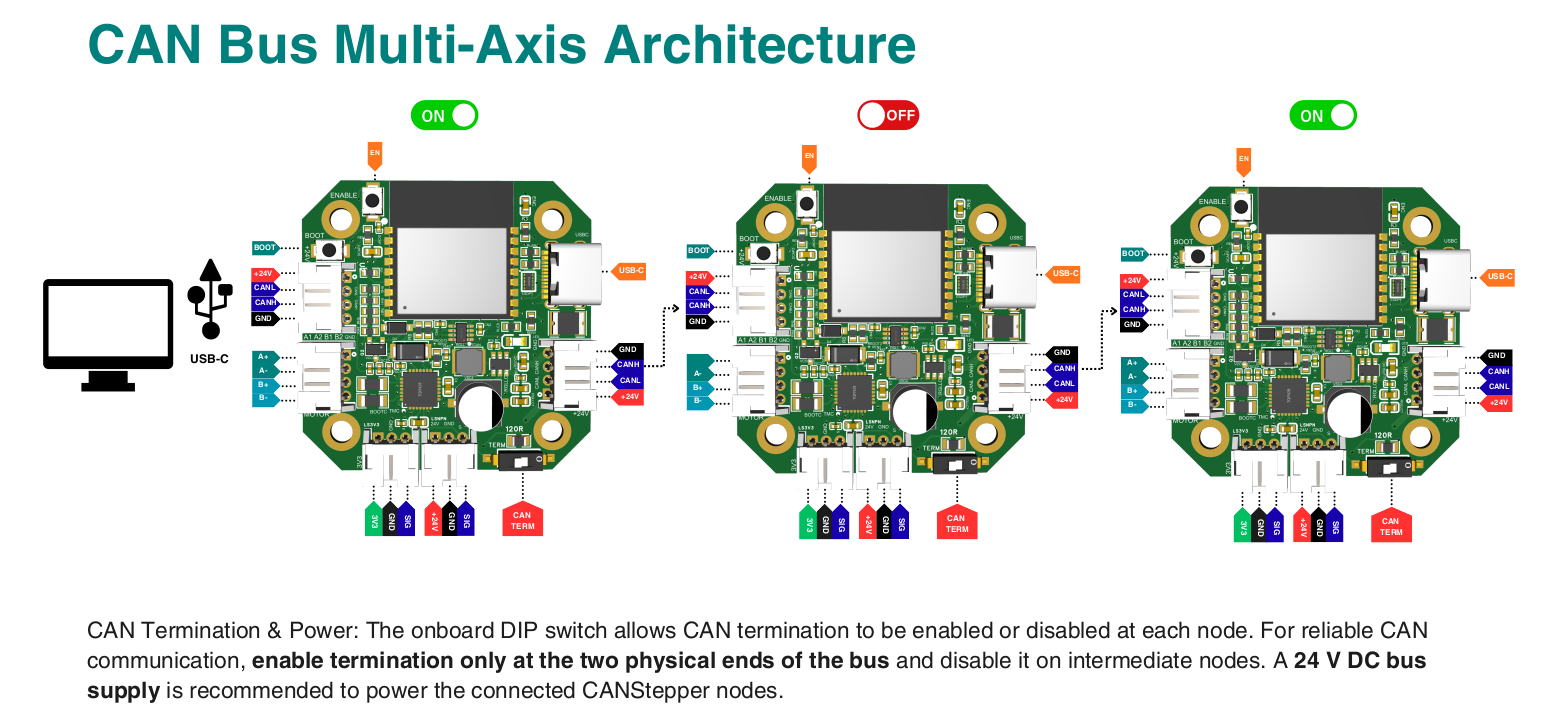

Closed-loop stepper motor control over CAN. Each board carries an ESP32-C3, a TMC2209 driver, an MT6701 14-bit magnetic encoder and a CAN transceiver; up to 31 boards daisy-chain on one 1 Mbps bus and are driven from Python through the USB port of any board on the chain.

can_stepper/
├── firmware/GrafitoCANStepper_C3/   # node firmware (GCSP v1)
├── canstepper/                      # Python package (grafito-canstepper)
├── examples/                        # runnable examples + machine.toml
├── tests/                           # pytest suite (runs on a software sim)
└── docs/
    ├── PRD.md                       # product requirements
    ├── protocol.md                  # GCSP v1 wire protocol reference
    └── quickstart.md                # unboxing -> moving motor

Highlights

• Layered Python API — raw frames → StepperNode → NodeGroup → Axis (mm units via rotation_distance) → DualMotorAxis / CoreXY / MotionGroup → declarative machine.toml.
• Safety scopes — node.estop(), group.estop(), bus.estop_all() (single broadcast frame); e-stop is latched until re-enabled.
• Homing — physical endstop on IO8, sensorless (StallGuard), or set-zero; configurable current, backoff and timeout.
• Closed loop — firmware ≥1.2 plans a rest-to-rest trapezoidal trajectory with velocity feedforward and a light tracking PID on the MT6701 encoder (settle + stall watchdog). All motion limits are configurable defaults, never hard clamps.
• On-bus leader/follower — dual-motor gantries stay coupled with no host in the loop.
• Simulator included — canstepper.sim.SimNetwork implements the whole protocol in software; the test suite and the examples run without hardware.

Install & first spin

The package is grafito-canstepper on the index; you import canstepper.

# Works today (GitHub monorepo subdirectory — not yet on PyPI):
pip install "git+https://github.com/Grafito-Innovations/Grafito-Edge-Services.git#subdirectory=can_stepper"

# Development (from this directory):
pip install -U pip setuptools && pip install -e ".[dev]"

# After publishing to PyPI:
# pip install grafito-canstepper

Docs: https://docs.grafito.in

from canstepper import CANStepperBus

with CANStepperBus.serial("/dev/ttyACM0") as bus:
    print(bus.discover())
    node = bus.node(1)
    node.set_run_current(40).enable()
    node.move_to(360.0, blocking=True)

Continue with:

• docs/quickstart.md — first motion
• docs/closed_loop_tuning.md — trapezoid + v_ff, hardware matrix + 10 min soak on PR42HS40-1204AF-02 (NEMA 17 1.2 A)
• docs/protocol.md — GCSP v1 wire protocol

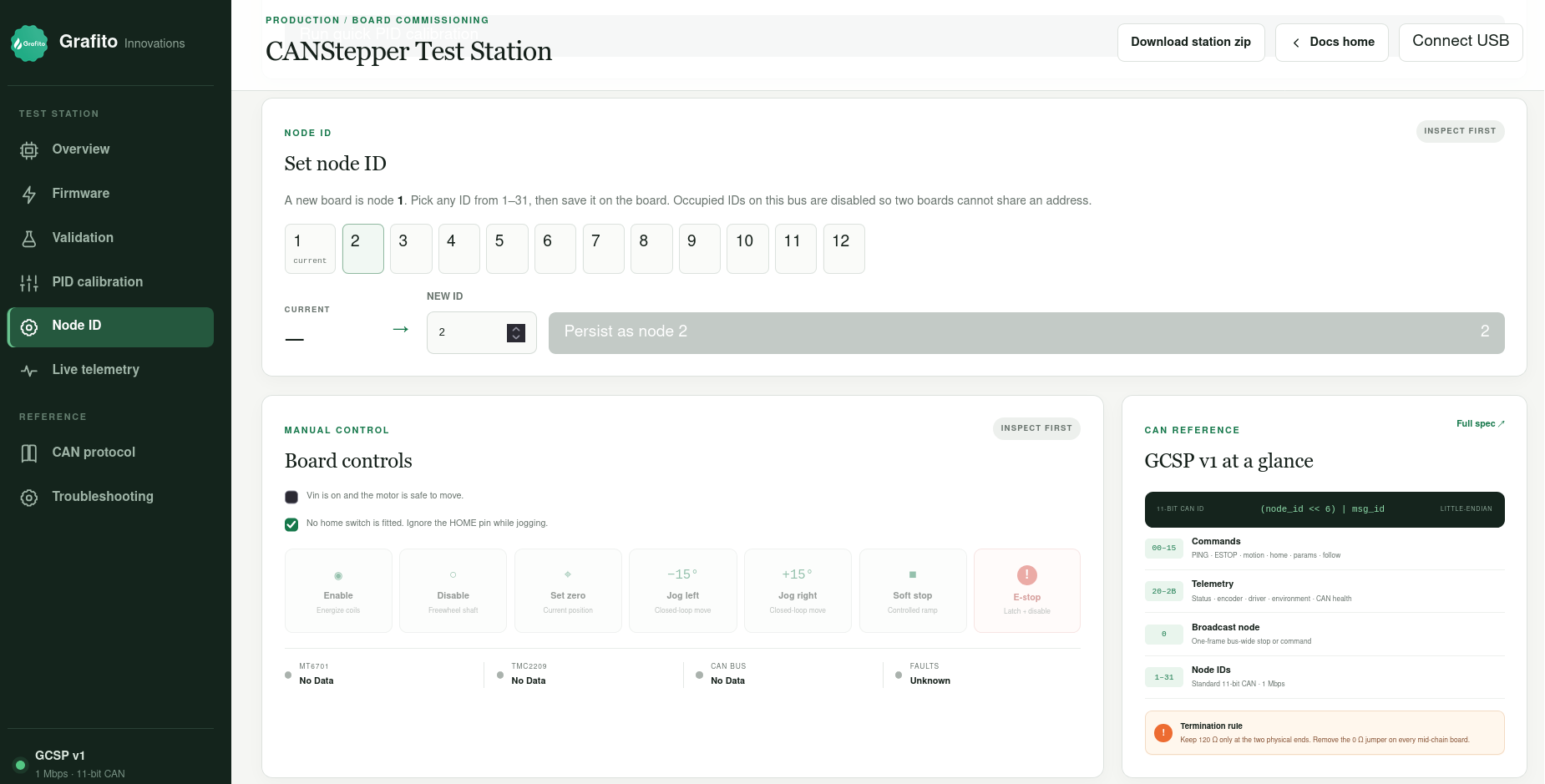

Development

cd can_stepper
python3 -m pytest            # simulator suite
python3 tools/cl_speed_validate.py /dev/ttyACM0 1 70 8   # hardware OL vs CL

Firmware builds with Arduino IDE or arduino-cli (ESP32C3 Dev Module, USB CDC On Boot = Enabled; libraries: FastAccelStepper, TMC2209 janelia-arduino):

arduino-cli compile --fqbn esp32:esp32:esp32c3:CDCOnBoot=cdc \
  firmware/GrafitoCANStepper_C3
arduino-cli upload -p /dev/ttyACM0 --fqbn esp32:esp32:esp32c3:CDCOnBoot=cdc \
  firmware/GrafitoCANStepper_C3

Legacy note

CANStepperNode_C3/ and canbus.py are the earlier bring-up firmware and host script based on a third-party protocol. They are superseded by the clean-room GCSP v1 stack above and kept only for reference during migration.
