GS-DroneGym

Photorealistic drone simulation, synthetic aerial dataset generation, and cross-benchmark trajectory tooling for vision-language-action research.

GS-DroneGym is built around one problem: VLA-AN highlights the visual sim-to-real gap as a major blocker for drone VLA systems, while RaceVLA shows that aerial VLA policies can work but still degrade on safety and generalization. This project turns that motivation into a usable research stack: a drone simulator with 3D Gaussian Splatting rendering, waypoint supervision, task libraries, and now a synthetic VLA-AN-like dataset factory plus shared tooling for GS-DroneGym, LIBERO, and LeRobot-format data.

What This Repo Actually Does

GS-DroneGym can be used in four ways:

1. Drone simulator
   • run drone navigation tasks with RGB, depth, state, and language instructions
2. Interactive viewer
   • fly the drone manually and inspect RGB, depth, and top-down trajectories
3. Synthetic dataset factory
   • generate waypoint-supervised aerial datasets in Parquet shards
4. Cross-benchmark data layer
   • normalize, inspect, train on, and evaluate GS-DroneGym, LIBERO, and LeRobot-style trajectories

What's New

• v0.1: core quadrotor simulator, renderer stack, tasks, metrics, and viewer
• v0.2: shared trajectory schema, benchmark adapters, dataset loaders, and behavior cloning baseline
• v0.3: synthetic VLA-AN-like dataset generation with staged curricula, expert waypoints, safety labels, Parquet shards, debug JSON episodes, preview CLI, and dataset validation

Visual Demos

Keyboard control demo

This shows manual waypoint control in the live viewer.
The left panel is RGB, the middle panel is depth, and the right panel is the top-down flight trace.
As you press movement keys, the path and heading update in real time.

Obstacle slalom

This task checks whether the drone can weave through a structured obstacle course.
The top-down view makes drift and near-collision behavior easy to inspect.

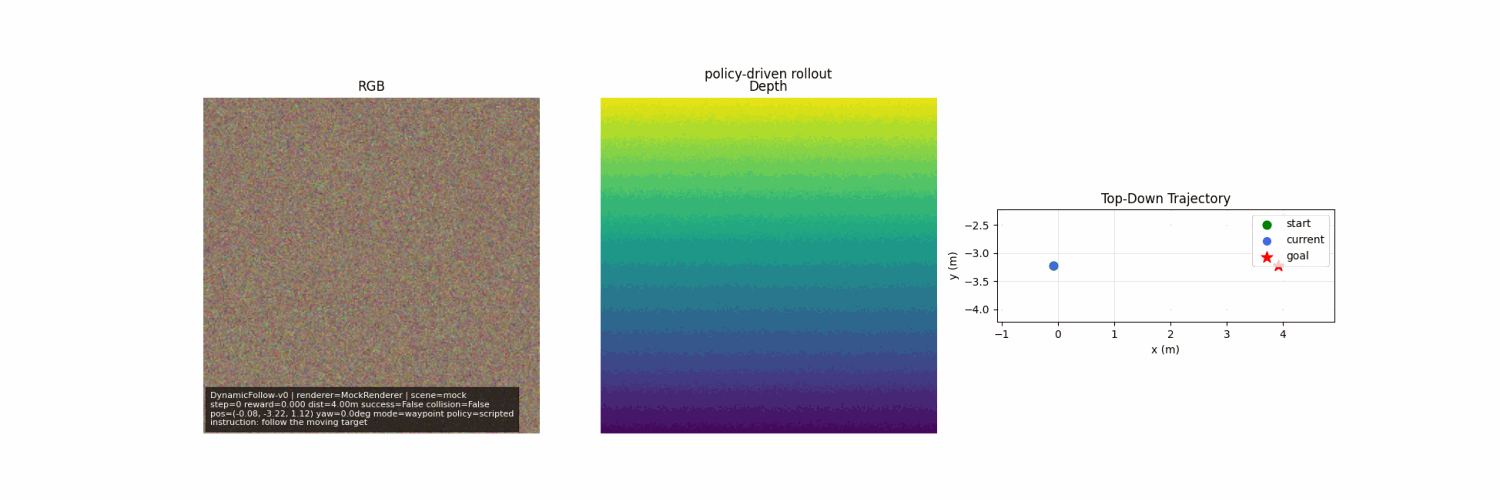

Dynamic follow

This task is about staying close to a moving target rather than reaching a fixed point.
It is useful for debugging temporal control and tracking lag.

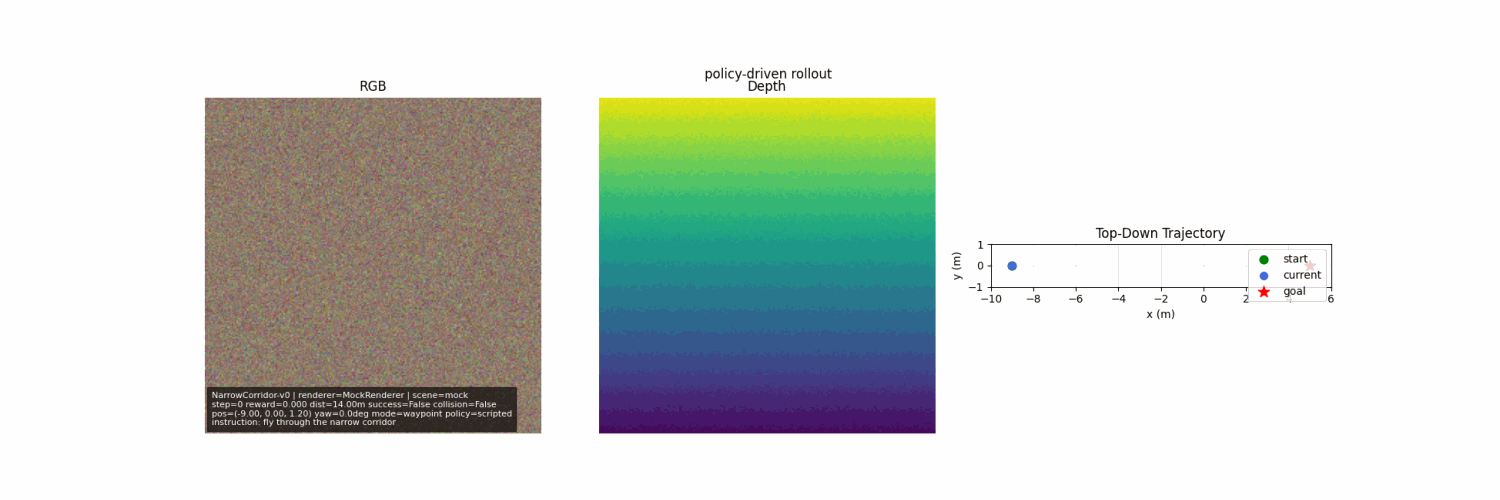

Narrow corridor

This stresses precision and safety in tight geometry.
You can immediately see whether the drone stays centered or clips the corridor walls.

Install

After the PyPI release is available:

pip install gs-dronegym

Until then, install from GitHub:

pip install "gs-dronegym @ git+https://github.com/09Catho/gs-dronegym.git"

For development:

git clone https://github.com/09Catho/gs-dronegym.git
cd gs-dronegym
pip install -e .

For CUDA rendering extras from GitHub:

pip install "gs-dronegym[cuda] @ git+https://github.com/09Catho/gs-dronegym.git"

For LIBERO support:

pip install "gs-dronegym[libero] @ git+https://github.com/09Catho/gs-dronegym.git"

The libero extra only installs shared loader dependencies. Install the official LIBERO environment separately according to the upstream project you are using, because PyPI packages cannot depend on arbitrary GitHub repos.

For LeRobot-format support:

pip install "gs-dronegym[lerobot] @ git+https://github.com/09Catho/gs-dronegym.git"

For all benchmark extras:

pip install "gs-dronegym[benchmarks] @ git+https://github.com/09Catho/gs-dronegym.git"

5-Minute Start

1. Run the simulator

import gs_dronegym

env = gs_dronegym.make("PointNav-v0", scene=None)
obs, info = env.reset(seed=0)
obs, reward, terminated, truncated, info = env.step(env.action_space.sample())

print(obs["instruction"])
print(obs["rgb"].shape, obs["depth"].shape, obs["state"].shape)

2. Open the live viewer

gs-dronegym-live-view --env-id PointNav-v0 --scene None --policy keyboard --action-mode waypoint

Keyboard mapping:

• I/K: forward/back
• J/L: left/right
• U/O: up/down
• N/M: yaw left/right
• P: pause
• R: reset
• Esc: quit

3. Generate a tiny synthetic dataset

gs-dronegym-generate-dataset outputs/synth_dataset --scenes mock://lab_a mock://lab_b --episodes-per-scene 12 --renderer-device cpu --allow-mock-rendering

4. Validate the generated dataset

gs-dronegym-validate-dataset outputs/synth_dataset

Core Workflows

Workflow A: Simulate a drone task

Use this when you want to prototype a policy, debug control logic, or inspect task behavior.

gs-dronegym-live-view --env-id PointNav-v0 --scene None --policy keyboard --action-mode waypoint

Workflow B: Generate synthetic VLA-style data

Use this when you want training data with RGB, depth, drone state, language instruction, expert waypoint, and safety labels.

gs-dronegym-generate-dataset outputs/synth_dataset --scenes mock://lab_a mock://lab_b --episodes-per-scene 12 --renderer-device cpu --allow-mock-rendering
gs-dronegym-validate-dataset outputs/synth_dataset

Workflow C: Preview a dataset task before generating at scale

Use this when you want to inspect a single scenario and save a GIF.

gs-dronegym-preview-dataset-task --scene None --stage stage2_flight_skills --task-id narrow_corridor --steps 40 --save-gif outputs/dataset_preview.gif --allow-mock-rendering

Workflow D: Load a real Gaussian scene

Use this when you already have a Gaussian .ply from Nerfstudio or another 3DGS pipeline.

gs-dronegym-live-view --env-id PointNav-v0 --scene C:\path\to\scene.ply --renderer-device cuda --policy keyboard

For synthetic dataset generation on a real scene:

gs-dronegym-generate-dataset outputs/real_dataset --scenes C:\path\to\scene.ply --episodes-per-scene 12 --renderer-device cuda

Synthetic Dataset Factory

GS-DroneGym v0.3 adds a staged aerial dataset generator designed to approximate the public ingredients described in VLA-AN.

Generated supervision per step:

• instruction
• rgb
• depth
• state
• expert_waypoint = [x, y, z, yaw]
• safety labels:
  • collision_imminent
  • min_clearance_m
  • recovery_required
  • collision_occurred
  • success

Curriculum stages:

• stage1_scene_comprehension
• stage2_flight_skills
• stage3_long_horizon_navigation

Output layout:

• manifest.json
• splits.json
• episodes_debug/
• media/<split>/<shard>/rgb/*.png
• media/<split>/<shard>/depth/*.npy
• parquet/<split>/steps-xxxxx.parquet
• parquet/<split>/episodes.parquet

Important note: this is a VLA-AN-like approximation, not a claim of exact reproduction of the paper's internal private dataset.

Cross-Benchmark Layer

GS-DroneGym also includes a shared benchmark/data layer for:

• live drone rollouts
• normalized offline trajectories
• LIBERO adapters
• LeRobot-format dataset loading
• behavior cloning
• evaluation reports

Main interfaces:

• TaskSpec
• ActionSpec
• ObservationSpec
• TrajectoryStep
• TrajectoryEpisode
• BenchmarkReport
• make_benchmark(...)
• load_dataset(..., format="gs_dronegym" | "libero" | "lerobot")

Built-In Drone Tasks

Task	Description	Success Metric	Max Steps
PointNav-v0	Fly to a sampled 3D coordinate.	Reach goal within 0.5 m.	200
ObjectNav-v0	Fly to a language-described region.	Reach region goal within 0.5 m.	200
ObstacleSlalom-v0	Pass through five obstacle gates in sequence.	Clear all gates and finish.	200
DynamicFollow-v0	Track a moving target.	Stay within 1.0 m for 15 consecutive steps.	200
NarrowCorridor-v0	Traverse a tight corridor safely.	Reach corridor exit within 0.5 m.	200

Architecture

flowchart LR
    A["Drone state"] --> B["QuadrotorDynamics"]
    B --> C["CameraModel pose"]
    C --> D["GSplatRenderer / MockRenderer"]
    D --> E["RGB + depth observations"]
    E --> F["Policy / benchmark adapter"]
    F --> G["Waypoint [x, y, z, yaw]"]
    G --> H["WaypointController"]
    H --> I["Thrust + body-rate commands"]
    I --> B
    E --> J["Trajectory schema / dataset writer / reports"]
    K["LIBERO / LeRobot adapters"] --> J

CLI Reference

Inspect a dataset:

gs-dronegym-inspect-dataset path/to/dataset --format gs_dronegym

Train behavior cloning:

gs-dronegym-train-bc path/to/dataset --format gs_dronegym --epochs 3 --checkpoint outputs/policy.pt

Evaluate:

gs-dronegym-evaluate --benchmark gs_dronegym --env-id PointNav-v0 --n-episodes 5

Live viewer:

gs-dronegym-live-view --env-id PointNav-v0 --scene None --steps 60

Save a GIF without opening a window:

gs-dronegym-live-view --env-id PointNav-v0 --scene None --steps 60 --no-show --save-gif outputs/live_view.gif

Generate a scripted keyboard-style demo GIF:

gs-dronegym-live-view --env-id PointNav-v0 --scene None --policy scripted --steps 60 --no-show --save-gif outputs/keyboard_demo.gif

Examples

The examples/ folder includes:

• export_drone_rollout.py
• generate_synthetic_dataset.py
• preview_synthetic_dataset.py
• live_viewer.py
• load_libero_dataset.py
• load_lerobot_dataset.py
• train_bc.py
• evaluate_benchmark.py

Real Scene Workflow

If you want real rendering instead of mock rendering:

1. capture a real room or outdoor space with images/video
2. build a Gaussian .ply with Nerfstudio or another 3DGS pipeline
3. pass that .ply into GS-DroneGym
4. run the viewer or dataset generator on top of that real scene

Example:

gs-dronegym-live-view --env-id PointNav-v0 --scene C:\path\to\scene.ply --renderer-device cuda --policy keyboard

Next Phase

Planned work from here:

1. Larger real-scene dataset generation

   • better gsplat batching
   • multi-scene GPU scheduling
   • stronger resume/checkpoint behavior

2. Richer expert supervision

   • stronger recovery labels
   • better dynamic-target forecasting
   • optional low-level control labels in addition to waypoints

3. Dataset publishing

   • dataset cards
   • Hugging Face export helpers
   • benchmark tables for generated splits

References

• VLA-AN: An Efficient and Onboard Vision-Language-Action Framework for Aerial Navigation in Complex Environments
• RaceVLA: VLA-based Racing Drone Navigation with Human-like Behaviour
• LIBERO: Benchmarking Knowledge Transfer for Lifelong Robot Learning
• LeRobot GitHub
• Hugging Face LeRobot Docs

Development

pip install -e .[dev]
python -m ruff check .
python -m pytest -q

The core path remains CPU-only and fully testable with MockRenderer. Optional GPU rendering and external benchmark integrations are import-gated.

Citation

@software{saxena2025gsdronegym,
  author = {Saxena, Atul},
  title  = {GS-DroneGym: Photorealistic Simulation for VLA Drone Navigation},
  year   = {2025},
  url    = {https://github.com/09Catho/gs-dronegym}
}
