h3-boundary 0.1.0

H3 cell boundary tracing and buffered polygons across resolution hierarchies, with optional C++ acceleration

H3-Boundary

Boundary cells and boundary polygons for Uber's H3 grid.

An H3 cell at one resolution contains thousands — or billions — of cells at finer resolutions. H3-Boundary works with the ones on its edge: it lists them, traces their outline, and builds polygons that safely contain them. Cost scales with the boundary, never with the interior.

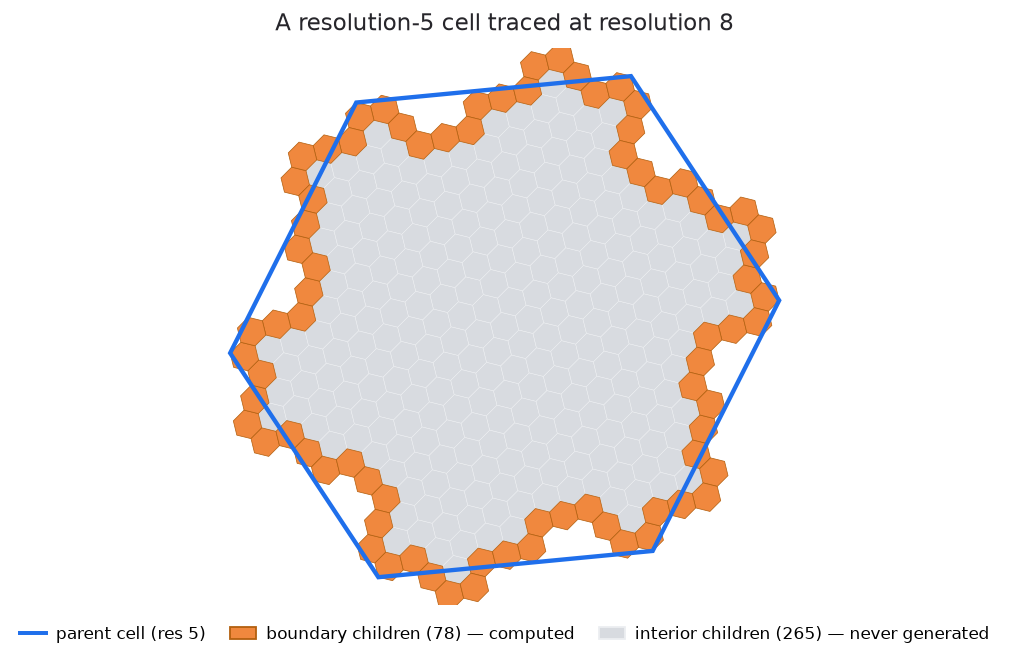

A resolution-5 cell traced at resolution 8: 78 boundary cells computed, 265 interior cells never generated.

pip install h3-boundary

Quick start

Start from any H3 cell. Here we index downtown San Francisco at resolution 6 — a district-sized cell of about 36 km² — using latlng_to_cell from h3-py, which H3-Boundary already depends on.

import h3
import h3_boundary as h3b

cell = h3.latlng_to_cell(lat=37.7759, lng=-122.4180, res=6)

# 1. Its boundary cells: the descendants at resolution 10 (block-sized cells)
#    that lie on its edge
edge = h3b.children_on_boundary_faces(cell, target_res=10)
len(edge)                                                # 240, out of 2,401 descendants

# 2. Its exact outline — the shape those descendants actually fill
outline = h3b.cell_boundary_from_children(cell, target_res=10)

# 3. That same outline, grown by a safety margin
safe = h3b.get_buffered_boundary_polygon(cell, intermediate_res=10)
safe["properties"]["buffer_meters"]                      # 75.9 — the margin added

Both polygons are GeoJSON Features, and both trace the boundary at resolution 10 — the difference is what they are for. The outline is the exact shape: draw it. On its own it is not safe to filter with, because cells finer than resolution 10 still poke slightly past it; safe pushes the edges out by one resolution-10 edge length (75.9 m), after which nothing can fall outside at any resolution. That is also why its parameter is called intermediate_res — there, tracing is only an intermediate step.

Why not just use the hexagon H3 draws for the cell? Because that hexagon is not where the descendants sit — they straddle it, as the figure above shows. Filtering fine-resolution data with it silently loses the cells along the edge (about 7% of them).

Working at scale

Interiors explode; boundaries stay manageable. Boundary size has a closed form — 3**(depth + 1) - 3, where depth is how many resolution levels you descend — so it is known before computing anything. A resolution-2 cell has close to two billion descendants at resolution 13, but only 531,438 of them lie on its boundary, and you never need to build even those to use them:

res, target = 2, 13                          # a country-sized cell, traced with ~44 m² cells
big = h3.latlng_to_cell(lat=37.7759, lng=-122.4180, res=res)

depth = target - res                         # 11 levels of subdivision between the two
total = 3 ** (depth + 1) - 3                 # 531,438 boundary cells, known without counting

ids = h3b.boundary_cell_ids(big, target_res=target)               # all of them, uint64, ~4 ms
mid = h3b.boundary_cell_at(big, target_res=target, n=total // 2)  # any one, in microseconds
h3b.boundary_rank(big, mid)                                       # the inverse — also a membership test
h3b.boundary_range(big, target_res=target, start=0, stop=100)     # any slice — stream it, or shard it

Disjoint slices reassemble into exactly the full boundary, so parallel workers need no coordination.

Output formats

• Cells: hex strings (children_on_boundary_faces) or NumPy uint64 arrays (boundary_cell_ids) — ready for h3-py, dataframes, or database joins.
• Polygons: GeoJSON Features — ready for folium, Leaflet, or PostGIS.

The package ships as a source distribution: it compiles a C++ extension during install when a toolchain is available (cmake, C++17, Boost headers) and falls back to pure Python otherwise. Same results either way, verified by a parity test suite.

Documentation

khoshkhah.github.io/h3-boundary — concepts, algorithm comparisons, benchmarks, and the full API.

Three runnable notebooks live in notebook/: boundary tracing on a map, working with half-million-cell boundaries, and the buffering modes compared.

Development

git clone https://github.com/Khoshkhah/h3-boundary.git
cd h3-boundary
conda env create -f environment.yml && conda activate h3-boundary
pip install -e .
pytest tests/python -v

Contributions welcome — see CONTRIBUTING.md.

License

MIT — see LICENSE. Built on Uber H3, Boost.Geometry and pybind11.
