pdum.rfb — Remote Frame Buffer

Render a framebuffer in Python, view and interact with it in the browser. pdum.rfb streams a server-rendered framebuffer to a browser over a WebSocket and sends pointer/keyboard/resize events back. It targets scientific and interactive visualization across the whole cadence range — from sparse, on-demand scenes (render only when state changes) to high-frame-rate interactive streaming (low-latency H.264/WebCodecs). You own the loop and pick the cadence; the library never imposes a fixed game-engine tick. It is not a generic VNC clone.

Coming from jupyter_rfb? Same idea — render in Python, view in the browser, events flow back, same renderview event vocabulary — so it slots under rendercanvas / pygfx / fastplotlib. What's different:

• Not tied to Jupyter. Frames travel over a plain WebSocket, not ipywidgets/kernel comms — the same server drives a standalone web page, a desktop webview, or a headless box, no notebook required.
• High frame rates. Alongside the per-frame image path (every frame a keyframe, à la jupyter_rfb), a low-latency H.264/WebCodecs path with per-client backpressure and keyframe policy streams continuous, interactive framerates — not just occasional redraws.
• Zero-copy on the GPU. When you render on CUDA, frames can go straight to NVENC (CUDA NV12 → H.264) with no host round-trip — see GPU zero-copy.

The repo ships two halves:

• a Python server — this package, habemus-papadum-rfb (import pdum.rfb), Python 3.12+, UV-managed;
• a browser client — @habemus-papadum/rfb-widgets, a TypeScript package whose decoding runs entirely in a Web Worker (it owns the WebSocket, the decoder, and a transferred OffscreenCanvas).

A sibling native package, habemus-papadum-nvenc (import pdum.nvenc, under packages/nvenc/), provides an optional PyAV-free GPU H.264 encoder.

📖 Full documentation: https://habemus-papadum.github.io/pdum_rfb/

Try it

No checkout, no build — uv runs it straight from PyPI:

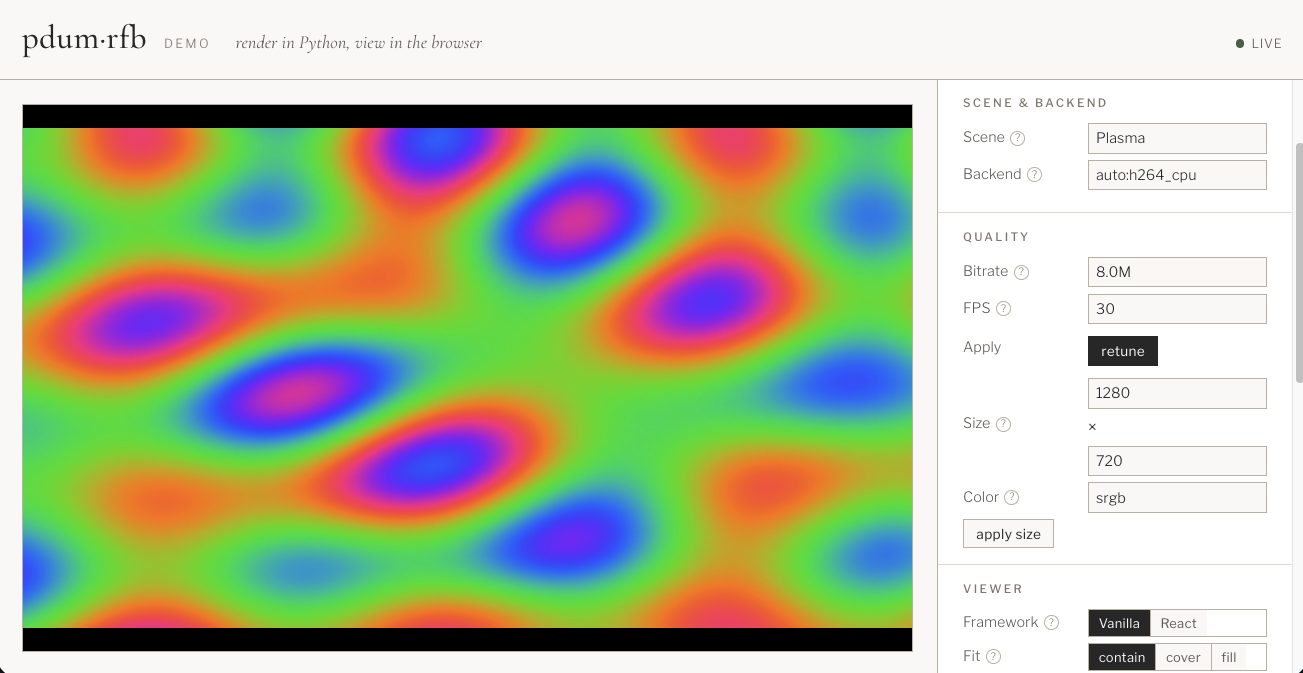

# interactive demo — opens a browser tab; pick a scene, encoder, and quality
uvx --python 3.14 --from 'habemus-papadum-rfb[demo]' pdum-rfb demo

# which encode paths light up on your machine?
uvx --python 3.14 --from 'habemus-papadum-rfb[doctor]' pdum-rfb doctor

_{One command works on macOS and Linux — the platform's hardware encoder (Apple VideoToolbox / NVIDIA NVENC) installs automatically, everything else falls back to the CPU paths. --python 3.14 just pins the interpreter uv runs with — it downloads it if needed.}

How it works

The public API is push: you own your loop and publish frames into a shared Display; the library fans each frame out to every connected viewer and lets you drain input from all of them in one place.

import asyncio
import pdum.rfb as rfb

async def main():
    display = await rfb.serve(1280, 720, port=8765)   # WS server starts in the background
    state = initial_state()
    try:
        while running(state):
            for ev in display.poll_events():          # input from every viewer
                state = update(state, ev)
            display.publish(render(state))            # sync, latest-wins, fans out to all viewers
            await asyncio.sleep(1 / 30)               # or on-demand — you own the cadence
    finally:
        await display.aclose()

asyncio.run(main())

import { RemoteFramebufferView } from "@habemus-papadum/rfb-widgets";
const view = new RemoteFramebufferView(document.getElementById("stage")!, {
  url: "ws://localhost:8765",
});
// later: view.dispose();

Each connecting browser negotiates the best shared transport: an image path (JPEG/PNG/WebP, every frame a keyframe; dependency-light) or an H.264 path (Annex B for the browser's WebCodecs decoder). For GPU-rendered scenes, three hardware NVENC routes are available — see the Installation guide.

Installation

pip install habemus-papadum-rfb              # image path (numpy, pillow, websockets)
pip install 'habemus-papadum-rfb[h264]'      # + CPU/software H.264 (PyAV/libx264)
pip install 'habemus-papadum-rfb[gpu-nvenc-sdk]'   # + GPU H.264 (NVIDIA, Linux) — fastest
pip install 'habemus-papadum-rfb[anywidget]'       # + Jupyter/marimo notebook widget

import pdum.rfb works without any extra. Not sure what your machine supports? pip install 'habemus-papadum-rfb[cli]' then pdum-rfb doctor. The full matrix (CPU vs the three GPU routes, platform limits) is in the Installation guide.

Developing

The repo is a uv workspace (root habemus-papadum-rfb + packages/*) with the browser client as a self-contained pnpm project under widgets/. The layout, the uv/pnpm conventions, and the CI are documented in Repository & Development.

Prerequisites

Install these yourself first — setup.sh detects them and tells you how to install any that are missing, but it never installs them for you:

• uv — curl -LsSf https://astral.sh/uv/install.sh | sh
• Node.js 20+ and pnpm (for the browser client / e2e). The repo pins the tested LTS in .nvmrc (Node 22, which CI uses) — nvm use / fnm use picks it up. corepack enable (ships with Node) or npm i -g pnpm provides pnpm. Optional if you only work on the Python side. setup.sh refuses to set up the browser client on Node < 20.

Bootstrap (all platforms)

git clone https://github.com/habemus-papadum/pdum_rfb.git
cd pdum_rfb
./scripts/setup.sh        # idempotent — rerun after pulling dependency changes

One command sets up everything, the same way on macOS / Linux / Linux+GPU:

• Python — uv sync --frozen (the committed uv.lock is authoritative). On a Linux box with an NVIDIA GPU and a CUDA toolkit it auto-adds the native NVENC SDK encoder — see Per-platform notes for the RFB_GPU knob.
• Browser client — pnpm install --frozen-lockfile plus the Playwright Chromium download used by the e2e suite (skipped, with a hint, if Node/pnpm are absent).
• pre-commit hooks.

Per-platform notes

• Linux without a GPU (and CI's default) — the bootstrap above is everything. The dev group already includes PyAV, so the image and CPU-H.264 paths and all their tests work. GPU tests detect no device and skip.

• Linux with an NVIDIA GPU — setup.sh detects the GPU + CUDA toolkit and builds the PyAV-free NVENC SDK encoder (pdum.nvenc) as an editable install automatically. Override with the RFB_GPU env var:

  RFB_GPU=auto  ./scripts/setup.sh   # default: build it iff Linux + GPU + CUDA toolkit present
  RFB_GPU=force ./scripts/setup.sh   # build even if the CUDA major ≠ 13 (then swap CuPy yourself)
  RFB_GPU=0     ./scripts/setup.sh   # CPU paths only


  CuPy (cupy-cuda13x) comes with the GPU dev setup (the gpu-dev group), not the gpu-nvenc-sdk extra; on a CUDA-12 toolkit use RFB_GPU=force and swap to cupy-cuda12x. To confirm what lit up:

  uv run --group gpu-dev pdum-rfb doctor     # which encode paths are available


  For the PyAV-18 zero-copy route specifically, ./scripts/install-gpu.sh builds a CUDA-enabled PyAV. See the GPU zero-copy guide.

• macOS — the image and CPU-H.264 paths work (PyAV publishes arm64 wheels). The NVENC/GPU paths are NVIDIA/Linux-only and are simply unavailable; everything else, including the full headless test suite for the CPU paths, runs normally.

Common commands

uv run pytest                          # Python tests
uv run ruff check . && uv run ruff format .
uv run pdum-rfb demo                    # interactive web demo (add --dev for live-reload)
uv run mkdocs serve                    # docs at http://localhost:8000

pnpm -C widgets typecheck              # browser client: types
pnpm -C widgets test                   #                 Vitest unit tests
pnpm -C widgets e2e                    #                 Playwright e2e (boots the Python server)
pnpm -C widgets dev                    #                 demo at http://localhost:5173

Releasing

Maintainers only. Releasing publishes to PyPI/npm, pushes tags, and creates public GitHub releases. Version numbers are human-managed — don't hand-edit them.

Releasing is a single CI workflow — release (.github/workflows/release.yml), a workflow_dispatch a maintainer runs from the GitHub Actions UI (or gh workflow run release.yml -f bump=minor). There is no local release script. In one run it:

1. requires the commit's CI (ci.yml: Linux tests + widgets) to be green — waiting out an in-progress run; skip_ci_check overrides;
2. computes the version = bump(last vX.Y.Z tag, bump) — the size (patch/minor/major) is decided at release, against the last real release (tag-as-truth), not guessed ahead;
3. writes it across every version file in lockstep (pyproject.toml, src/pdum/rfb/__init__.py, packages/*/pyproject.toml, all widgets package.jsons), commits, tags vX.Y.Z, and builds the wheel matrix from that tag;
4. publishes all packages — habemus-papadum-rfb + native -nvenc/-vtenc to PyPI and @habemus-papadum/rfb-widgets + the framework wrappers to npm (with provenance);
5. cuts a GitHub Release (which redeploys the docs) and returns main to the X.Y.Z+dev working marker.

Between releases the working tree carries an X.Y.Z+dev marker (last release + a WIP flag). dry_run computes the version and shows the diff without committing or publishing. Publishing uses repository secrets (PYPI_API_TOKEN, NPM_TOKEN) — see Repository & Development. scripts/publish.sh (reading a git-ignored .env) remains a token-based manual break-glass fallback for out-of-band publishing.

License

MIT License — see LICENSE for details.
