Hantek Power Supply Controller

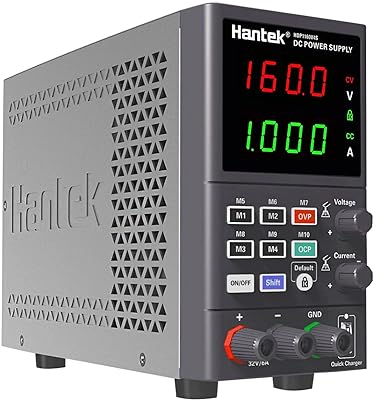

This is an interface to the serial port on Hantek HDP1160V4S power supply. It should work with other HDP10000-series power supplies. buy

❗ATTENTION❗

To communicate with the PSU I am using USB-to-RS232 adapter - does not require any drivers on debian linux.

Installation

pip install hantekpsu

Usage

from hantekpsu import PSU
p = PSU(port='/dev/ttyUSB0', baudrate=2400)

Methods

Examples

Set voltage to 12V and turn on the power supply:

>>> from hantekpsu import PSU
>>> p = PSU()
>>> p.set_output_voltage(12.0)
>>> p.turn_on()

Development

Requirements

• python 3.10+
• poetry

Ensure the device is connected. If using usb-to-rs232 adapter, run lsusb:

$ lsusb
Bus 001 Device 012: ID 0403:6001 Future Technology Devices International, Ltd FT232 Serial (UART) IC

You should also see something similar to /dev/ttyUSB0 in the /dev folder.

To figure out which device it is, you can run ls /dev before plugging in the adapter and after and compare the differences.

Installation

git clone https://github.com/builder555/hantek-controller
cd hantek-controller
poetry config virtualenvs.in-project true --local
poetry install

Unit Tests

When adding new features or modifying existing ones, make sure you add unit tests and run them:

$ poetry run pytest -v

test_psu.py::test_get_model_number PASSED                       [  6%]
test_psu.py::test_get_active_voltage PASSED                     [ 12%]
test_psu.py::test_get_active_current_in_milliamps PASSED        [ 18%]
test_psu.py::test_get_voltage_limit PASSED                      [ 25%]
test_psu.py::test_get_current_limit_in_milliamps PASSED         [ 31%]
test_psu.py::test_get_on_off_status PASSED                      [ 37%]
test_psu.py::test_turn_on PASSED                                [ 43%]
test_psu.py::test_turn_off PASSED                               [ 50%]
test_psu.py::test_ocp_on PASSED                                 [ 56%]
test_psu.py::test_ocp_off PASSED                                [ 62%]
test_psu.py::test_ovp_on PASSED                                 [ 68%]
test_psu.py::test_ovp_off PASSED                                [ 75%]
test_psu.py::test_set_voltage PASSED                            [ 81%]
test_psu.py::test_set_current PASSED                            [ 87%]
test_psu.py::test_set_ovp PASSED                                [ 93%]
test_psu.py::test_set_ocp PASSED                                [100%]

========================= 16 passed in 0.03s =========================

You can also run pytest-watch while developing to run tests automatically on save:

poetry run ptw --runner 'pytest -v'
