Heatmap cluster dendrogram plotter.

Project description

heatmapcluster is a python library for generating a clustered heatmap with dendrograms plotted along with the heatmap, such as the following:

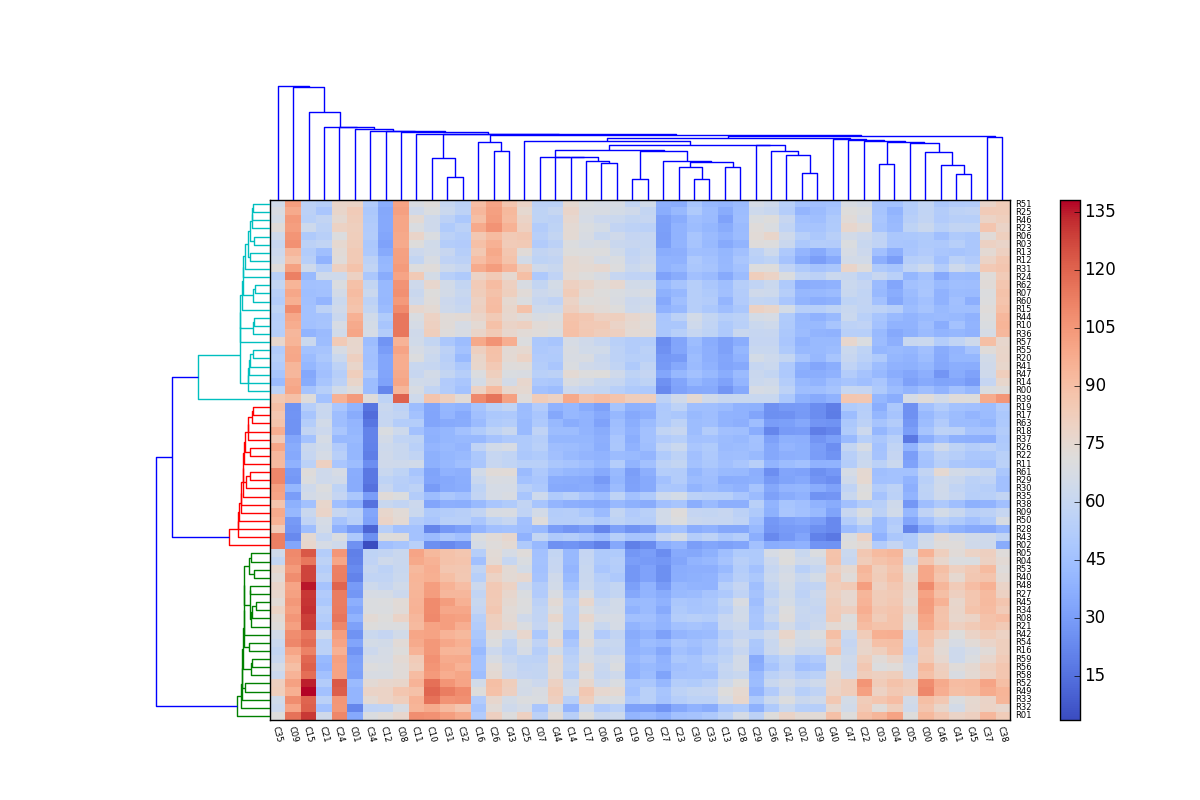

Example plot

This is prototype-quality software. The documentation is sparse, and the API will likely change.

Plots are generated with matplotlib (http://matplotlib.org/). To use the package, numpy, scipy and matplotlib must be installed.

setuptools is required to install the package using setup.py.

Example

This is heatmapcluster_demo.py. Most of the code is the function make_data, which generates an array of data for the demonstration. The main part of the demo is the last three statements of the script. This script generates the plot shown above:

import numpy as np
import matplotlib.pyplot as plt
from heatmapcluster import heatmapcluster


def make_data(size, seed=None):
    if seed is not None:
        np.random.seed(seed)

    s = np.random.gamma([7, 6, 5], [6, 8, 6], size=(size[1], 3)).T
    i = np.random.choice(range(len(s)), size=size[0])
    x = s[i]

    t = np.random.gamma([8, 5, 6], [3, 3, 2.1], size=(size[0], 3)).T
    j = np.random.choice(range(len(t)), size=size[1])

    x += 1.1*t[j].T

    x += 2*np.random.randn(*size)

    row_labels = [('R%02d' % k) for k in range(x.shape[0])]
    col_labels = [('C%02d' % k) for k in range(x.shape[1])]

    return x, row_labels, col_labels


x, row_labels, col_labels = make_data(size=(64, 48), seed=123)

h = heatmapcluster(x, row_labels, col_labels,
                   num_row_clusters=3, num_col_clusters=0,
                   label_fontsize=6,
                   xlabel_rotation=-75,
                   cmap=plt.cm.coolwarm,
                   show_colorbar=True,
                   top_dendrogram=True)
plt.show()

Project details


Release history Release notifications

This version
History Node

0.1.2

Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Filename, size & hash SHA256 hash help File type Python version Upload date
heatmapcluster-0.1.2-py2.py3-none-any.whl (6.3 kB) Copy SHA256 hash SHA256 Wheel py2.py3 Jan 14, 2017
