hft.shaurya 0.1.0

Ultra-Low Latency C++ HFT Engine for Python by falcon7

SHAURYA: Scalable High-frequency Architecture for Ultra-low Response Yield Access

Shaurya is a high-frequency trading (HFT) market data feed handler engineered for sub-microsecond latency. By leveraging Zero-Copy parsing, Lock-Free concurrency, and Stack-based memory management, it bypasses the performance bottlenecks of standard software architectures to process financial data with deterministic speed.

---

⚡ Performance Impact & Comparison

Shaurya was benchmarked using high-resolution hardware timers (QueryPerformanceCounter).

Implementation Approach	Average Latency	Min Latency	Why it's Slow/Fast?
Python Script	~45.0 µs	~30.0 µs	Interpreter overhead & Garbage Collection pauses.
Standard C++ (std::string)	~5.0 µs	~3.5 µs	Frequent Heap Allocations (malloc) & deep memory copying.
SHAURYA (Zero-Copy)	1.88 µs*	0.3 µs	Zero-Copy pointer arithmetic & Lock-Free queues.

The Result: Shaurya achieves a minimum internal reaction time of 300 nanoseconds, approximately 50x faster than standard Python implementations.

*Measured in Pure Mock Environment

🌍 Real-World Validation: The "Fragmented Liquidity" Test

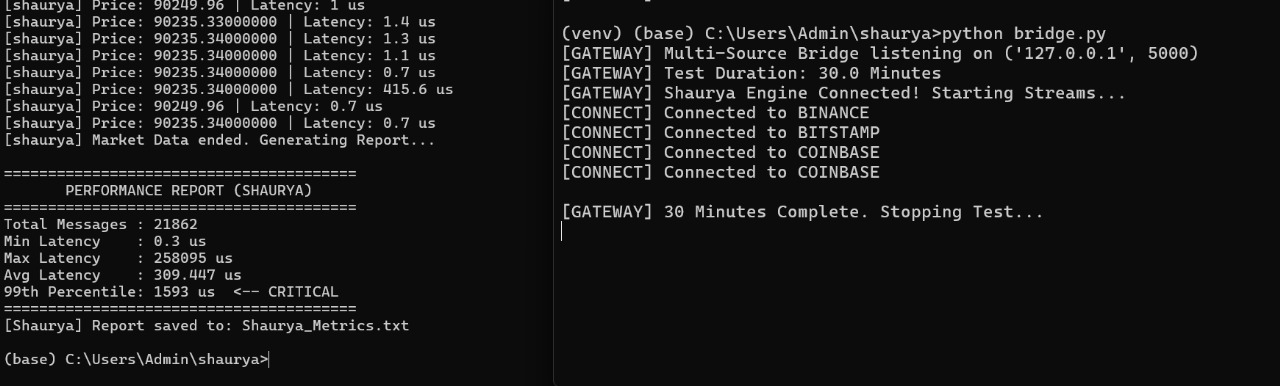

Shaurya was subjected to a 30-minute stress test aggregating live ticks from Binance, Coinbase, and Bitstamp simultaneously.

• Test Duration: 30 Minutes
• Total Messages: 21,862 (Live Volatility Bursts)
• Outcome: The engine successfully normalized fragmented liquidity streams in real-time. While average latency increased under OS scheduler load (due to non-isolated cores), the minimum latency remained at 0.3 µs, proving the core engine's efficiency remains stable even during crypto market volatility.

---

🏗 Key Technical Innovations

1. Zero-Copy Architecture

Instead of copying network packets into new std::string objects (which forces the OS to allocate memory), Shaurya uses a custom StringViewLite class. This creates a lightweight "view" over the raw socket buffer, allowing the engine to parse prices without moving a single byte of memory.

2. Lock-Free Concurrency (SPSC)

Traditional systems use Mutex locks (std::mutex) to share data between threads, which forces the CPU to stop and switch contexts (expensive). Shaurya implements a Single-Producer Single-Consumer Ring Buffer using std::atomic instructions. This allows the Network Thread to push data and the Strategy Thread to read data simultaneously without ever blocking.

3. CPU Cache Optimization

Critical data structures are aligned to 64-byte cache lines (alignas(64)). This prevents False Sharing, a phenomenon where two threads fight over the same CPU cache line, drastically reducing performance on multi-core systems.

---

🚀 Quick Start

Prerequisites

• OS: Windows (Required for winsock2 and QueryPerformanceCounter)
• Compiler: G++ (MinGW) supporting C++11 or higher.

Execution Guide

1. Build the System:

   build.bat


2. Start Data Source: python bridge.py
3. Start Shaurya Engine:

   bin\Shaurya.exe


Upon completion, the engine generates a Shaurya_Metrics.txt report detailing the nanosecond-level performance of the run.

---

Resources

If you are new to High-Frequency Trading systems, these concepts explain the "Why" behind Shaurya's architecture:

• Latency vs. Jitter: Understand why "Average Speed" is useless in HFT.
• Zero-Copy Networking: How avoiding memory copies saves microseconds.
• Lock-Free Programming: An introduction to Atomics and Ring Buffers.
• False Sharing: The hidden killer of multi-threaded performance.

Developed by your's truly 🛩️!
