horizonchart

Clean, 16:9 horizon-view sky charts built on starplot:

• Finder charts for planets, the Moon, stars or deep-sky objects at a given place and time, showing just enough context (nearby constellations, asterisms, bright stars) to find them.
• Twilight views for a date: the sky before sunrise and after sunset, looking east or west, whichever has more to see.

Install

Requires Python 3.11+.

pip install horizonchart

or, from a checkout, with uv: uv sync.

System requirement: Cairo

starplot renders PNGs with CairoSVG, which needs the Cairo graphics library installed on the system:

Platform	Install
macOS	brew install cairo
Debian / Ubuntu	sudo apt install libcairo2
Fedora	sudo dnf install cairo
Windows	see CairoSVG's notes (a GTK runtime provides it)

On macOS, Pythons that don't look in Homebrew's library folder (such as uv-managed or python.org builds) may report no library called "cairo" was found; point them at it with export DYLD_FALLBACK_LIBRARY_PATH=/opt/homebrew/lib.

Data files

The first run downloads star and deep-sky catalogs and planetary ephemerides (~120 MB). They, and the place-name cache, are stored in the first of:

1. $STARPLOT_DATA_PATH, if set
2. /var/data, if it exists and is writable
3. the per-user cache folder for your platform (e.g. ~/Library/Caches/horizonchart on macOS, ~/.cache/horizonchart on Linux, %LOCALAPPDATA%\horizonchart\Cache on Windows)

Command line

Finder chart for specific objects

horizonchart target Saturn --location "Monkey's Eyebrow, KY" --time "2026-10-02 22:00"
# -> saturn_20261002T2200_35.78N_78.64W.png

horizonchart target Moon Pleiades -l "35.78N 78.64W" -t "2026-10-03 02:00"

# No --time: 2 hours after tonight's sunset
horizonchart target Saturn -l "35.78N 78.64W"

Targets can be:

Kind	Examples
Moon and planets	Moon, Mars, Saturn, "saturn barycenter" (BSP-style naming), Pluto
Messier / NGC / IC	M31, M45, "NGC 1976", "IC 2391"
Deep-sky common names	Pleiades, "Andromeda Galaxy", Beehive
Named stars	Vega, Betelgeuse

-t, --time is local time at the location. By default it's 2 hours after today's sunset there, rounded to the nearest half hour. Each target must be above the horizon at that time.

Twilight views for a date

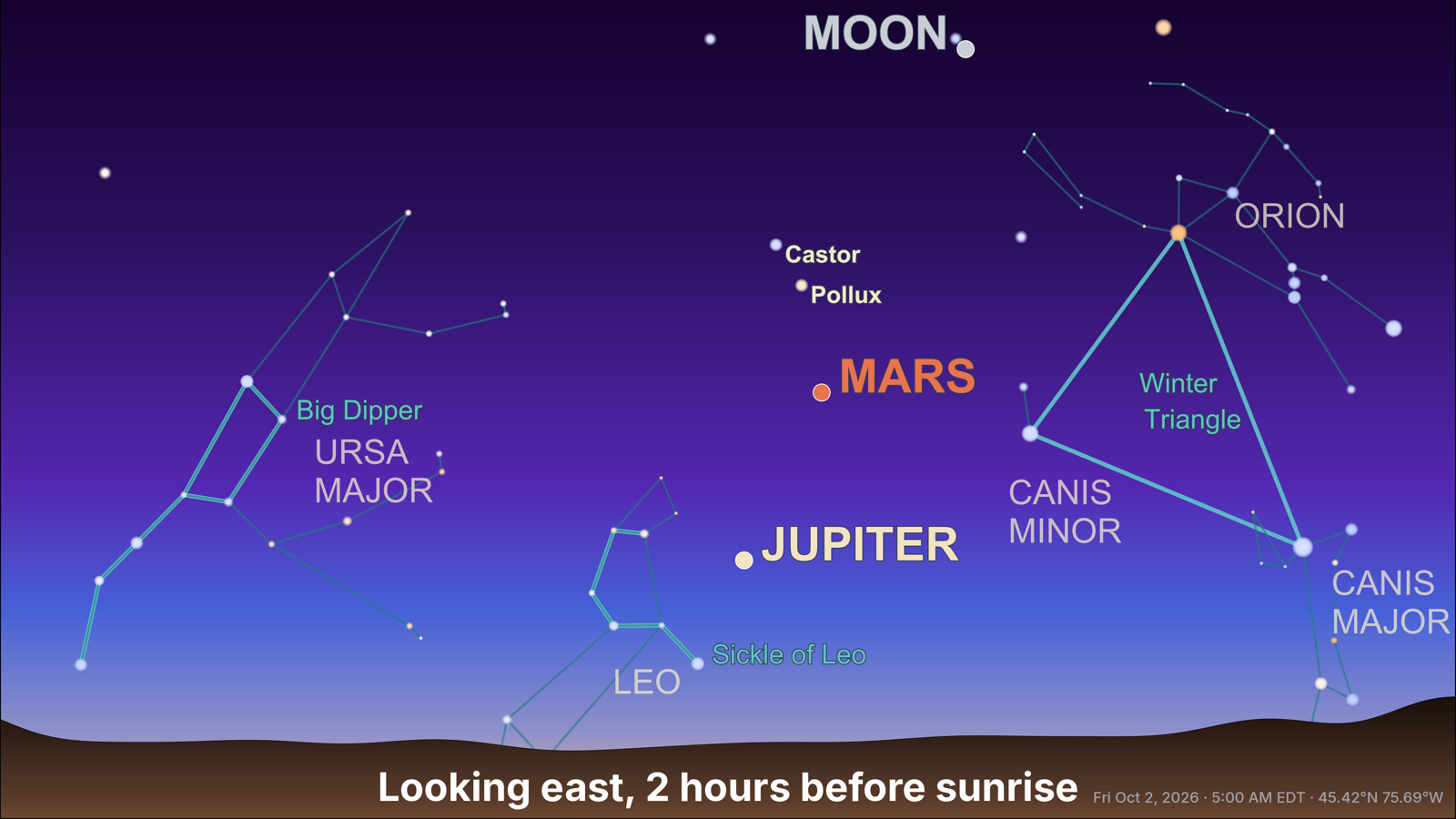

horizonchart twilight --location "Ottawa, ON" --date 2026-10-02
# -> 20261002T0500_45.42N_75.69W_mor.png, 20261002T2030_45.42N_75.69W_eve.png
#    (both moved to 2 hours from the Sun because planets were low at 1 hour)

Option	Meaning
-d, --date	Date (default: today at the location)
-m, --limiting-magnitude	Faintest stars and deep-sky objects shown. Default 2.0 (suburban twilight); 4–6 for dark skies
--no-title	Leave off the title ("Looking east, 1 hour before sunrise")

Common options

Option	Meaning
-l, --location	Coordinates (35.19,-88.99, 47.99N 84.77W) or a place name ("Monkey's Eyebrow, NC", "Wawa, ON")
--tz	Time zone name; by default it's looked up from the location
-o, --output-dir	Where to write PNGs (default: current directory)
--no-timestamp	Leave off the date, time and location in the lower right corner
--no-labels	Leave off all names: planets, the Moon, stars, deep-sky objects, asterisms and constellations

Place names are looked up with OpenStreetMap's Nominatim service, at most one request per second, and cached (horizonchart-geocode.json in the data folder), so each place is looked up once. Coordinates never touch the network. Nominatim's usage policy asks applications to identify themselves; set HORIZONCHART_CONTACT (e.g. to your email address) to include a contact in the request's user agent.

Python

from datetime import date, datetime
from zoneinfo import ZoneInfo

from horizonchart.skyview import plot_targets, plot_twilight_views

plot_targets(47.99, -84.77, ["Saturn"],
             datetime(2026, 10, 2, 22, 0, tzinfo=ZoneInfo("America/New_York")))

plot_twilight_views(47.99, -84.77, date(2026, 10, 2))
# {"morning": Path(...), "evening": Path(...)}

# The command line's --no-title, --no-timestamp and --no-labels
plot_targets(..., timestamp=False, labels=False)
plot_twilight_views(..., title=False, timestamp=False, labels=False)

How charts are composed

Both chart types

• Planet and Moon markers are drawn in roughly their naked-eye colors. Uranus, Neptune and Pluto are drawn smaller and semi-transparent.
• Asterisms (Great Square, Big Dipper, Summer Triangle, Orion's Belt, …) are highlighted and labeled. When an asterism is essentially its whole constellation (Cassiopeia's W, the Little Dipper), only the constellation is named.
• Easily recognized constellations (Orion, Ursa Major and Minor, Cassiopeia, Cygnus, Scorpius, Leo, Crux) are shown whenever most of the figure is in view.
• At most five stars are labeled, chosen from a priority list of well-known names (Polaris, Sirius, Betelgeuse, Vega, …). Other stars are unlabeled.
• The date, time and location are in small text in the lower right.

Finder charts

• Constellations are shown only if they contain a target, border it within 3°, or are home to a highlighted asterism.
• The view is framed automatically around the targets and asterisms.

Twilight views

• Each view is 1 hour before sunrise or after sunset, rounded to the half hour. If planets or the Moon are low then, 2 hours is tried and used if it shows more.
• Each view looks east or west, scored by what's in view (planets, the Moon, deep-sky objects, asterisms, bright stars).
• The title, e.g. "Looking east, 1 hour before sunrise", is drawn on the landscape.

Tuning constants (radii, magnitudes, font sizes, the asterism and priority-star lists) are at the top of src/horizonchart/skyview.py.

Compatibility with starplot

horizonchart draws its charts with starplot's public API, but a few features rely on starplot internals that have no public equivalent yet: keeping labels clear of highlighted asterism lines, detecting whether a label was placed, and converting coordinates for those checks. Because of this, the dependency is pinned to the tested starplot release series (>=0.21.1,<0.22). Update at your own risk.

Tests

uv run pytest

The tests render real charts which require download of significant catalogs on first run and can take a few minutes to run as a result.

Credits

• starplot by Steve Berardi does the chart drawing, projections and catalogs (stars from Hipparcos/Tycho via its Big Sky catalog, deep-sky objects from OpenNGC). The horizon-view style follows its horizon gradient example.
• Skyfield by Brandon Rhodes computes sunrise and sunset, planetary magnitudes and alt/az positions, using JPL ephemerides.
• Place-name lookup uses Nominatim through geopy; geocoding data © OpenStreetMap contributors.
• Time zones come from timezonefinder.
• Titles use the Inter typeface by Rasmus Andersson, bundled under the SIL Open Font License (src/horizonchart/fonts/OFL.txt).

License

MIT; see LICENSE. The bundled Inter font is under the SIL Open Font License 1.1.
