Hybrid Recursive Ladder

Query planning for bucket-limited time-series APIs. Aggregate long ranges with a handful of source requests instead of thousands of per-bucket queries.

Languages: English · 简体中文 · 日本語 · 한국어 · Español · Français · Deutsch · Português · Русский · العربية · हिन्दी

Algorithm spec · API reference · Benchmarks · Related work · Public disclosure · Docs index

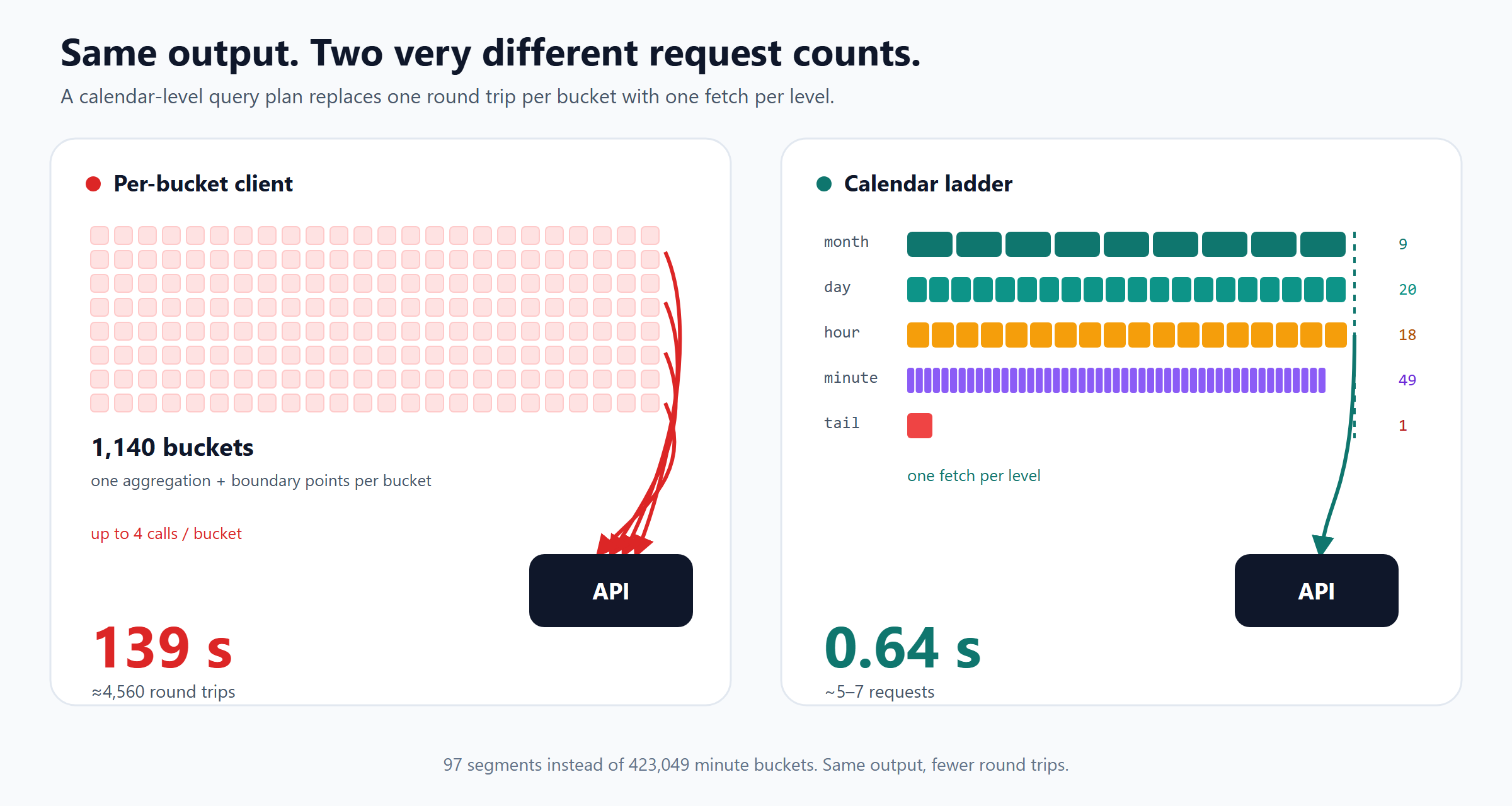

Same output granularity. The per-bucket client pays one round trip per row; the ladder fetches each level once.

Why this exists

Most time-series APIs charge you per request, per bucket, or per round trip. A naive "one query per statistical bucket" client turns a two-day minute-level range into 2,880 buckets, each needing up to four HTTP calls. In a production ThingsBoard deployment, 1,140 buckets took 139 seconds over a VPN.

The bottleneck is not arithmetic. It is the number of network round trips.

Three obvious fixes all sacrifice something:

The ladder takes a different route: keep the output granularity, but stop fetching one request per output unit. A source that can return an interval aggregate over a contiguous run can fill many output segments in one request.

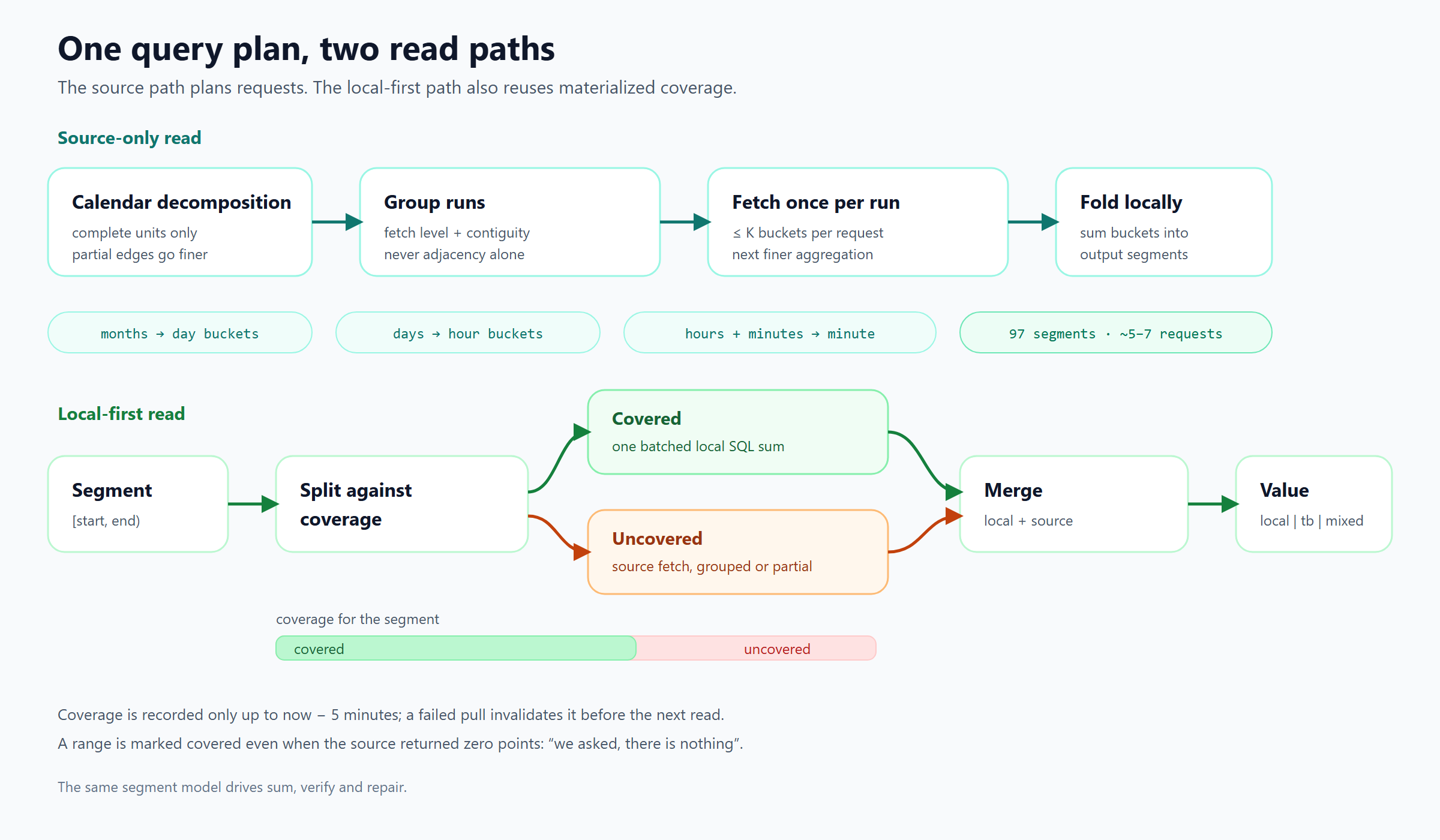

How it works

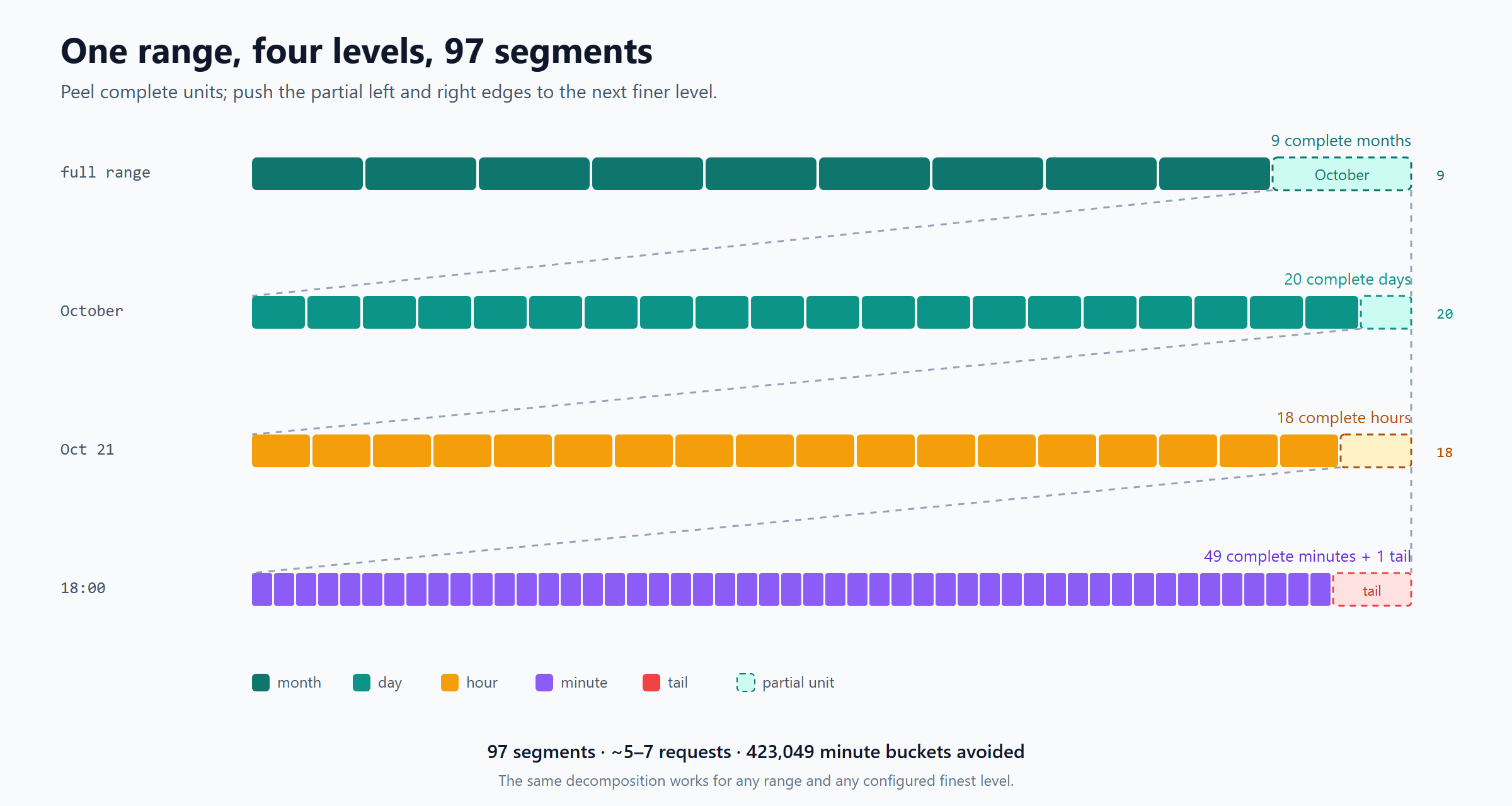

1. Decompose [start, end) into complete calendar units, from month down to the configured finest level. Emit only complete units; push the partial left and right edges to the next finer level.
2. Group adjacent segments only when they need the same fetch level. Hours and minutes can share a minute-level run; months and days cannot.
3. Fetch each maximal contiguous run once at the next finer aggregation: months as days, days as hours, hours as minutes, minutes as minutes.
4. Fold the returned buckets into the output segments locally.

For 2026-01-01 00:00:00 → 2026-10-21 18:49:59, that is 97 segments instead of 423,049 minute buckets. A typical 10-month query needs roughly 5–7 aggregation requests.

Rules

• Left-closed, right-open — [start, end).
• Complete units only — a month/day/hour/minute is emitted at its level only when it lies entirely inside the range.
• Recursive edges — a partial edge is pushed to the next finer level; a sub-minute remainder becomes its own tail segment.
• Local calendar — boundaries use the configured IANA timezone (default Asia/Shanghai).
• Tiling — segments are ordered, contiguous, non-overlapping, and their union is exactly [start, end).

Request bound

For a fetch run of duration T at bucket size Δ, with K buckets per request:

requests(run) = ceil(T / (K * Δ))

Fine-grained work is confined to the two partial units at the edges. For the default hierarchy, N <= N_month + 639; recursion depth is at most 4. The request count is O(N_month / K + 1) — it grows with the coarse units, not with the number of minute buckets. The formal propositions are in docs/algorithm.md §5.3–5.5 (中文).

Quick start

pip install hybrid-recursive-ladder

hybrid-ladder demo
hybrid-ladder decompose --start 2026-01-01 --end 2026-10-21T18:49:59

The demo builds synthetic 15-minute data, decomposes a 120-day range, materializes half of it, runs a local-first mixed query, and verifies that the totals match. No database, no network, no configuration.

Optional extras:

pip install "hybrid-recursive-ladder[thingsboard]"   # ThingsBoard source (httpx)
pip install "hybrid-recursive-ladder[postgres]"      # local store (psycopg 3)
pip install "hybrid-recursive-ladder[api]"           # FastAPI HTTP API
pip install "hybrid-recursive-ladder[mcp]"           # MCP server
pip install "hybrid-recursive-ladder[all]"           # everything

The core decomposition has zero third-party dependencies (only tzdata for reliable IANA time zones on Windows).

Usage

Python library

from hybrid_ladder import LadderEngine, MemorySource

source = MemorySource()
source.add("device-1", "energy", [(ts, 1.0) for ts in range(0, 86_400_000, 60_000)])

engine = LadderEngine(source)
result = engine.sum([("device-1", "energy")], 0, 86_400_000)

print(result.grand_total)                 # 1440.0
print(result.rows[0].segments[0].label)   # 1970-01-01 00:00
print(result.rows[0].empty_count)         # 0

The engine depends on two small protocols: TimeSeriesSource (interval_agg, raw_series) and PointStore (sum_ranges, series, coverage, upsert_points, ...). Built-ins: MemorySource/MemoryStore, ThingsBoardSource, PostgresStore. See docs/architecture.md (中文) to add another source.

CLI

# Demo data
hybrid-ladder sum --series demo-chiller-1:energy --start 2026-01-01 --end 2026-02-01

# ThingsBoard, local-first
export HL_TB_URL=https://tb.example.com
export HL_TB_TOKEN=...
export HL_PG_DSN='postgresql://user:pass@127.0.0.1:5432/telemetry'
hybrid-ladder sum --source thingsboard --series <device>:<key> \
  --start 2026-01-01 --end 2026-10-21T18:49:59 \
  --mode mixed --materialize

# Verify and repair the local copy
hybrid-ladder verify --source thingsboard --series <device>:<key> --start ... --end ...
hybrid-ladder repair --source thingsboard --series <device>:<key> --start ... --end ...

HTTP API

hybrid-ladder serve --port 8000
# OpenAPI docs: http://127.0.0.1:8000/docs

curl "http://127.0.0.1:8000/v1/decompose?start_ts=1767196800000&end_ts=1792512599000"

curl -X POST http://127.0.0.1:8000/v1/ladder/sum \
  -H 'content-type: application/json' \
  -d '{"series":[{"entity":"demo-chiller-1","key":"energy"}],
       "start_ts":1767196800000,"end_ts":1777564800000,"mode":"tb"}'
# → {"code":0,"data":{"task_id":"...","async":true}}

curl http://127.0.0.1:8000/v1/tasks/<task_id>

The API uses {"code":0,"data":...} on success and {"code":1,"detail":...} on error. Every endpoint is in docs/api.md (中文).

MCP server

pip install -e ".[mcp]"
hybrid-ladder mcp

Tools: ladder_meta, ladder_decompose, ladder_sum, ladder_verify. With no configuration it serves demo data, so an agent can try it immediately. Example client configuration:

{
  "mcpServers": {
    "hybrid-ladder": {
      "command": "hybrid-ladder",
      "args": ["mcp"],
      "env": {
        "HL_SOURCE": "thingsboard",
        "HL_TB_URL": "https://tb.example.com",
        "HL_TB_TOKEN": "...",
        "HL_PG_DSN": "postgresql://..."
      }
    }
  }
}

Agent skill

Copy skills/hybrid-recursive-ladder/ into your agent's skills directory (for example ~/.claude/skills/ or ~/.zcode/skills/). The skill teaches the agent when to use the ladder, how to call the CLI/API, and how to interpret null vs 0.0 and source.

Local-first mode

When you have a local point store, the same segments are split against materialized coverage. Covered parts come from one batched local query; uncovered parts come from the source; a partially covered segment fetches only the missing slice.

from hybrid_ladder import LadderEngine, MemoryStore
from hybrid_ladder.sources.thingsboard import ThingsBoardSource

source = ThingsBoardSource("https://thingsboard.example.com", token="...")
store = MemoryStore()               # or PostgresStore("postgresql://...")
engine = LadderEngine(source, store)

# Pull raw points once; coverage is recorded.
engine.materialize([("device-id", "energy")], start_ms, end_ms)

# Repeated queries read local data and fetch only uncovered sub-ranges.
result = engine.sum_mixed([("device-id", "energy")], start_ms, end_ms)
print(result.source, result.source_counts)   # "local" / "mixed" / "tb"
print(result.rows[0].tb_ranges)              # ranges still missing locally

# Compare with the source, then repair if needed.
report = engine.verify([("device-id", "energy")], start_ms, end_ms)
if report["diff_segments"]:
    engine.repair([("device-id", "energy")], start_ms, end_ms)

Coverage is recorded only up to now - 5 minutes; the in-flight tail is never trusted. A range is marked covered even when the source returned zero points ("we asked, there is nothing"). Before a rewrite, its coverage is cleared — a failed pull cannot leave stale coverage pointing at incomplete data.

Verify compares the source (authority) with the local store segment by segment, drilling only differing segments down to points (added / removed / changed). Repair deletes the local range and re-pulls it from the source in transaction-sized windows, then re-marks coverage.

Guarantees and limits

Every segment carries cnt (observed points/buckets), expected (buckets the segment should contain, for source segments) and source (local, tb, mixed, empty, uncovered). A low cnt relative to expected means sparse data; the sum is still arithmetically correct, just based on fewer points.

Guarantees

• sum is exact: the sum of all segments equals the sum of the source's points in the range. No approximation, no sampling.
• Segments tile the range exactly; no zero-length segments.
• null and 0.0 are distinct everywhere.
• Materialization is idempotent; overlapping runs cannot duplicate a timestamp.
• The algorithm only reads the source. It never writes to ThingsBoard.

Limits

• Sum only in v0.0.6. avg needs sum + count weighting; meter_delta needs the first value of every segment (ThingsBoard has no FIRST), so those rules are not on the ladder yet.
• Data completeness ≠ arithmetic correctness. Missing samples make the total lower than the physical total; cnt/expected expose this but do not impute.
• ThingsBoard limits: ~700 buckets accepted, 800 rejected (the docs' 1000 is unreliable); the adapter defaults to 500. Raw series are capped at 10,000 points per request. COUNT collapses duplicate points in the same minute.
• In-process tasks are lost on restart; results are recomputable and materialized data is not lost.
• DST zones: calendar boundaries are supported, but fixed-size source buckets mean day/hour folds are designed for fixed-offset zones such as Asia/Shanghai. Use hour or minute fetching around DST transitions.

Historical fixes and version notes live in CHANGELOG.md.

Performance

From a production ThingsBoard deployment (numbers vary by network and data density):

See docs/benchmarks.md (中文) for methodology and caveats.

Positioning and prior art

This is a query-planning method for deployments where you can read an interval-aggregation endpoint but cannot write to or reconfigure the source. It is not a new time-series database, and not a new general theory of aggregation. It composes calendar mixed-radix decomposition, canonical interval decomposition, roll-up and multi-resolution aggregation.

The closest systems are RRDtool/Whisper (multi-resolution archives), BTrDB (hierarchical time-partitioned summaries), TimescaleDB hierarchical continuous aggregates, and Druid period granularity. Query-side systems such as Prometheus and Grafana choose one uniform step; the ladder plans multiple calendar levels in one query.

See Related work and positioning (中文) for the full comparison, the historical algorithms, and the defensible novelty statement. The method is published as a public disclosure (中文); a technical article walks through the production benchmark and the request-count argument.

Project, development and roadmap

src/hybrid_ladder/
  core.py          pure decomposition, folding, coverage splitting
  engine.py        source/mixed/local reads, materialize, verify, repair
  models.py        Segment, SeriesRef, LadderConfig, QueryResult
  protocols.py     TimeSeriesSource / PointStore
  sources/         memory.py, thingsboard.py
  stores/          memory.py, postgres.py
  api.py           FastAPI app
  cli.py           hybrid-ladder CLI
  mcp_server.py    MCP tools
  tasks.py         in-process task registry
  demo.py          deterministic demo data
tests/             unit + API + adapter tests
docs/              algorithm, architecture, API, benchmarks, prior art
skills/            agent skill package
examples/          runnable examples

git clone https://github.com/MagicSquarekey/hybrid_recursive_ladder_algorithm.git
cd hybrid_recursive_ladder_algorithm
python -m venv .venv && source .venv/bin/activate   # Windows: .venv\Scripts\activate
pip install -e ".[dev]"
ruff check .
pytest

Optional PostgreSQL integration test:

export HL_TEST_PG_DSN='postgresql://user:pass@127.0.0.1:5432/testdb'
pytest -m integration

Roadmap: avg and meter_delta rules; InfluxDB / Prometheus / ClickHouse adapters; Celery/RQ task backend; OpenTelemetry metrics; PyPI trusted publishing.

Citation

@software{hybrid_recursive_ladder_2026,
  author  = {MagicSquarekey},
  title   = {Hybrid Recursive Ladder: Query Planning for Bucket-Limited Time-Series APIs},
  year    = {2026},
  version = {0.0.6},
  license = {MIT},
  doi     = {10.5281/zenodo.23683292},
  url     = {https://github.com/MagicSquarekey/hybrid_recursive_ladder_algorithm}
}

Version DOI: 10.5281/zenodo.23683292. Concept DOI for all versions: 10.5281/zenodo.23556605. CITATION.cff provides the same metadata for GitHub's "Cite this repository" button.

License

MIT © 2026 MagicSquarekey
