hyprfine 1.0.1

hyprfine: Simulation tools for 21cm Cosmology.

hyprfine

Authors: Harry T. J. Bevins
Version: 1.0.1
Homepage: https://github.com/htjb/hyprfine
License: MIT

GPU-accelerated simulation tools for the cosmological 21-cm signal from the Dark Ages (DA), Cosmic Dawn (CD) and Epoch of Reionization (EoR). hyprfine is built using JAX with the aim of building a signal model that runs on the GPU and is differentiable.

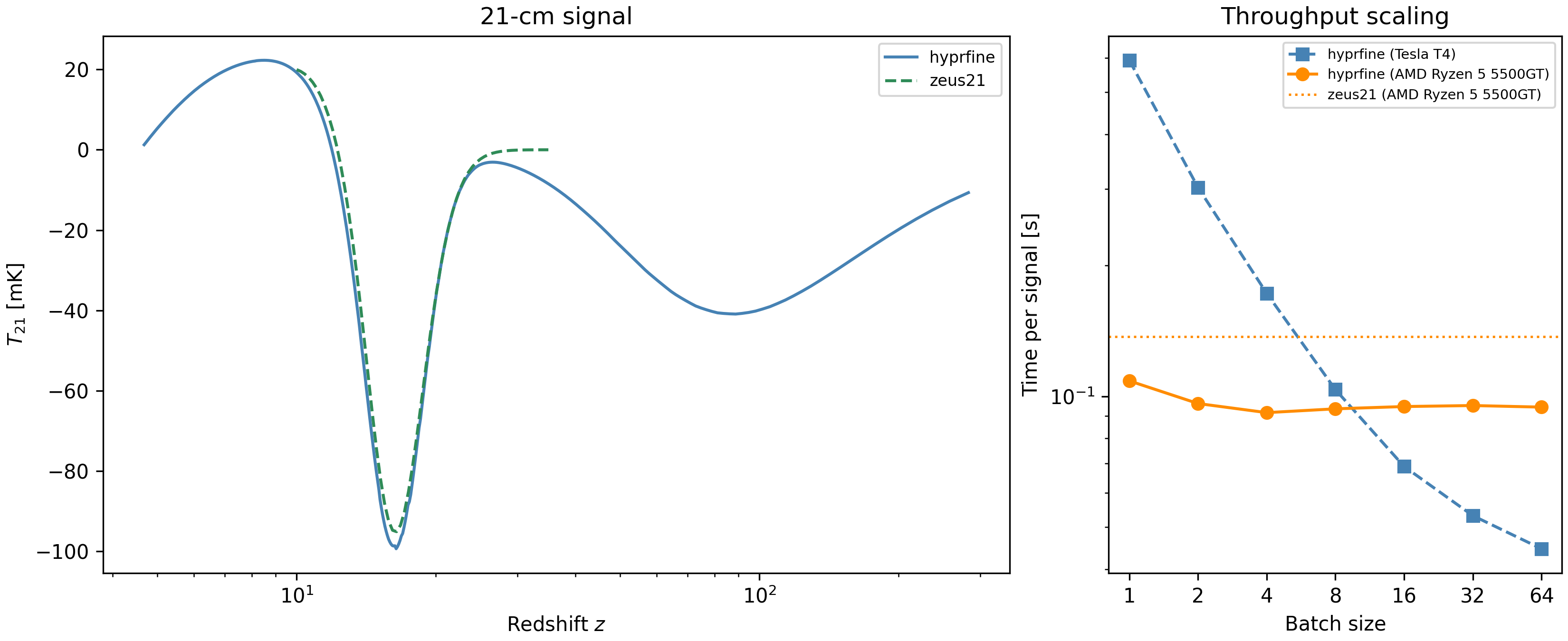

Currently, the code features an analytic model for the sky-averaged 21-cm signal from the dark ages through to low redshifts at the end of the EoR. At the moment only the dark ages part of the code is differentiable. The graph below is generated with the code in bin/benchmark_time.py and bin/benchmark_plot.py. It shows the relative performance on CPU and GPU as a function of batch size as well as a comparison with zeus21.

Installation

The code is pip installable with pip install hyprfine but for the latest version it is best to git clone the repo and install

git clone https://github.com/htjb/hyprfine
cd hyprfine
pip install .

For development:

pip install ".[dev]"
pre-commit install

Quick start

To generate a signal with the default parameters you can run

from jax import config
config.update("jax_enable_x64", True)

import jax.numpy as jnp
from hyprfine.analytic.main import generate_signal
from hyprfine.parameters import cosmology, astrophysics

f_grid = jnp.linspace(10.0, 100.0, 500)  # MHz
T21, xe, Tk = generate_signal(f_grid, cosmology(), astrophysics())

To change the default parameters you can specify

cosmo = cosmology(
    H0=67.36, # hubble's constant
    Omega_b=0.049, # Baryon density
    Omega_c=0.266, # Dark matter density
)

astro = astrophysics(
    epsilon=0.1, # normalisation of star formation efficiency
    alpha_star=0.5, # slope of low mass star formation efficiency model
    beta_star=-0.5, # slope of high mass sfe model
    M_pivot=3e11, # pivot mass of sfe model
)

for a full list of tunable parameters see hyprfine.parameters.

To take the derivatives across the Dark Ages global signal model you can run

from jax import config

config.update("jax_enable_x64", True)

import jax.numpy as jnp
import matplotlib.pyplot as plt

from hyprfine.analytic.main import generate_signal
from hyprfine.parameters import astrophysics, cosmology

fgrid = jnp.linspace(5, 50, 100)  # Frequency grid in MHz
dT21dcosmo, dxedcosmo, dTgasdcosmo = jax.jacfwd(generate_signal, argnums=1)(
    fgrid, cosmo
)

dT21dOmega_b = dT21dcosmo.Omega_b
dxedH0 = dxedcosmo.H0 # etc...

Documentation

Full documentation including tutorials can be built and served locally:

pip install ".[docs]"
mkdocs serve

Citation

If you use hyprfine in your research please link to this repo.
