ifcfactory 0.2.2

A modular geometry system for creating BIM elements with composable geometry creation

ifcfactory

A modular geometry system for creating BIM elements with composable geometry creation.

About This Project

ifcfactory is developed and maintained by Freie und Hansestadt Hamburg, Landesbetrieb Geoinformation und Vermessung (LGV), BIM-Leitstelle

This library is part of the Connected Urban Twins project ecosystem, providing a foundational geometry framework for automated IFC generation from urban data sources. It serves as a core dependency for BIMFabrikHH_core and other BIM automation tools.

Author: Ahmed Salem (BIM-Leitstelle, LGV Hamburg)
In cooperation with: Thomas Krijnen

Quick Install

pip install ifcfactory

Overview

ifcfactory offers a declarative, composable framework for creating complex BIM geometry. It leverages Pydantic models for strong type safety and validation, while providing seamless integration with IfcOpenShell for reliable IFC file generation.

The declarative structures in Python are automatically mapped to the most appropriate IFC mechanisms, for example:

• Boolean(operation, children):
  • In case of: subtraction of element from element -> IfcRelVoidsElement + IfcOpeningElement
  • In case of: subtraction of profile from profile -> IfcProfileDefWithVoids
  • In case of: any item to item -> IfcBooleanResult
• Transform(item, translation, rotation):
  • In case of: element -> Factored into ObjectPlacement
  • In case of: tesselation -> Applied to coordinates
  • Other cases: defer to shape_builder translate() and rotate() [when along "Z" axis]

Structure

ifcfactory/
├── __init__.py                 # Main public API
├── element.py                  # High-level BIM elements
├── primitives.py               # Geometric shapes (Box, Cylinder, Sphere, etc.)
├── operations.py               # Transformations and Boolean operations
└── _internal/                  # Internal implementation (not for direct user access)
    ├── __init__.py            # Internal package marker
    ├── primitives_base.py     # Base classes and helper functions
    ├── material_base.py       # Materials and styling
    ├── unit_base.py           # Unit conversion utilities (pint ↔ IFC)
    └── pset_base.py           # Property set templates

Public API

High-Level Elements

• BIMFactoryElement: Container for complete BIM elements with IFC integration

2D Profiles

• Rect(width, height): Rectangular profile
• Circle(radius): Circular profile
• Ellipse(semi_axis1, semi_axis2): Elliptical profile
• Polygon(points): Arbitrary polygon from list of 2D points

3D Representations

• Box(width, depth, height): Rectangular box
• Cube(size): Cube with equal dimensions
• Cylinder(radius, height): Circular cylinder
• EllipticalCylinder(semi_axis1, semi_axis2, height): Elliptical cylinder
• NgonCylinder(radius, height, sides): N-sided cylinder
• Sphere(radius, detail=1): Icosphere with configurable detail
• Extrusion(basis, depth): Extrude any 2D profile
• ExtrudedNgonAsMesh(basis, height): N-sided extrusion as mesh
• MeshRepresentation(vertices, faces): Custom mesh geometry

Operations

• Transform(item, translation, rotation): Apply a transformation (translation and/or rotation)
• Boolean(operation, children): Boolean operations (union, difference, intersection)
• BooleanOperationTypes: Enum for boolean operation types

Materials & Styling

• Style: Visual styling with colors and transparency
• Material: Physical material properties

Property Sets

• PropertySetTemplate: Template for creating property sets

Units

• Dimension variables: L (length), A (area), V (volume), M (mass), T (time), E (current), K (temperature), N (force), J (energy), P (power)
• pint_to_ifc: Mapping dictionary for unit conversion
• ureg: Pint unit registry
• Dim: Dimension class

Key Features

• Type Safety: Built on Pydantic for runtime type checking and validation
• Composable: Mix and match primitives to create complex geometry
• Cacheable: Built elements are cached to prevent duplication
• Unit Aware: Automatic unit conversion between pint and IFC types
• Material Support: Visual styling and material assignment
• Property Sets: Support for IFC property sets and quantities
• API: Internal implementation hidden in _internal module

Complete Working Example

Here's a complete example that creates a simple building with multiple wall types:

import ifcopenshell
import ifcopenshell.api
import ifcopenshell.api.aggregate
import ifcopenshell.api.context
import ifcopenshell.api.root
import ifcopenshell.api.unit

from ifcfactory import (
    BIMFactoryElement, Box, Cube, Cylinder, Extrusion, Rect, Sphere
)


def create_basic_ifc_setup(project_name: str):
    """Create basic IFC model setup using IfcOpenShell API"""
    # Create IFC model
    ifc_model = ifcopenshell.file(schema="IFC4")

    # Create project
    project_entity = ifcopenshell.api.root.create_entity(ifc_model, ifc_class="IfcProject", name=project_name)

    # Create units (meters)
    ifcopenshell.api.unit.assign_unit(ifc_model, length={"is_metric": True, "raw": "METERS"})

    # Create contexts
    model_context = ifcopenshell.api.context.add_context(ifc_model, context_type="Model")
    ifcopenshell.api.context.add_context(
            ifc_model, context_type="Model", context_identifier="Body", target_view="MODEL_VIEW", parent=model_context
    )

    # Create site
    site_entity = ifcopenshell.api.root.create_entity(ifc_model, ifc_class="IfcSite", name="Default Site")
    ifcopenshell.api.aggregate.assign_object(ifc_model, relating_object=project_entity, products=[site_entity])

    # Create building
    building_entity = ifcopenshell.api.root.create_entity(ifc_model, ifc_class="IfcBuilding", name="Default Building")
    ifcopenshell.api.aggregate.assign_object(ifc_model, relating_object=site_entity, products=[building_entity])

    return ifc_model, project_entity, site_entity, building_entity


# Create IFC model and setup
model, proj, site, building = create_basic_ifc_setup("Example Building")

# Create complete project structure using BIMFactoryElement
BIMFactoryElement(
        inst=building,
        children=[
                # Box wall positioned at origin
                BIMFactoryElement(type="IfcWall", name="Box Wall", children=[Box(width=5.0, depth=0.3, height=3.0)]),
                # Cube wall
                BIMFactoryElement(type="IfcWall", name="Cube Wall", children=[Cube(size=4.0)]),
                # Cylinder wall
                BIMFactoryElement(type="IfcWall", name="Cylinder Wall", children=[Cylinder(radius=1.5, height=4.0)]),
                # Extruded slab
                BIMFactoryElement(
                        type="IfcSlab",
                        name="Extruded Slab",
                        children=[Extrusion(basis=Rect(width=5.0, height=2.5), depth=0.3)],
                ),
                # Sphere element
                BIMFactoryElement(
                        type="IfcBuildingElementProxy",
                        name="Sphere Element",
                        children=[Sphere(radius=1.5, detail=2)]
                ),
        ],
).build(model)

# Save the model
model.write("example_building.ifc")
print("Saved: example_building.ifc")

This example demonstrates:

• Setting up a proper IFC model with project hierarchy
• Creating various geometric primitives (Box, Cube, Cylinder, Sphere)
• Using profile-based extrusions (Rect → Extrusion)
• Organizing elements in a hierarchical BIM structure
• Saving the result as an IFC file

For more comprehensive examples, see the sections below which demonstrate all features including transformations, boolean operations, materials, and property sets.

Other examples

Additional examples are available in the GitHub repository. All examples generate IFC files and include validation using ifcopenshell.validate.

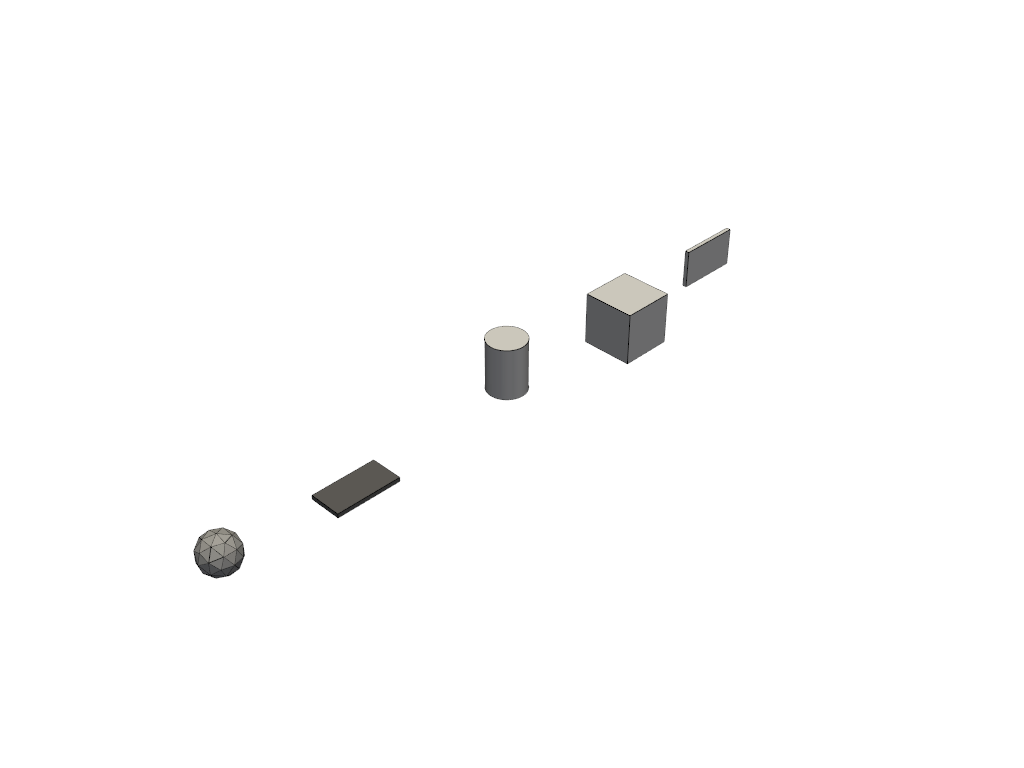

Example 1 - Complete Building

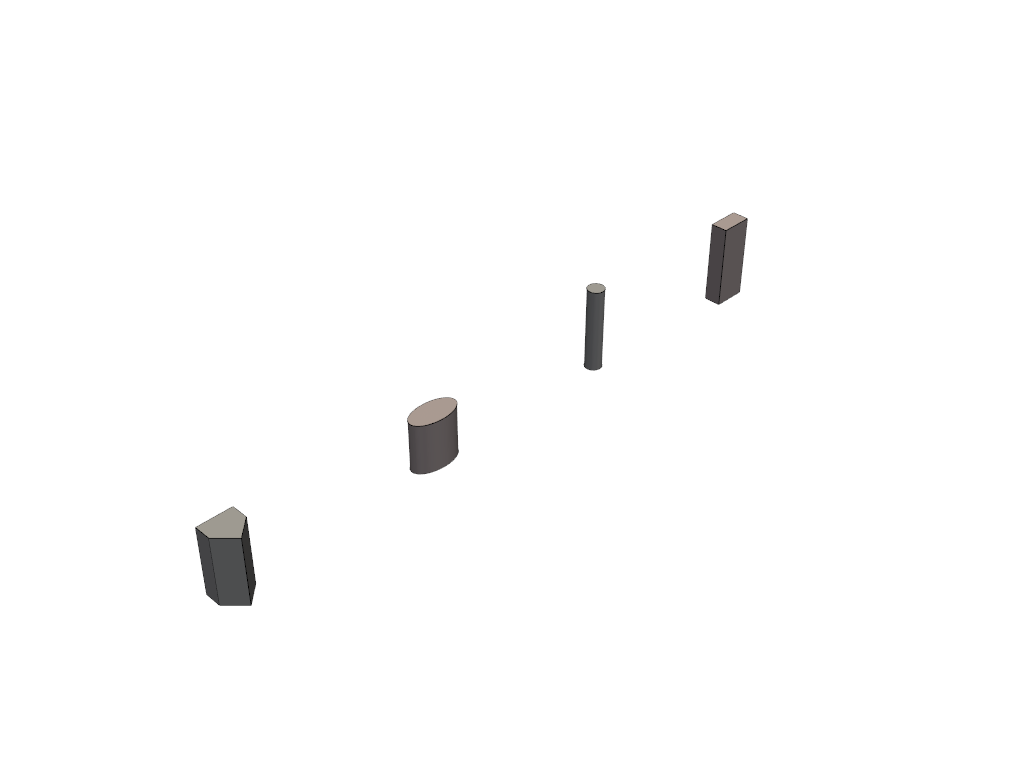

Example 2 - Profile Extrusions

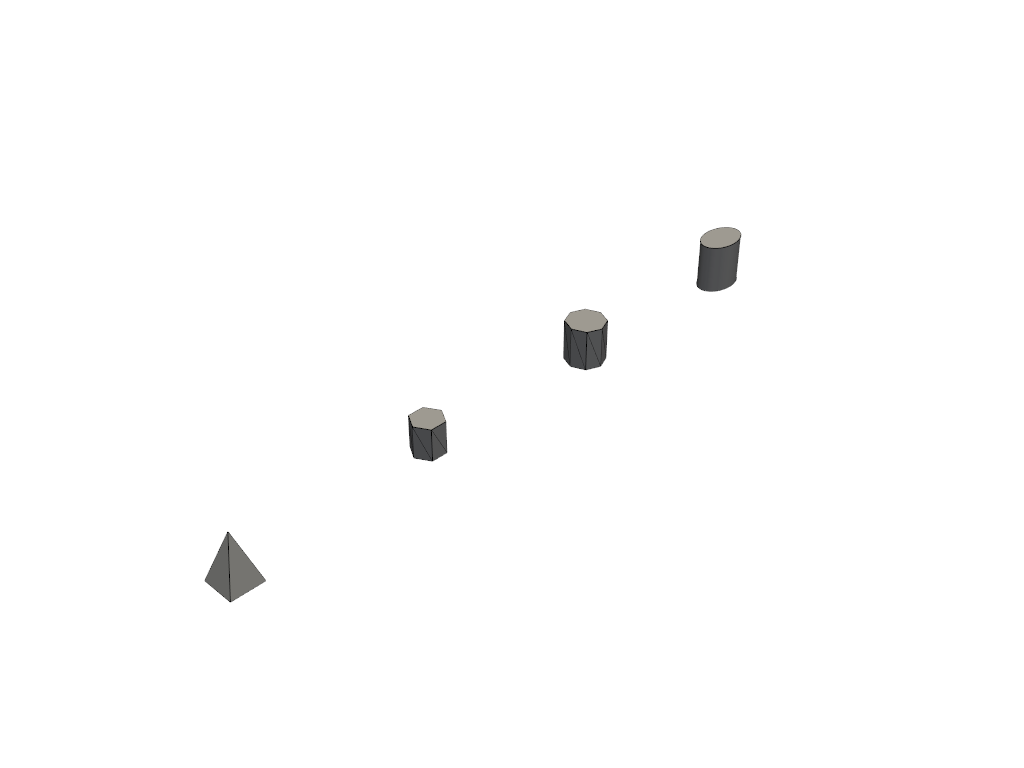

Example 3 - Advanced Primitives

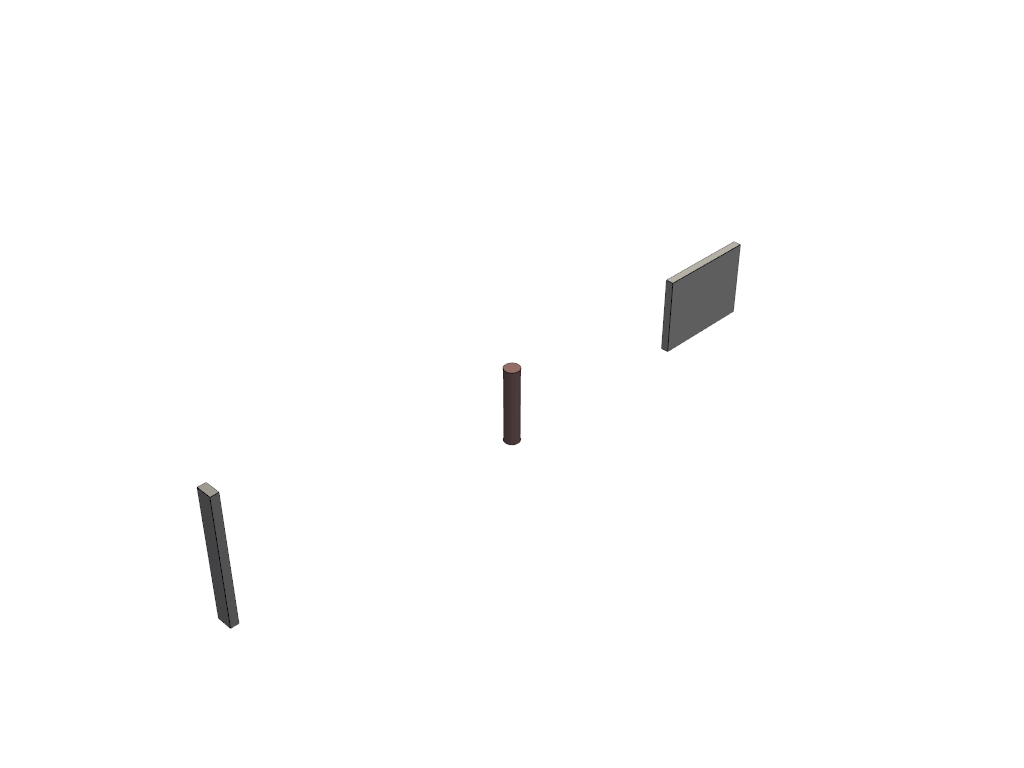

Example 4 - Styled Elements

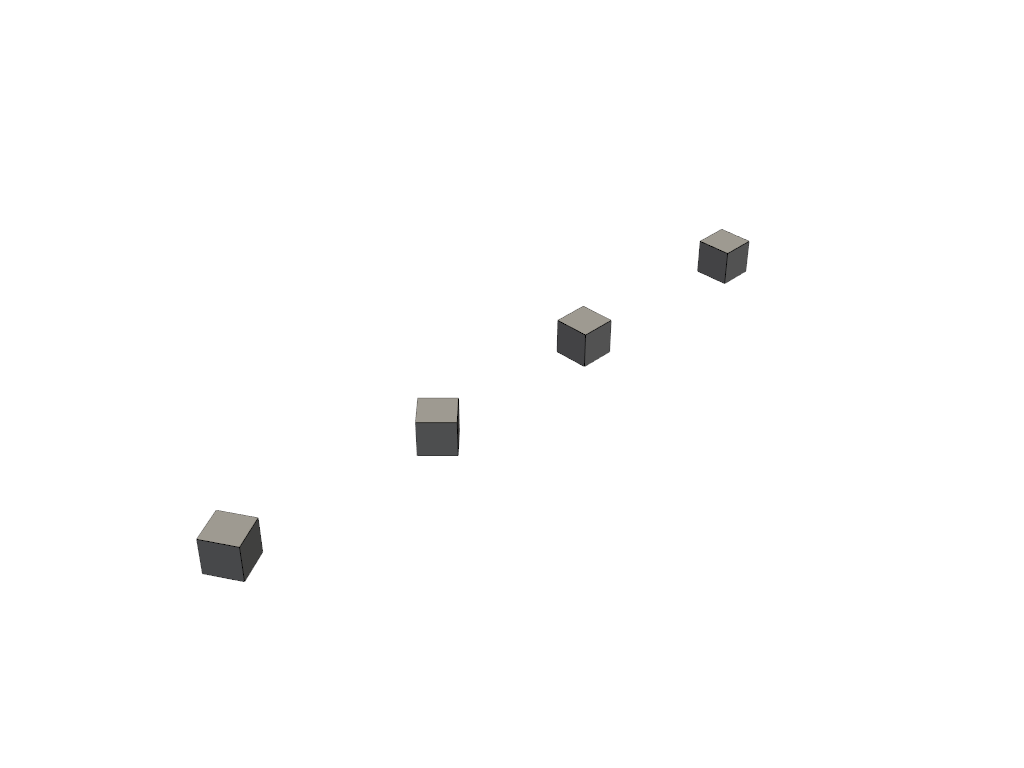

Example 5 - Transformations

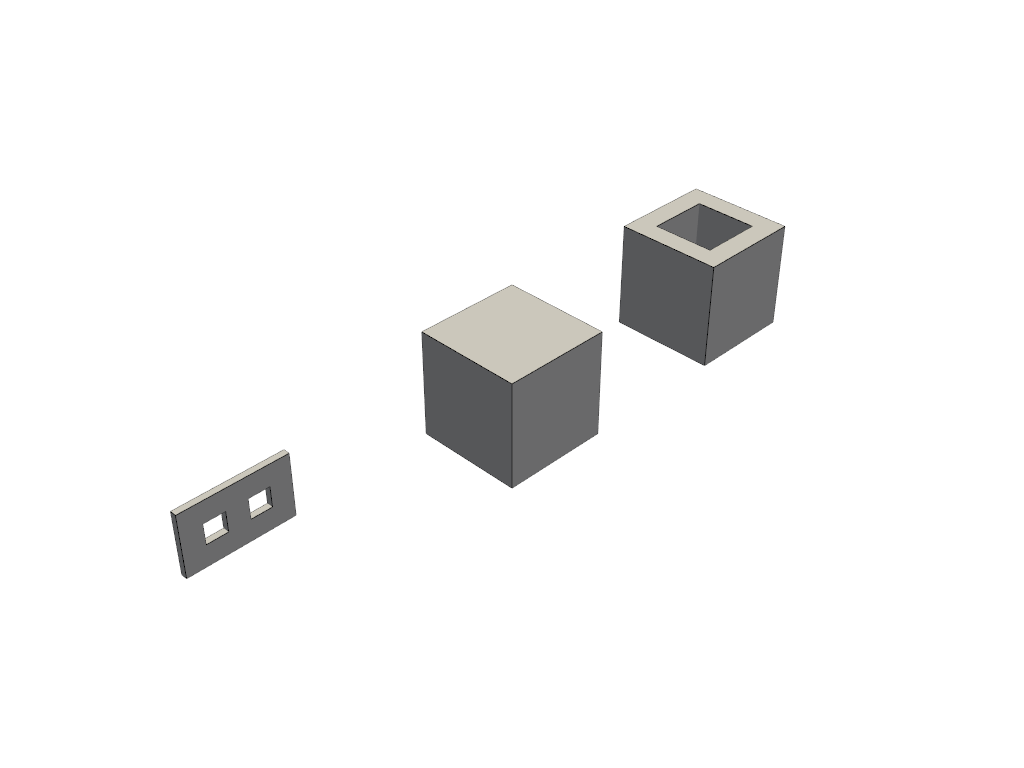

Example 6 - Boolean Operations

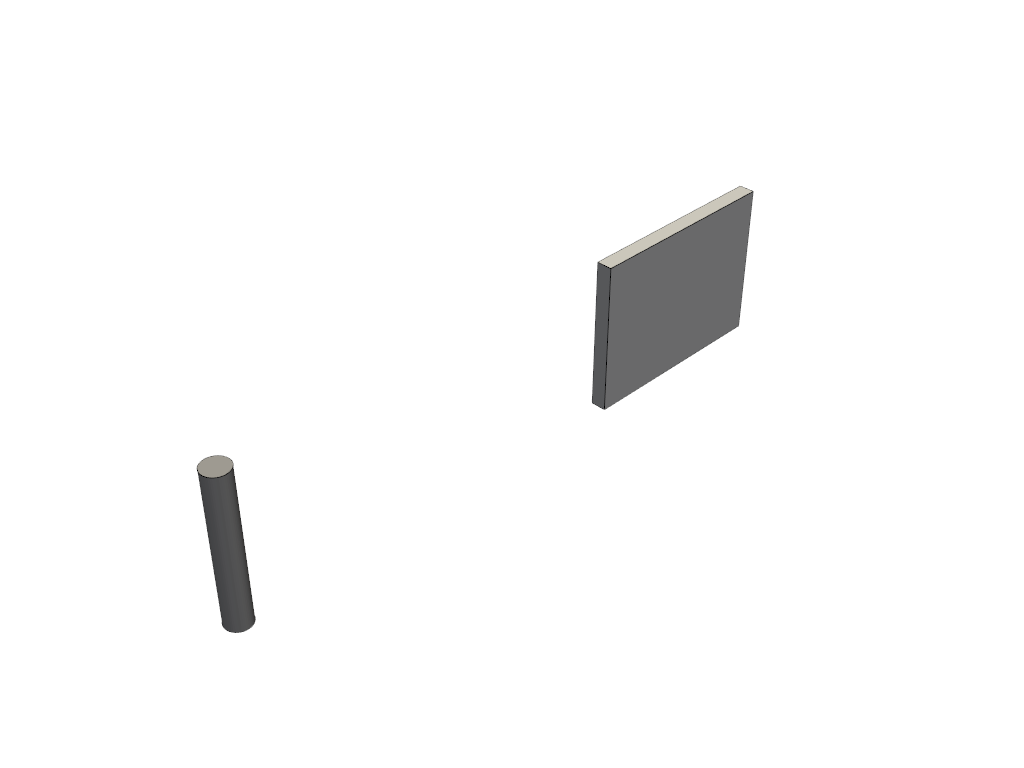

Example 7 - Property Sets

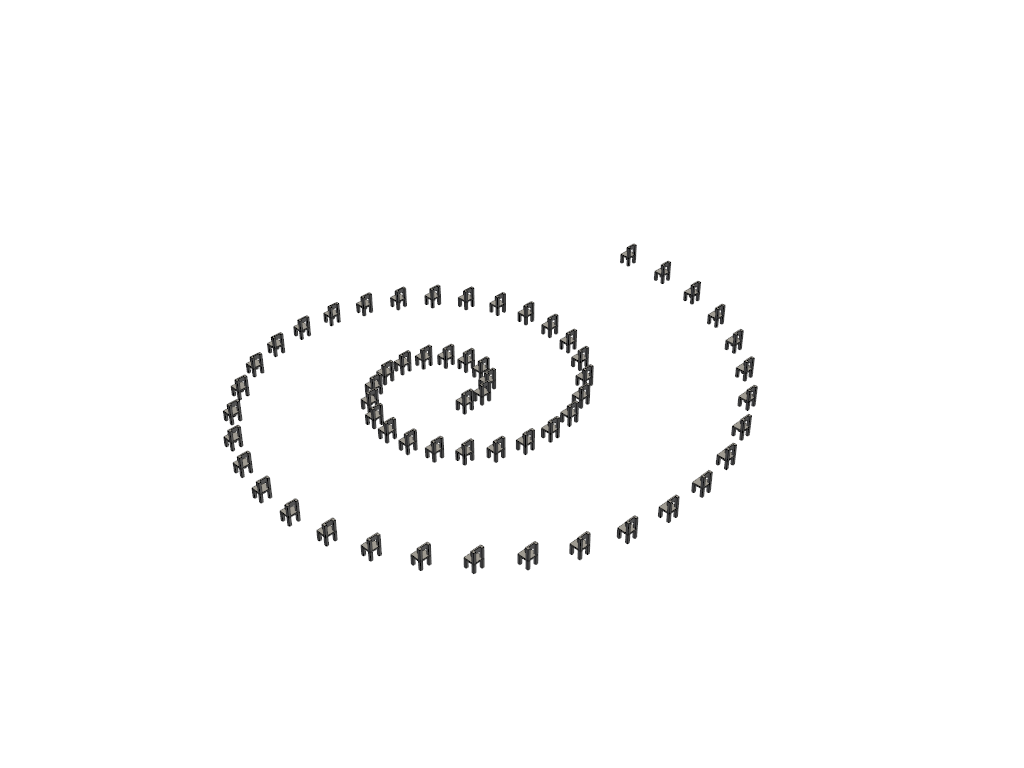

Example 8 - Type Objects

Links

• PyPI: https://pypi.org/project/ifcfactory/
• GitHub: https://github.com/LGV-BIM-Leitstelle/ifcfactory
• OpenCode: https://gitlab.opencode.de/LGV-BIM-Leitstelle/ifcfactory
• Issues: https://github.com/LGV-BIM-Leitstelle/ifcfactory/issues

License

This project is licensed under the GNU Lesser General Public License v2.1 (LGPL-2.1).

Copyright (C) 2025 Freie und Hansestadt Hamburg, Landesbetrieb Geoinformation und Vermessung BIM-Leitstelle, Ahmed Salem
