Crewai-MCP

Build an MCP agent using Crewai

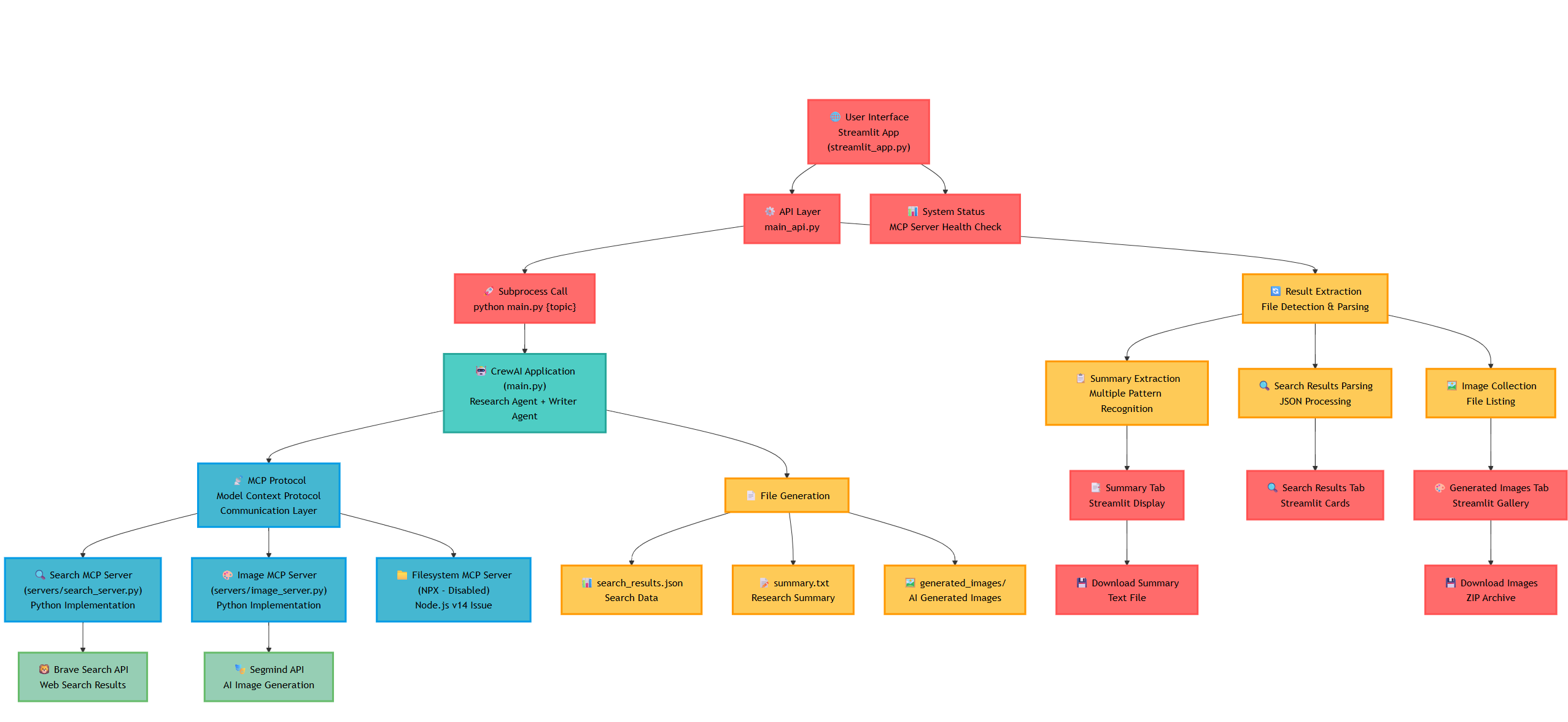

Workflow of MCP powered Crewai RStudy Assistant

graph TD
    %% User Interface Layer
    A["🌐 User Interface<br/>Streamlit App<br/>(streamlit_app.py)"] --> B["⚙️ API Layer<br/>main_api.py"]

    %% API Processing
    B --> C["🚀 Subprocess Call<br/>python main.py {topic}"]

    %% CrewAI Core
    C --> D["🤖 CrewAI Application<br/>(main.py)<br/>Research Agent + Writer Agent"]

    %% MCP Protocol Communication
    D --> E["📡 MCP Protocol<br/>Model Context Protocol<br/>Communication Layer"]

    %% MCP Servers
    E --> F["🔍 Search MCP Server<br/>(servers/search_server.py)<br/>Python Implementation"]
    E --> G["🎨 Image MCP Server<br/>(servers/image_server.py)<br/>Python Implementation"]
    E --> H["📁 Filesystem MCP Server<br/>(NPX - Disabled)<br/>Node.js v14 Issue"]

    %% External APIs
    F --> I["🦁 Brave Search API<br/>Web Search Results"]
    G --> J["🎭 Segmind API<br/>AI Image Generation"]

    %% File Output Generation
    D --> K["📄 File Generation"]
    K --> L["📊 search_results.json<br/>Search Data"]
    K --> M["📝 summary.txt<br/>Research Summary"]
    K --> N["🖼️ generated_images/<br/>AI Generated Images"]

    %% Result Processing
    B --> O["🔄 Result Extraction<br/>File Detection & Parsing"]
    O --> P["📋 Summary Extraction<br/>Multiple Pattern Recognition"]
    O --> Q["🔍 Search Results Parsing<br/>JSON Processing"]
    O --> R["🖼️ Image Collection<br/>File Listing"]

    %% Display Results
    P --> S["📑 Summary Tab<br/>Streamlit Display"]
    Q --> T["🔍 Search Results Tab<br/>Streamlit Cards"]
    R --> U["🎨 Generated Images Tab<br/>Streamlit Gallery"]

    %% User Features
    S --> V["💾 Download Summary<br/>Text File"]
    U --> W["💾 Download Images<br/>ZIP Archive"]

    %% System Monitoring
    A --> X["📊 System Status<br/>MCP Server Health Check"]

    %% Styling for different component types
    classDef streamlit fill:#ff6b6b,stroke:#ff5252,stroke-width:3px,color:#fff
    classDef crewai fill:#4ecdc4,stroke:#26a69a,stroke-width:3px,color:#fff
    classDef mcp fill:#45b7d1,stroke:#039be5,stroke-width:3px,color:#fff
    classDef api fill:#96ceb4,stroke:#66bb6a,stroke-width:3px,color:#fff
    classDef files fill:#feca57,stroke:#ff9800,stroke-width:3px,color:#fff

    %% Apply styles
    class A,S,T,U,V,W,X streamlit
    class D crewai
    class E,F,G,H mcp
    class I,J api
    class K,L,M,N,O,P,Q,R files
    class B,C streamlit

🏗️ Architecture Breakdown

📱 Frontend Layer

• streamlit_app.py - Main web interface with beautiful UI
• streamlit_app_backup.py - Backup version for safety

🔄 API & Integration Layer

• main_api.py - Bridge between Streamlit and CrewAI
• app.py - Alternative interface implementation

🤖 AI Core Layer

• main.py - CrewAI agents (Research + Writer)
• debug_summary.py - Summary extraction utilities

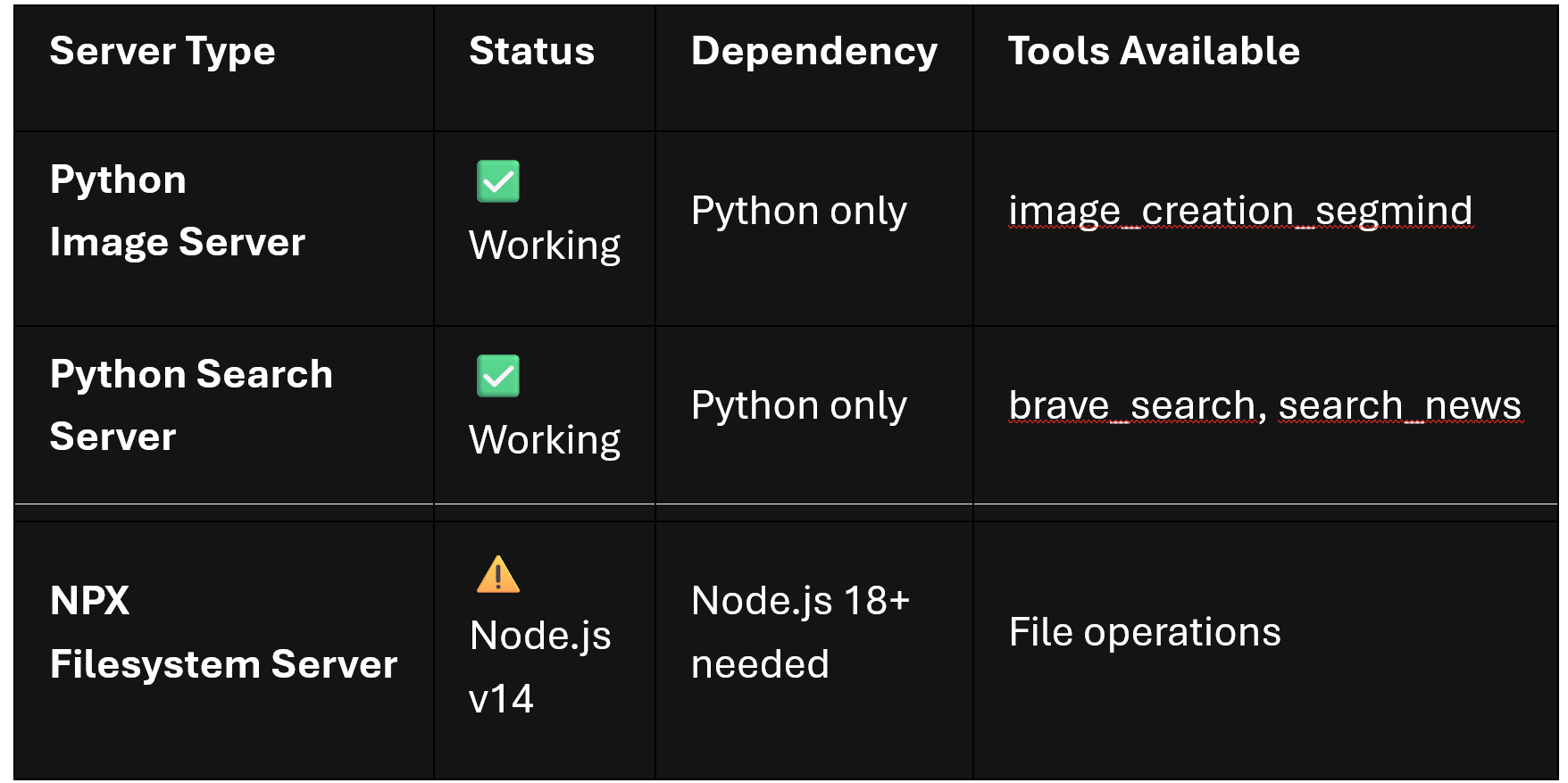

📡 MCP Server Layer

• servers/search_server.py - Web search via Brave API
• servers/image_server.py - Image generation via Segmind API

📊 Data Storage Layer

• servers/search_results/ - JSON files with search data (40+ topics)
• servers/images/ - Generated AI images (30+ visuals)

⚙️ Configuration & Utilities

• requirements.txt - Dependencies management
• setup_nodejs.py - Environment setup
• test_python_version.py - Compatibility testing

Run the Application without the UI

python main.py

Run the Application using streamlit

# Launch Streamlit app
 streamlit run streamlit_app.py

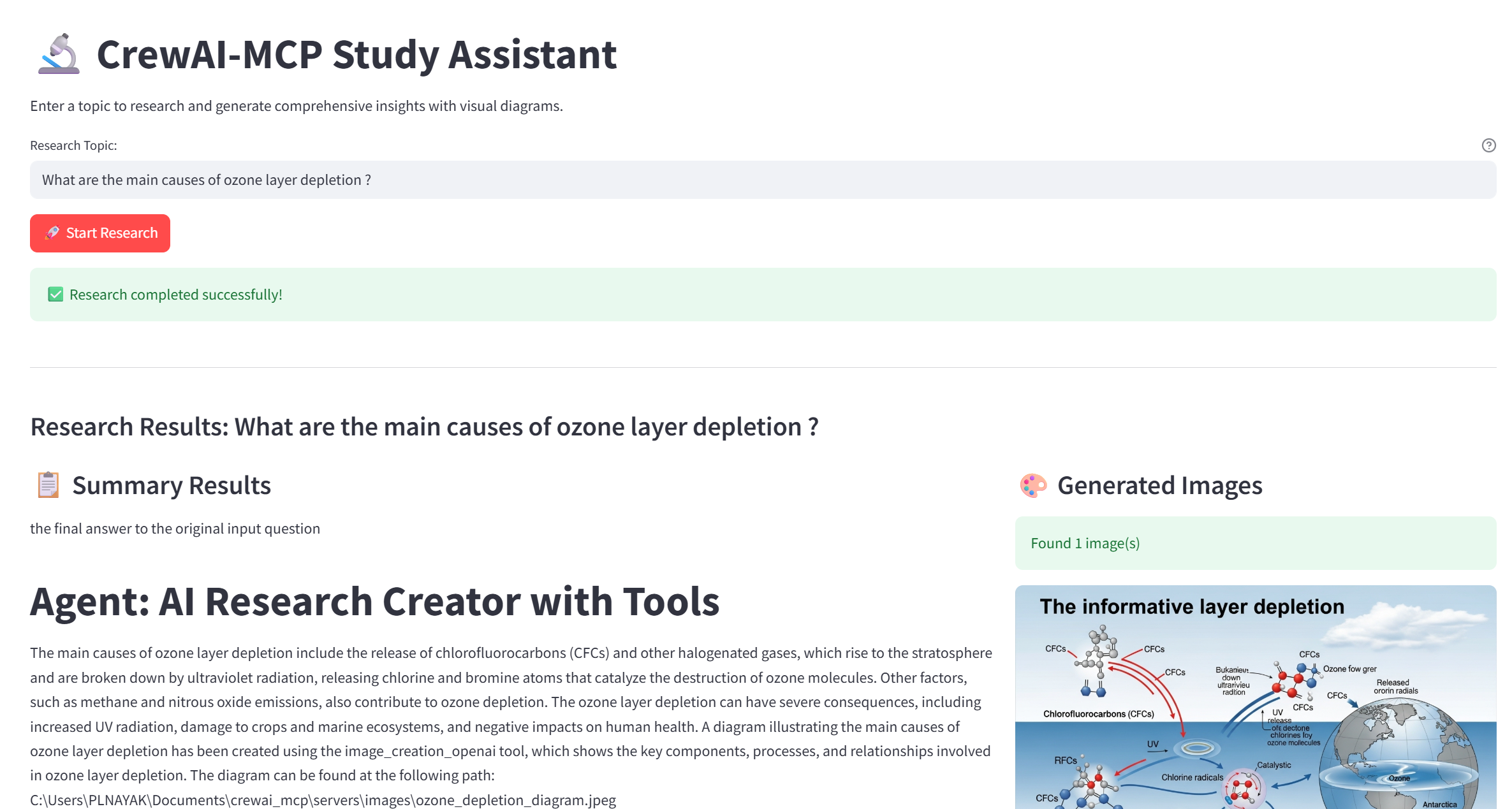

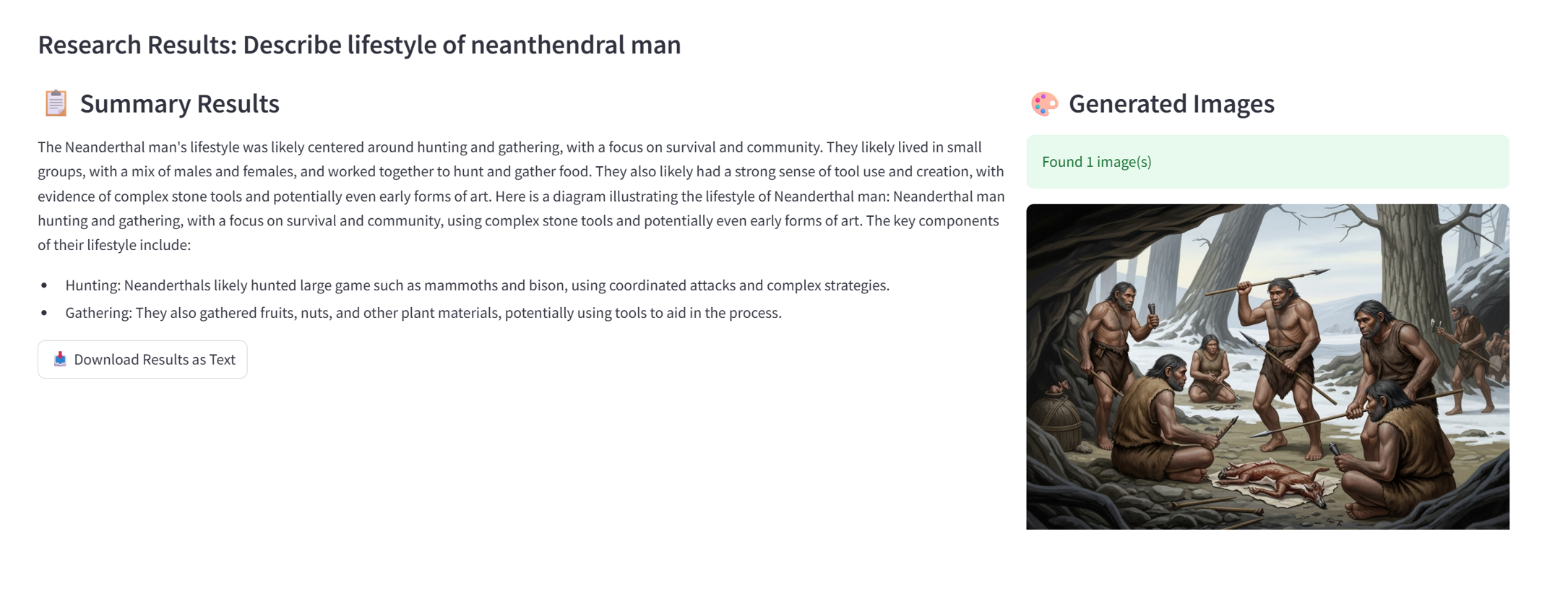

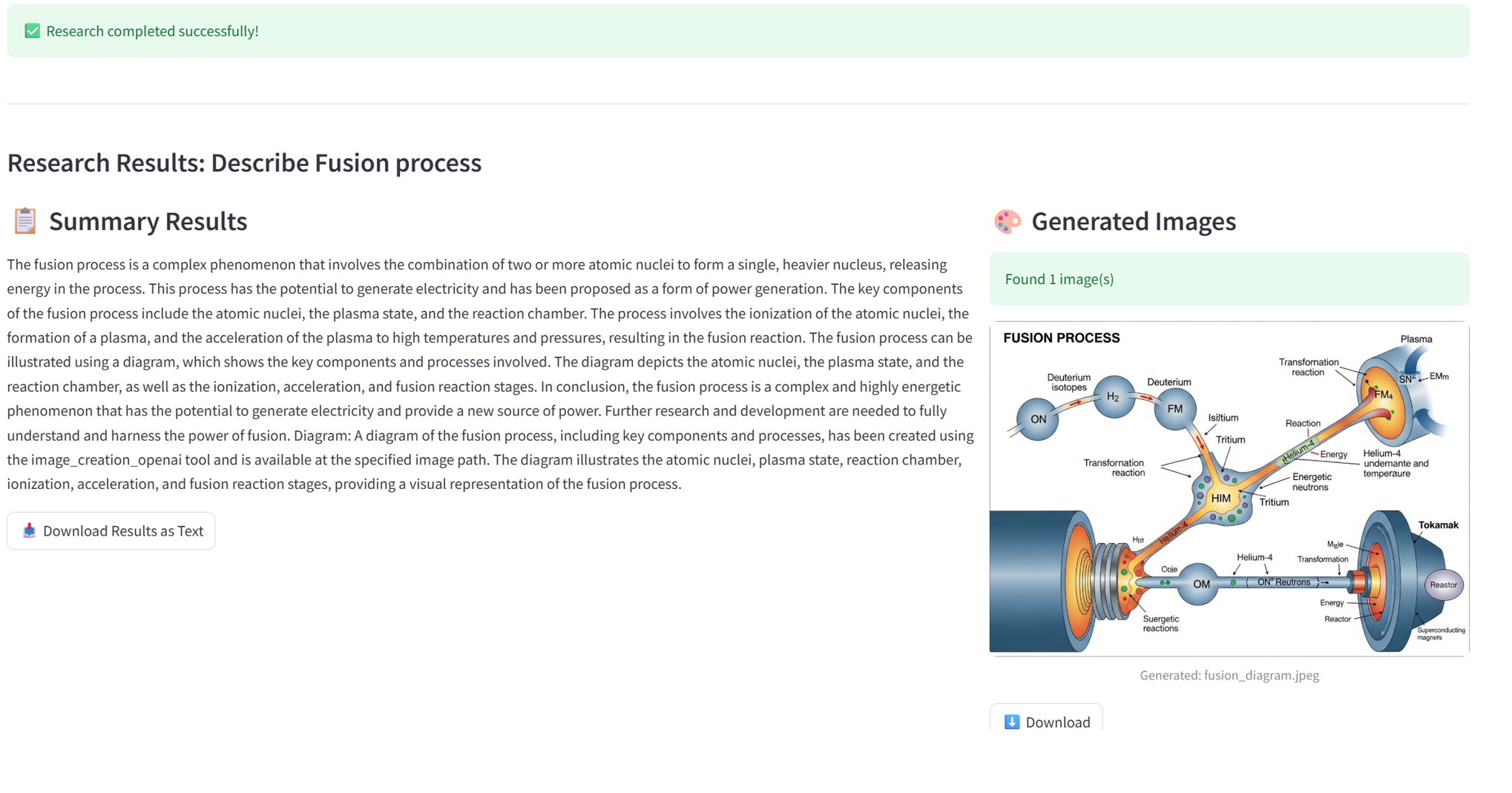

Streamlit Interface
