interactionviz 0.2.1

Pure Python viewer / renderer / visualizer and loader for the INTERACTION dataset

Interaction Viz.

A no-nonsense, pure Python, renderer / visualizer and loader for the INTERACTION dataset.

Quickstart

If you have Python >= 3.7.5, just use

$ pip install interactionviz

(probably it's best to run this inside of an activated virtualenv of some kind)

To view a scene, you can use

$ interactionviz --root-dir </root/of/interaction/dataset> --dataset DR_USA_Intersection_EP0 --session 1

This will open a native 2D top-down viewer.

If you have an older version of Python, you can use pyenv to install a more recent version.

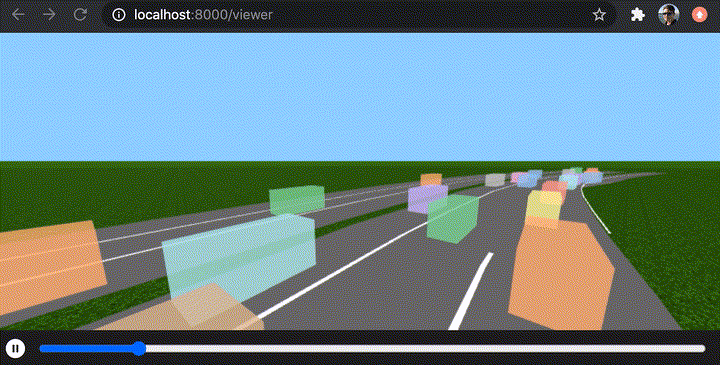

🧪 Experimental Feature: 3D Web viewer

An experimental feature is provided to support rendering the tracks in a webviewer using THREE.js. To try this out, run the following command and navigate to http://localhost:8000/viewer.

$ interactionviz --viewer-kind web --root-dir </root/of/interaction/dataset>

Using this as a library

The code is modular and easy to extend. Beware this is an early version and the API might change unexpectedly in future versions.

Here's an example of importing and using this viewer in your own code.

from interactionviz.maps import load_map_xml
from interactionviz.tracks import load_tracks_files
from interactionviz.viewers import ArcadeViewer
# Note: You can use the following to render in 3D in a web browser,
#   from interactionviz.viewers import WebViewer

interaction_map = load_map_xml("<path/to/map.osm_xy>")
tracks = load_tracks_files("<path/to/vehicle_tracks_000.csv>")
viewer = ArcadeViewer(interaction_map, tracks)

viewer.run()
