iptables-graph
Visualize iptables packet flow as Graphviz diagrams. Convert iptables-save output to DOT, SVG, or PNG formats.
Inspired by AChingYo/iptables-graph
Features
- 📊 Visualize packet flow through all iptables tables (raw, mangle, nat, filter)
- 🎨 Color-coded tables and chains for easy understanding
- 🔗 Show custom chains and jump targets
- 📤 Multiple output formats: DOT, SVG, PNG
- 🐳 Docker-based (no host dependencies!)
- 📦 PyPI package (pipx install)
Quick Start
Option 1: Docker (Recommended)
No installation required! Just pull and run:
# Pull from Docker Hub
docker pull sanghaklee/iptables-graph
# Use it
sudo iptables-save | docker run --rm -i sanghaklee/iptables-graph
# Generate SVG
sudo iptables-save | docker run --rm -i sanghaklee/iptables-graph -f svg > graph.svg
# Generate PNG
sudo iptables-save | docker run --rm -i sanghaklee/iptables-graph -f png > example.png
Create an alias for convenience:
# Add to ~/.bashrc or ~/.zshrc
alias iptables-graph='docker run --rm -i sanghaklee/iptables-graph'
# Now use it like a regular command
sudo iptables-save | iptables-graph
sudo iptables-save | iptables-graph -f svg > graph.svg
Option 2: PyPI Package
Install via pip:
pipx install iptables-graph
Use it:
# Generate DOT format
sudo iptables-save | iptables-graph > graph.dot
# Generate SVG (requires graphviz installed)
sudo iptables-save | iptables-graph -f svg > graph.svg
# Generate PNG (requires graphviz installed)
sudo iptables-save | iptables-graph -f png > example.png
Note: For SVG/PNG conversion, you need to install graphviz:
# Debian/Ubuntu
sudo apt-get install graphviz
# RHEL/CentOS
sudo yum install graphviz
# macOS
brew install graphviz
Usage
Basic DOT Output
sudo iptables-save | iptables-graph
Output:
digraph {
graph [pad="0.5", nodesep="0.5", ranksep="2"];
node [shape=plain]
rankdir=LR;
...
}
Generate SVG Diagram
sudo iptables-save | iptables-graph -f svg > graph.svg
Generate PNG Image
sudo iptables-save | iptables-graph -f png > example.png
Read from File
# Save iptables rules to file
sudo iptables-save > rules.txt
# Generate diagram
cat rules.txt | iptables-graph -f svg > diagram.svg
Using with Docker Volumes
# For file input/output with Docker
docker run --rm sanghaklee/iptables-graph \
-v $(pwd):/data
-i /data/iptables-save.txt
-f svg
-o /data/diagram.svg
Command Line Options
usage: iptables-graph [-h] [-i INPUT] [-o OUTPUT] [-f {dot,svg,png}]
iptables-save output → Graphviz converter (dot/svg/png)
optional arguments:
-h, --help show this help message and exit
-i INPUT, --input INPUT
Input file (default: stdin)
-o OUTPUT, --output OUTPUT
Output file (default: stdout)
-f {dot,svg,png}, --format {dot,svg,png}
Output format: dot (default), svg, or png

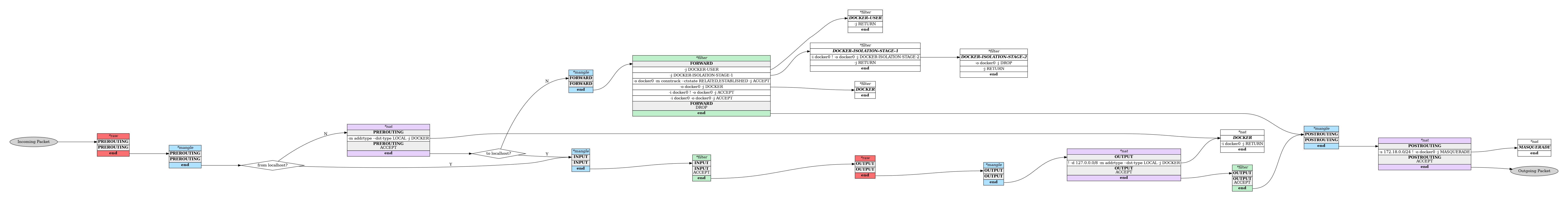

Example Output
Color Scheme
- 🔴 raw table: Red (#FA7070)
- 🔵 mangle table: Blue (#AEE2FF)
- 🟣 nat table: Purple (#E5D1FA)
- 🟢 filter table: Green (#BEF0CB)
How It Works
- Parse
iptables-saveoutput to extract rules, chains, and policies - Generate Graphviz DOT format with color-coded tables
- Convert (optional) to SVG or PNG using graphviz
Requirements
Docker Method
- Docker only
PyPI Method
- Python 3.7+
- Graphviz (optional, for SVG/PNG conversion)
Contributing
Contributions are welcome! Please see CONTRIBUTING.md for development setup, building, and release process.
