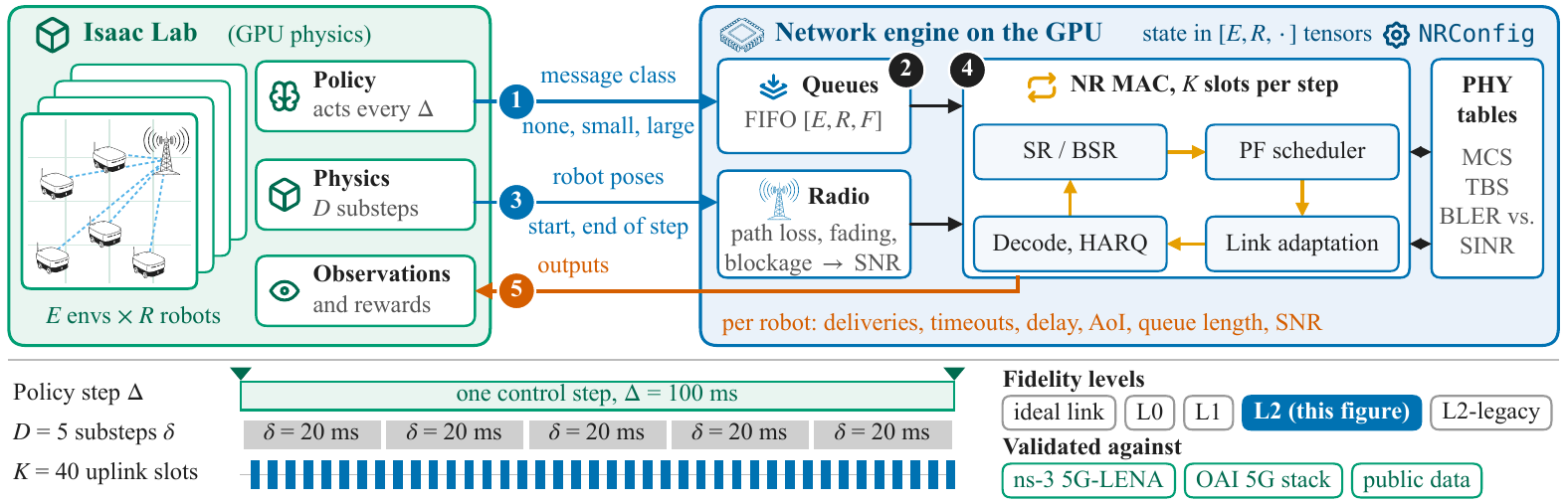

One control step. Isaac Lab (left) submits a message class and the robot poses for every environment. The engine (right) keeps queues, radio state and the NR MAC in [envs, robots, ...] tensors, runs the K uplink slots of the step, and returns per-robot deliveries, delays, AoI, queue lengths and SNR. The strip shows how D physics substeps and K uplink slots share one control step.

Parallel robot learning runs thousands of environments on one GPU, but the network between robots and the edge is usually reduced to a fixed or random delay, if it is modeled at all. Packet-level simulators such as ns-3 capture scheduling, retransmissions and contention, but they run one scenario at a time on a CPU, far from the throughput an RL loop needs. isaac-net closes that gap. Every piece of network state, from each robot's channel and HARQ process to its queued messages, is a fixed-shape tensor with leading dimensions [envs, robots]. The engine advances all environments' uplinks slot by slot on the GPU, in lockstep with the physics. A policy therefore trains against queues that build up when the team transmits together, links that degrade as robots move, and retransmissions that stretch delay tails.

Status. Research prototype, version 0.1.0, packaged as isaac_net. One factory builds every fidelity level behind one API: the configurable NR engine with multiple cells, the frozen legacy slot model, a Wi-Fi level, cheaper fluid and delay levels, fitted surrogates and two bounds. Around them sit selectable channel models and radio maps baked from USD scenes, traffic generators, an edge-computing loop, background users, a radio energy model, adaptive fidelity per env and multi-GPU sharding. The Isaac Lab layer and a MuJoCo Playground / MJX backend run all of it, the benchmark suite defines four network-aware multi-robot tasks, and ns-3 5G-LENA and OAI 5G bridges check the engine against a packet-level simulator and a real protocol stack. Two pieces of work are still in flight: an uncontended re-run of the speed and scale benchmarks, and the load-gap fixes that fold 5G-LENA's scheduler sharing and grant pipeline into the NR engine as switches. docs/STATUS.md has the details and the open items, and CHANGELOG.md lists what 0.1.0 contains.

Install

git clone git@github.com:ZzZTripleZzZ/isaac-net.git && cd isaac-net
uv venv --python 3.11 && source .venv/bin/activate
uv pip install torch                                # CUDA build of PyTorch; Triton ships with it on Linux
uv pip install -e ".[dev]"                          # the isaac_net package, plus pytest, ruff and build

Linux with an NVIDIA GPU is the main target, and Python 3.10 to 3.12 is supported. Every reference engine also runs on a CPU (pip install torch --index-url https://download.pytorch.org/whl/cpu), which is enough for the CPU test suite. The package is not on PyPI while the repository is private. A release wheel installs the same way: pip install "isaac_net-0.1.0-py3-none-any.whl[dev]". Scripts in prototype/ still work, as thin shims over the package.

Extra	Adds	For
dev	pytest, ruff, build	tests, lint, building the wheel
docs	mkdocs-material, mkdocstrings, mkdocs-jupyter	the docs site (mkdocs build --strict)
mjx	JAX 0.9.2 (CUDA 12), MuJoCo Playground 0.2.0, Brax 0.14.2	the MuJoCo Playground / MJX backend (docs/backends-mjx.md)
isaac	nothing from pip	the Isaac Lab layer. Install Isaac Sim and Isaac Lab separately, on Windows or Linux / HPC
ns3	pybind11	the ns-3 bridges (docs/bridges.md). ns-3.48 and 5G-LENA v5.1 are built locally
oai	pyarrow	the OAI 5G rfsim bridge and measurement tools (docs/bridges-oai.md). OAI runs from its Docker images
sionna	Sionna RT, Sionna 2.2.0, usd-core	radio maps from USD scenes and the PHY table export (docs/scene-radio-map.md)
wifi	nothing	level WIFI needs only the core dependencies
all	every extra above except isaac	everything pip can install on Linux without Isaac

Three console scripts come with the package: isaac-net-bench (the benchmark suite), isaac-net-bake (bake a radio map from a USD scene) and isaac-net-measure (probe, ingest and calibrate for gNB measurement campaigns).

Put a network in your environment

import torch
from isaac_net import NRConfig, Requests, make_engine

E, R, dev = 256, 16, torch.device("cuda")          # 256 envs, 16 robots each
net = make_engine("L2-legacy", E, R, dev, backend="graph")    # slot-level uplink, CUDA-graph backend
pos = torch.rand(E, R, 2, device=dev) * 150         # robot positions from your simulator ([E,R,3] also works)
last = torch.full((E, R), -1, dtype=torch.long, device=dev)

for _ in range(300):                                # one control step = 100 ms = 40 uplink slots
    send = (torch.rand(E, R, device=dev) < 0.3).long()   # per robot: 0 nothing, 1 small frame, 2 large frame
    net.submit(None, Requests(send))                # None = each env's own clock net.clock [E]
    out = net.step(None, pos)                       # positions go through the engine's radio; an SNR [E,R] also works
    last = torch.maximum(last, out["newest"])       # capture step of the newest frame delivered, -1 if none
    aoi = out["t"][:, None] + 1 - last              # age of the freshest delivered frame, in control steps
    queued = out["queue_len"]                       # frames still waiting per robot
    pos = (pos + 0.3 * torch.randn_like(pos)).clamp(0, 150)
    done = torch.nonzero(torch.rand(E, device=dev) < 0.005).squeeze(-1)   # envs whose episode ended
    net.reset(done)                                 # partial reset: queues, MAC, fading, radio and clock of these envs
    last[done] = -1

make_engine(level, E, R, device, config, backend) builds every fidelity level, and every engine has the same API. step also returns, per message slot, the delivered and timed_out masks, the delay in control steps and the cap/cls of each message, plus queue_bytes, sinr_db and, if Requests(send, det, hid) carried an application tag, det_env. reset(env_ids) takes an index tensor, a list or a bool mask and leaves every other env bit-for-bit unaffected. The earlier calls add_frames(t, send, det, hid, snr) and step(t, snr, hid) -> (newest, det_env) still work. aoi and queued go straight into observations. The example task in isaac_net/examples/fleet_task.py uses the application tag to mark frames that captured a hazard. isaac_net/isaac/mixins.py wires a network into an Isaac Lab DirectRLEnv with four hook calls (see Isaac Lab quick start).

Isaac Lab quick start

Tested natively on Windows 11 with an RTX 4090 (driver 617.14; the CUDA 13.0 build of PyTorch needs 580.88 or newer). For Linux, including clusters without root or with a glibc older than 2.35, see docs/isaac-lab-linux.md: kit-less Isaac Lab 3.0 on Newton or OV PhysX, where ISAAC_NET_PHYSICS=newton (or ovphysx) selects the fleet env's physics backend.

Component	Version
Isaac Sim	6.1.0.0 (pip wheels from pypi.nvidia.com)
Isaac Lab	3.0 (release/3.0.0, package isaaclab 25.0.0; Isaac Sim 5.1 and older are not supported)
Python	3.12 (uv venv)
PyTorch	2.12.0+cu130, torchvision 0.27.0
Triton	triton-windows 3.8.0.post29 (community build, only for the triton backend)
RL library	rsl-rl-lib 5.5.1 (installed by isaaclab.bat -i)

Install Isaac Sim and Isaac Lab. The scripts in scripts/windows/ follow the Isaac Lab 3.0 page "Python environment with Isaac Sim" (Windows, uv) and keep everything under C:\isaac5g. Run them from an Administrator PowerShell in the repository folder:

New-Item -ItemType Directory -Force C:\isaac5g | Out-Null
Copy-Item scripts\windows\env.ps1 C:\isaac5g\env.ps1      # venv, uv, caches and EULA flag for every later step
powershell -File scripts\windows\01_bootstrap.ps1          # long paths on, uv and portable git in C:\isaac5g\tools
powershell -File scripts\windows\02_install_isaacsim.ps1   # venv, isaacsim[all,extscache]==6.1.0.0, torch 2.12 cu130, Isaac Lab clone
powershell -File scripts\windows\03_install_isaaclab.ps1   # isaaclab.bat -i: Isaac Lab and its RL libraries
powershell -File scripts\windows\04_triton_windows.ps1     # triton-windows, for the triton backend

env.ps1 sets OMNI_KIT_ACCEPT_EULA=YES, which accepts the NVIDIA Omniverse EULA; read it before you run the scripts. It also moves the per-user caches (Kit, Triton, uv, temp) into C:\isaac5g\home. The download is about 40 GB and the install takes about 15 minutes.

Add the package and run the tests, a benchmark and a short training run:

. C:\isaac5g\env.ps1                                       # activates the Isaac venv
cd C:\isaac5g\isaac-net                                 # this repository
uv pip install --no-deps -e .                              # --no-deps keeps Isaac's CUDA build of torch
uv pip install pytest
python -m pytest -m isaac tests\test_isaac_env.py
python benchmarks\isaac\bench.py --num_envs 256 --num_robots 16 --level L2-legacy --backend triton --steps 100
python benchmarks\isaac\train_ppo.py --num_envs 256 --num_robots 16 --level L2-legacy --backend triton --iters 5

Isaac Lab 3.0 runs headless by default. The Isaac tests launch one Isaac Sim process per case and take about 1 minute each. On a machine where nobody is logged on at the console, CUDA is available only to jobs that run as SYSTEM: scripts\windows\systask.ps1 runs a script as a one-shot SYSTEM task, and scripts\windows\wait.ps1 waits for it and removes the task.

Add the network to your DirectRLEnv. NetEnvMixin wires a NetModule into four hooks. The network is configured by the same NRConfig that make_engine takes, and a small IsaacNetCfg adds the Isaac-side settings: where the poses come from, the network rate, blockage, domain randomization and the observation features. Frames are captured at the start-of-step pose, and the network step takes the end-of-step poses:

from isaaclab.envs import DirectRLEnv
from isaac_net import NRConfig
from isaac_net.isaac import IsaacNetCfg, NetEnvMixin

NR = NRConfig(msg_sizes=(4000.0, 30000.0))                  # the network: one config, as for make_engine
ISAAC = IsaacNetCfg(pose_asset="robots",                     # poses from the scene's "robots" collection
                    obs_features=("aoi", "sinr", "queue_len", "delay_history"),
                    dr_ranges={"noise_dbm": (-95.0, -85.0), "shadow_sigma_db": (3.0, 9.0)})
# env cfg: observation_space = R * (task features + ISAAC.obs_dim(NR))

class MyFleetEnv(NetEnvMixin, DirectRLEnv):
    def _setup_scene(self):
        ...                                                  # self.scene["robots"]: a RigidObjectCollection of R robots
        self.net_setup("L2-legacy", R, NR, "triton", isaac=ISAAC)
    def _pre_physics_step(self, actions):
        ...                                                  # read the start-of-step pose, decide what to send
        self.send = choose_messages(actions)                 # [E,R] long: 0 nothing, 1 small, 2 large message
    def _get_dones(self):
        out = self.net_step(None, self.send)                 # end-of-step poses from "robots"; newest_cap, aoi_s, ...
        ...
    def _reset_idx(self, env_ids):
        super()._reset_idx(env_ids); ...; self.net_reset(env_ids)   # also redraws the dr_ranges of env_ids
    def _get_observations(self):
        net = self.net_obs()                                 # [E,R,ISAAC.obs_dim(NR)] normalized network features
        ...

net_setup takes any level of make_engine ("off" for an ideal link), an NRConfig, a backend and an IsaacNetCfg. The observation features are chosen from the delivered mask and the delay of each message slot, age of information, queue length and bytes, SINR and RSRP, the serving cell, a last-delivery flag, the delays of the last k delivered messages, and a blockage flag, all with one normalization. The domain-randomization ranges cover the radio (transmit power, noise floor, path loss, shadowing sigma, blockage loss), the gNB placement, and the delay and loss of L0 and L0DR, and dr_support(level) tells which of them a level honors. net_decimation and net_substeps run the network slower or faster than the env step. net_step(pos, send, tag, cur_tag) also carries a per-message tag, such as the id of the hazard a frame captured, and returns tag_delivered per env. The fields, the feature table and the randomization table are in docs/isaac-lab.md. The earlier NetConfig is a deprecated alias. isaac_fleet_env.py is the complete example: E envs × R robots in a 150 m arena, with hazards that the whole fleet learns about only when a detection frame is delivered.

Scale. These numbers come from the fleet env with random actions, which saturate the uplink from 16 robots per env, measured on an idle RTX 4090 (0% utilization before every run; each process reports its median of 3 windows). The NR engine runs ul_v2l, the configuration validated against 5G-LENA except for the buffer-report grant pipeline, which the fused kernel lacks (median delay error −3.5% / −5.7% / −0.8% at light / moderate / saturated load). Network off and NR are the mean of 3 processes with the range in parentheses, L2-legacy is a single process from the first campaign (conditions in docs/performance.md):

Envs × robots	Robots	Network off (control steps/s)	L2-legacy triton (1 process)	NR L2 triton, ul_v2l (uplink)	Network per step, isolated (legacy / NR)
2,048 × 128	262,144	5.38 (5.04–5.61)	4.08	4.11 (3.82–4.34)	11 / 50 ms
4,096 × 128	524,288	2.95 (2.84–3.07)	2.39	2.44 (2.37–2.52)	23 / 100 ms
8,192 × 128	1,048,576	1.50 (1.37–1.57)	1.51	1.24 (1.23–1.24)	45 / 199 ms

One control step is 0.1 s of simulated time. At about one million robots the network runs in the loop at 1.59 million (legacy) and 1.30 million (NR) robot-steps per second, in at most 20 GiB of device memory. The Isaac step is bound by host work. From 524k robots up the validated NR uplink lengthens the step by 40–86% of its isolated cost (about 30% of its GPU work overlaps with host work on average), and the network-off rate varies by 8–14% between processes, so single-run on / off differences of a few percent are not meaningful. Use graph for bitwise-reference runs and triton for scale. Startup grows about linearly with the number of robots (PhysX cloning), 17–26 minutes at one million robots. End-to-end PPO (rsl_rl, 1,024 × 16, L2-legacy triton) ran 30 iterations in 241 s on the earlier shared GPU.

A second backend: MuJoCo Playground / MJX. The same NetModule runs inside jitted, vmapped JAX code: isaac_net.mjx.NetModuleMJX hands the MJX poses to the torch engine through jax.experimental.buffer_callback with zero-copy DLPack views on XLA's own CUDA stream, and mjx_fleet_env.py is the fleet task as a Playground env that Brax PPO trains. The in-env network is bitwise equal to a direct torch replay of the same poses on graph, triton and the reference engine; versions, costs and limits are in docs/backends-mjx.md.

Configure the network

One NRConfig dataclass configures every module: numerology, carrier and TDD pattern, MAC timing, HARQ and RLC, the PHY tables, the radio and cell layout, and the application fields (frame buffer, timeout, message sizes). The configurable NR engine is level L2:

from isaac_net import NRConfig, make_engine
from isaac_net.core import lena_validation, multicell, netslot_compat, oai_like, srsran_like

cfg = NRConfig(mu=1, bandwidth_mhz=20, tdd_pattern="DDDSU", n_harq=16, mcs_table=2, dl=True)
net = make_engine("L2", E, R, dev, cfg)             # 51 PRB in 13 RBGs, 16 HARQ processes, EESM, uplink + downlink
net.add_dl_frames(None, torch.full((E, R), 3000.0, device=dev))  # downlink bytes per robot; see out["dl_newest"]
net = make_engine("L2", E, R, dev, netslot_compat())                     # closest to the legacy NetSlot
net = make_engine("L2", E, R, dev, multicell(3, dl=True))               # 3 cells: UL + DL interference, handover
out = net.step(None, pos)                           # several cells take poses (or pathgain_db=[E,R,C]); out["serving_cell"]

Presets: netslot_compat() (the legacy L2 geometry and timing with the 3GPP PHY), lena_like() and lena_validation() (the ns-3 5G-LENA reference scenario), srsran_like() and oai_like() (latency fitted to public srsRAN and OAI measurements), and multicell(n) (hexagonal cells at 100 m spacing, thermal noise, uplink fractional power control on). Uplink power control is on by default whenever n_cells > 1: without it, full-power robots next to their own gNB dominate the interference, and three cells carry less than one. Multi-cell configurations run on L2 (per-cell schedulers and HARQ, uplink and downlink interference) and on L2-legacy (NetSlotMC, uplink only). The NR engine runs on the reference, graph (bitwise equal to it) and triton (single cell, equal to rounding) backends.

PHY tables and licensing. The BLER tables shipped in isaac_net/core/data/ are exported from Sionna SYS 2.2.0 (Apache-2.0, license file alongside). The 5G-LENA tables used by bler_source="lena" (the lena_like presets) are GPL-2.0 data and are never shipped or committed. Generate them from your own 5G-LENA checkout; the script asks for its location if you omit it:

git clone https://gitlab.com/cttc-lena/nr.git ~/src/nr
python -m isaac_net.tools.extract_lena_tables ~/src/nr   # writes ~/.cache/isaac_net/lena_eesm_tables.npz

ISAAC_NET_LENA_TABLES points the engine to another location. Keep the generated file out of any redistribution.

What the engine models

The three simulating levels share the radio, the traffic and the application layer, and differ in how they model access to the channel:

Layer	Configurable NR engine (L2)	Legacy slot-level model (L2-legacy)	Wi-Fi (WIFI)
Radio	selectable channel (docs/channels.md): log-distance with correlated and white shadowing, TR 38.901 RMa / UMa / UMi / InH / InF path loss with a spatially consistent LOS state and O2I, or a precomputed radio map, for example baked from a USD scene (docs/scene-radio-map.md); optional robot-body blockage; correlated Rayleigh fading per subband and link, with per-robot Doppler	the same large-scale models (legacy fading), one cell at the arena corner by default	the same large-scale models between robots and access points, RSSI association with hysteresis and roaming interruption, a pairwise sensing matrix for hidden nodes
Frame structure	numerology 0 to 2, any bandwidth (38.101 N_RB), any TDD pattern and special slot, RBGs per 38.214	TDD DDDSU at 30 kHz SCS, 40 uplink slots per 100 ms, 5 subbands of 10 PRBs	802.11ax / ac / a PPDUs at 20 to 160 MHz, 1 to 4 spatial streams, the contention model re-solved every sub-step (1 ms by default)
Access	periodic SR, grant delay, BSR, optional proactive grants	scheduling request, grant delay, buffer status reports	DCF or EDCA contention (AIFS, CW per access class) as a Bianchi-style mean-field fixed point per sub-step, optional RTS/CTS
Scheduling	proportional fair per RBG (subband or wideband metric), max C/I or round robin, retransmissions first	proportional fair over subbands, power split with a headroom cap	random service order among the stations that win the channel
Link	3GPP MCS tables and exact TBS, EESM, BLER-target link adaptation, OLLA, MCS caps	OLLA, one transport block per robot per slot, logistic BLER on effective SINR	SNR-threshold rate adaptation, A-MPDU aggregation up to the Block Ack window and the PPDU time limit
Retransmission	multiple HARQ processes, chase or IR combining, RLC AM retry or UM loss	HARQ with a chase-combining gain and a retransmission limit	collisions and a retry limit
Downlink	per-robot gNB queues, delayed and quantized CQI, K1 feedback	none	none
Cells	1 to 7 cells, a PF scheduler and HARQ per cell, same-slot UL and DL interference, fractional UL power control, A3 handover with interruption	1 to 7 cells, same-slot UL interference, fractional power control, A3 handover	several APs on shared or separate channels, co-channel contention domains
Application	per-robot FIFO, in-order completion, timeout or PDCP discard	per-robot FIFO of frames, in-order completion, 2 s application timeout	per-robot FIFO, in-order completion, application timeout
Traffic	policy messages plus periodic (sub-step periods), Markov on/off bursty, video I/P and event-triggered generators per robot, with arrival offsets in slots, tags, priority and deadline fields (Traffic models)	policy messages, one per robot per step	policy messages, one per robot per step

Stages on top of the levels are set through NRConfig as well, keep the engine API, and add their own keys to the step dict:

Stage	What it adds	Levels	Configure
Edge loop	edge servers per env (FIFO or processor sharing, deterministic or exponential service per message class, bounded queue, deadlines) and the return path to the robot: instant, delay from SINR, or a real NR downlink message. Outputs the capture step, age and latency of each robot's newest action, split into uplink, edge and return delays	every level	NRConfig(edge=EdgeConfig(...)), configurability.md
Background users	UEs the policy does not control, with their own placement, mobility and traffic. In the NR engine they are extra rows that compete in PF, hold HARQ, interfere and hand over. On L1 and L2-legacy they reduce the capacity through their offered load	L2, L2-legacy, L1	NRConfig(background=BackgroundConfig(...)), background-energy-sharding.md
Radio energy	joules per robot from transmit power, circuit, receive and idle power, and a battery with a low-battery flag. Exact per slot on L2, an airtime estimate elsewhere	every level	NRConfig(energy=EnergyConfig(...))
Adaptive fidelity	a cheap and an expensive level side by side, chosen per env: a static mix, switching on a load indicator with queue handoff, or a curriculum over training iterations	cheap L0 to L1, expensive L1, L2-legacy or L2	make_adaptive(E, R, dev, FidelityConfig(...)), adaptive-fidelity.md
Sharding	the envs split over several GPUs behind the API of one engine; two shards are bitwise equal to one engine on the prototype levels and L2-legacy	every level (L2 is not shard-invariant)	ShardedEngine(level, E, R, devices, config, backend)

Without these fields nothing changes. examples/edge_control.py is edge-offloaded tracking with a hold or zero rule for stale actions, and examples/traffic_models.py shows the traffic generators. Level WIFI takes its settings from NRConfig(wifi=WifiConfig(...)) and is described, with its validation and what it leaves out, in docs/wifi.md.

Fidelity levels

Every level exposes the same API, so a task switches fidelity by changing one argument of make_engine.

Level	Model	Typical use
L0	i.i.d. lognormal delay and loss	the usual randomized-delay baseline
L0DR	L0 with per-episode randomized delay and loss	domain randomization
L05, L05Q	lookup tables fitted offline from L2 rollouts	cheap state-conditioned delay
L1	fluid slot model with equal PRB shares and FIFO queues	contention without MAC detail
L2	configurable NR MAC and PHY, 1 to 7 cells (table above)	the fidelity model
L2-legacy	the prototype slot-level MAC and PHY, frozen; multi-cell capable	reproducing the earlier prototype experiments, and speed at scale
WIFI	mean-field 802.11 DCF / EDCA uplink with 802.11ax / ac / a rates, several APs	fleets on Wi-Fi instead of private 5G
TR	trace replay: each env replays one recorded L2 env-episode, open loop	the replayed-trace baseline
GE	3-state Markov-modulated delay and loss, one chain per env	the Gilbert–Elliott-style baseline
QA	analytic processor-sharing queue per control step, FIFO service, SR delay	contention without slot simulation
NN	learned stateful surrogate: MLP drop probability and delay quantiles from send-time features	the learned-surrogate baseline
ORACLE	every message delivered at capture, delay 0, never lost	upper bound on what any network gives a task
NOCOMM	no message ever delivered	lower bound: the task without communication
L1D, QAD	differentiable relaxations of L1 and QA in core/diff (DiffFluid), exact at temperature 0; not built by make_engine	gradients of delay, delivery, AoI and energy with respect to send probability, message size, transmit power and position (docs/differentiable.md)
neural proxy	an MLP fitted to per-robot KPIs of L2-legacy rollouts (core/diff/proxy.py), a recipe	differentiable stand-in for L2-legacy

TR, GE, QA and NN are fitted from L2 or L2-legacy rollouts of the example fleet task. The fit writes one parameter file outside the repository, and every engine loads it:

python -m isaac_net.tools.fit_levels --source L2-legacy --task T1 --backend graph   # ~/.cache/isaac_net/levels/L2-legacy_T1.pt

net = make_engine("NN", E, R, dev, params="~/.cache/isaac_net/levels/L2-legacy_T1.pt", backend="graph")

ORACLE and NOCOMM are value-of-information bounds for task design. Run a task under both first: a task in which network fidelity can matter must show a large gap between its ORACLE and NOCOMM returns. If the gap is small, the policy gains little from what the network delivers, and the task cannot tell fidelity levels apart.

AdaptiveEngine (core/adaptive.py) mixes two of these levels per env behind the same API, for example L1 for most envs and L2-legacy for the envs whose cell is congested. With the switching threshold at 0 or infinity it is bitwise equal to the expensive or the cheap level alone.

Backends and speed

Every prototype level (L0 to L1, L2-legacy) has a readable eager reference in isaac_net/core/proto/netsim.py and graph-safe fast versions in isaac_net/core/proto/netsim_fast.py. graph records the same operations once as a CUDA graph and is bitwise identical to the reference at every level (per-message outputs, every queue and MAC state, with random partial resets). triton (L1, L2-legacy) runs all 40 slots of a control step in one fused kernel and matches the reference to rounding: from an identical state every finish time agrees, and over long runs aggregate delivery and delay agree to three or four significant digits. compile (torch.compile + CUDA graph) also agrees to rounding. The NR engine (L2) has graph (one or several cells, bitwise identical to its reference, including with random partial resets) and triton (one cell, one fused kernel per control step, equal to rounding); both need its engine RNG (rng="engine", the default). The legacy multi-cell engine has only the reference backend. The surrogate and bound levels (TR to NOCOMM) are written once with graph-safe ops, so their reference backend runs the same operations as graph, which is bitwise identical to it. On an idle GPU the NR uplink costs about 3.5 times the legacy reference per step and 4–6 times the legacy triton kernel.

Network step time (submit + step, dict outputs) in ms on an idle RTX 4090, median of 3 processes (docs/performance.md has every level, backend and size, the memory and the spreads):

level	256 × 16 reference	graph	triton	4,096 × 100 reference	graph	triton
L0, L0DR	1.2–1.4	0.36		4.7	10.6
L05, L05Q	1.5–1.6	0.40		5.0–5.1	10.9
L1	15.1	1.9	0.36	107	108	11.1
L2-legacy	94	9.7	0.46	191	135	17.7
L2 (NR, uplink, NRConfig())	330	50	1.7	2,310	2,228	67.8
L2 (NR, uplink, v2 minus BSR)			2.0			94.4
L2 (NR, uplink + downlink, NRConfig())	1,540	240	5.7	11,467	11,084	295

NRConfig() is the engine's default configuration and is not validated against 5G-LENA: its replay of the 5G-LENA sweep puts the median delay 30–76% low. "v2 minus BSR" is lena_validation_v2() without the SR / BSR grant pipeline, the closest validated configuration the fused kernel accepts (median delay error −3.5% / −5.7% / −0.8% at light / moderate / saturated load, docs/fidelity-vs-lena.md). At 4,096 × 100 the fixed-shape graph versions of the delay levels are memory-bound and slower than the eager reference, which only touches the new and finished frames, and the NR graph backend costs as much as its reference. triton is the scale path. tests/scripts/test_equiv.py, test_reset.py and benchmarks/bench.py reproduce these results, and pytest -m gpu runs the equivalence checks as tests.

Validation

The engine is checked in four independent ways. Each check is a tool in the package or in benchmarks/, and each page lists its setup, its numbers and where the model still differs.

• Backend equivalence. Every fast backend is tested against the readable reference of its level: graph bitwise (per-message outputs, every queue and MAC state, through random partial resets), triton and compile to rounding. The same holds for the NR engine, the surrogates, the Wi-Fi level, the edge stage, adaptive fidelity and sharding, and the Isaac Lab and MJX layers replay bitwise against a direct engine run. pytest -m gpu runs these tests (docs/performance.md, tests/README.md).
• ns-3 5G-LENA. ns-3.48 with 5G-LENA v5.1 is the packet-level reference. A 186-run sweep over 1 to 64 UEs, two frame sizes and 13–160% offered load is replayed in the NR engine with the same per-UE link budgets and offered traffic (lena_validation(), python -m isaac_net.bridges.ns3_offline.lena_replay). The formal comparison reports delay quantiles, KS and Wasserstein distances, drops, goodput, HARQ and PRB use per run, with a fit and hold-out split for the one fitted parameter. Over the 153 runs of the no-fading arm the median p95-delay error is −7.8% and the median drop-rate difference −0.63 pp, and the engine is optimistic in loaded cells. A follow-up traced that gap to 5G-LENA's scheduler sharing, grant pipeline and RLC timing, and these mechanisms are being folded into the engine (docs/validation-5g-lena.md, docs/fidelity-vs-lena.md, docs/fidelity-load-gap.md). Co-simulation bridges (lockstep, process pool, offline replay) run a task against ns-3 directly (docs/bridges.md).
• OAI 5G rfsim. OpenAirInterface's gNB, nr-UE and core network, connected through the RF simulator, run behind a lockstep bridge with 1 to 10 UEs. The measured uplink access, HARQ and contention are compared with the engine's presets, and the fitted oai_rfsim preset matches the stock stack's single-UE small-frame delays to a median Wasserstein-1 distance of 2.5 ms (docs/bridges-oai.md).
• Public data and real cells. Uplink latency fits to srsRAN and OAI measurements, a contention check on ColO-RAN and channel fits on POWDER drive tests produced the srsran_like and oai_like presets (docs/calibration-public-data.md). The measurement protocol and its tools (isaac-net-measure) are ready for a lab gNB and POWDER, for the layers public data cannot reach (docs/measurement-protocol.md).

The Wi-Fi level is validated separately against Bianchi's model, an exact slot-level CSMA/CA simulator and ns-3's 802.11ax model (docs/wifi.md). All bridges and measurement tools are for validation only and are never needed for training. The ns-3 bridges need a local ns-3 + 5G-LENA build, which is not part of this package, and binaries built from them are GPL-covered (docs/licensing.md).

Benchmark suite

isaac_net.bench gives network-aware multi-robot learning a common set of tasks, metrics and baselines. Four tasks run E envs of R robots on one GPU and talk to the network only through the NetModule of the Isaac Lab layer: fleet_alert (detection frames warn the fleet of hazards), coop_map (map patches keep an edge map fresh), coverage_nav (navigation under a remote supervisor that stops robots it has not heard from) and edge_control (tracking with an edge-offloaded controller). Every task has default, light and background variants and runs on any level and backend, and every run writes one versioned JSON result file.

isaac-net-bench list                                         # tasks, variants, levels, presets, baselines
isaac-net-bench run --task coop_map --level L2-legacy --backend triton \
    --baselines random,heuristic,ppo_mlp --seeds 0,1,2 --out results/
isaac-net-bench report results/                              # mean ± 95% CI over seeds, as a Markdown table
isaac-net-bench calibrate --task all --level L2-legacy --backend triton   # offered vs delivered load

python -m isaac_net.bench is the same command. The suite ships random, heuristic and PPO (MLP and GRU) baselines and sanity numbers that show the pipeline works, not tuned results. The task API, the metrics, the result format and how to add a task or submit a baseline are in docs/benchmark-suite.md.

Roadmap

• Slot-level uplink engine and lower fidelity levels
• graph backend, bitwise equal to the reference, and triton backend for scale
• Package layout isaac_net/ (core, isaac, mjx, bridges, bench, examples, tools) per ARCHITECTURE.md
• Partial resets per env, per-env clocks and the submit / step dict API, at every level and backend
• Engine-owned random streams at every level
• Configurable NR: numerology, TDD patterns, 3GPP MCS/TBS and BLER tables, multiple HARQ processes, downlink, schedulers
• graph backend for the NR engine (one or several cells) and triton for one cell
• Multi-cell interference and handover, in the NR engine and the legacy engine
• Selectable channel models (TR 38.901, radio maps, blockage, per-robot Doppler) and radio maps baked from USD scenes
• Traffic models, edge-computing loop, background users, radio energy model
• Wi-Fi level (802.11 DCF / EDCA)
• Uncontended Isaac Lab scaling benchmarks on an idle GPU (see docs/performance.md)
• Validation against ns-3 5G-LENA (formal study) and public measurement traces; OAI rfsim as a real-stack check
• Fitted surrogate levels (trace replay, Markov-modulated, analytic queue, learned) and ORACLE / NOCOMM bounds
• Adaptive and mixed fidelity per env, differentiable fluid models, multi-GPU sharding
• Isaac Lab 3.0 integration on the engine API: DirectRLEnv mixin, network domain randomization, fleet and warehouse demo envs, PPO; Windows install and Linux / HPC recipe
• Second backend: MuJoCo Playground / MJX (JAX) through a zero-copy buffer_callback, fleet env, Brax PPO
• Benchmark suite: four tasks, metrics, baselines, result format
• Validation against ns-3 5G-LENA, OAI 5G rfsim and public measurement data
• Test suite (CPU tests, GPU equivalence tests), CI, docs site, 0.1.0 packaging
• Uncontended speed and scale benchmarks (in flight)
• Load-gap mechanisms of 5G-LENA as NR engine switches (in flight)
• triton for the multi-cell NR engine and a tiled kernel for large R
• Lab gNB and POWDER measurement campaign; multi-cell calibration against a reference
• Isaac Sim (Kit) on Linux clusters once a final Isaac Lab 3.0 container exists
• Public release and PyPI

Repository layout

isaac-net/
├── isaac_net/
│   ├── core/                     # backend-agnostic engines, no simulator imports
│   │   ├── config.py             #   NRConfig, the one config dataclass, and its presets
│   │   ├── engine.py             #   make_engine(level, ...) and NREngine, the contract API of every level
│   │   ├── nr_engine.py          #   configurable NR engine (L2): slot schedule, fading, UL/DL, cells, partial reset
│   │   ├── nr_fast.py nr_triton.py nr_rng.py   # NR graph and triton backends, engine-owned NR random streams
│   │   ├── phy.py  queues.py     #   3GPP MCS/TBS/BLER/EESM; fixed-shape frame FIFOs on a byte stream
│   │   ├── mac.py mac_ul.py mac_dl.py   # per-slot MAC: multi-HARQ, schedulers, link adaptation; UL and DL hooks
│   │   ├── radio.py  traffic.py  #   per-link radio, cell association and handover; Requests, TrafficModel
│   │   ├── channels/             #   log-distance fields, TR 38.901, radio maps, blockage, per-robot Doppler
│   │   ├── edge.py               #   EdgeLoop: edge servers and the return path on top of any engine
│   │   ├── background.py energy.py slot_tap.py  # background users; radio energy and battery; read-only slot tap
│   │   ├── adaptive.py           #   AdaptiveEngine: cheap and expensive level per env, curriculum
│   │   ├── sharded.py            #   ShardedEngine: envs split over several GPUs
│   │   ├── nr_loadfix.py         #   prototype of the 5G-LENA load-gap mechanisms (NR engine subclasses)
│   │   ├── wifi/                 #   level WIFI: 802.11 rates, mean-field DCF / EDCA, engine, event simulator
│   │   ├── diff/                 #   differentiable L1D / QAD, reference rollouts, neural-proxy recipe
│   │   ├── levels/               #   fitted surrogates TR, GE, QA, NN and the ORACLE / NOCOMM bounds
│   │   ├── proto/                #   prototype levels L0 ... L1 and L2-legacy: reference, fast backends,
│   │   │                         #   Triton kernels, counter RNG, and the multi-cell NetSlotMC
│   │   └── data/                 #   Sionna BLER tables (Apache-2.0), synthetic radio map
│   ├── isaac/                    # Isaac Lab layer: NetModule, IsaacNetCfg, DirectRLEnv mixin, mdp terms, scene maps
│   ├── mjx/                      # MuJoCo Playground / MJX layer: NetModuleMJX (JAX buffer_callback)
│   ├── bench/                    # benchmark suite: task API, four tasks, metrics, baselines, runner, CLI
│   ├── bridges/                  # validation only
│   │   ├── ns3_lockstep/ ns3_pool/ ns3_offline/   # ns-3 co-simulation and offline replay
│   │   ├── ns3/                  #   the C++ ns-3 programs and their build scripts
│   │   └── oai/                  #   OAI 5G rfsim bridge: stack, agents, virtual clock, deploy/
│   ├── examples/                 # fleet_task.py (pure torch), edge_control.py, traffic_models.py,
│   │                             # isaac_fleet_env.py, isaac_warehouse_env.py (Isaac Lab), mjx_fleet_env.py (MJX)
│   └── tools/                    # PHY table export, local 5G-LENA table extraction, surrogate fits (fit_levels),
│       ├── scene/                #   USD export, Sionna RT bake (isaac-net-bake), synthetic scenes
│       └── measure/              #   gNB log parsers, UDP probe, calibration (isaac-net-measure)
├── tests/                        # pytest suite; scripts/ (equivalence scripts), mjx/, bridges/ (need ns-3 or OAI)
├── benchmarks/                   # engine, NR, multi-cell, sharding, adaptive, differentiable, fidelity, Isaac,
│                                 # MJX, ns-3 and OAI benchmarks and campaigns, with their small result CSVs
├── tutorials/                    # tutorial scripts behind the notebooks of the docs site
├── docs/                         # docs site sources (mkdocs.yml): concepts, tutorials, API reference, project notes
├── prototype/                    # compatibility shims for the old module paths
├── scripts/                      # GPU test runner; windows/: Isaac install and SYSTEM-task helpers; hazel/: Slurm templates
├── ARCHITECTURE.md               # package layout, interface contract and module status
├── CHANGELOG.md  RELEASE.md      # release notes; how to cut a release
├── CONTRIBUTING.md
└── LICENSE

Documentation

The project website is isaacnet.zifanzhang.com, with an overview, the validation results, the scale numbers and a quick start. Collaborator documentation lives in docs/ and builds into a site with mkdocs build --strict (extra docs): concepts, five tutorials, the API reference, the benchmark suite and licensing. The project notes cover the project status with open items and starter tasks, configurability with the feature matrix against 5G-LENA, Sionna SYS and Simu5G, channel models, radio maps from USD scenes, multi-cell networks, Wi-Fi, background users, energy and sharding, adaptive fidelity, differentiable models, performance with the backend equivalence methodology, the Isaac Lab integration and its Linux / HPC recipe, the MuJoCo Playground / MJX backend, the 5G-LENA validation with the formal comparison and the load-gap study, the ns-3 bridges, the OAI rfsim bridge, the public-data calibration and the real-network measurement protocol.

Contributing

The repository is private while the first paper is in preparation. Collaborators should start from CONTRIBUTING.md, the open roadmap items and the starter tasks in docs/STATUS.md. Changes to the prototype levels go into the eager reference first, and the graph backend must stay bitwise equal to it. New MAC and PHY modelling goes into the NR engine. RELEASE.md describes how a release is cut.

Citation

The paper describing Isaac-Net is under submission; an arXiv link will be added when it is posted. Zifan Zhang and Mingzhe Han contributed equally.

@article{zhang2026isaacnet,
  title   = {Network-in-the-Loop at Scale: GPU-Batched 5G Simulation for Massively Parallel Robot Learning},
  author  = {Zhang, Zifan and Han, Mingzhe and Athreya, Kannan and Liu, Yuchen},
  year    = {2026},
  note    = {Zifan Zhang and Mingzhe Han contributed equally}
}

License

BSD-3-Clause, see LICENSE. The shipped Sionna tables are Apache-2.0 (isaac_net/core/data/LICENSE-sionna-Apache-2.0). No ns-3 or 5G-LENA code or data and no OAI configuration files are included. docs/licensing.md covers the locally generated 5G-LENA tables, the GPL status of binaries built from the ns-3 bridge programs, Isaac Sim and the Omniverse EULA, and the licenses of the public datasets used for calibration.
