iso8583sim 1.1.3

High-performance ISO 8583 message simulator with CLI, Python SDK, and LLM features

ISO8583 Simulator

A modern, high-performance ISO 8583 message simulator with CLI, Python SDK, and AI-powered message explanation and generation.

Features

• Message Handling:

  • Parse ISO 8583 messages (180k+ TPS with Cython)
  • Build ISO 8583 messages (150k+ TPS)
  • Validate message structure and content
  • Support for ISO versions (1987, 1993, 2003)

• Network Support:

  • VISA, Mastercard, AMEX, Discover, JCB, UnionPay
  • Network-specific field validation
  • EMV/chip card data handling (Field 55)

• Multiple Interfaces:

  • Command Line Interface (CLI)
  • Python SDK for programmatic usage
  • Interactive Jupyter notebooks

• AI-Powered Features:

  • Explain ISO 8583 messages in plain English using LLMs
  • Generate messages from natural language descriptions
  • Supports OpenAI, Anthropic, Google, and Ollama (local/offline)

• Performance Optimized:

  • Optional Cython extensions for 2x speedup
  • Object pooling for high-throughput scenarios
  • See Performance Guide

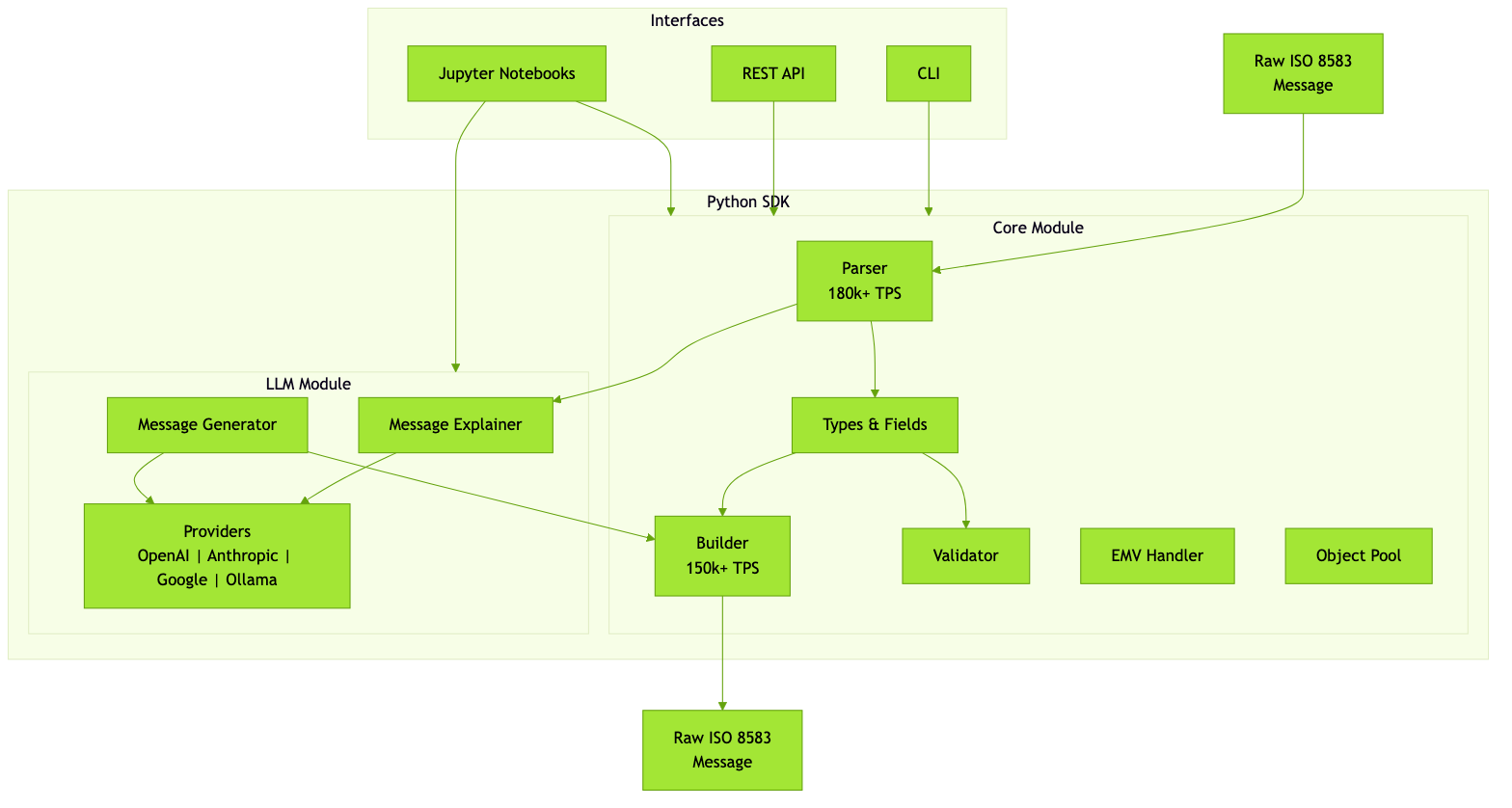

Architecture

Installation

pip install iso8583sim

# For Cython performance extensions
pip install iso8583sim[perf]
python setup.py build_ext --inplace

Quick Start

Python SDK

from iso8583sim.core.parser import ISO8583Parser
from iso8583sim.core.builder import ISO8583Builder
from iso8583sim.core.validator import ISO8583Validator
from iso8583sim.core.types import ISO8583Message

# Build a message
builder = ISO8583Builder()
message = ISO8583Message(
    mti="0100",
    fields={
        0: "0100",
        2: "4111111111111111",
        3: "000000",
        4: "000000001000",
        11: "123456",
        41: "TERM0001",
        42: "MERCHANT123456 ",
    }
)
raw = builder.build(message)

# Parse a message
parser = ISO8583Parser()
parsed = parser.parse(raw)

# Validate a message
validator = ISO8583Validator()
errors = validator.validate_message(parsed)

CLI Usage

# Parse a message
iso8583sim parse "0100..." --version 1987

# Build a message
iso8583sim build --mti 0100 --fields fields.json

# Validate a message
iso8583sim validate "0100..."

# Generate sample messages
iso8583sim generate --type auth --pan 4111111111111111 --amount 1000

AI-Powered Features

Use LLMs to understand, explain, and generate ISO 8583 messages.

Explain Messages in Plain English

from iso8583sim.llm import MessageExplainer

explainer = MessageExplainer()  # Auto-detects available provider
explanation = explainer.explain(message)

This is a $100.00 VISA purchase authorization request at a gas station. The card expires December 2026 and was read via chip (EMV). Expected response: MTI 0110 with response code 00 (approved) or 51 (insufficient funds).

Generate Messages from Natural Language

from iso8583sim.llm import MessageGenerator

generator = MessageGenerator()
message = generator.generate("$50 refund to Mastercard at ACME Store")
# Returns a fully-formed ISO8583Message ready to use

Supported Providers

Provider	Type	Installation
OpenAI (GPT-4o)	Cloud	pip install iso8583sim[openai]
Anthropic (Claude)	Cloud	pip install iso8583sim[anthropic]
Google (Gemini)	Cloud	pip install iso8583sim[google]
Ollama (Llama, Qwen, Mistral)	Local	pip install iso8583sim[ollama]

Ollama runs completely offline with no API keys needed.

See the OpenAI notebook or Ollama notebook for complete examples.

Interactive Notebooks

Learn ISO 8583 with our Jupyter notebooks:

Notebook	Description
01_getting_started.ipynb	Basic concepts and quick start
02_parsing_messages.ipynb	Deep dive into message parsing
03_building_messages.ipynb	Building various message types
04_network_specifics.ipynb	VISA, Mastercard, and other networks
05_emv_data.ipynb	Working with EMV/chip card data
06_benchmarking.ipynb	Performance testing and benchmarks
07_llm_features.ipynb	AI-powered message explanation and generation (OpenAI)
08_llm_features_ollama.ipynb	AI-powered features with local Ollama (offline, private)

Run locally:

pip install jupyter
jupyter notebook notebooks/

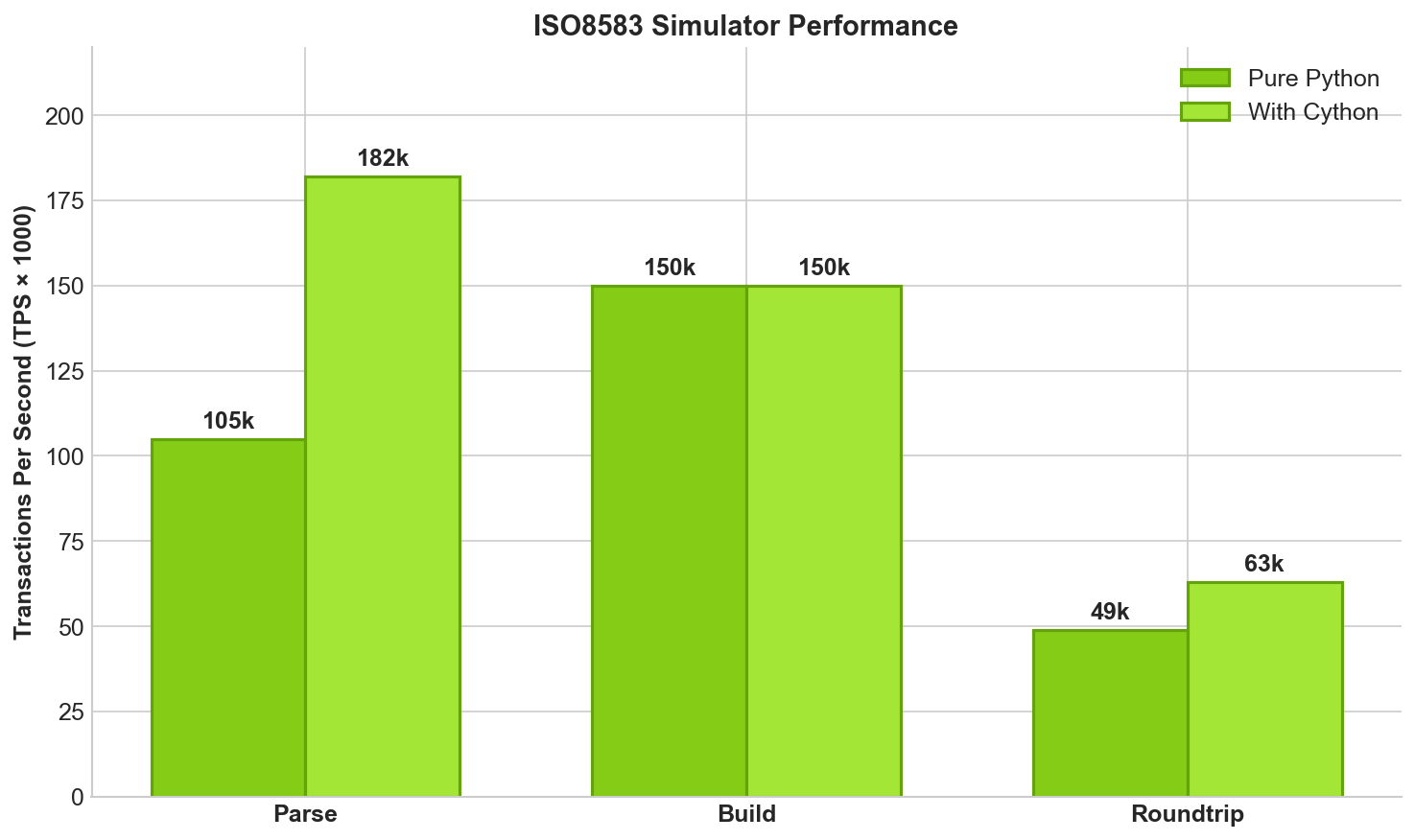

Performance

Benchmarks on Apple Silicon (M-series), Python 3.12:

Operation	Pure Python	With Cython
Parse	~105k TPS	~182k TPS
Build	~150k TPS	~150k TPS
Roundtrip	~49k TPS	~63k TPS

See benchmarks/BASELINE.md for detailed results.

Documentation

Full documentation is available at iso8583.subhadipmitra.com

• Getting Started - Quick start guide
• Architecture - System design and decisions
• API Reference - Complete API documentation
• Performance Guide - Optimization techniques

Development

# Clone and setup
git clone https://github.com/bassrehab/ISO8583-Simulator.git
cd iso8583sim
python -m venv .venv
source .venv/bin/activate
pip install -e ".[dev]"

# Run tests
pytest

# Run benchmarks
python benchmarks/bench_parser.py
python benchmarks/bench_roundtrip.py

Contributing

1. Fork the repository
2. Create your feature branch (git checkout -b feature/my-feature)
3. Commit your changes (git commit -am 'Add new feature')
4. Push to the branch (git push origin feature/my-feature)
5. Create a Pull Request

Author

Subhadip Mitra - subhadipmitra.com

• GitHub: @bassrehab
• LinkedIn: subhadipmitra

License

MIT License - see LICENSE for details.
