jboat 0.0.1

BOAT: A Compositional Operation Toolbox for Gradient-based Bi-Level Optimization

A Compositional Operation Toolbox for Gradient-based Bi-Level Optimization

Home | Installation | Docs | Tutorials | Examples

JBOAT is a compositional OperAtion-level Toolbox for gradient-based BLO. Unlike existing libraries that typically encapsulate fixed solver routines, JBOAT factorizes the BLO workflow into atomic, reusable primitives. Through a unified constraint reconstruction perspective, it empowers researchers to automatically compose over 85+ solver variants from a compact set of 17 gradient operations.

This is the Jittor-based version of JBOAT (jboat). It leverages Jittor’s Just-In-Time (JIT) compilation and efficient CUDA/cuDNN backends to significantly accelerate large-scale gradient-based BLO experiments.

🔑 Key Features

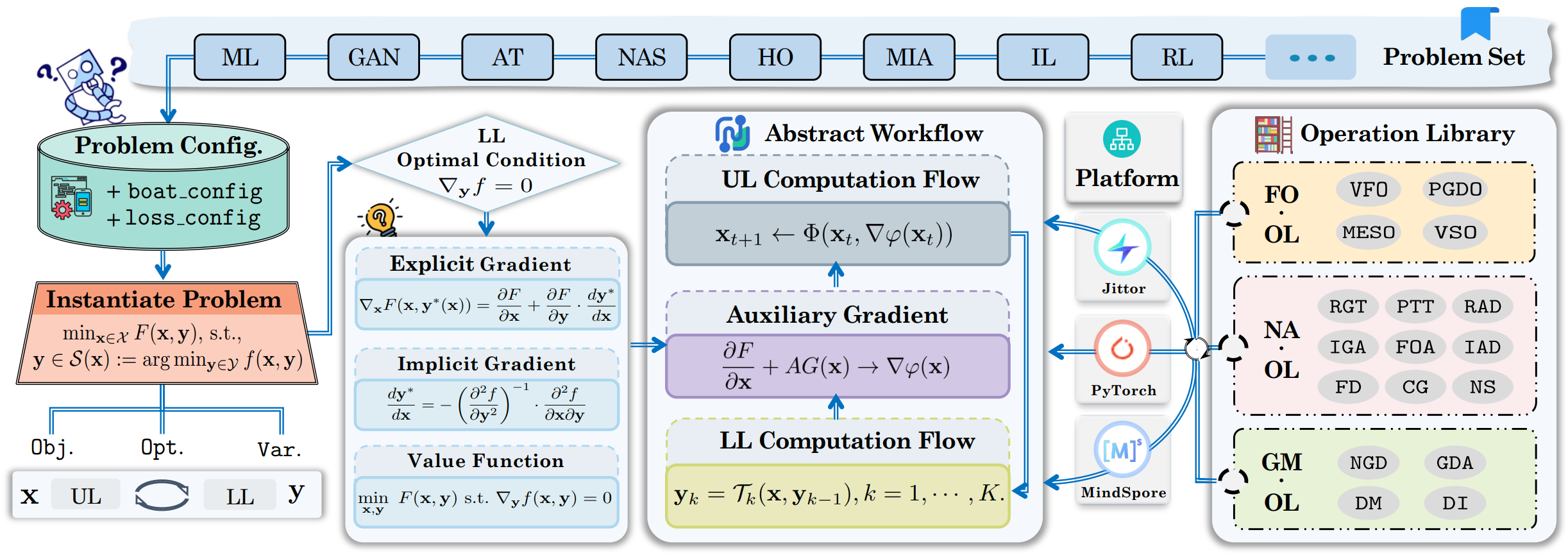

• 🧩 Compositional Operation-Level Abstraction: Deconstructs BLO solvers into three modular stages: Gradient Mapping (GM), Numerical Approximation (NA), and First-Order (FO).
• ⚡ Accelerated JIT Execution: Built on Jittor, enabling meta-operator fusion and high-performance execution on NVIDIA GPUs.
• 🏭 Generative Solver Construction: Supports dynamic serialization of operations. Users can recover classical algorithms or discover novel hybrid solvers simply by changing configurations.
• 🛠 Configuration-Driven: Define complex optimization strategies via simple JSON configurations, decoupling algorithmic logic from model definitions.
• ✅ Comprehensive Testing: Achieves 99% code coverage through rigorous testing with pytest, ensuring software robustness.

📚 Supported Operation Libraries

JBOAT implements 17 atomic gradient operations organized into three modular libraries. These primitives can be dynamically serialized to generate over 85+ solver variants, covering the full spectrum of BLO methodologies.

Library	Functional Role	Supported Atomic Operations
GM-OL (Gradient Mapping)	Reconstructs the LL iterative trajectory. Customizes the dynamic mapping rules ($\mathcal{T}_k$) to shape the optimization path and variable coupling.	• NGD (Naive Gradient Descent) • GDA (Gradient Descent Aggregation) • DI (Dynamic Initialization) • DM (Dual Multiplier / KKT)
NA-OL (Numerical Approx.)	Resolves the auxiliary gradient bottleneck. Approximates the implicit gradients or hyper-gradients via automatic differentiation, numerical inversion, or truncation.	• RAD (Reverse-AD / Unrolled) • RGT (Reverse Gradient Truncation) • PTT (Pessimistic Trajectory Truncation) • FD (Finite Difference / DARTS) • CG (Conjugate Gradient) • NS (Neumann Series) • IGA (Implicit Gradient Approximation) • IAD (Init-based AD / MAML) • FOA (First-Order Approx. / Reptile)
FO-OL (First-Order)	Constructs single-level surrogates. Reformulates the nested problem into first-order objectives using value-functions or penalties, avoiding Hessian computations.	• VSO (Value-Function Sequential) • VFO (Value-Function First-Order) • MESO (Moreau Envelope) • PGDO (Penalty Gradient Descent)

🔨 Installation

JBOAT is built on top of Jittor. Please ensure Jittor is installed correctly before installing JBOAT.

1. Install Jittor

Follow the Official Installation Guide or use the commands below:

Linux (Ubuntu / CentOS)

sudo apt install python3.8-dev libomp-dev
python3.8 -m pip install jittor
# Verify installation (Optional)
python3.8 -m jittor.test.test_example

Windows

python -m pip install jittor
python -m jittor.test.test_core

macOS

brew install libomp
python3.8 -m pip install jittor

2. Install jboat

Once Jittor is ready, install jboat via PyPI or Source:

# Install from PyPI
pip install jboat

# Or install from Source (Specific Branch)
git clone https://github.com/vis-opt-group/JBOAT.git
cd JBOAT
pip install -e .

⚡ How to Use JBOAT

JBOAT separates the problem definition from the solver configuration. Below is a Jittor-based example.

1. Load Configurations

import json
import jboat as boat

# Load algorithmic configurations
with open("configs/boat_config.json", "r") as f:
    boat_config = json.load(f)

# Load objective configurations
with open("configs/loss_config.json", "r") as f:
    loss_config = json.load(f)

2. Define Models and Optimizers

Use standard Jittor models and optimizers.

import jittor as jit

# Define models
upper_model = MyUpperModel()
lower_model = MyLowerModel()

# Define optimizers (Jittor syntax)
upper_opt = jit.nn.Adam(upper_model.parameters(), lr=1e-3)
lower_opt = jit.nn.SGD(lower_model.parameters(), lr=1e-2)

3. Customize & Initialize Problem

Inject runtime objects into the configuration.

# Configure JBOAT with Jittor models/optimizers
boat_config["lower_level_model"] = lower_model
boat_config["upper_level_model"] = upper_model
boat_config["lower_level_opt"] = lower_opt
boat_config["upper_level_opt"] = upper_opt

# Initialize the JBOAT core
b_optimizer = boat.Problem(boat_config, loss_config)

4. Build Solvers

Inject runtime objects into the configuration.

# Pass optimizers explicitly if needed by the solver backend
b_optimizer.build_ll_solver(lower_opt)
b_optimizer.build_ul_solver(upper_opt)

5. Run Optimization Loop

# Training loop
for x_itr in range(1000):
    # Prepare data (Jittor Arrays or dicts)
    ul_feed_dict = {"data": ul_data, "target": ul_target}
    ll_feed_dict = {"data": ll_data, "target": ll_target}

    # Run one iteration
    loss, run_time = b_optimizer.run_iter(ll_feed_dict, ul_feed_dict, current_iter=x_itr)

    if x_itr % 100 == 0:
        print(f"Iter {x_itr}: UL Loss {loss:.4f}")

🌍 Applications

JBOAT covers a wide spectrum of BLO applications, categorized by the optimization target:

• Data-Centric: Data Hyper-Cleaning, Synthetic Data Reweighting, Diffusion Model Guidance.
• Model-Centric: Neural Architecture Search (NAS), LLM Prompt Optimization, Parameter Efficient Fine-Tuning (PEFT).
• Strategy-Centric: Meta-Learning, Hyperparameter Optimization (HO), Reinforcement Learning from Human Feedback (RLHF).

📝 Citation

If you find JBOAT useful in your research, please consider citing our paper:

@article{liu2025boat,
  title={BOAT: A Compositional Operation Toolbox for Gradient-based Bi-Level Optimization},
  author={Liu, Yaohua and Pan, Jibao and Jiao, Xianghao and Gao, Jiaxin and Liu, Zhu and Liu, Risheng},
  journal={Submitted to Journal of Machine Learning Research (JMLR)},
  year={2025}
}
