jbubble 0.1.1

Differentiable microbubble dynamics primitives

🫧 jbubble 🫧

Differentiable microbubble dynamics in JAX.

[!WARNING] Alpha release. jbubble is under active development. APIs may change without deprecation. Please reach out if you'd like to use or contribute to the project!

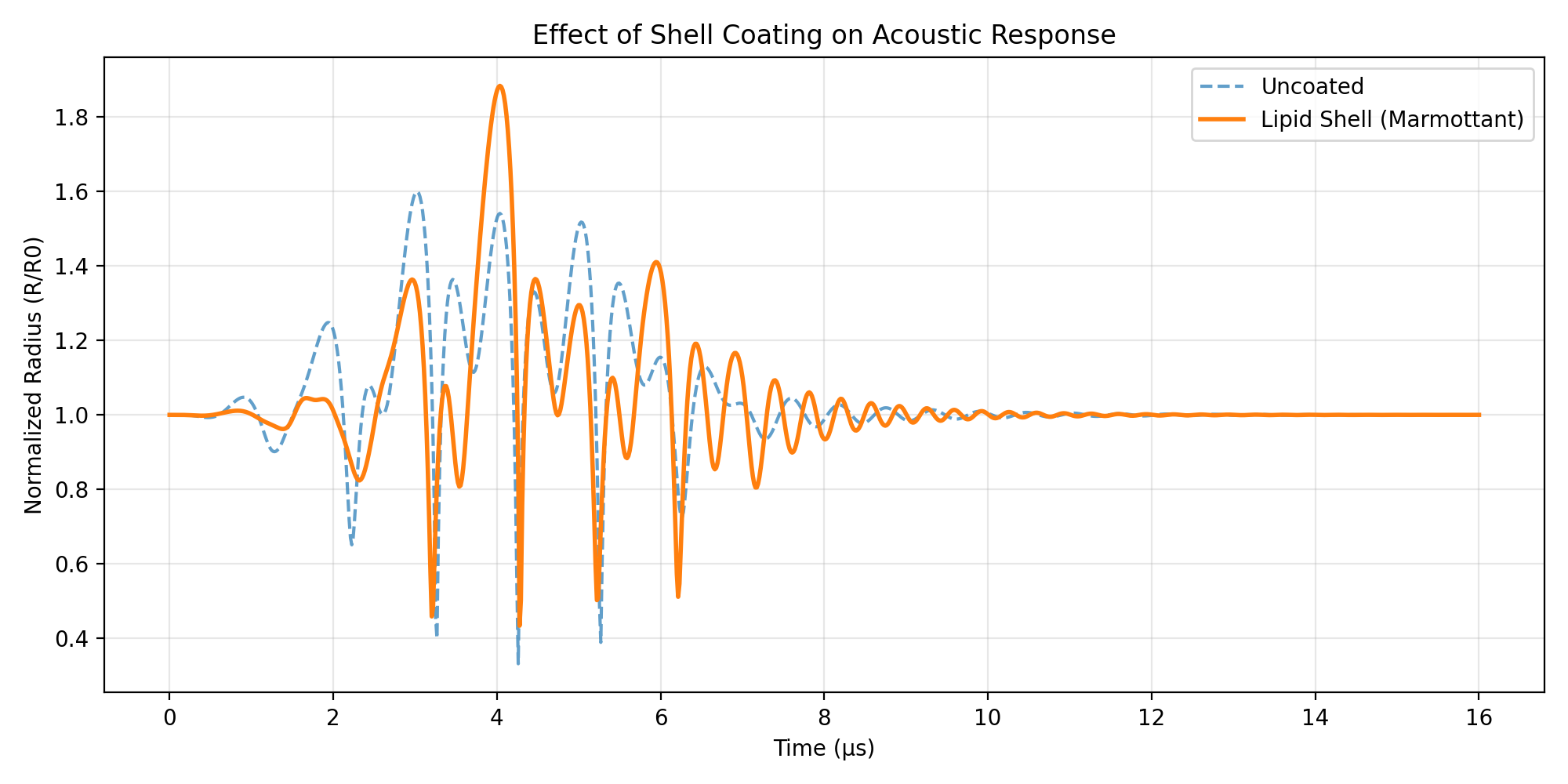

Comparison of R(t) curves, with and without a lipid coating.

---

jbubble is a research library for simulating and fitting acoustic microbubble dynamics, built on JAX, Equinox, and diffrax. Models are designed to be composable, extendable, fully differentiable, and jit-compatible.

Developed by the Noninvasive Surgery & Biopsy Laboratory at Imperial College London.

Why jbubble?

Feature	jbubble	APECSS / MATLAB
JIT compilation	jax.jit	No
Vectorised sweeps	jax.vmap	Script loops
Gradient-based fitting	jax.grad	Finite differences
Composable physics	Mix any gas + shell + medium	Fixed combinations
Neural components	NeuralProperty, NeuralPulse	No

Installation

pip install jbubble

For development:

git clone https://github.com/imperial-nsb/jbubble.git
cd jbubble
pip install -e ".[dev]"

Requires Python ≥ 3.11. See the docs for more information.

Quick start

Using a preset

import jax
from jbubble import run_simulation, SaveSpec
from jbubble.utils.presets import lipid_bubble

eom, pulse = lipid_bubble(R0=2e-6, freq=1e6, pressure=100e3)

result = jax.jit(run_simulation)(
    eom, pulse,
    save_spec=SaveSpec(num_samples=1000),
    t_max=10e-6,
)
print(result.radius.max() / eom.R0)  # peak expansion ratio

Three presets are available: free_bubble, lipid_bubble, and thick_shell_bubble.

Composing models manually

import jax
from jbubble import run_simulation, SaveSpec
from jbubble.bubble.eom import KellerMiksis
from jbubble.bubble.gas import PolytropicGas
from jbubble.bubble.shell import NoShell
from jbubble.bubble.medium import NewtonianMedium
from jbubble.pulse import ToneBurst
from jbubble.pulse.shapes import Sine

eom = KellerMiksis(
    gas=PolytropicGas(gamma=1.4),
    shell=NoShell(sigma=0.072),
    medium=NewtonianMedium(mu=1e-3),
    R0=2e-6, P_amb=101325.0, rho_L=998.0, c_L=1500.0,
)
pulse = ToneBurst(freq=1e6, pressure=100e3, shape=Sine(), cycle_num=5)

result = jax.jit(run_simulation)(
    eom, pulse,
    save_spec=SaveSpec(num_samples=1000),
    t_max=10e-6,
)

Any gas model works with any shell model and any medium model—all combinations are valid and differentiated through automatically via jax.grad.

Key capabilities

• Composable physics — Mix and match 6 equations of motion (Rayleigh-Plesset through Gilmore), 2 gas models, 3 shell models, and 4 medium models. All combinations work automatically.

• Batch parameter sweeps — Run thousands of simulations in parallel with GridSweep, which uses jax.vmap under the hood:

  sweep = GridSweep(fn=simulate, search_space={"R0": radii, "freq": freqs})
  results = sweep.run()  # shape (len(radii), len(freqs))


• Gradient-based fitting — Fit model parameters to experimental data via fit_parameters and optax:

  fit_result = fit_parameters(
      make_model=lambda p: (make_eom(p), pulse),
      params0=initial_guess,
      loss_fn=my_loss,
      optimizer=optax.adam(1e-2),
  )


• Acoustic emissions — Compute radiated pressure at arbitrary field points from solved trajectories using IncompressibleMonopole or QuasiAcoustic emission models.

Examples

The examples/ directory contains 12 self-contained scripts:

#	Script	Description
00	Presets	Quickest start — pick a preset and run
01	Basic simulation	Assemble an EoM from components manually
02	Pulse algebra	Add, scale, and window pulse waveforms
03	Shell models	Compare no-shell, lipid, and thick-shell coatings
04	Batch sweeps	GridSweep + vmap over parameter grids
05	Parameter fitting	Gradient-based estimation of shell elasticity
06	JIT timing	Benchmark JIT compilation vs steady-state throughput
07	Cavitation regimes	Stable vs inertial cavitation physics
08	Acoustic emissions	Monopole and quasi-acoustic radiated pressure
09	Custom pulse shapes	Subclass FourierPulseShape for custom waveforms
10	Envelopes	Envelope types and their gradient compatibility
11	Gradient resonance	2D sweep + gradient descent to resonance peak

Documentation

Full documentation is available at imperial-nsb.github.io/jbubble, including:

• Quickstart guide
• Bubble models guide
• JAX tips (JIT, vmap, grad)
• API reference

Contributing

Contributions are welcome! Please see CONTRIBUTING.md for guidelines.

License

MIT License. Copyright (c) 2026 Noninvasive Surgery & Biopsy Laboratory. See LICENSE for details.
