july 0.1.3

A small library for creating pretty heatmaps of daily data.

July

A small library for creating pretty heatmaps of daily data.

Features

• Get rid of the eternal matplotlib tweaking every time you want to plot data in proper calendar format.
• Generate GitHub activity overview-like heatmaps of your daily data.
• Automatic handling of missing dates in input date range.
• July does not rely only pandas (though it accepts it). Only numpy arrays and native Python data structures are used internally.
• Accepted date formats: datetime.datetime, datetime.date, str, pd.DatetimeIndex

Install

$ pip install july

Usage

import numpy as np
import matplotlib.pyplot as plt
import july
from july.utils import date_range

dates = date_range("2020-01-01", "2020-12-31")
data = np.random.randint(0, 14, len(dates))

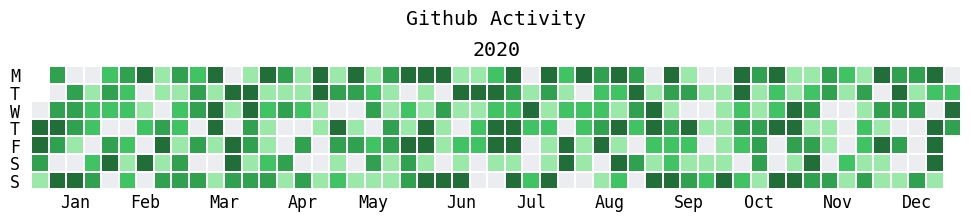

# GitHub Activity like plot (for someone with consistently random work patterns).
july.heatmap(dates, data, title='Github Activity', cmap="github")

# Here, 'osl_df' is a pandas df.
july.heatmap(osl_df.date, osl_df.temp, cmap="golden", colorbar=True, title="Average temperatures: Oslo , Norway")

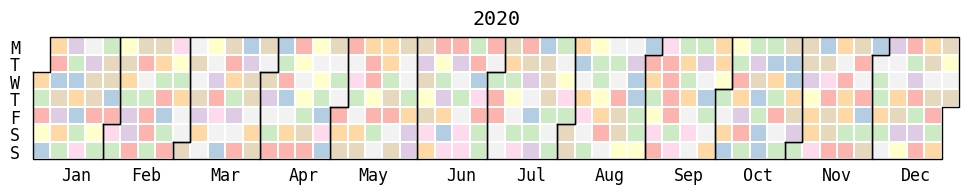

# More exhaustive example using useless, but pretty colours.
july.heatmap(dates=dates,
             data=data,
             cmap='Pastel1',
             month_grid=True,
             horizontal=True,
             value_label=False,
             date_label=False,
             weekday_label=True,
             month_label=True,
             year_label=True,
             colorbar=False,
             fontfamily="monospace",
             fontsize=12,
             title=None,
             titlesize='large',
             dpi=100)

# Month plot with dates.
july.month_plot(dates, data, month=5, date_label=True, ax=axes[0])
# Month plot with values.
july.month_plot(dates, data, month=5, value_label=True, ax=axes[1])

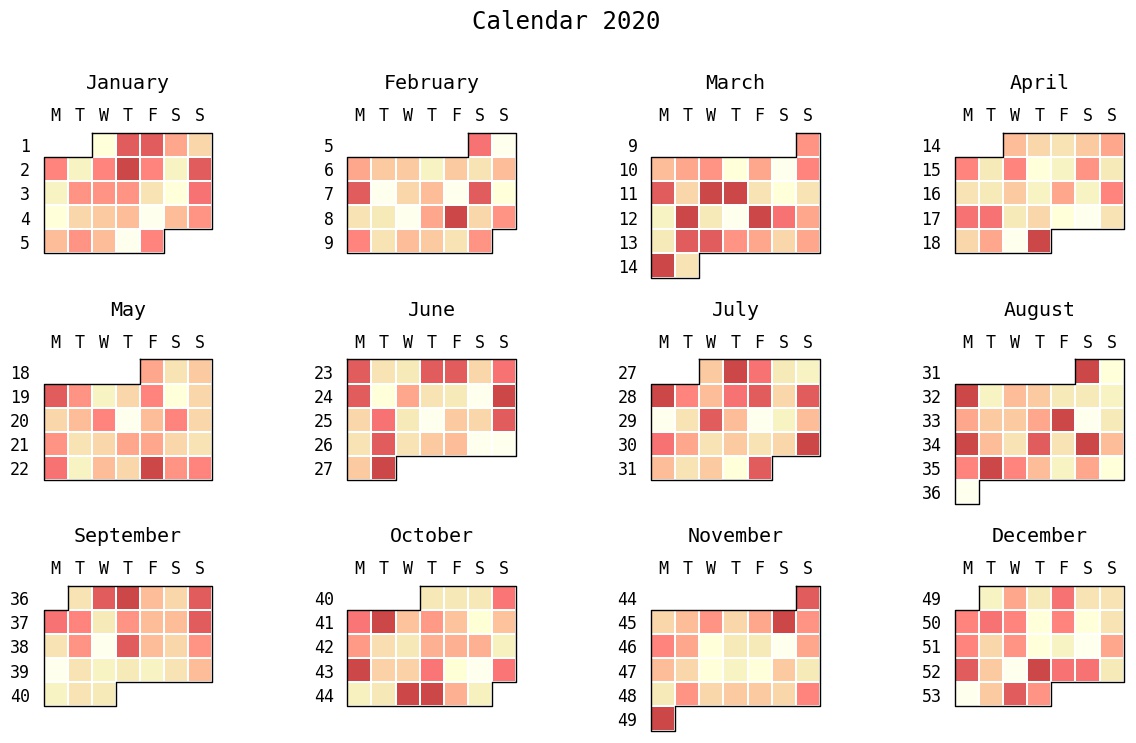

# Calendar plot.
july.calendar_plot(dates, data)

Why "July"?

Main reason: All the obvious names like calplot, calmap, and calendarplot were all already taken by similar packages. This had me looking for a new name that wouldn't get easily mixed up with the other packages.

The reasoning was roughly as follows:

• Heatmap + month → Hot month → July :sparkles:

Also, as a summer loving person stuck in the Northern hemisphere, July is my favourite month by a light year.

Release notes

• v0.1.0: Working build but with minimal documentation.
• v0.1.1: Fix relative image link in readme.
• v0.1.2: Remove unnecessary argument from rcmod to be compatible with matplotlib versions earlier than v3.4.x.
• v0.1.3: Fix week number labelling bug in month_plot() and calendar_plot()

TODO:

• Fix slight misalignment of plot and cbar when date_grid and colorbar are used in conjunction.
• Document everything...
• Add type hints.
• Add automatic date handling for strings of more types than just YYYY-MM-DD.
